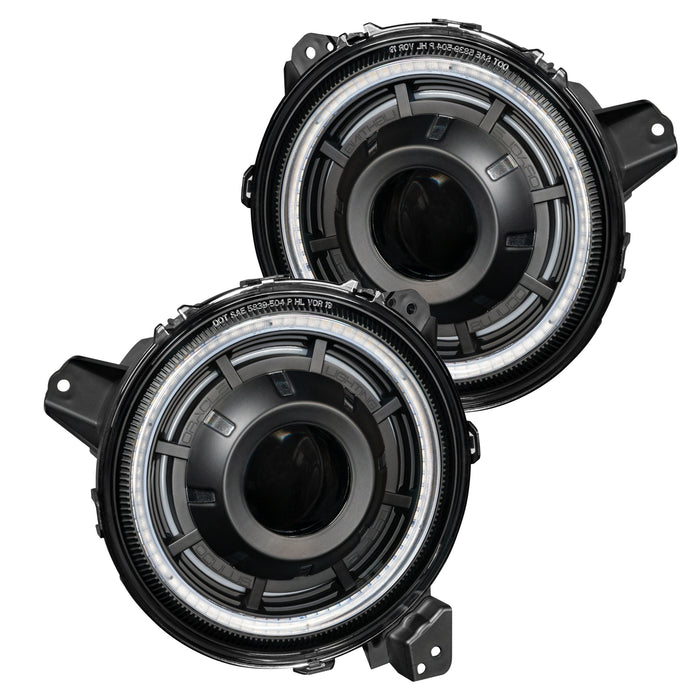

ORACLE Lighting Oculus™ ColorSHIFT Bi-LED Projector Headlights for Jeep JL / Gladiator JT
- Product Description
- What's Included
- Part Numbers
2018-2024 Jeep Wrangler JL
2020-2024 Jeep Gladiator JT

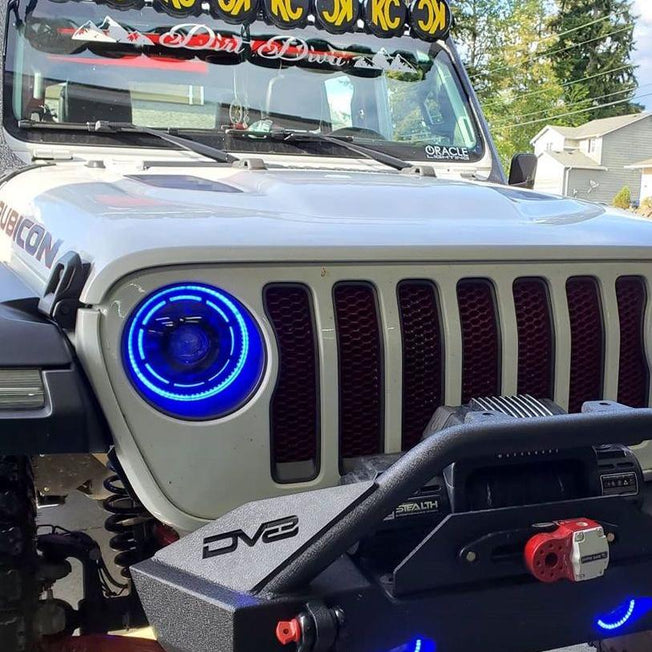

The Popular Oculus™ Bi-LED Headlights by ORACLE Lighting are now available in a ColorSHIFT® RGB+W Color-Changing version. Oculus Headlights feature advanced focused LED projection that outshines all the competition (including the factory LED headlights). With 5,200 Lumens of high-quality Bi-LED projection, these headlights provide enhanced driver visibility in all weather conditions. Light focus is very important for driver safety and for others who can have their vision obstructed by glare. We are proud to offer the most focused & lowest-glare LED Headlights for the JL and JT on the market.

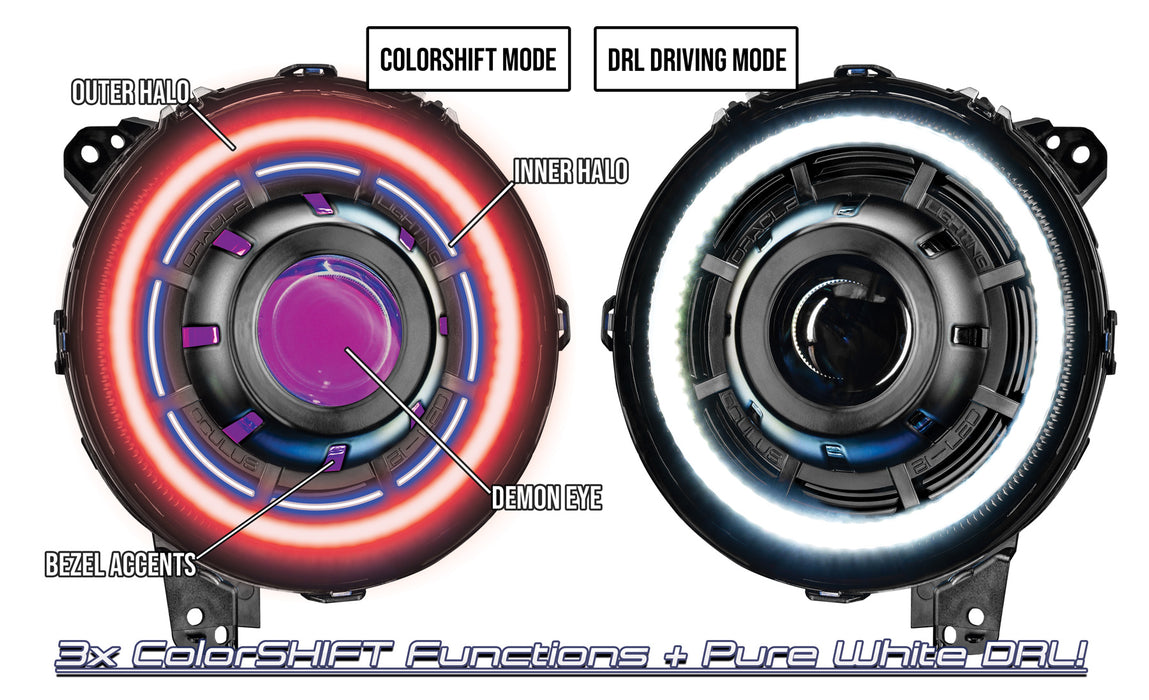

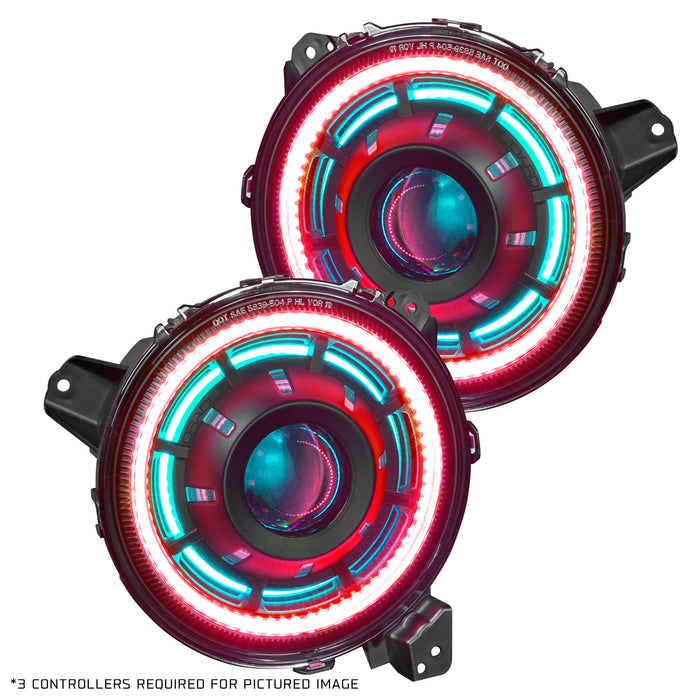

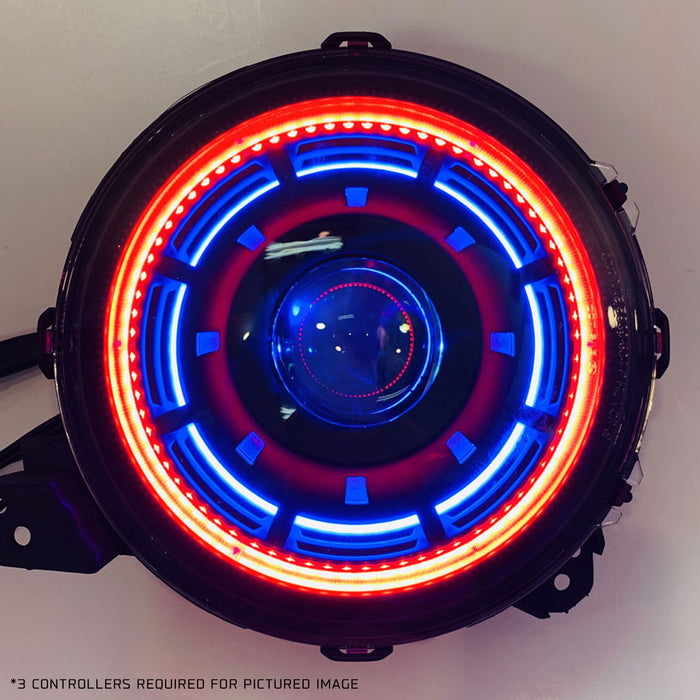

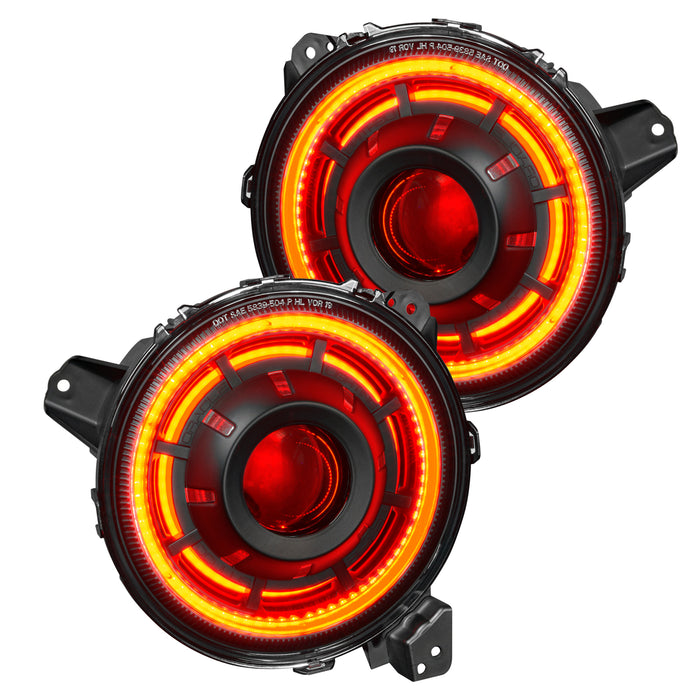

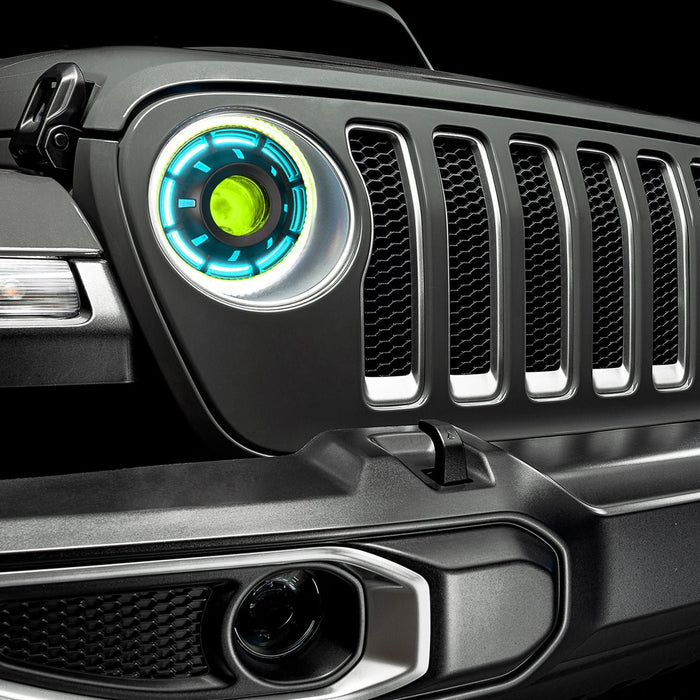

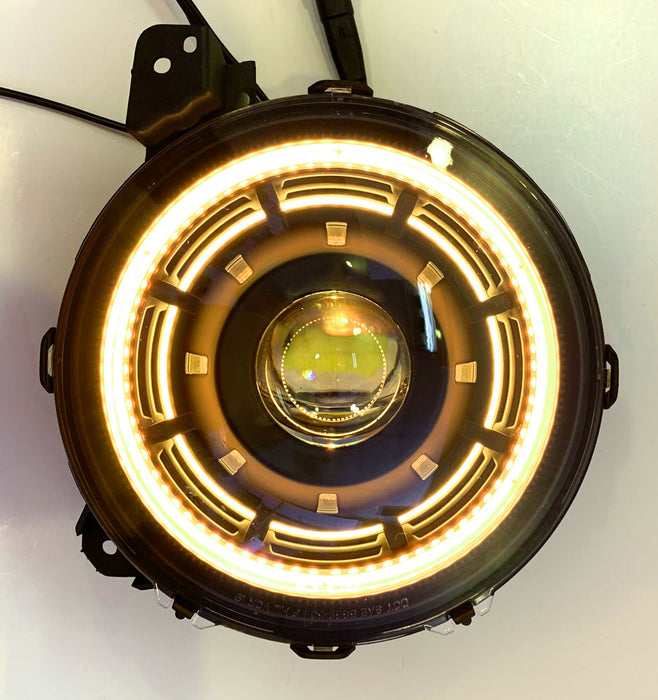

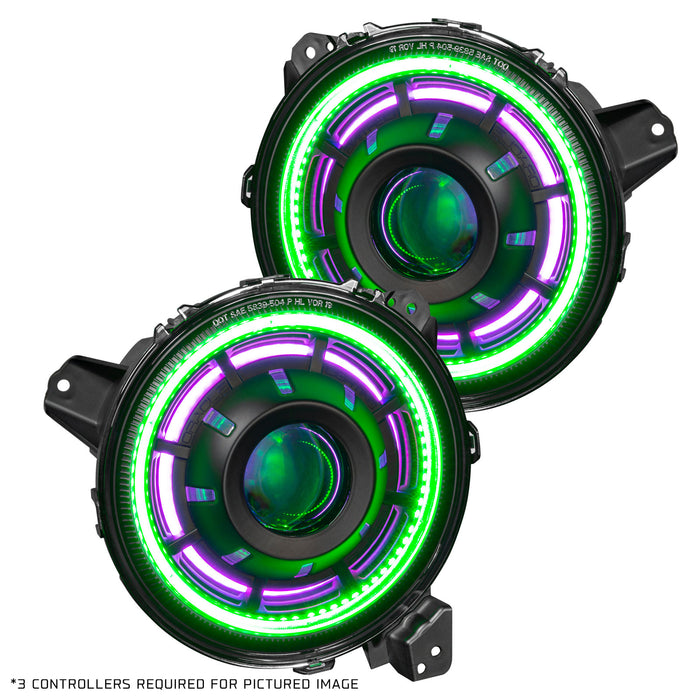

ColorSHIFT® Oculus Headlights feature 3-Tiered RGB features in the lamps:
• Outer Halo Ring (RGB+W)
• Inner Halo Ring (RGB)

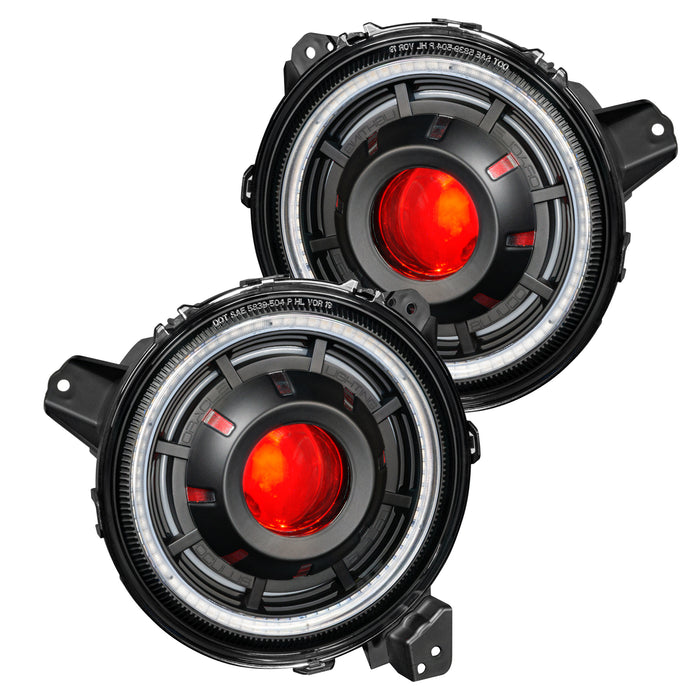

• Projector Demon Eye (RGB)

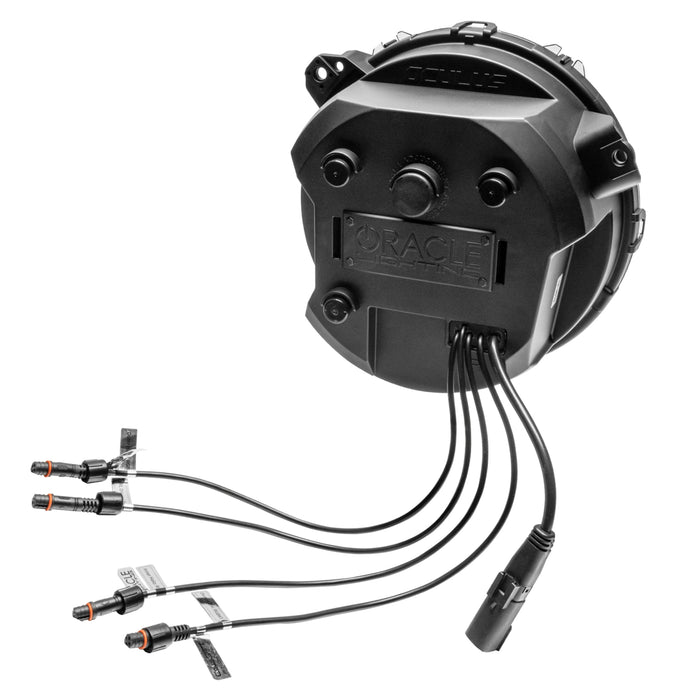

Each LED feature has a separate cable output and can be connected together so all 3 create the same color or set up as 3 separate Channels or “Zones”.

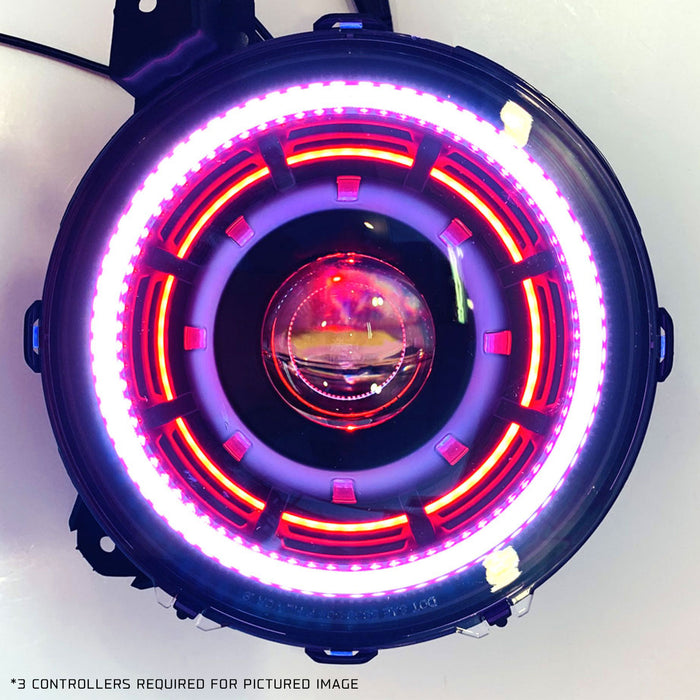

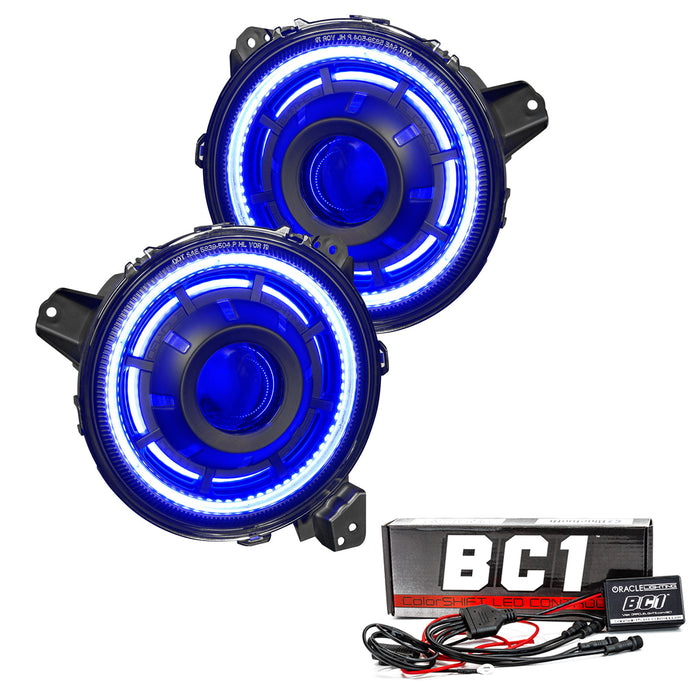

The standard Oculus™ BC1 Kit (PN#5839-335) includes a single BC1 Controller, supporting simultaneous control across the three ColorSHIFT® Zones. Multi-Zone Control, with separate control of all three ColorSHIFT® Zones, can be achieved through the purchase of two additional BC1 Controllers HERE.
The Pure-White DRL has its own wiring harness (same as the original Oculus) that connects to the fuse box with an add-a-circuit for easy and safe integration. The DRL will come on when the engine is running or can be connected to a switch (including the factory Aux switches) for additional user control.
- Headlight Wattage: 36W
- Headlight Total Lumens: 5200LM
- Headlight Color Temp: 5500K
- Certification: DOT SAE 5839-504 HL VOR 19
- 2 year warranty
Precision LED lighting projector for optimum light distribution and beam angle. Installs using original mounting hardware and headlight wiring is Plug & Play into the factory connector without additional relays or harnesses. Halo DRL features over 200 bright white LEDs for a vivid lighting impact.

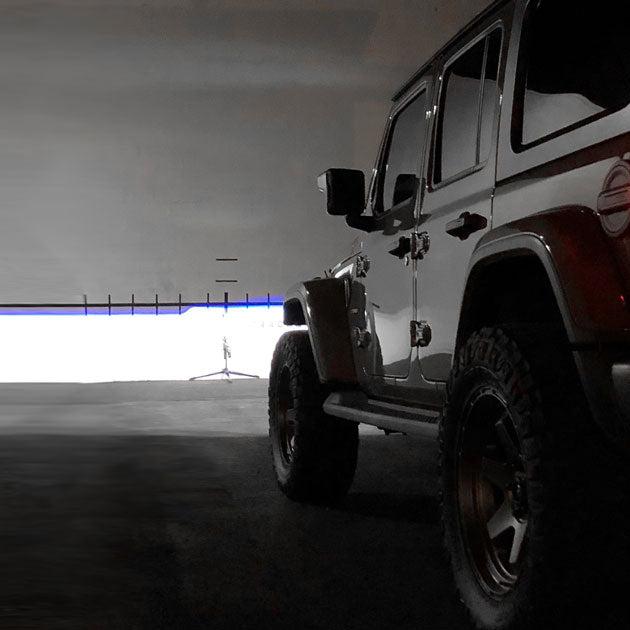

Light focus is very important for not only driver safety but others on the road who can potentially have their vision obstructed by glare. This is especially significant on lifted vehicles where the light source is raised and in a position to interfere with the field of vision of other drivers. These new Oculus headlights feature a very sharp cut-off line and focus light with precision specifically to avoid such issues.
It is undeniably important to implement proper thermal management tools for high-performance LEDs to operate with reliability in various environments. Oculus utilizes both active and passive cooling methods to sustain low LED temperatures. Remote mounted heat sinks and an internal cooling fan work in conjunction to insure proper temperature control and longevity of the LEDs.
These all-new headlamps provide enhanced driver visibility with increased and focused LED light output. Complete headlight replacement, better light focus than a simple bulb upgrade. Package includes tool for easy beam angle adjustability for proper light focus on lifted Jeeps.
- 2x Oculus ColorSHIFT® Headlights
- Headlight Aiming Tool
- DRL Wiring Harness
- Add-A-Circuit Fuse Adapter

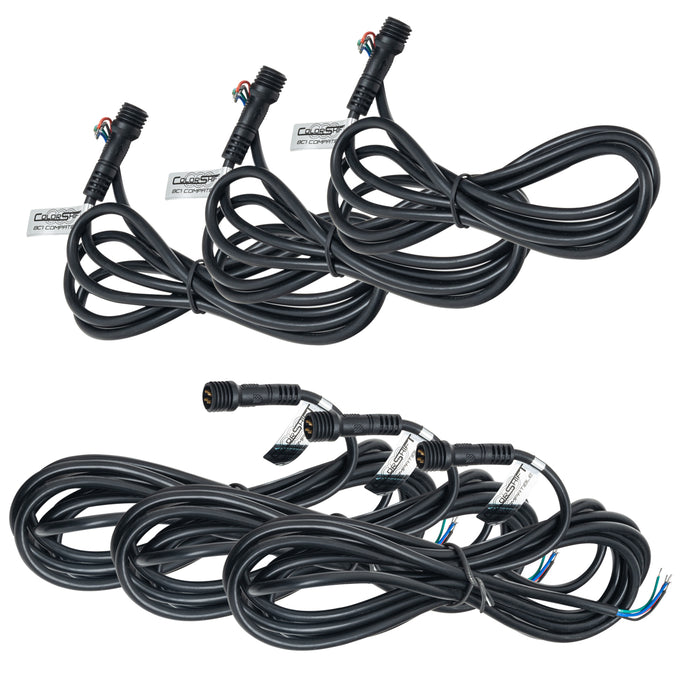

- 6x RGB Wiring Extensions
- (RGB Controller Included, if selected)
Recommended ColorSHIFT® Controller:
ColorSHIFT® BC1 Bluetooth Controller
For the easiest install:
Check out our Y-Splitter Adapter Cable
Aim your Oculus Bi-LED Headlights in 5 simple steps:
- Park the Jeep 15-20ft. away from a wall on a flat surface.
- Measure from the ground to the center of each headlight.
- Mark the same height on the wall with tape.
- Locate the adjuster bolt on the back of each headlight covered by a rubber cap.
- Aim the cutoff lines to meet the marked spots on the wall using the supplied Allen tool.
ORACLE PART# COLOR/OPTION 5839-334 ColorSHIFT - w/No Controller 5839-504-B ColorSHIFT - w/Simple Controller
5839-330 ColorSHIFT - w/RF Controller
5839-333 ColorSHIFT - w/2.0 Controller
5839-335 ColorSHIFT - w/BC1 Controller
