ORACLE Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

Original price $490.95 - Original price $490.95
Original price
$490.95 - $490.95
Current price $490.95
  • Product Description
  • Features
  • What's Included
  • Installation
  • Part Numbers

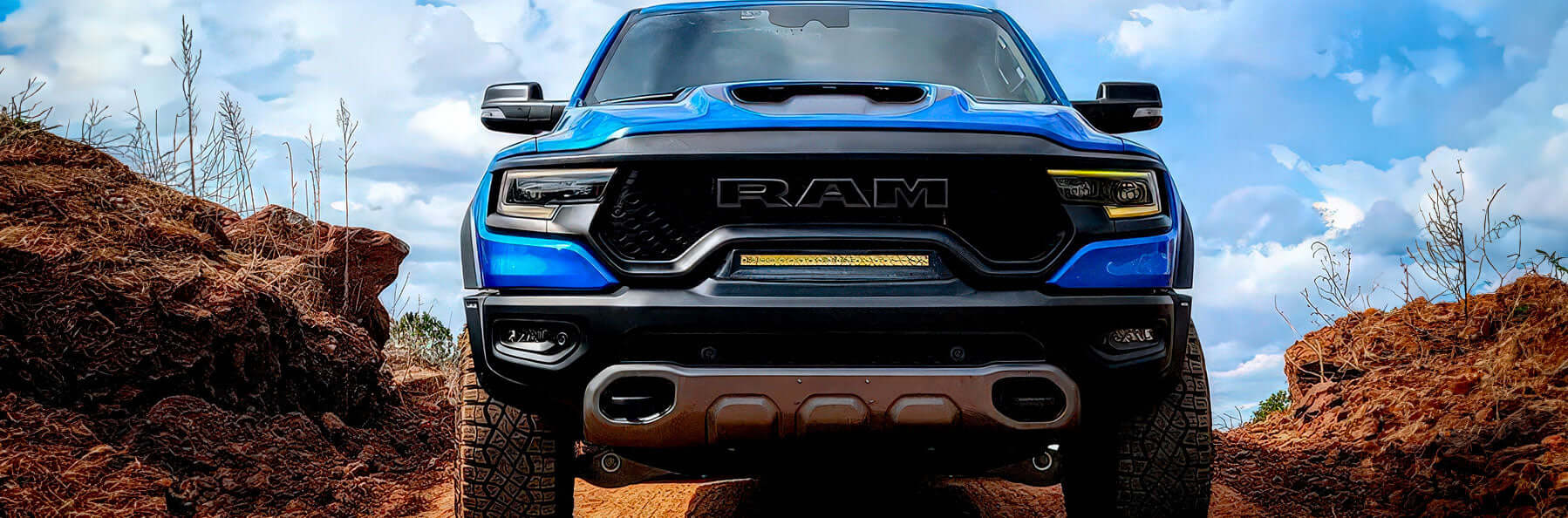

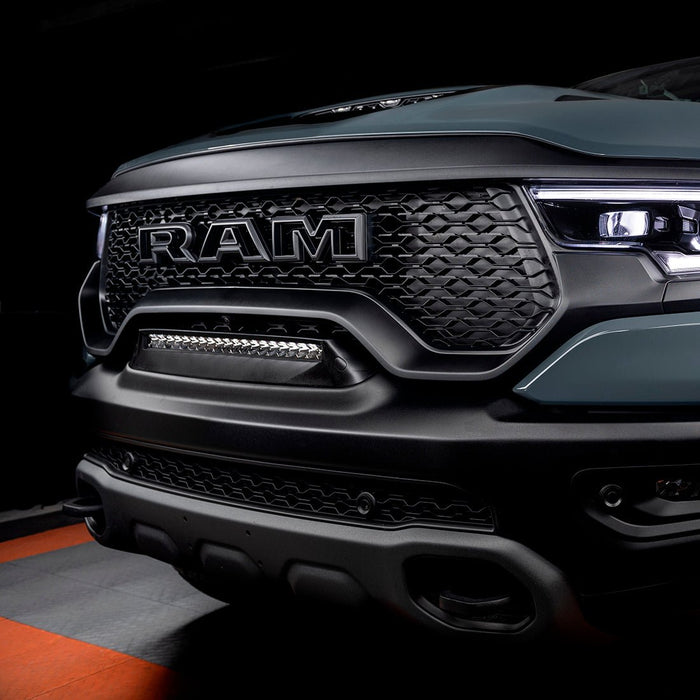

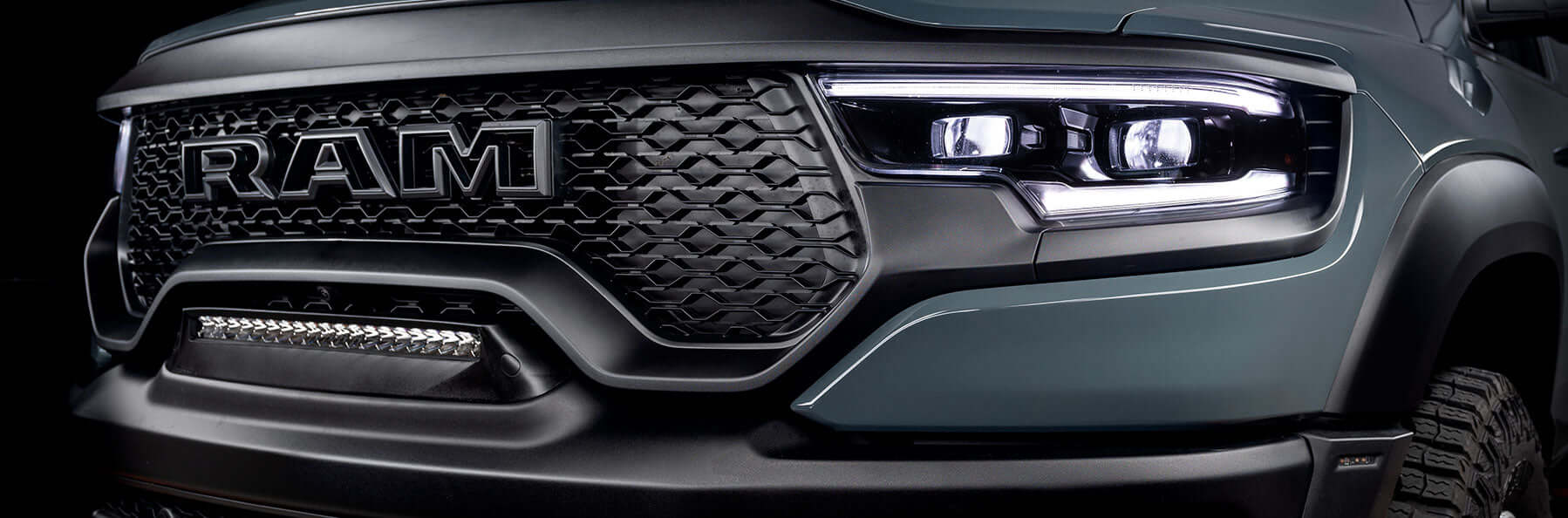

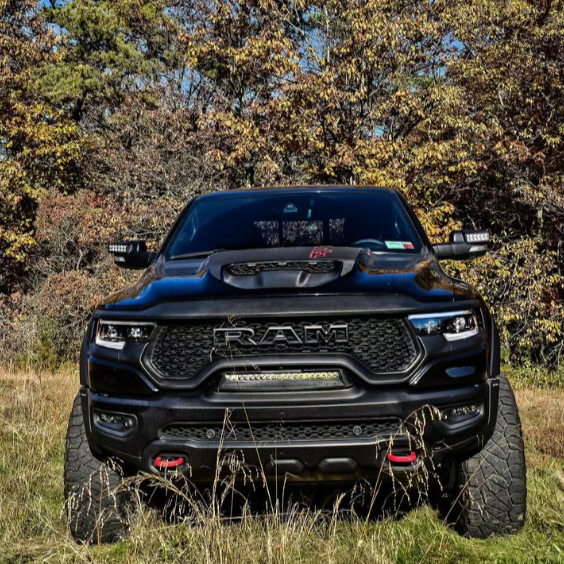

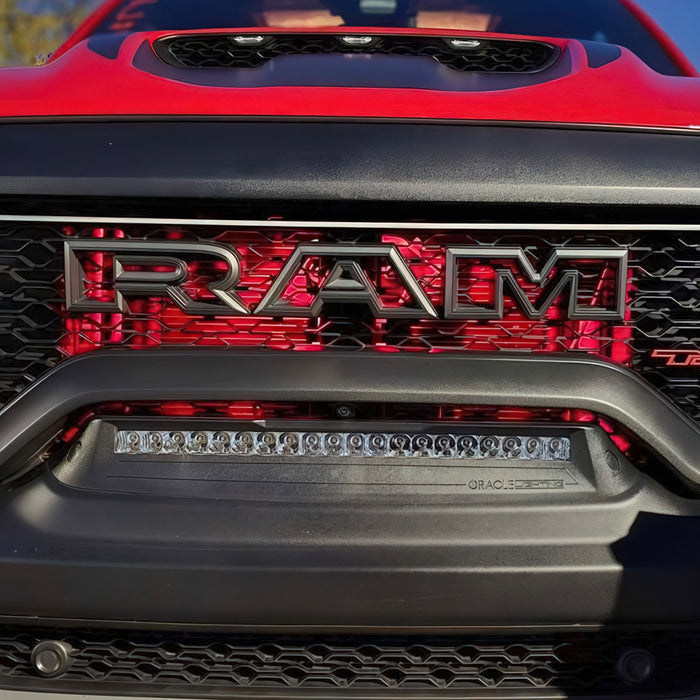

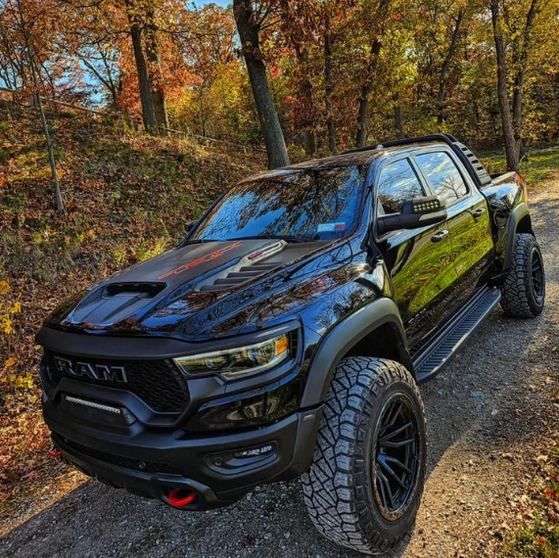

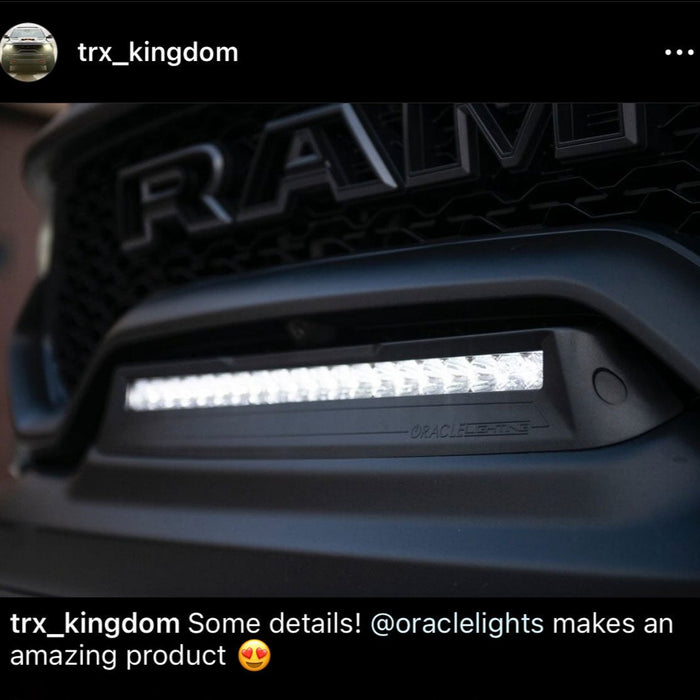

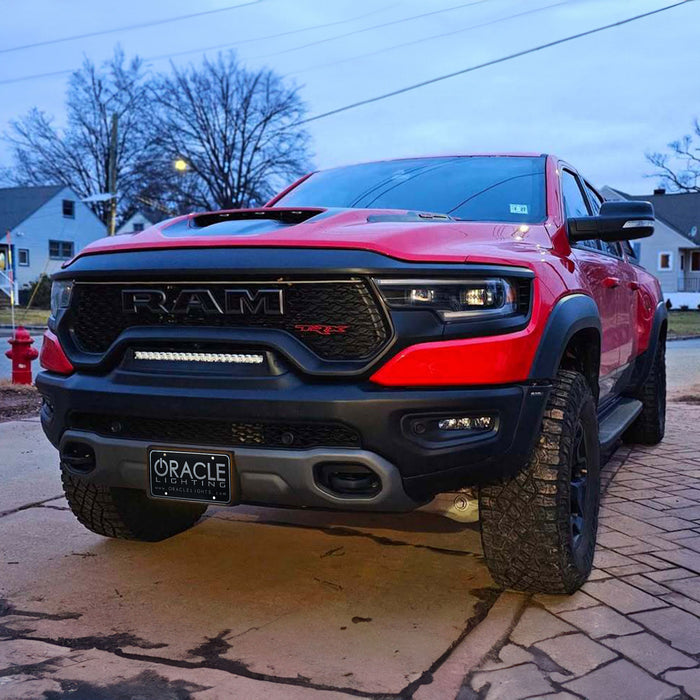

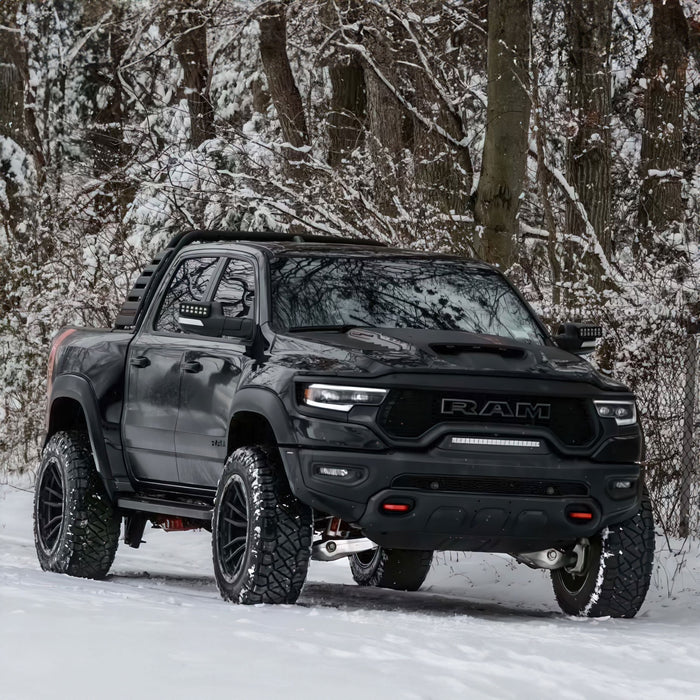

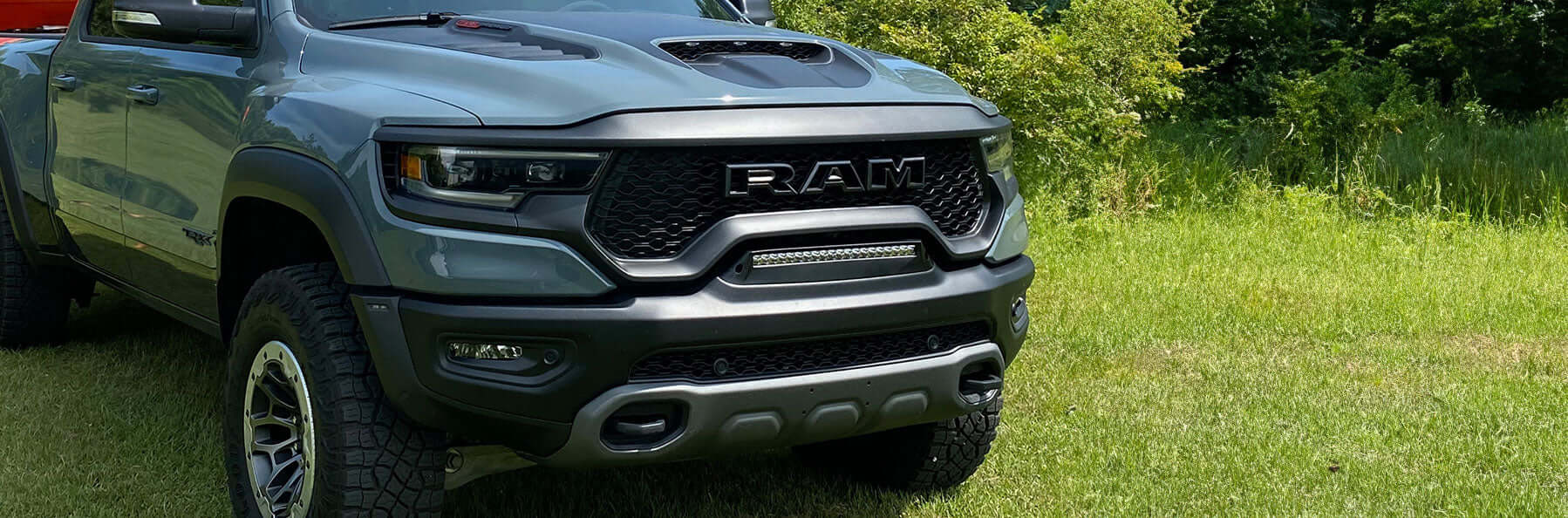

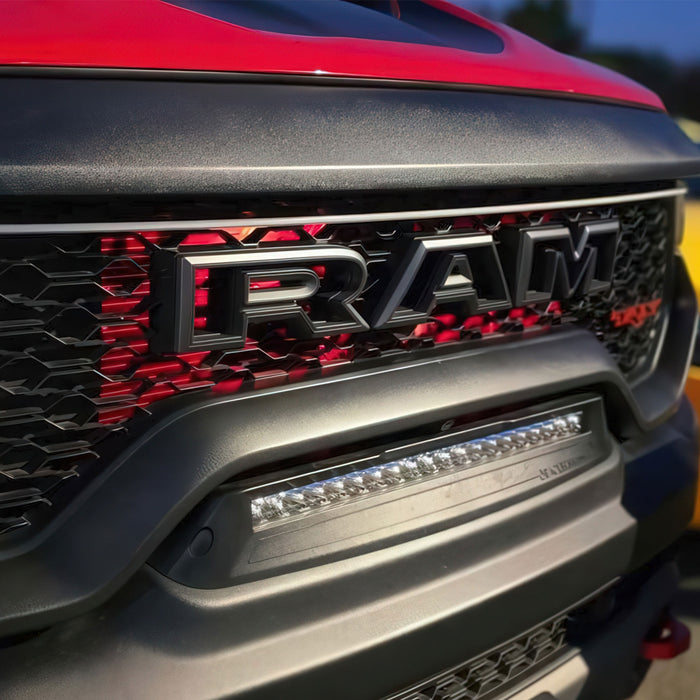

  • Looking for a 2019+ RAM 1500 light bar system with a seamless look? This unique new lighting system from ORACLE provides functional forward LED lighting while maintaining a factory appearance. Our high-powered 100W LED light bar is fitted into a housing that is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel.

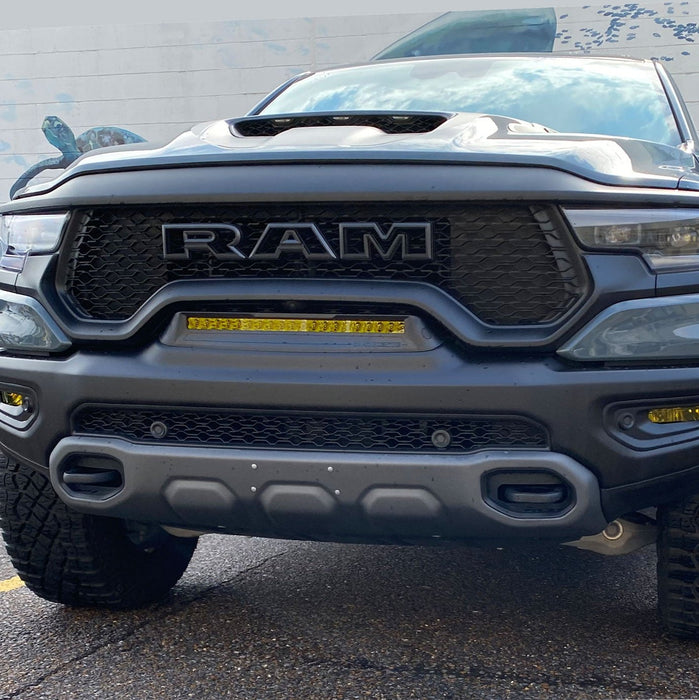

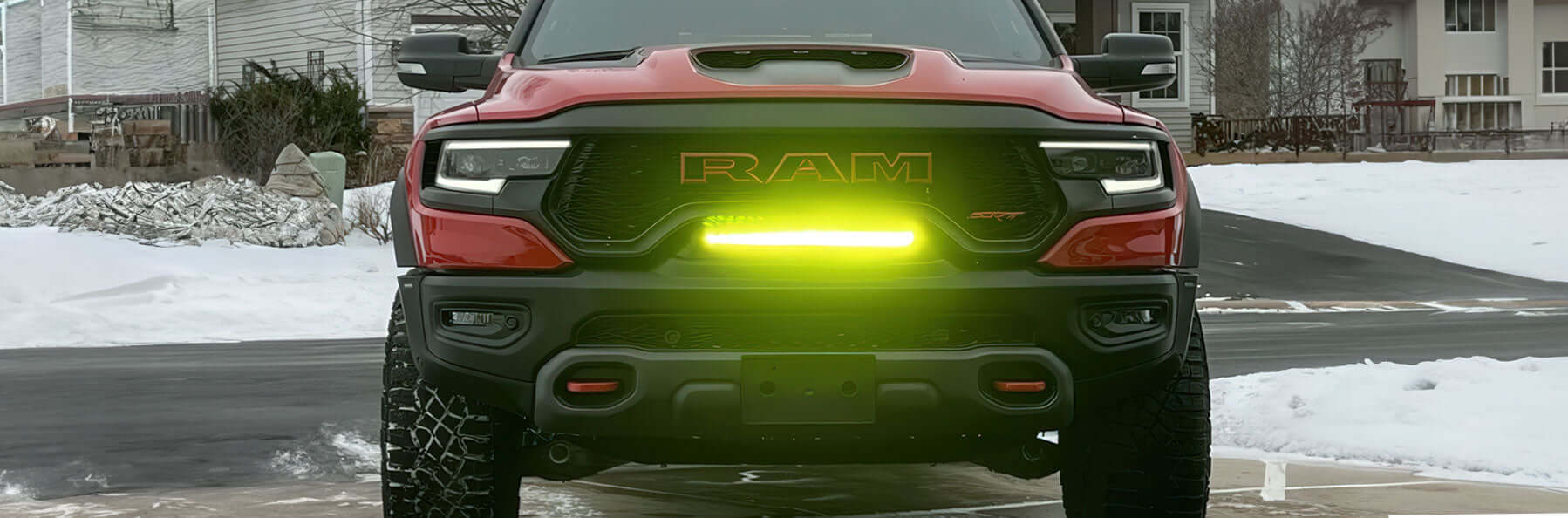

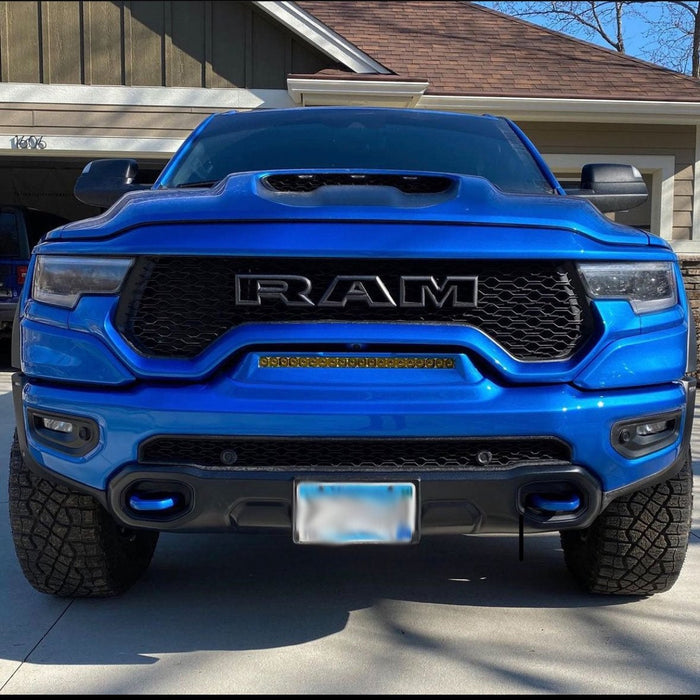

    Choose between pure white LED emitters, yellow LED emitters, or amber LED emitters for a custom lighting solution. The rugged construction of the RAM light bar provides durability in any condition, and the expertly designed system exhibits high-performance illumination with a seamless appearance.

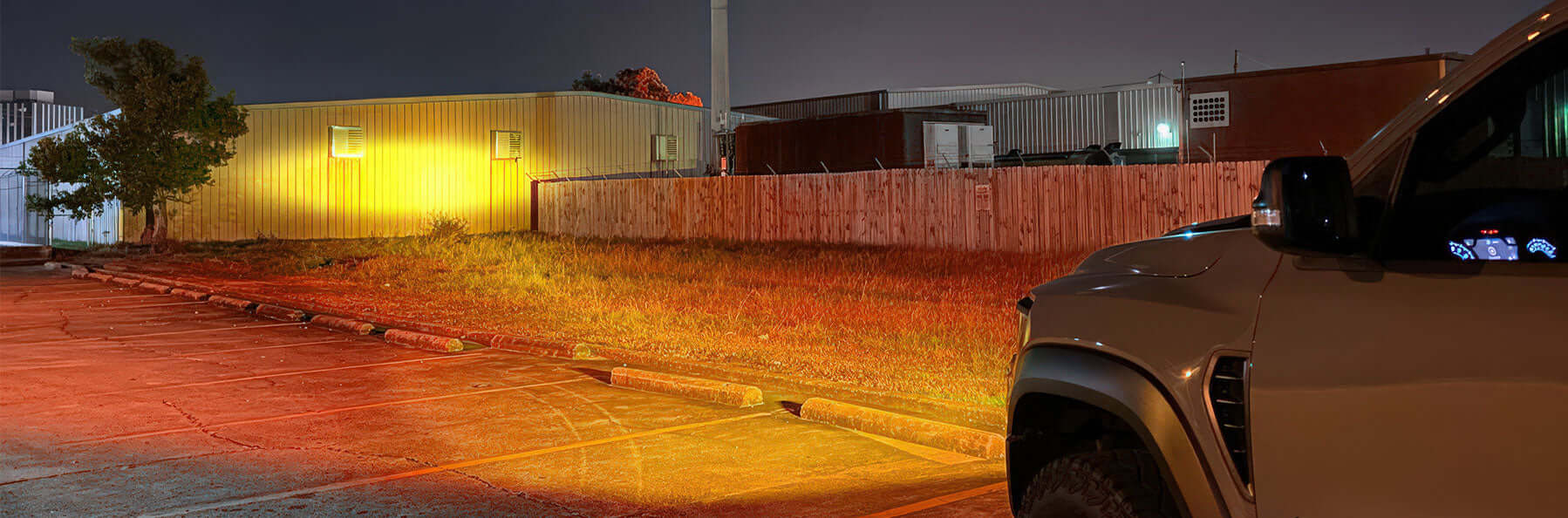

    The projection of the RAM light bar is a mixed beam with 8 of the LEDs using a flood (45° angle) beam and 12 of the LEDs using a spot (25° angle) beam so the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33° (8x45° + 12x25°) and calculating based on 14000Lm, the total candela of the light is 54107.70cd.

    • Housing: Polycarbonate
    • Lens: Optically Clear Lexan
    Watts: 100W (20x 5W LED)
    Amperage: 7.5A @ 12VDC
    LED: Osram CRDP LED Chip
    Lumen Output: 12,000lm
    LED Life: 50,000+ Hours
    Optics: Mixed Spot/ Flood
    Color Temperature: 5500K(White only)
    Ingress Protection: IP69K
    Input Voltage: 9V-36V DC
    * 1 Year Warranty

    • 2019-2024 RAM 1500 Rebel
    • 2021-2024 RAM 1500 TRX

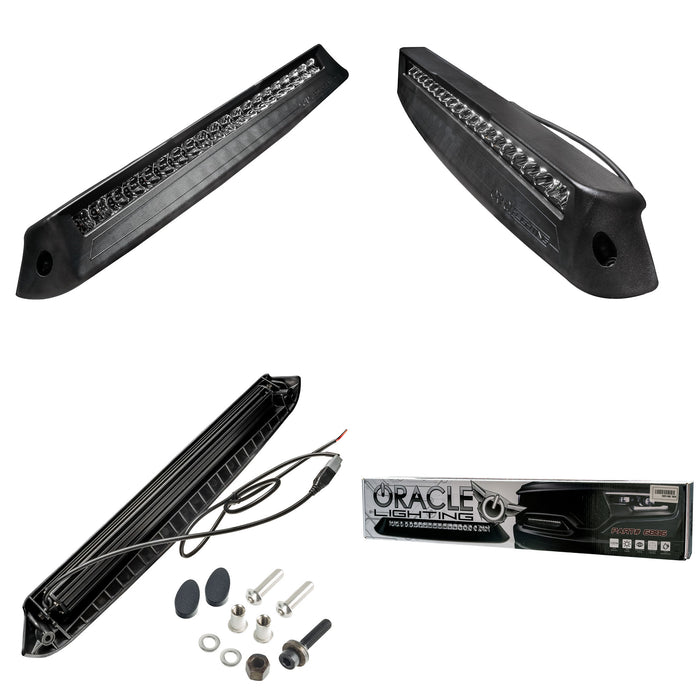

    • Front Bumper Flush LED Light Bar System
    • Mounting Hardware

  • The lighting system is installed using rivet nuts, which require 2 holes 3/8” to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches. If your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504

  • 5885-001 (White)
    5885-005 (Amber)
    5885-006 (Yellow)

Customer Reviews

Based on 5 reviews
Led bar

I had installed and it works and looks great. Flows with the grill and I had it connected with the led in the bull bars to a push-of the-button from the inside. Very pleased and recommend this product!

Wesley Pujol
The Best!

y’all’s light bar for the rebel/TRX is crazy !!!!! best lighting product i have ever bought 👍👍👍

Nice light bar

Really nice light bar. For installation, I would say not easy but not hard at all. The hardest one for me is the drill the hole.

Gary S.

I really like the look of the light bar on my wife's TRX. It is a great product and Joshua was great to communicate with and great customer service!

Holger Jäger

Super Qualität und tolles Ergebnis!
