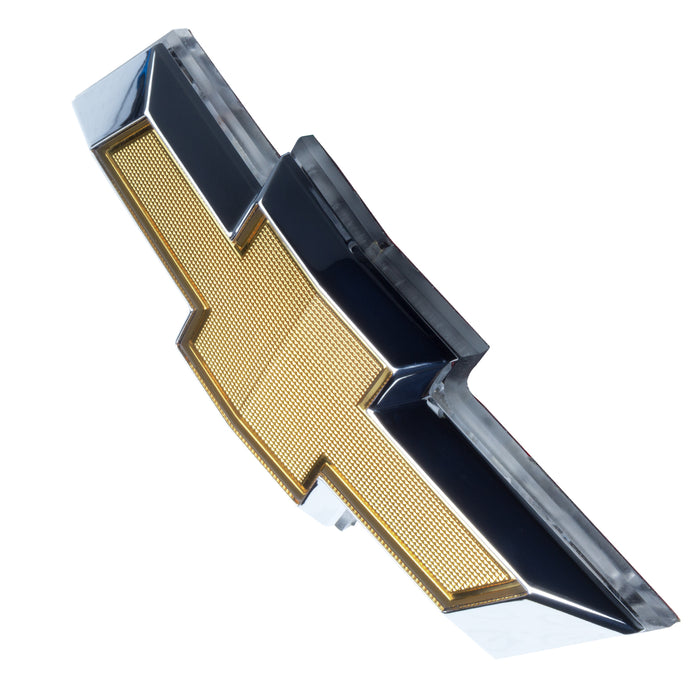

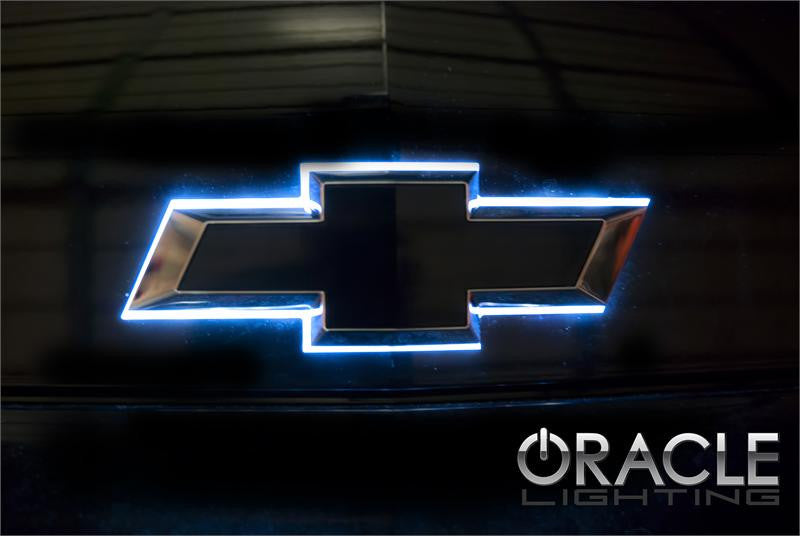

2010-2013 Chevy Illuminated LED Rear Bowtie Emblem

  • $152.38


Add a Dual Intensity Circuit to enable your custom emblem to operate as BOTH a Running Light AND a Brake Light!

Notes:

•This item is built-to-order.

•There is a processing time of 5-7 business days to have your item built and shipped.

•If you wish to have your emblem professionally painted, an additional 3-4 week processing time is required. Once paint process has started, order cannot be cancelled/refunded.

•The ColorSHIFT option must be used in conjunction with one of our ColorSHIFT Controllers. (Sold Separately)

•Dual Intensity Option will allow your emblem to operate as a running light and an additional brake light.

•Dual Intensity Option will not operate with the ColorSHIFT Bowtie option.

Package Includes the following all assembled and ready to install!

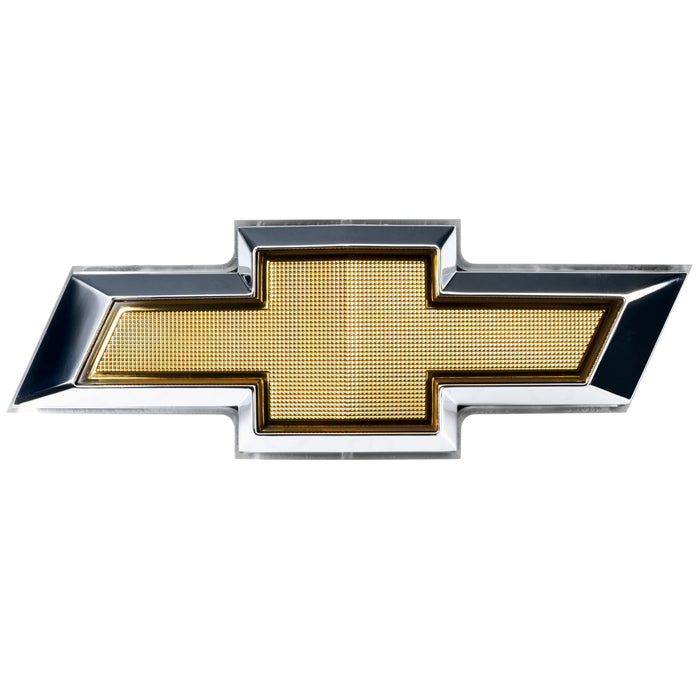

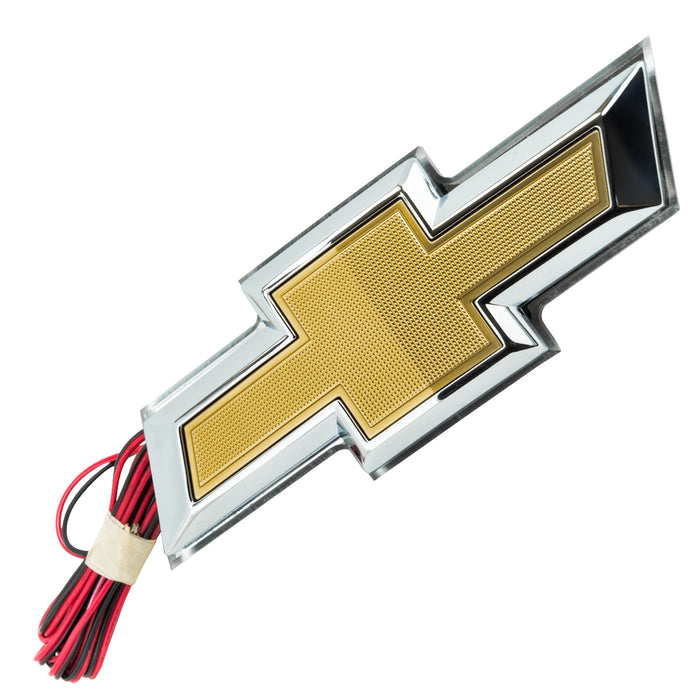

- OEM Chevy Badge

- Clear Acrylic Insert
- ORACLE LEDs

Single Intensity

ORACLE PART# OPTION

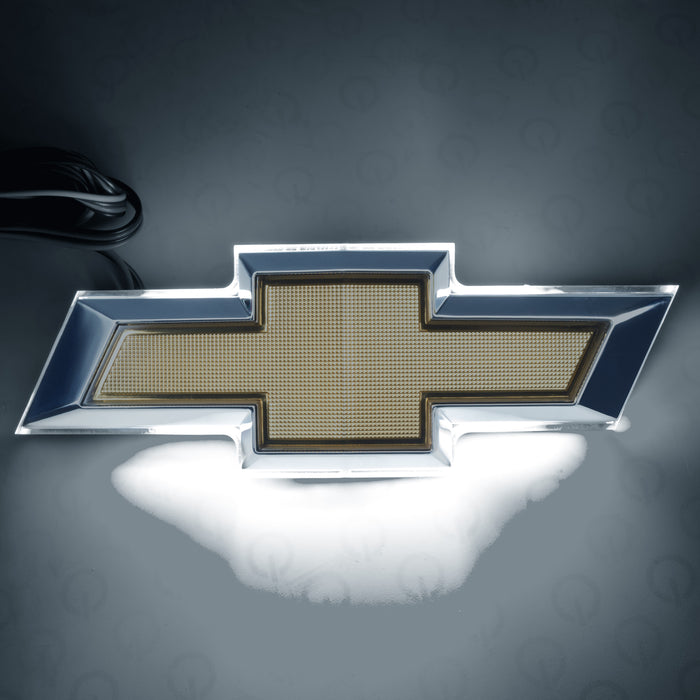

3001-001 White
3001-002 Blue

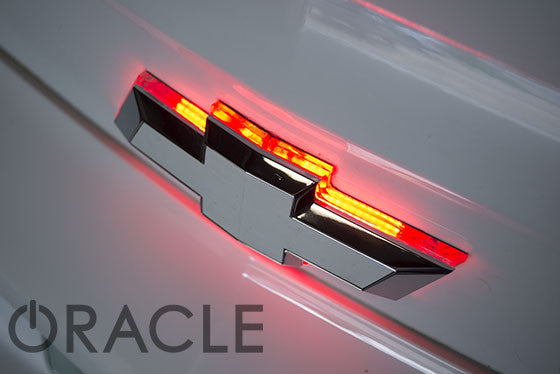

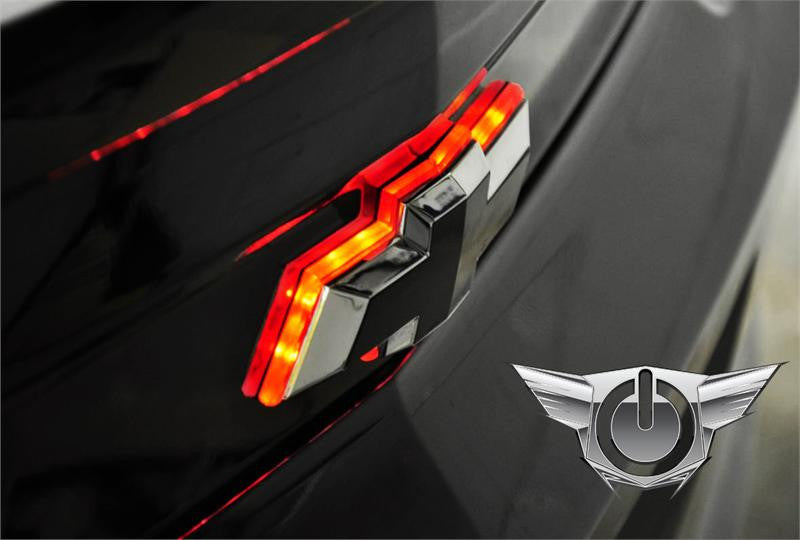

3001-003 Red
3001-004 Green

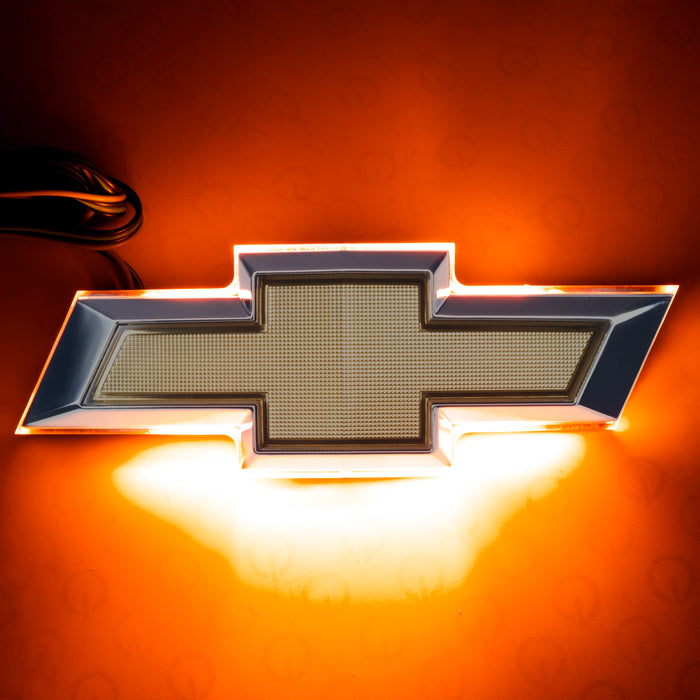

3001-005 Amber
3001-007 UV/Purple

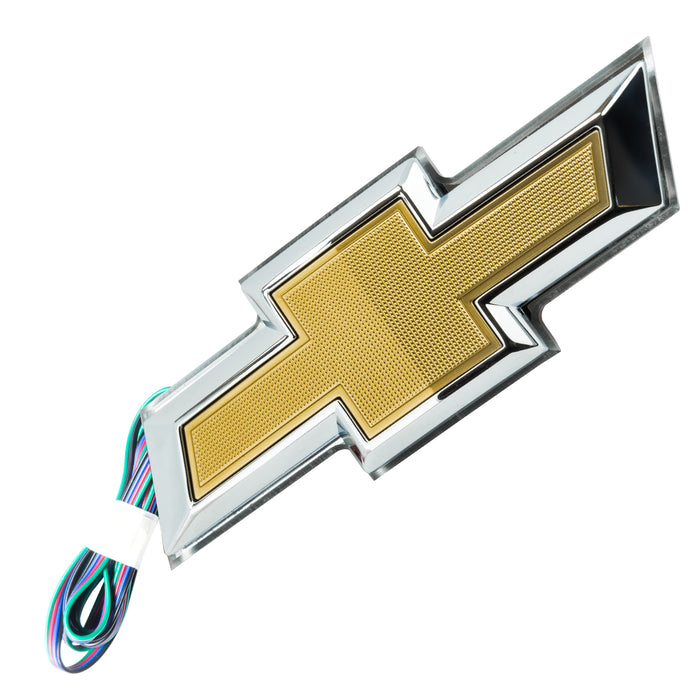

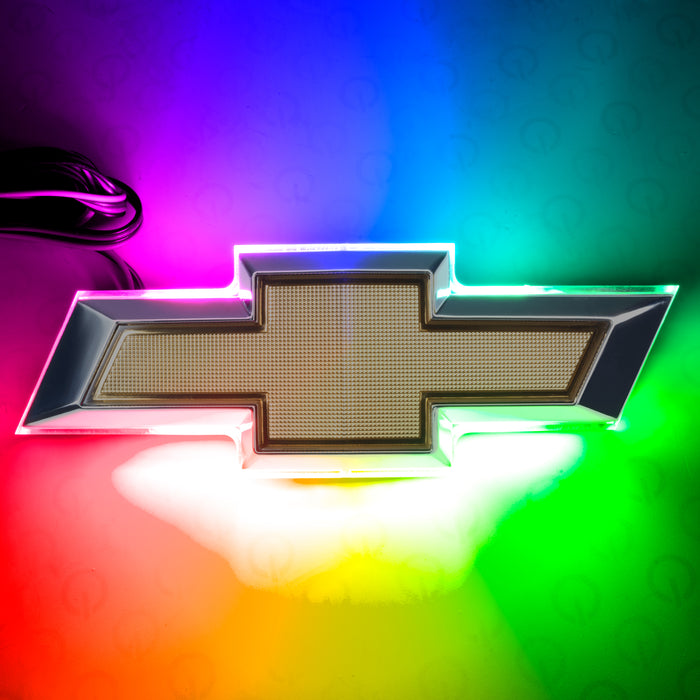

3001-333 ColorSHIFT


Dual Intensity

ORACLE PART# OPTION
3011-001 White
3011-002 Blue
3011-003 Red
3011-004 Green
3011-005 Amber
3011-007 UV/Purple


Single Intensity Center Paint Options:

ORACLE PART# OPTION
3021- Flat Black
3031- Gloss Black

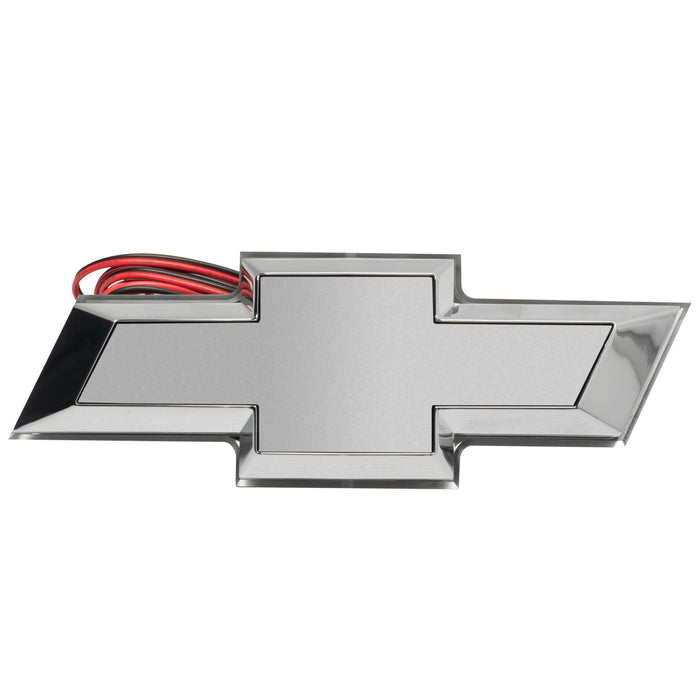

3041- Silver Ice Metallic (GAN)
3051- Aqua Blue Metallic (GBD)

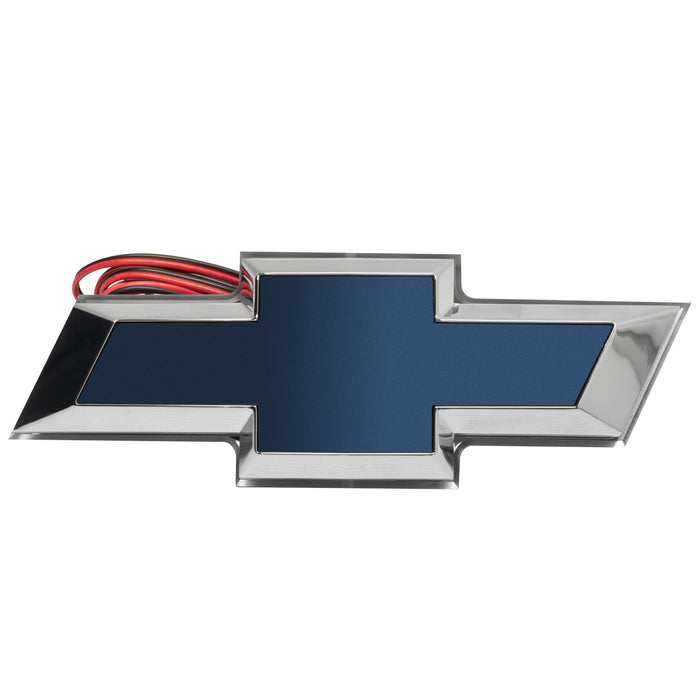

3061- Imperial Blue Metallic (GAP)

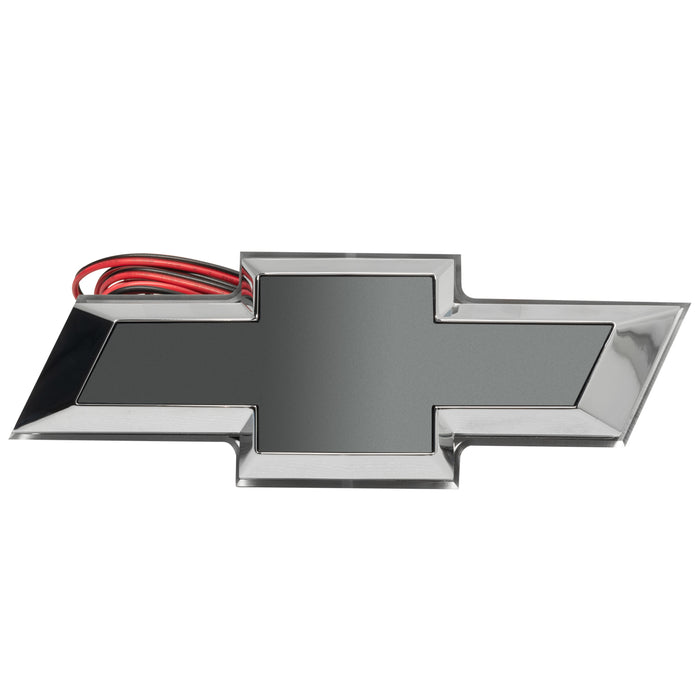

3071- Cyber Grey Metallic (GPV)
3081- Red Jewel Tintcoat (GAQ)

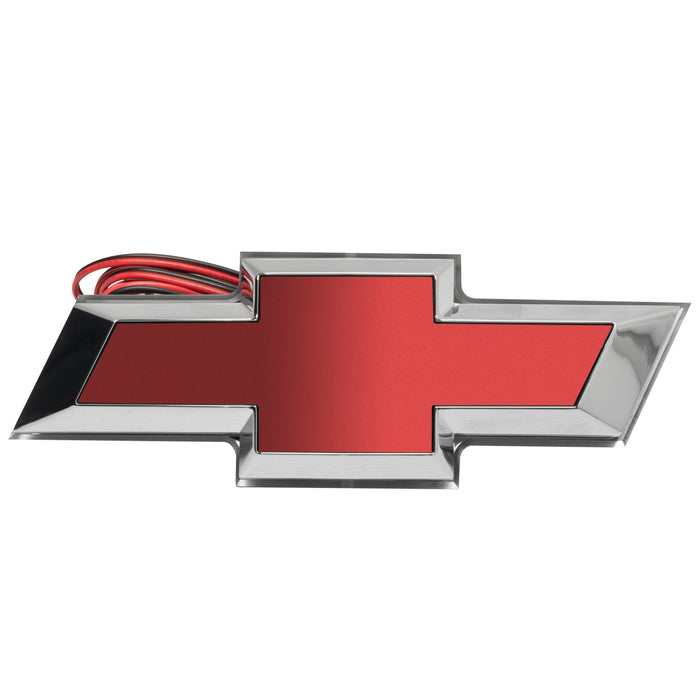

3091- Victory Red (GCN)
3043- Summit White (GAZ)
3053- Rally Yellow (GCO)

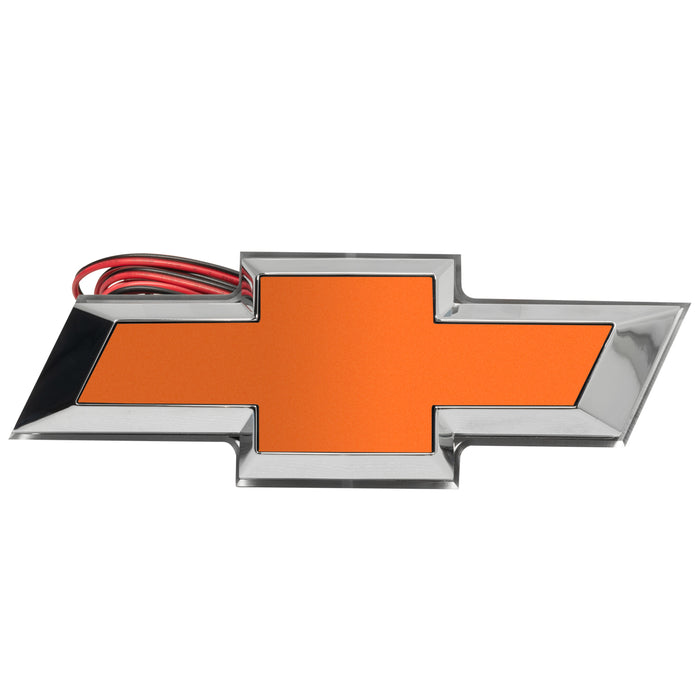

3063- Inferno Orange Metallic (GCR)
3073- Synergy Green (GHS)
3083- Carbon Flash Metallic (GAR501)
3085- Carbon Flash Metallic (GAR565)
3087- Crystal Red (GBE)
3093- Ashen Grey (GLJ)
3100- Blue Ray Metallic (GXH)


Dual Intensity Center Paint Options:

ORACLE PART# OPTION
3022- Flat Black
3032- Gloss Black
3042- Silver Ice Metallic (GAN)
3052- Aqua Blue Metallic (GBD)
3062- Imperial Blue Metallic (GAP)
3072- Cyber Grey Metallic (GPV)
3082- Red Jewel Tintcoat (GAQ)
3092- Victory Red (GCN)
3044- Summit White (GAZ)
3054- Rally Yellow (GCO)
3064- Inferno Orange Metallic (GCR)
3074- Synergy Green (GHS)
3084- Carbon Flash Metallic (GAR501)
3086- Carbon Flash Metallic (GAR565)
3088- Crystal Red (GBE)
3094- Ashen Grey (GLJ)
3101- Blue Ray Metallic (GXH)


Installation Instructions:

  1. Remove Old Badge (detailed in included instructions)
  2. Route Wires Through Factory Hole in the Trunk lid  (2011 model does not have the factory hole pre-drilled)

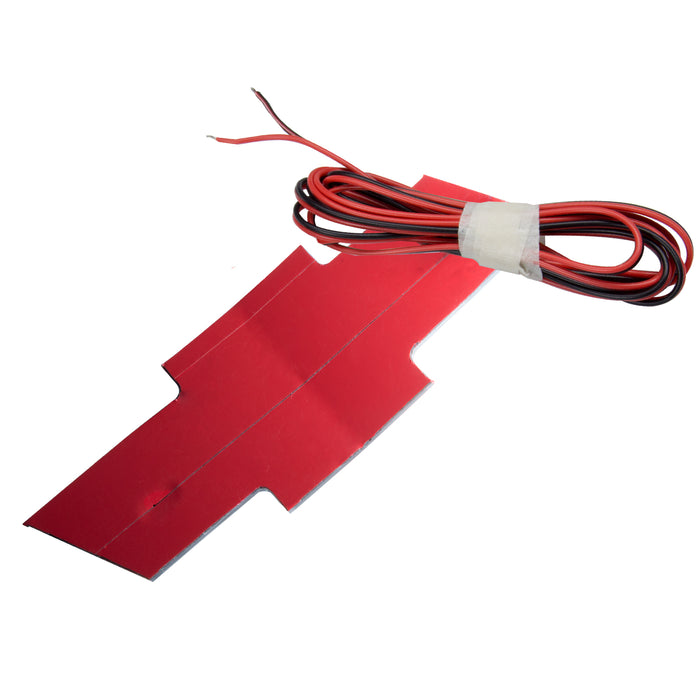

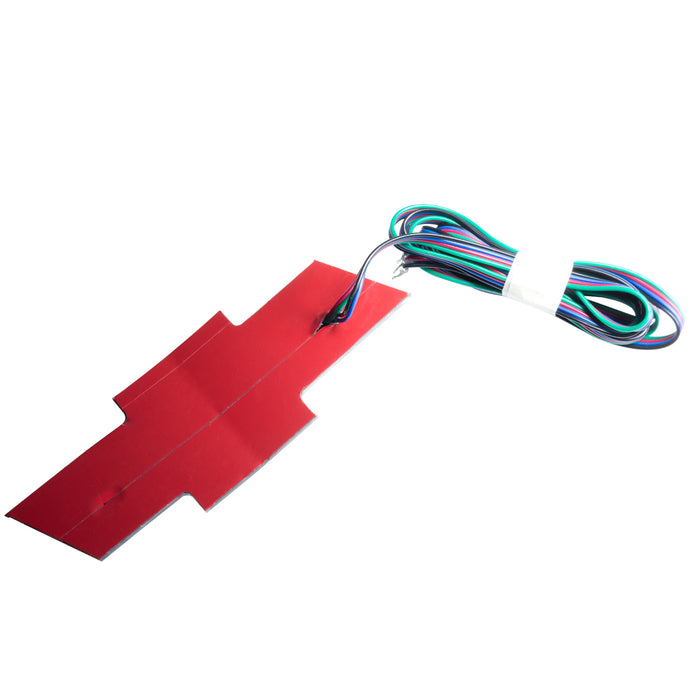

  3. Remove Self-Adhesive backing and stick to Trunk lid
  4. Connect Wires to Parking Lights as per Instructions
Download Install Guide
