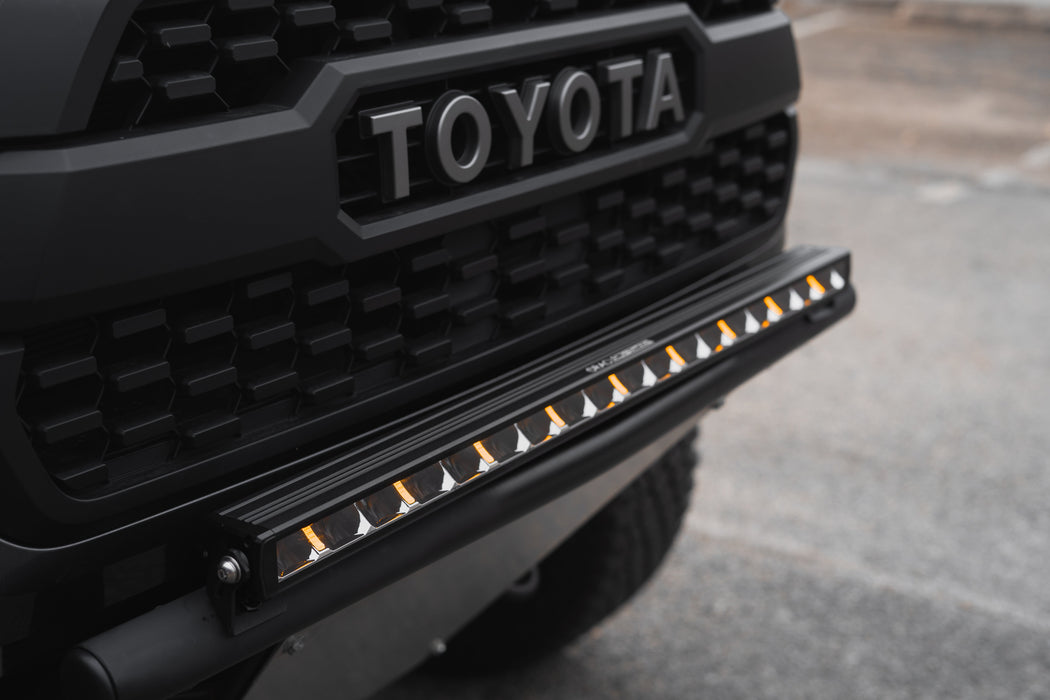

ORACLE Lighting Multifunction Reflector-Facing Technology LED Light Bars

Original price $224.50 - Original price $641.50
Original price
$224.50
$224.50 - $641.50
Current price $224.50
Ultra-slim, patent-pending RFT (Reflector Facing Technology) LED light bars with integrated amber/white clearance lighting and long-range driving beam performance.
RFT Optics
40° Driving Beam
Amber/White Clearance
Deutsch 4-Pin
EMT Thermal Mgmt
Up to 18,000 Raw Lumens

ORACLE Part # Options
5900-14-023 (14")
5900-20-023 (20")
5900-30-023 (30")
5900-50-023 (50")

ORACLE 5900 Series LED Light Bar with Amber/White Clearance Lighting
Product Overview

Using the latest RFT (Reflector Facing Technology) optics to optimize LED efficacy, these LED Light Bars from ORACLE Lighting stand above the rest. This patent-pending design features an ultra-slim body which makes mounting and fitment easier than ever before. Dual heavy-duty mounting brackets provide options to mount these bars in a variety of applications where other LED light bars will not work.

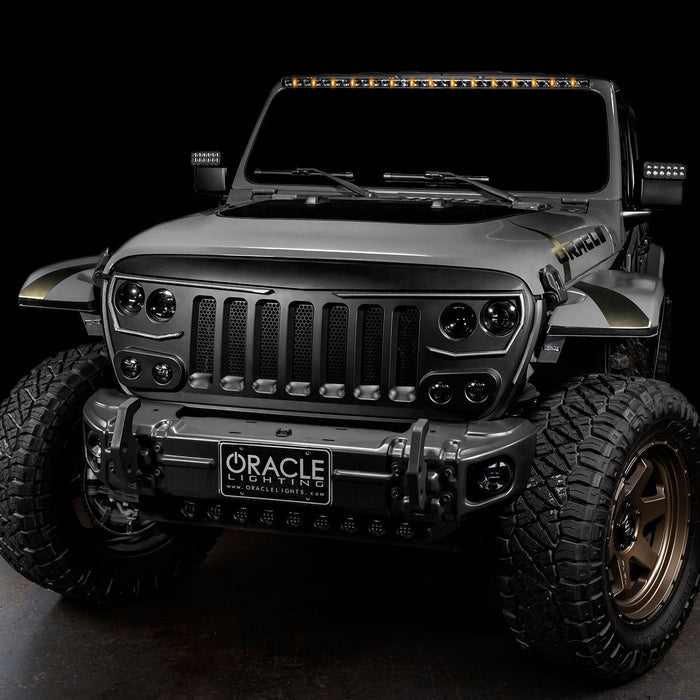

The Amber and White LED Clearance Lights enable integrated running/marker light functionality for enhanced visibility. The RFT optic system delivers an effective range (1 lux) up to 2000 ft away.

Key Features
  • Reflector Facing Technology (RFT) optic system for optimized LED efficacy

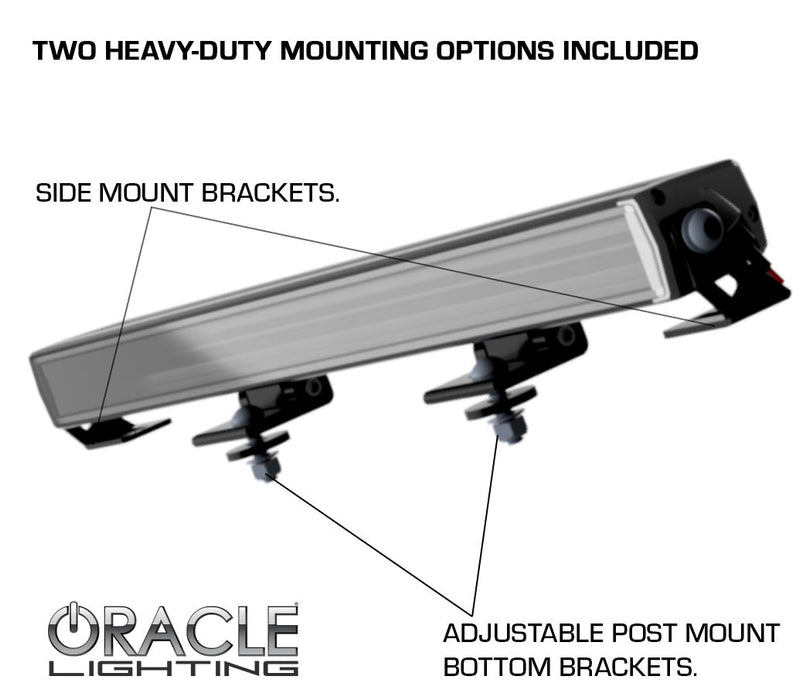

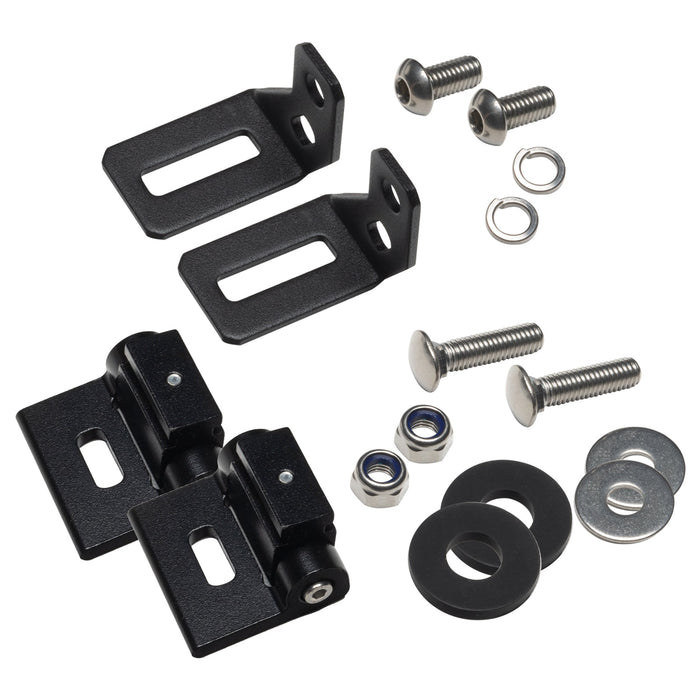

  • Dual heavy-duty mounting options for versatile fitment
  • Electronic Thermal Management (EMT) for reliability
  • Amber + White clearance lights for DRL/marker integration

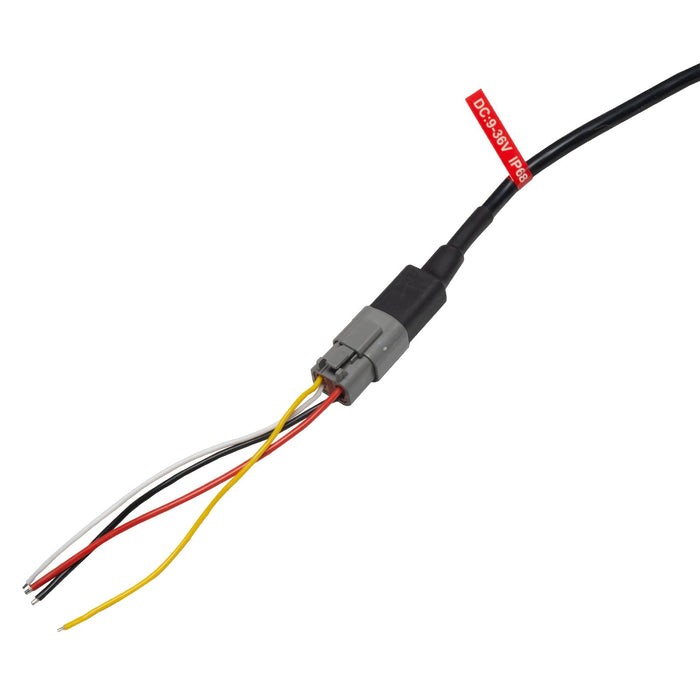

  • 4-pin Deutsch waterproof connector
  • Beam Angle: 40° Driving Beam
  • Color Temperature: 5500K–6000K
  • Certifications: ECE R10, CE, RoHS

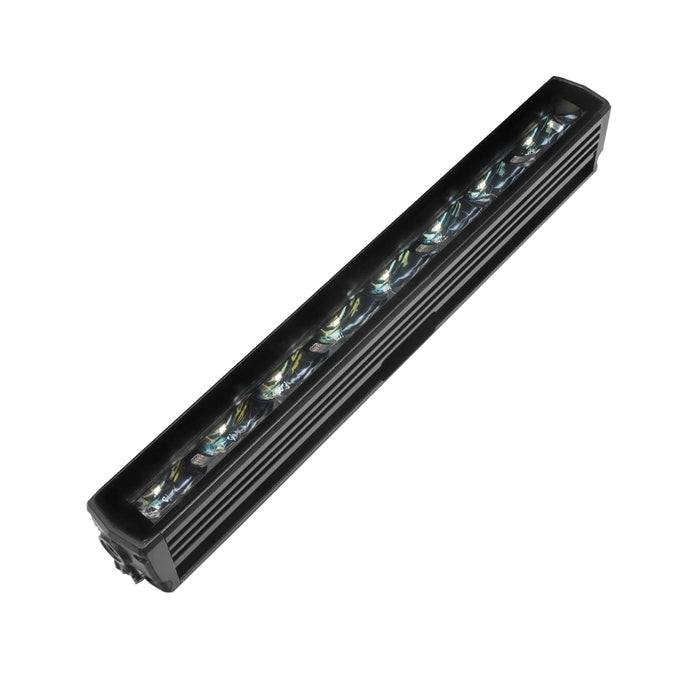

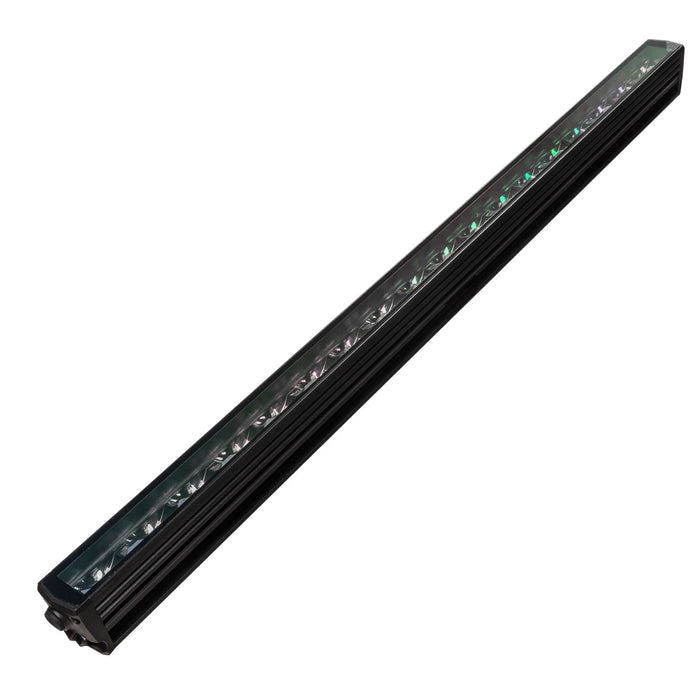

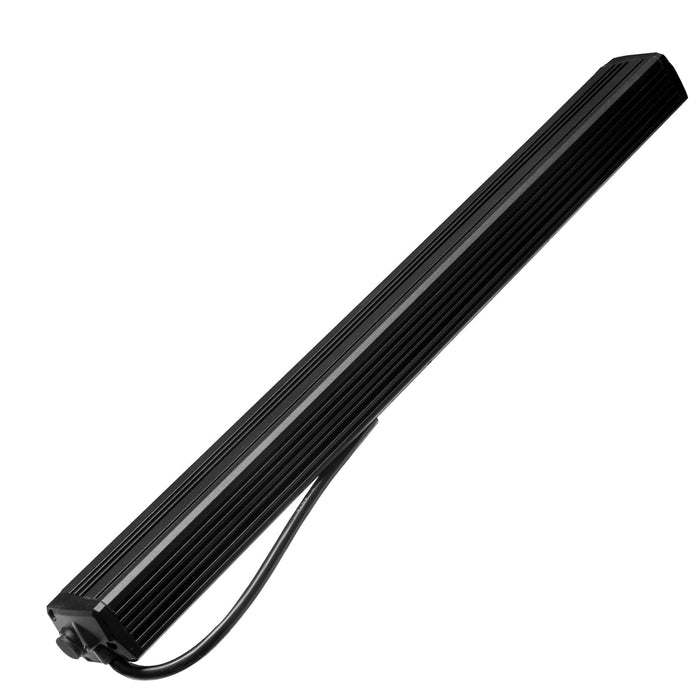

ORACLE 5900 Series LED Light Bar Side View
Performance & Options

Compare sizes and output below. All bars feature 40° Driving Beam + Amber/White Clearance.

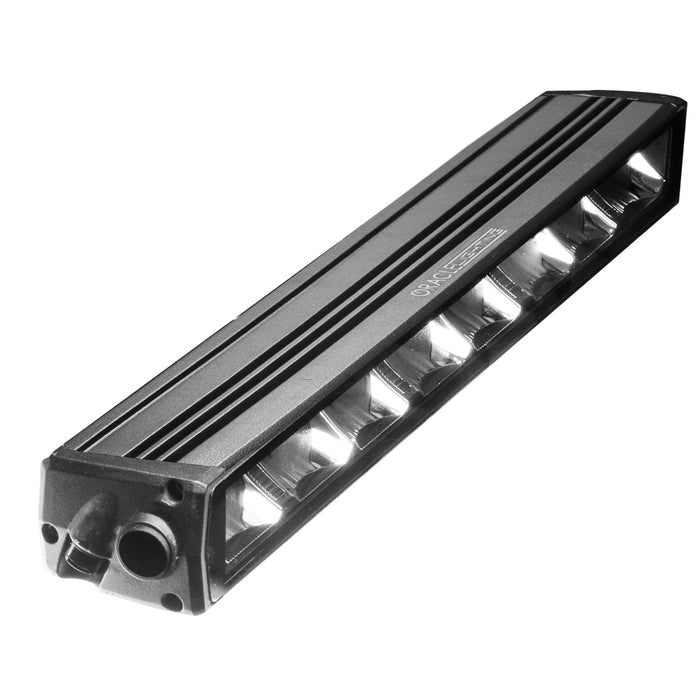

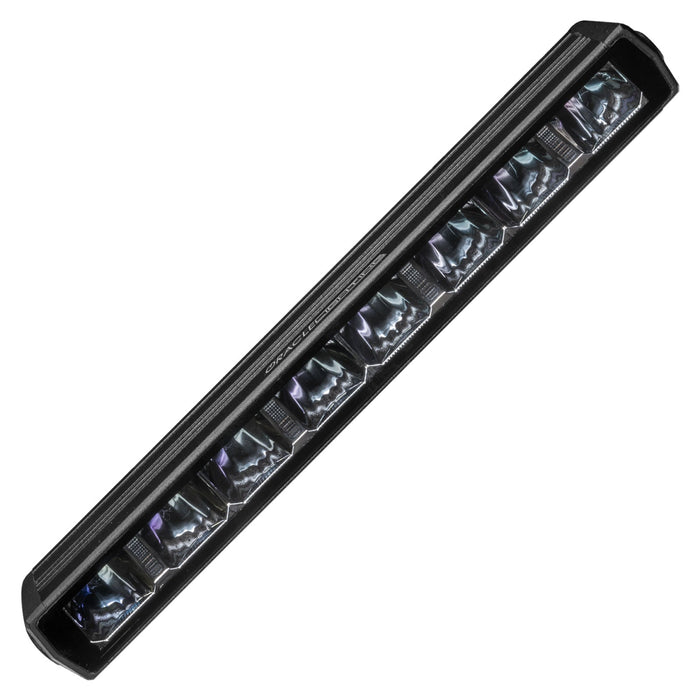

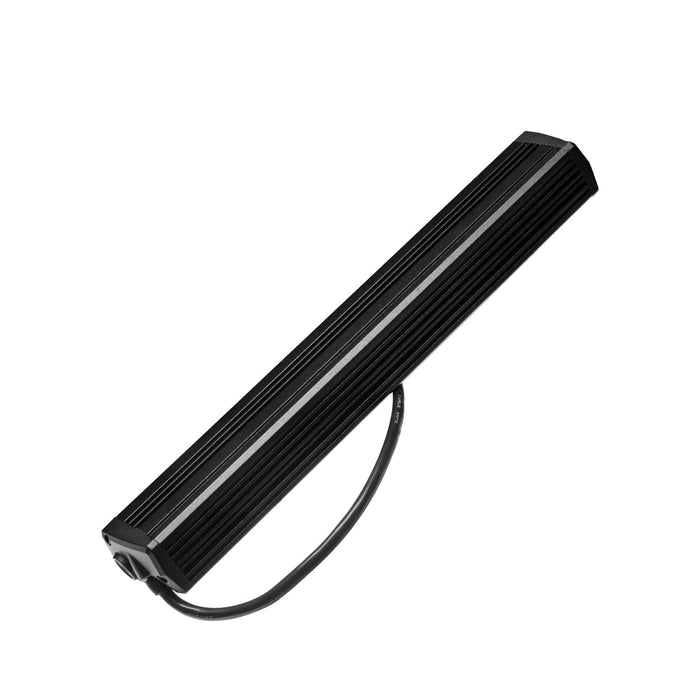

5900-14-023
14"
Raw / Effective Lumens6,400 / 5,400
Peak Intensity159,000 cd
Total Power64W
Amp Draw4A @ 12V DC
Max Projection1 Lux @ 399m

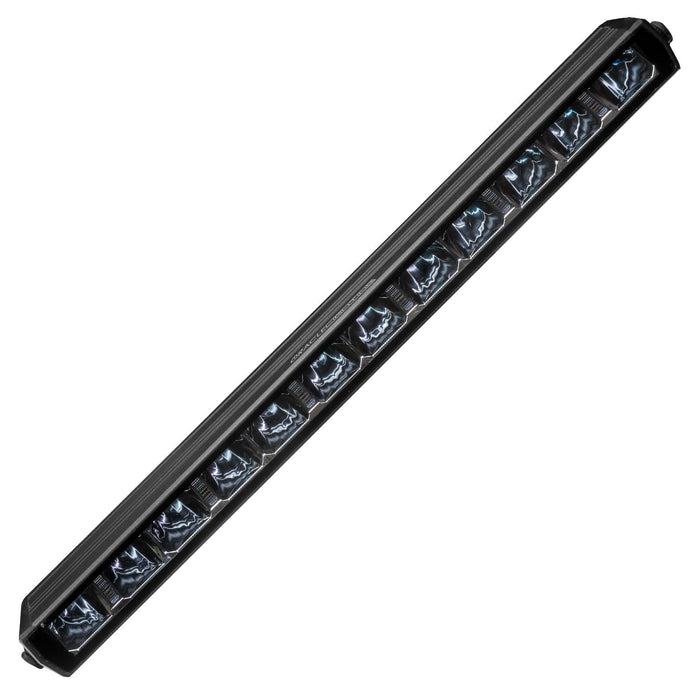

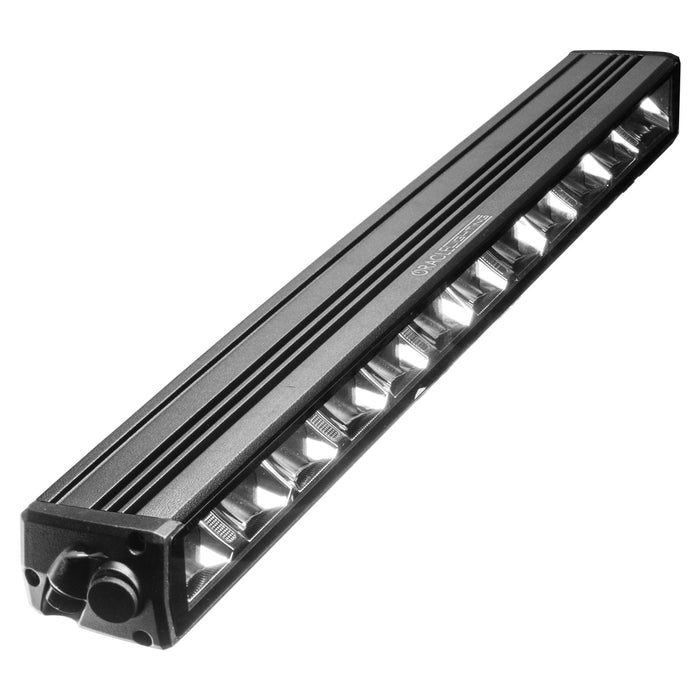

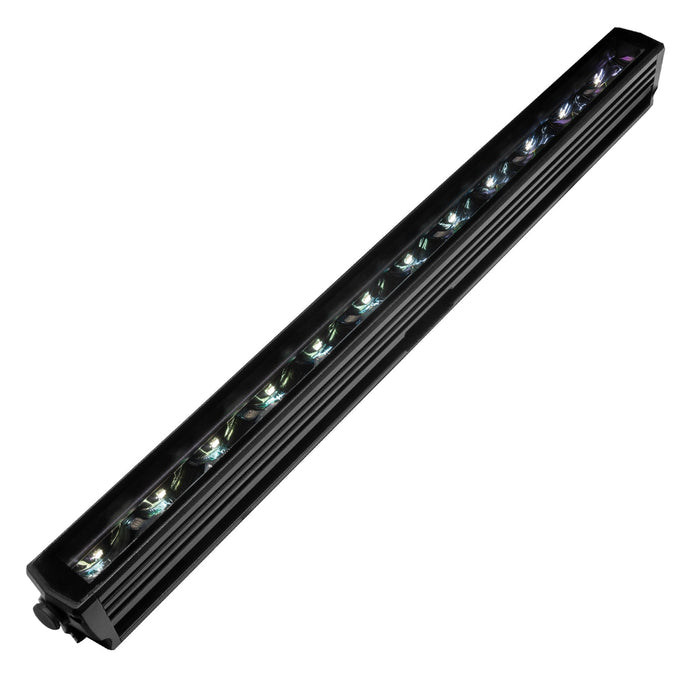

5900-20-023
20"
Raw / Effective Lumens12,000 / 9,600
Peak Intensity273,000 cd
Total Power120W
Amp Draw7.6A @ 12V DC
Max Projection1 Lux @ 522m

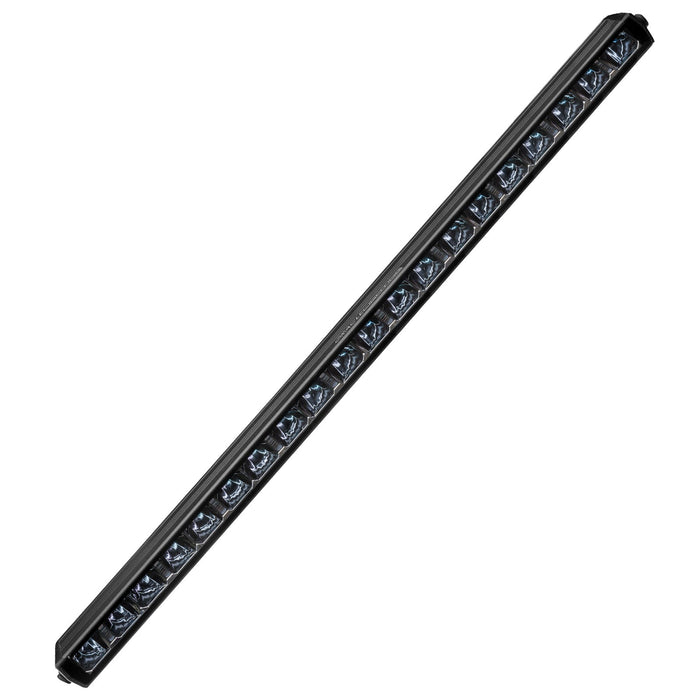

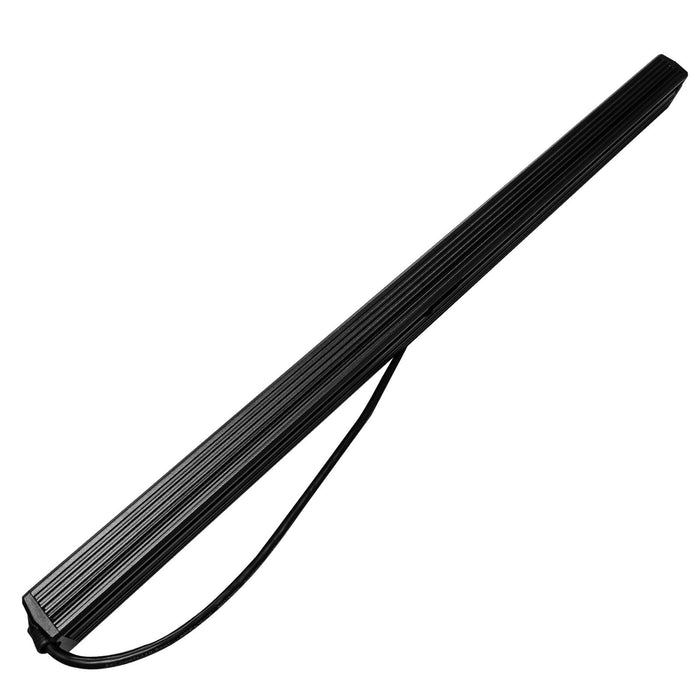

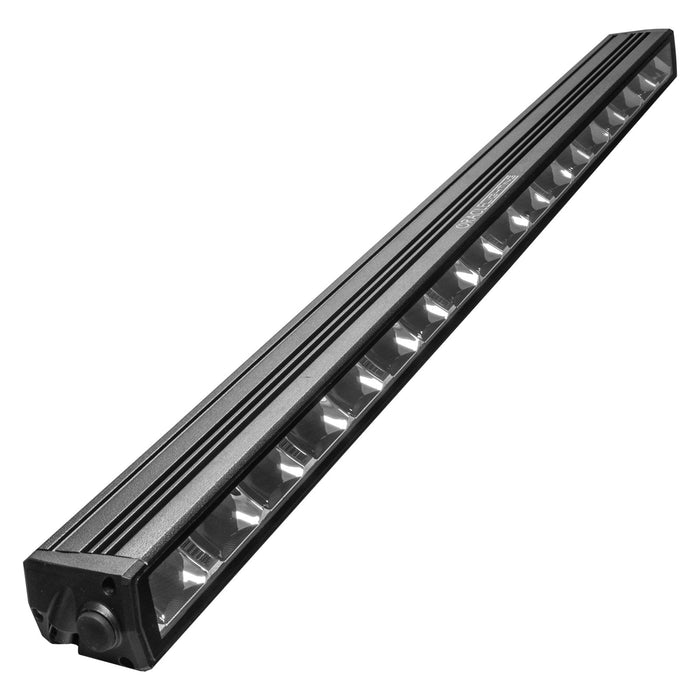

5900-30-023
30"
Raw / Effective Lumens14,400 / 11,500
Peak Intensity342,000 cd
Total Power144W
Amp Draw9.2A @ 12V DC
Max Projection1 Lux @ 585m

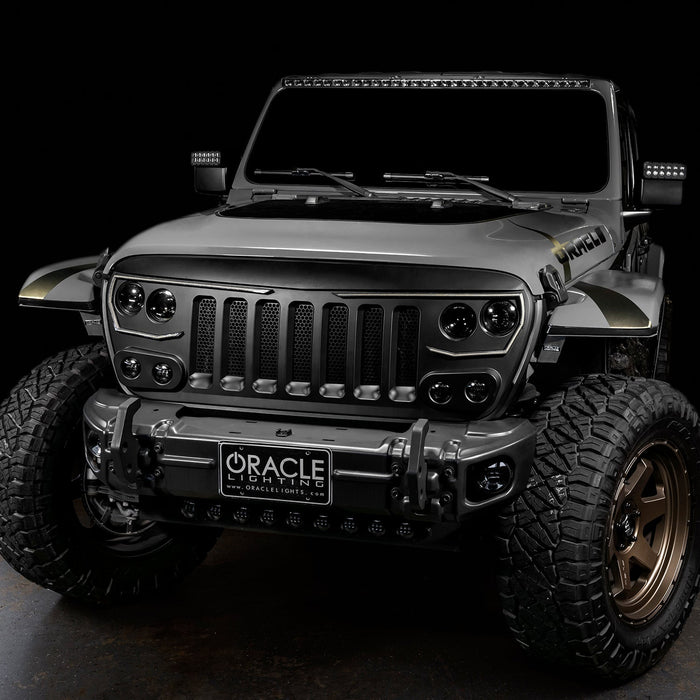

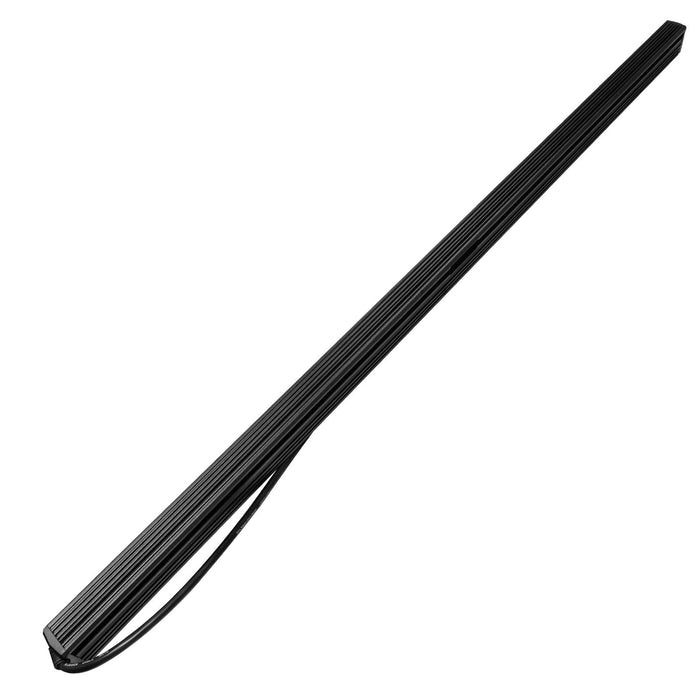

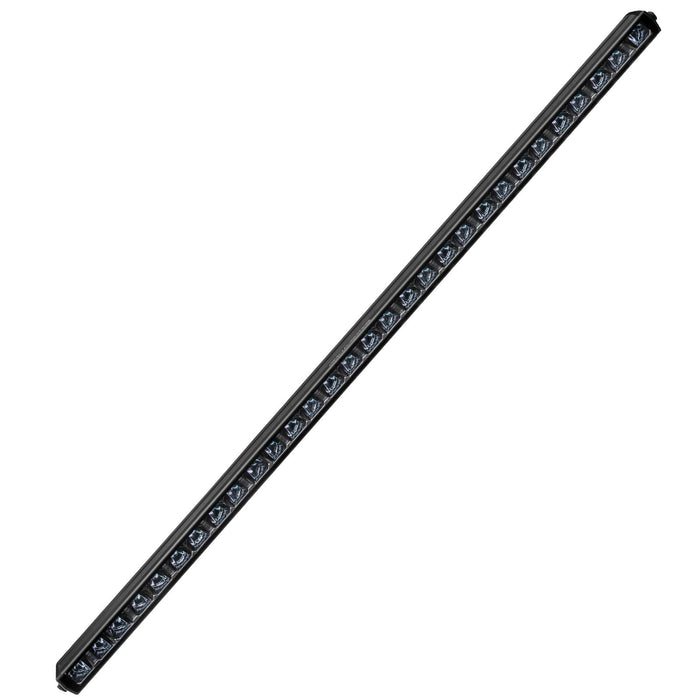

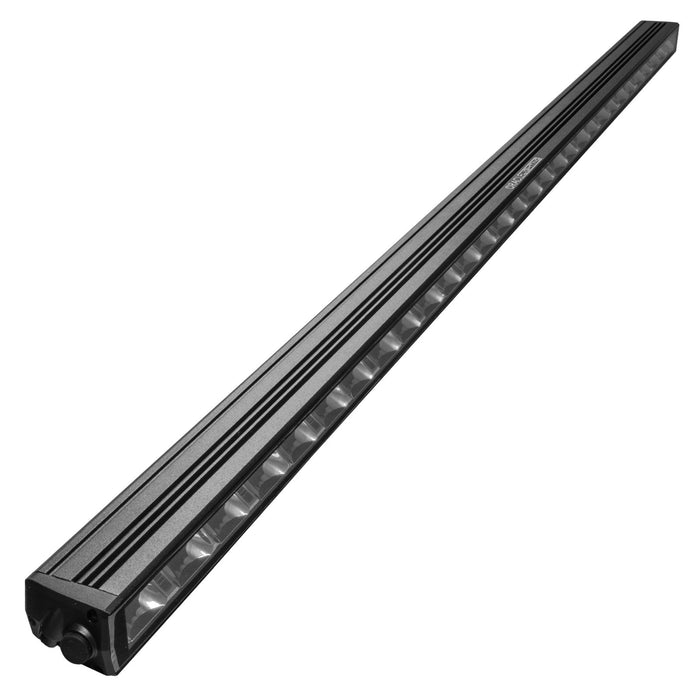

5900-50-023
50"
Raw / Effective Lumens18,000 / 14,200
Peak Intensity420,000 cd
Total Power240W
Amp Draw14.5A @ 12V DC
Max Projection1 Lux @ 648m
