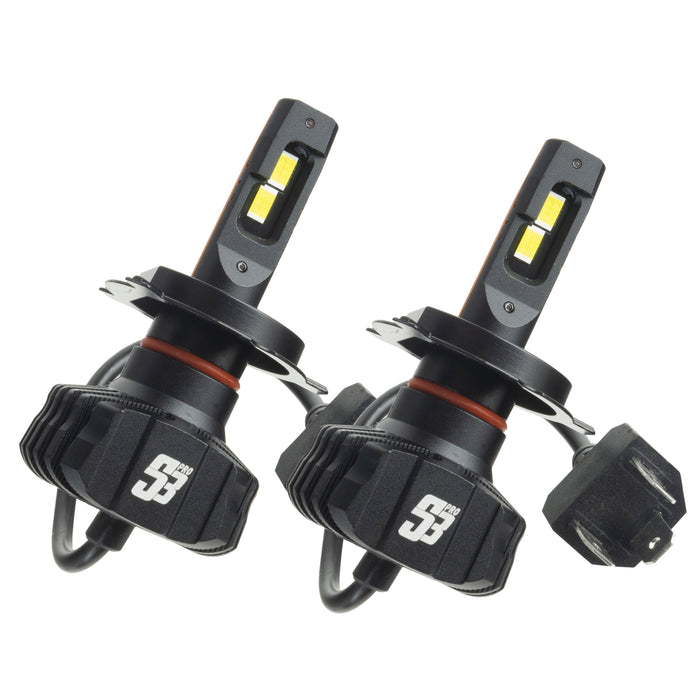

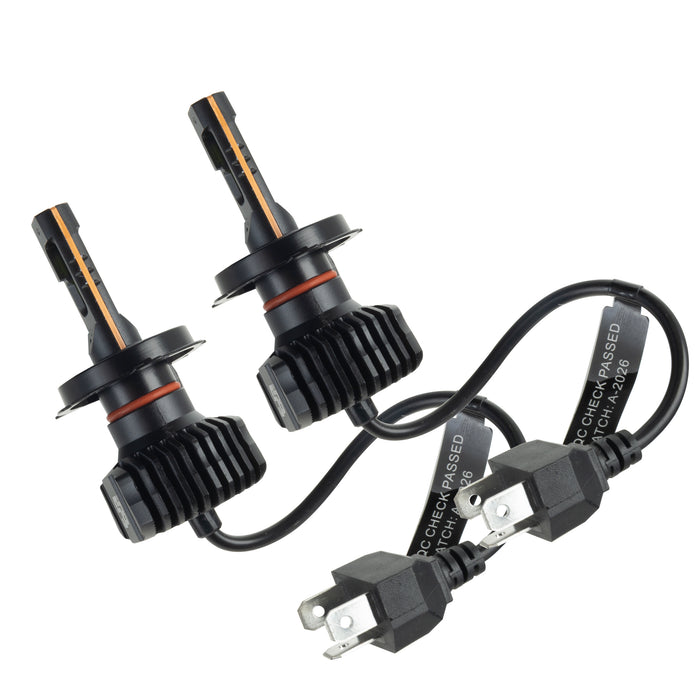

ORACLE Lighting H4 - S3 PRO LED Light Bulb Conversion Kit (Low Beam)

ORACLE Lighting H4 - S3 PRO LED Light Bulb Conversion Kit (Low Beam)

$98.50 - $98.50
$98.50
$98.50 - $98.50
$98.50

Upgrade your low beam headlights with ORACLE’s S3 Pro LED Conversion Bulbs — delivering 4,860 lumens of crystal clear 6000K light in a sealed waterproof heatsink design that eliminates external drivers and cooling fans. True plug & play H4 fitment. Universal application.

Part Number: S5231-001
✓ 4,860 Lumens ✓ 6000K Crystal White ✓ Plug & Play H4 ✓ Low Beam ✓ Waterproof Heatsink ✓ CSP LED Chip ✓ No External Drivers ✓ 3-Year Warranty
Bulb Fitment: H4  |  Application: Low Beam Headlight
Product Overview ▼

ORACLE Lighting S3 Pro LED Conversion Bulbs instantly upgrade your low beam headlights with 4,860 lumens of crystal clear 6000K output. The electronic components are housed in a sealed waterproof heatsink design, eliminating the need for external drivers and cooling fans.

The CSP (Chip Scale Package) LED Chip delivers a small form factor with high-intensity output and lower heat value — resulting in an industry-leading 130 lm/W luminous efficacy ratio. The low-profile design reduces common bulb fitment clearance issues for an easy plug & play DIY installation.

ORACLE S3 Pro LED Integrated Heatsink Design
Why Choose the ORACLE S3 Pro LED Bulbs? ▼
  • 4,860 Lumens of Output — dramatically brighter than stock halogen low beams; see farther, react faster
  • 6000K Crystal White — clean, modern HID-like color temperature that improves road contrast and visibility
  • Sealed Waterproof Heatsink — integrated design eliminates external drivers and cooling fans
  • True Plug & Play — direct H4 fitment, no wiring, no cutting, installs in minutes
  • CSP LED Technology — industry-leading 130 lm/W efficacy; maximum output with lower heat value
  • Low-Profile Design — reduces common bulb fitment clearance issues
  • 3-Year Limited Warranty — backed by ORACLE Lighting’s quality guarantee
Performance & Technical Specifications ▼
Part NumberS5231-001
Bulb FitmentH4
ApplicationLow Beam Headlight (Universal)
Brightness4,860 Lumens per bulb
Color Temperature6000K (Crystal White)
Power Draw18W per bulb
Current Demand1.5 Amp
Operating Voltage12V / 24V
Luminous Efficacy130 lm/W*
LED Chip TypeCSP (Chip Scale Package)
Housing Material6160 Aluminum Alloy
PCBDouble Layer Copper
Waterproof RatingSealed / Waterproof Heatsink
Warranty3-Year Limited

*Industry-Leading Efficacy Ratio

⚠️ CAN-BUS Note: Dodge, Chrysler, Jeep, or later-model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN-BUS decoder harnesses if flashing, strobing, or shutoff occurs with engine on.
Key Features & Benefits ▼
  • CSP Chip Scale Package LED — small form factor, high-intensity output with lower heat value
  • Integrated Sealed Waterproof Heatsink — no external drivers or fans needed
  • Low-Profile Design — reduces common bulb fitment clearance issues
  • Industry-Leading 130 lm/W luminous efficacy ratio
  • 12V/24V Dual-Voltage compatibility
  • Direct Plug & Play H4 replacement — no modifications required
  • 3-Year Limited Warranty backed by ORACLE Lighting
Fitment ▼

This kit fits any vehicle using an H4 low beam headlight bulb. H4 is a common dual-filament bulb used across a wide range of vehicles. Verify your vehicle’s headlight bulb size before ordering.

💡 Not sure if H4 is the correct size for your low beams? Check your owner’s manual or a bulb fitment guide before ordering.
What’s Included ▼
  • (2) H4 S3 Pro LED Low Beam Headlight Bulbs
  • Installation Guide
  • ORACLE Lighting Warranty Card
3-Year Warranty
Installation Guide & Resources ▼
Estimated Install Time: Under 30 minutes
Tools Needed: None — true plug & play
Skill Level: Beginner DIY friendly
Download Installation Guide
Under 30 Min Install TimeDownload Install Guide
Warranty, Shipping & Returns ▼

ORACLE Lighting S3 Pro LED Bulbs are covered by a 3-Year Limited Warranty against defects in materials and workmanship.

Warranty InformationShipping PolicyReturns & Exchanges
Certifications & Downloads ▼
Under 30 Min Install TimeDownload Install Guide3-Year Warranty
