ORACLE ColorSHIFT Wireless Controller
ORACLE Part # 1713-504
A small sized wireless remote that packs a lot of power to control your 12V ORACLE LED ColorSHIFT Products. Designed to control RGB LED lighting accessories with a variety of functions; can also operate with Home-Link Technology.
Note* Controller can be mounted inside or outside of the vehicle’s cabin.
Single Color Modes:
A) Press A to change colors/ Hold A to change brightness.
B) Press B to cycle strobe patterns.
C) Press C to initiate breathing mode.
7 Color-Changing Mode
A) Press A multiple times until you reach the 7 color-changing mode.
B) Press B to speed up the function.
C) Press C to slow down the function.
• Input: 12V DC
• Output: 60W (30W/ Channel)
• Remote Material: Stainless Steel
• Box Material: Anodized Aluminum
• Mount Box in a Cool /Dry Location.

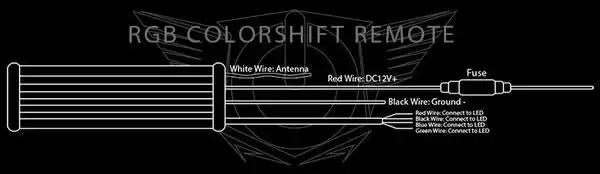

• Extend Antenna Wire for Best Reception

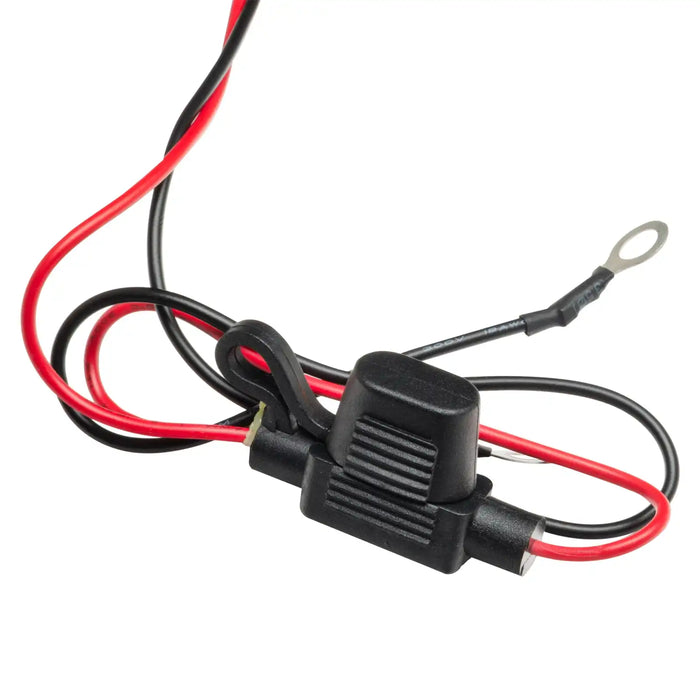

• Remove Fuse While Installing.
• Output w/ Red Line is (+) 12V
• 1 Year Manufacturer Warranty

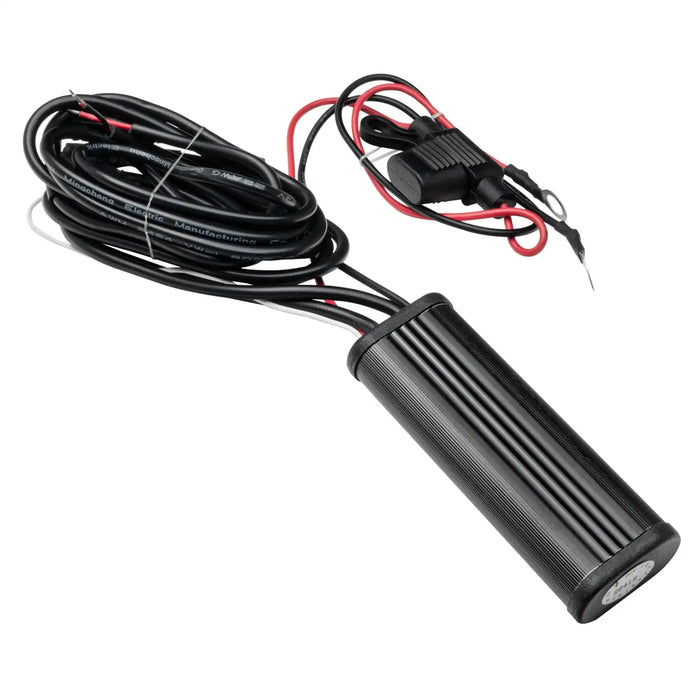

- (1) ORACLE ColorSHIFT Wireless Controller Module

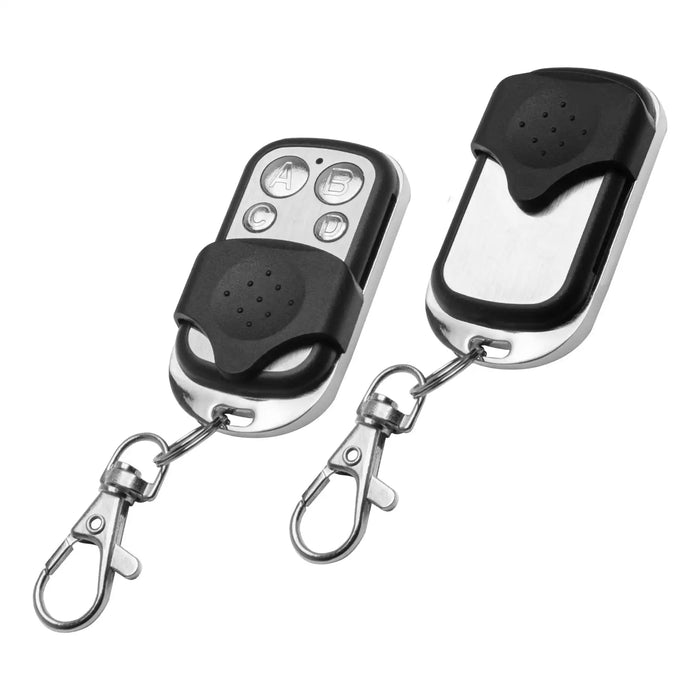

- (1) ORACLE ColorSHIFT Wireless Controller Wireless Key FOB
