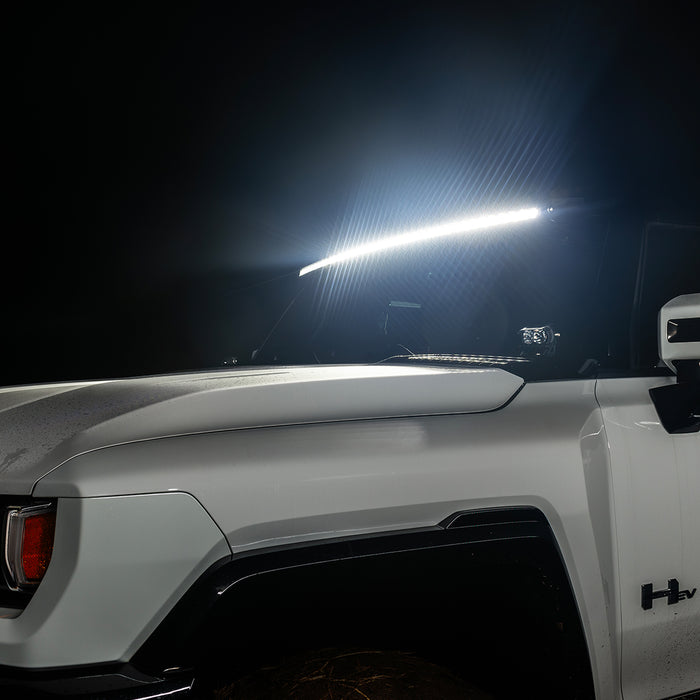

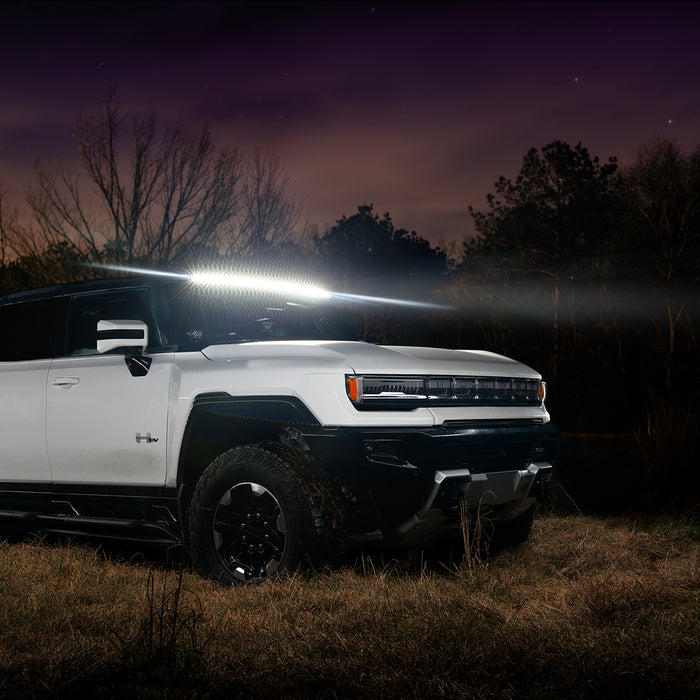

2022-2025 Hummer EV 50" Roof Mount Curved Light Bar w/ Brackets
1 review
Original price
$935.99
-
Original price
$935.99
Original price
$935.99
$935.99
-
$935.99
Current price
$935.99
| /
Low-profile, windshield-curved roof light bar for Hummer EV; reduced wind noise, doesn’t block factory cab clearance lights, and delivers long-range driving beam performance with selectable amber/white clearance lighting.
22,200 Raw Lumens
50" Curved Bar
Selectable Amber/White
Low-Profile Brackets
IP69 Ingress
50° Driving Beam
ORACLE Part #6923-023(NOW IN STOCK)
Product Overview
The ORACLE LED Light Bar for the Hummer EV features a unique low-profile design that helps reduce wind noise and does not block factory cab clearance lights. CAD-designed brackets are engineered specifically for this application for an easy, DIY-friendly install.
Designed to match the curvature of the Hummer windshield, this system stands out from generic options with strong fitment, quality, and performance—delivering up to 22,200 raw lumens and long-range projection.
The multifunction design provides selectable amber or white clearance lights. Wire them to an Aux Switch, Parking Lights, DRL, or leave disconnected if you prefer not to use the clearance feature.
Along with blending in with the factory design, the low-profile setup provides a quieter and more aerodynamic installation compared to traditional roof bar setups. The mounting design also does not interfere with the hard top when you want to go topless.
Mounting is straightforward using factory hardware and only the tools included in your glovebox plus a 13mm socket. The system mounts to factory accessory mounting points for a clean installation experience.
Important Notes: As with any roof-mounted light bar setup, high-powered car washes with overhead brushes should be avoided.
Bracket Specifications
MaterialCast Aluminum
FinishBlack Powder Coat
FitmentHummer EV (All)
BaseRubberized Base Gaskets
Light Bar Features
36x 7W LED main light
Selectable amber or white clearance lights
Precision reflector-facing technology
Under/over voltage + reverse polarity protection
Electronic Thermal Management
Innovative design (patent-pending)
Designed & engineered in the USA
LED lifespan 50,000+ hours
Performance (Driving Beam)
Key output and beam specs:
Raw Lumens22,200 lm
Effective Lumens18,800 lm
Total Wattage252W
Total Amp Draw16A @ 12V DC
Beam Angle50° Driving Beam
Max Projection1 Lux @ 460m
Color Temperature5500K–6000K
Optic Note: Reflector-facing technology is designed to optimize usable output and visibility from the 30 individual 8W emitters.
Materials & Ingress Protection
Outer HousingPolycarbonate
Lamp Housing6030 Aluminum
ReflectorPlated Polycarbonate
LensLexan Polycarbonate
FinishPolyester Powder Coat
BreathersStainless Steel Anti-Fog Breather Valves
ConnectorsMolded IP68 Waterproof Connectors
Ingress ProtectionIP69 Ingress Protection
What’s Included
(1) 2022–2025 Hummer EV 50" Roof Mount Curved Light Bar
I work at a Ford dealer and have been asked by customers and coworkers alike if they came stock or not, they're that high quality! And at night, they light up the world!
Ditching the factory Altezza-style lights was a requirement. I went with the tinted version of these lights and they made a huge improvement to the look the of the GX.
The additional reverse lights probably quadrupled the factory reverse light output.
The sequential turn signals incorporating ambers are a nice touch.
Oracle did a great job styling these lights, carrying over the front door mirror bezel “ribs” makes them look like they could have been a factory option.
Good job guys.
My one complaint is that I with my early pre-order lights I had to extend the reverse light harness 6-8” in order to loop reach the OEM reverse light circuit.
No big deal and I’ve seen some other people who didn’t have that to do this so maybe that’s already been corrected.
Regardless, I’m happy with this purchase and would recommend the product to anyone with a GX460.
Solid. Wiring takes some thought. Tweaks would be appreciated for install
Pleased with the thickness (gauge) of the metal bracket - seems like it will hold up well. I have the aux switches, so I didn't need the switch and added wiring. I ended up locating the wiring for the passenger side between the radiator base and skirt - had to remove the skid plate. I also inserted the cables in flex pvc wireway for protection from heat and rubbing. Wires are too short to run both left and right sets all the way up to the firewall, so you have to do some splicing. Since you have to splice, I did that underneath near the driver's side lights so I would only have a single twisted pair going upward.
Lights are great and solid. I thought they would be more amber in color - like the turn signal colors and other marker lights - i thought maybe they sent the yellow by mistake. I'd describe them as halfway between amber & yellow. See pics and comparing against the more amber 5 LED grill lights.
I would highly suggest:
1) Oracle make a drop down choice - for those of us who have aux switches - and substitute a different wiring harness that includes a two-into-one (driver and passenger, and then a cable heading up to the firewall. You'd save switch and relay cost (thrown away). Or just add one such connector/splice to the kit and charge me $10 more. It would beat the splicing and heat shrinking down below.
2) Provide neoprene washers (for the top 2 screws on each light) to allow customers to angle the lights downward a bit.
3) Provide the option to do one white with two amber bulbs
I absolutely love these lights. The tinted black looks amazing. I love the sequential turns. Having actual reverse lights is a huge plus with my tint. Installation was super simple and the instructions were right on point.
