Product Overview

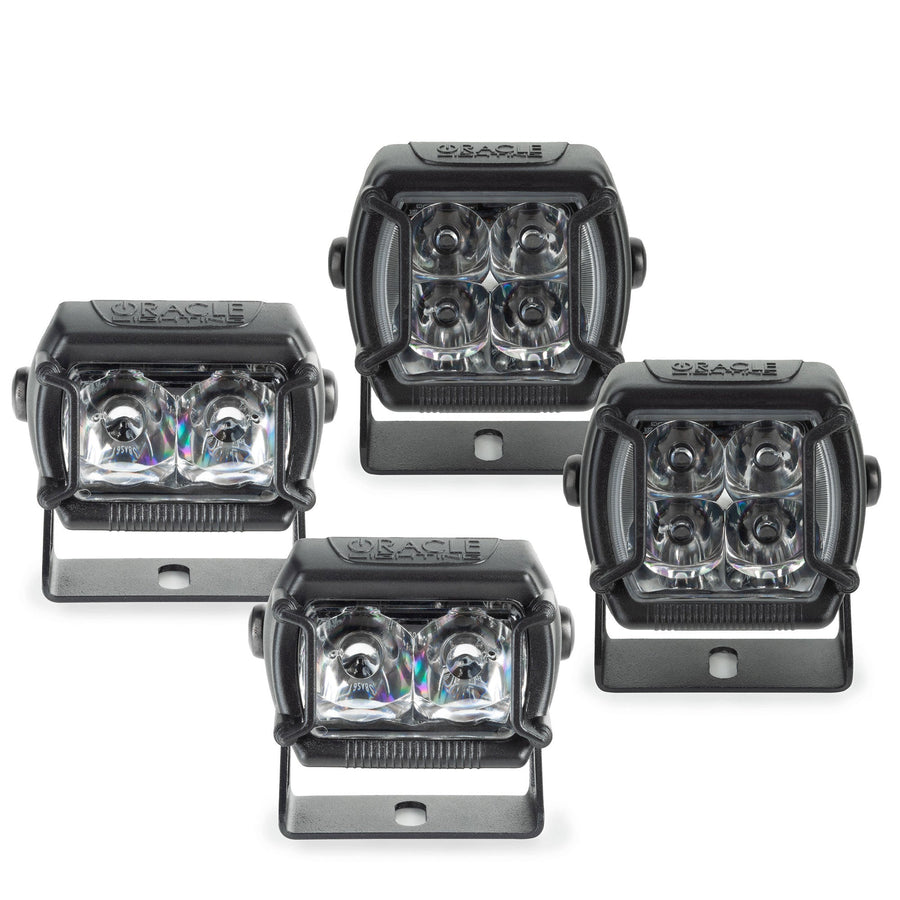

Premium OSRAM performance in a compact 3" format with IP69K sealing, Deutsch DT reliability, and unmatched value. Designed and engineered in the USA, the VEGA series delivers intense illumination with 1000'+ projection in a patent-pending design that outperforms competitors at a lower price point.
Our Goal: The VEGA compact off-road LED series provides an unparalleled lighting experience using high-quality OSRAM LED chips that deliver intense output performance with exceptional durability and reliability-offering more light output at a lower price than comparable products on the market.
Performance: Designed from scratch for performance, value, and durability. IP69K ingress-protection and OE-level Deutsch DT connectors increase overall reliability, while OSRAM LED chips deliver high lumen illumination. CAE analysis helped optimize lens optics and thermal dynamics to create a product that's both powerful and dependable.
Origins: Vega is the brightest star in the northern constellation and has long served as a baseline for photometric calibration-a fitting namesake for a series built around precision and intensity. Vega is approximately 40 times brighter than Earth's sun and has been termed "arguably the next most important star in the sky after the Sun."
2,000 Raw Lumens: Intense light output for maximum visibility

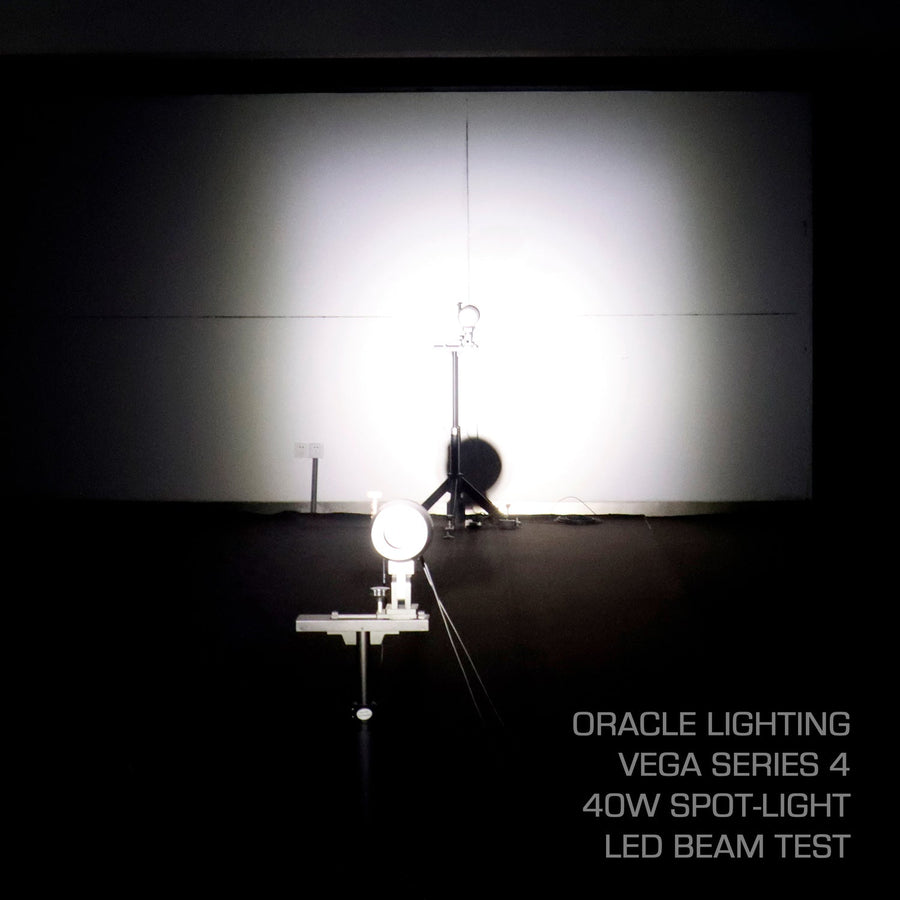

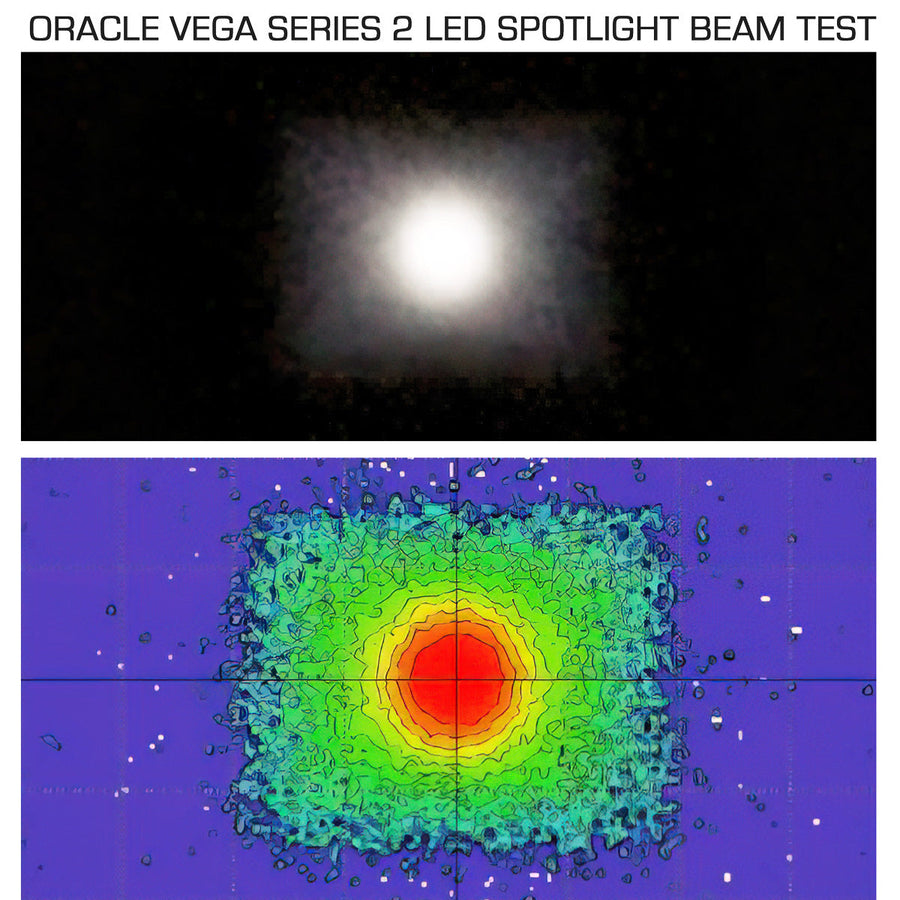

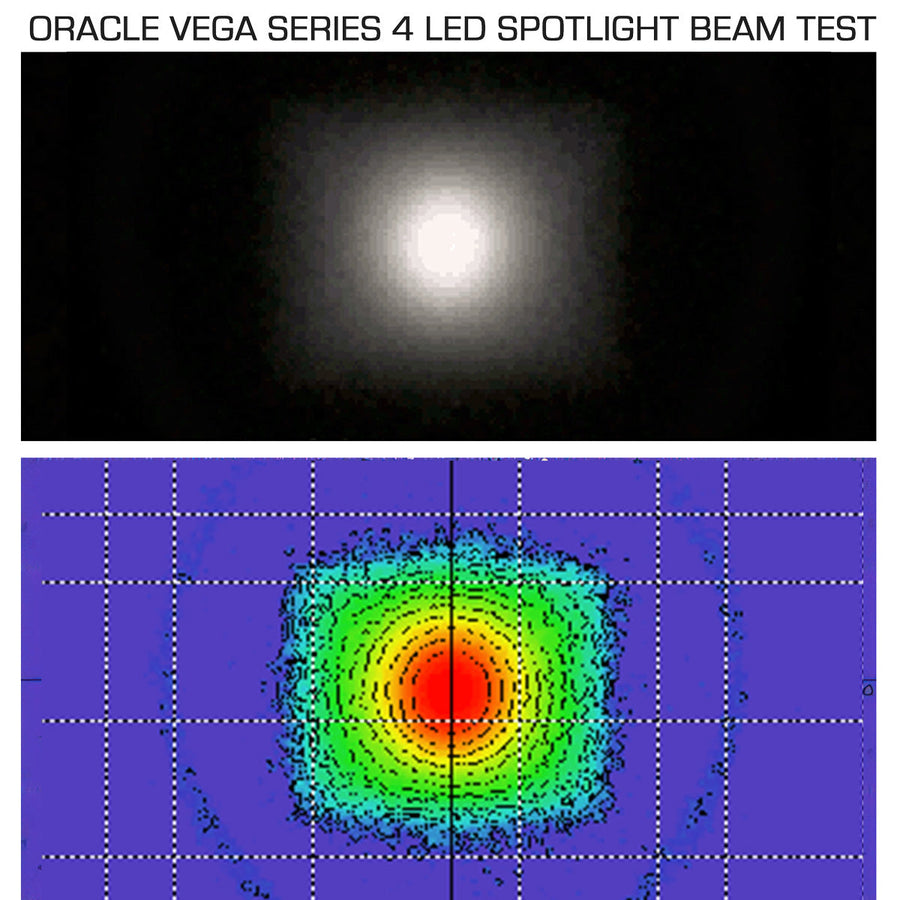

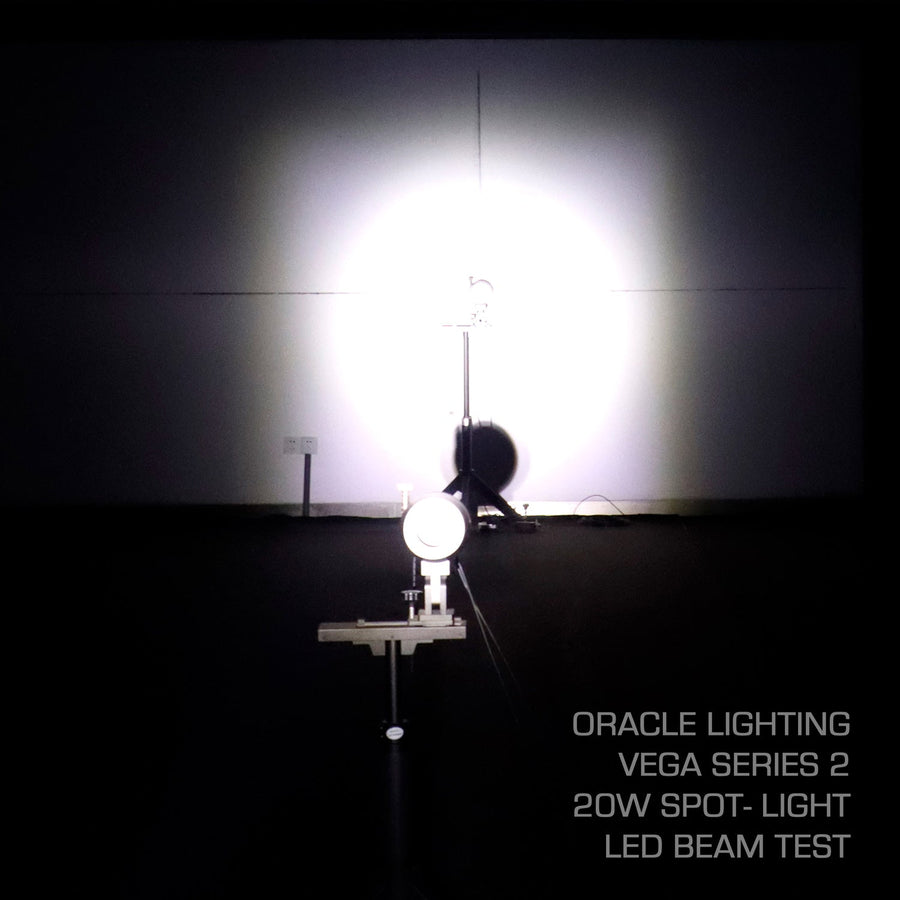

Focused Spot Beam: Almost 1000' projection distance
Patent-Pending Design: Unique angled lens for versatile mounting
Designed in USA: Engineered and designed in the United States
Powdercoated Aluminum: Durable construction for harsh conditions

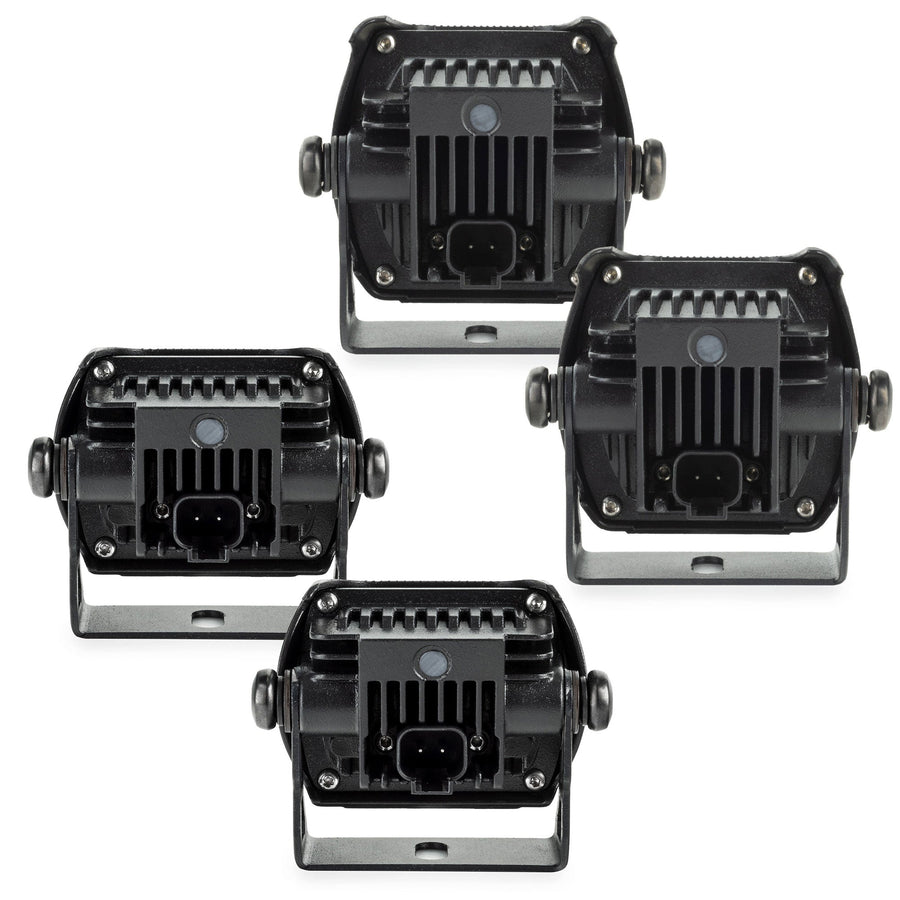

Deutsch DT Connector: OE-level reliability with 2' whip
5-Year Warranty: Full replacement warranty coverage
4,000 Raw Lumens: Intense light output for maximum visibility
Focused Spot Beam: Over 1000' projection distance
Patent-Pending Design: Unique angled lens for versatile mounting
Designed in USA: Engineered and designed in the United States
Powdercoated Aluminum: Durable construction for harsh conditions
Deutsch DT Connector: OE-level reliability with 2' whip
5-Year Warranty: Full replacement warranty coverage

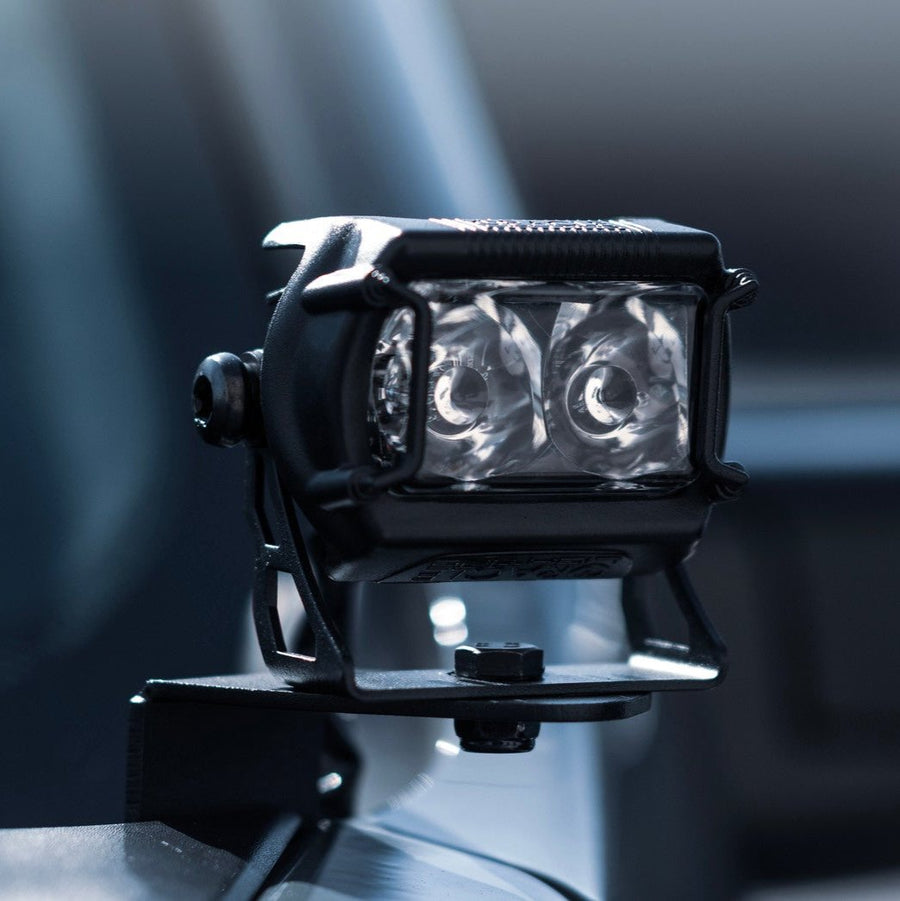

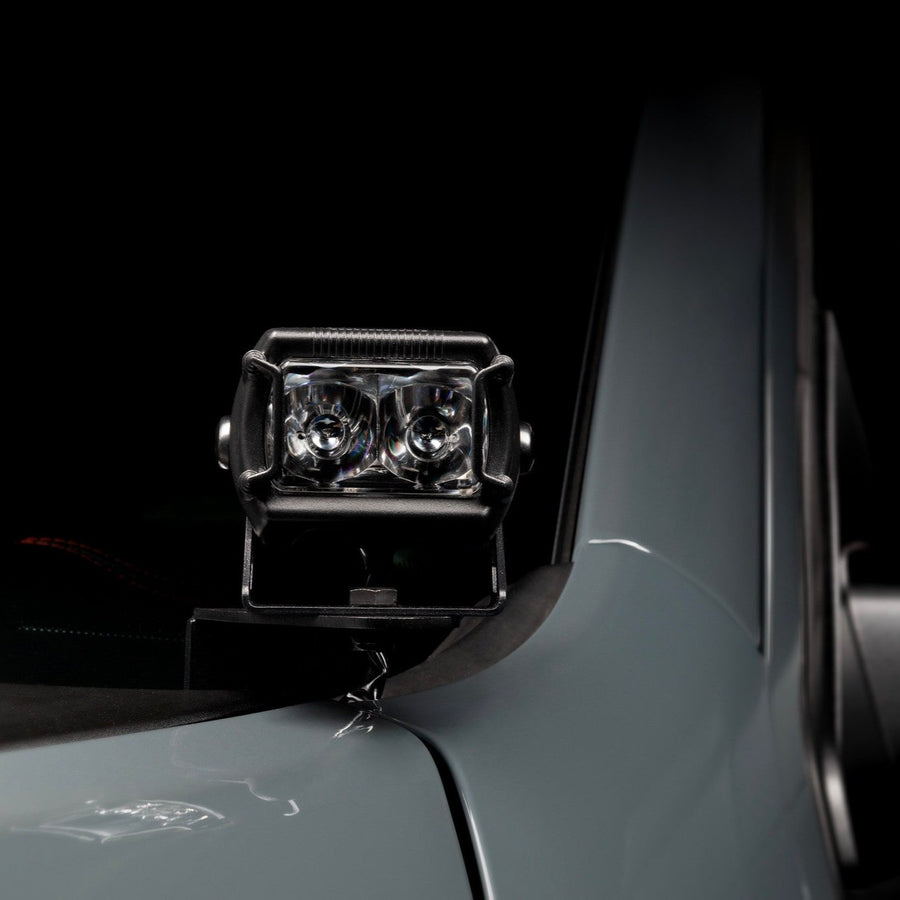

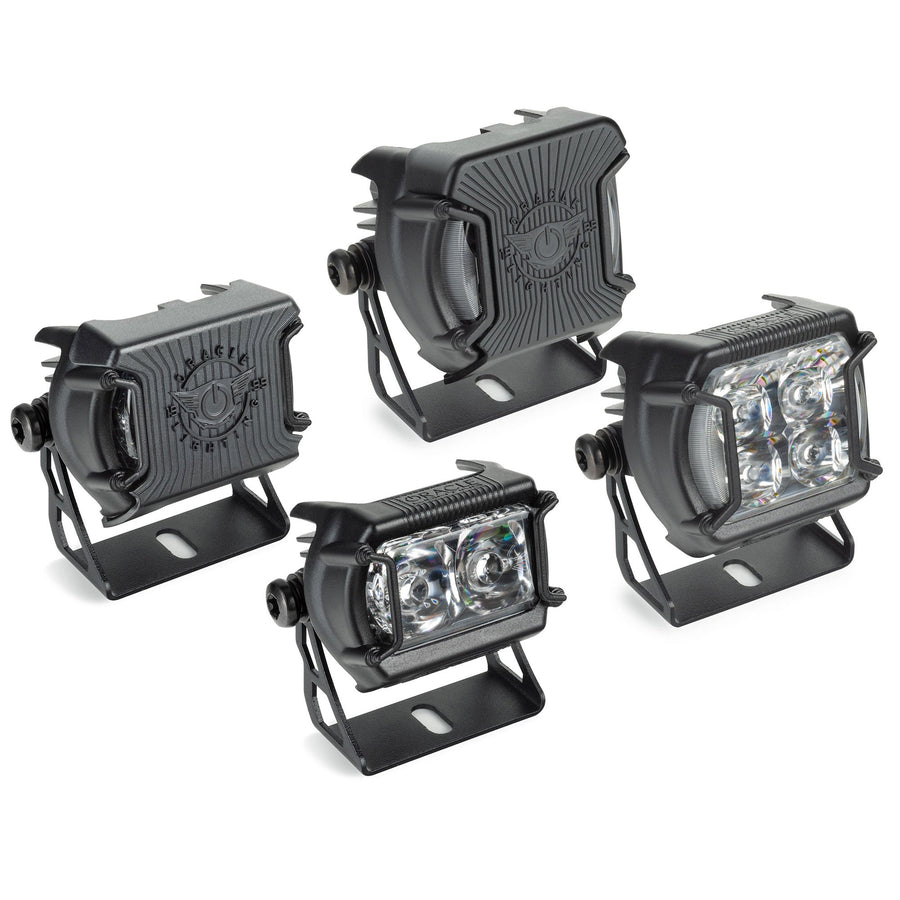

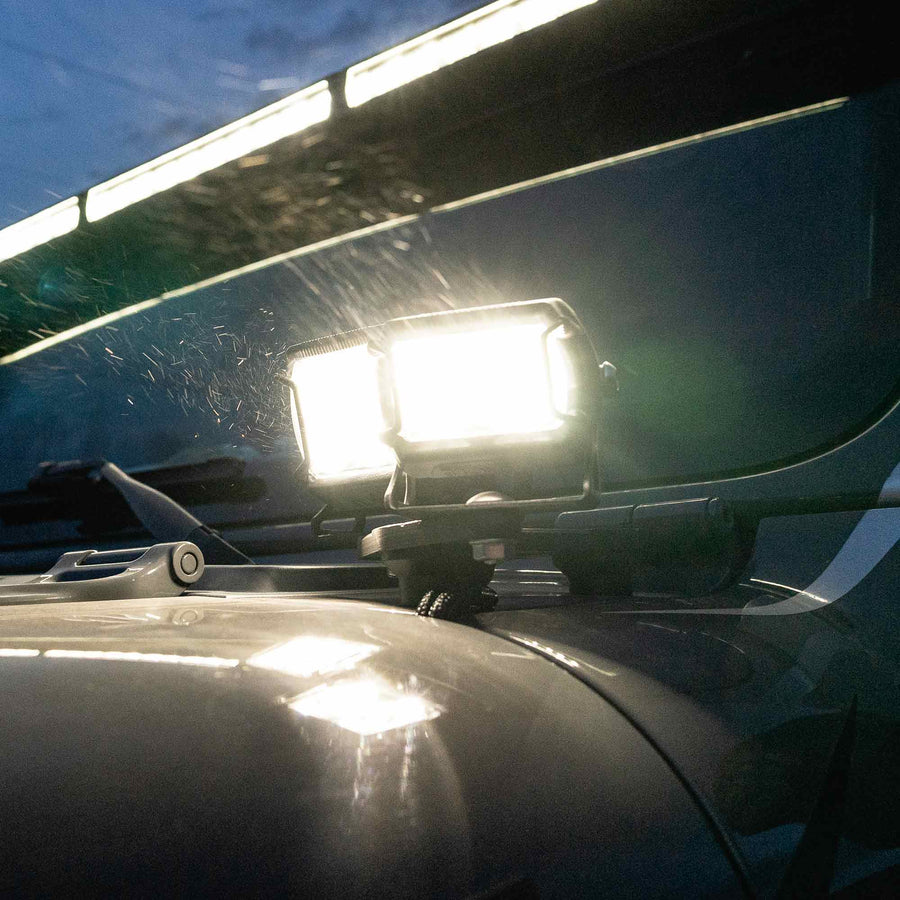

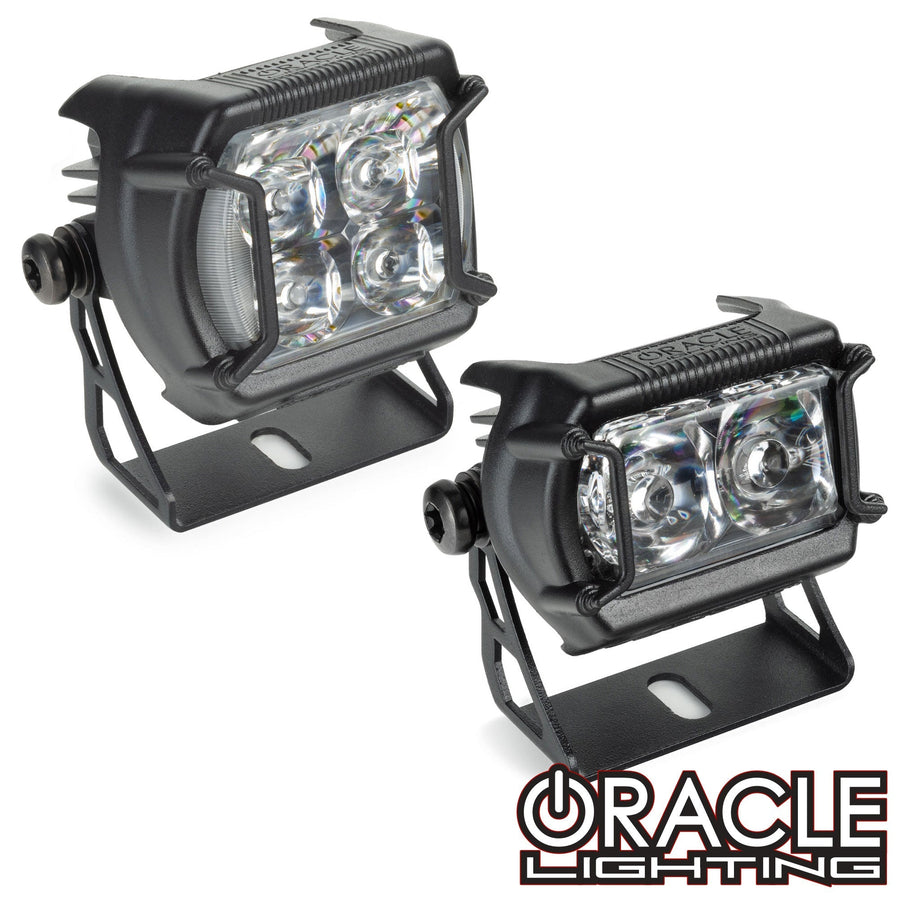

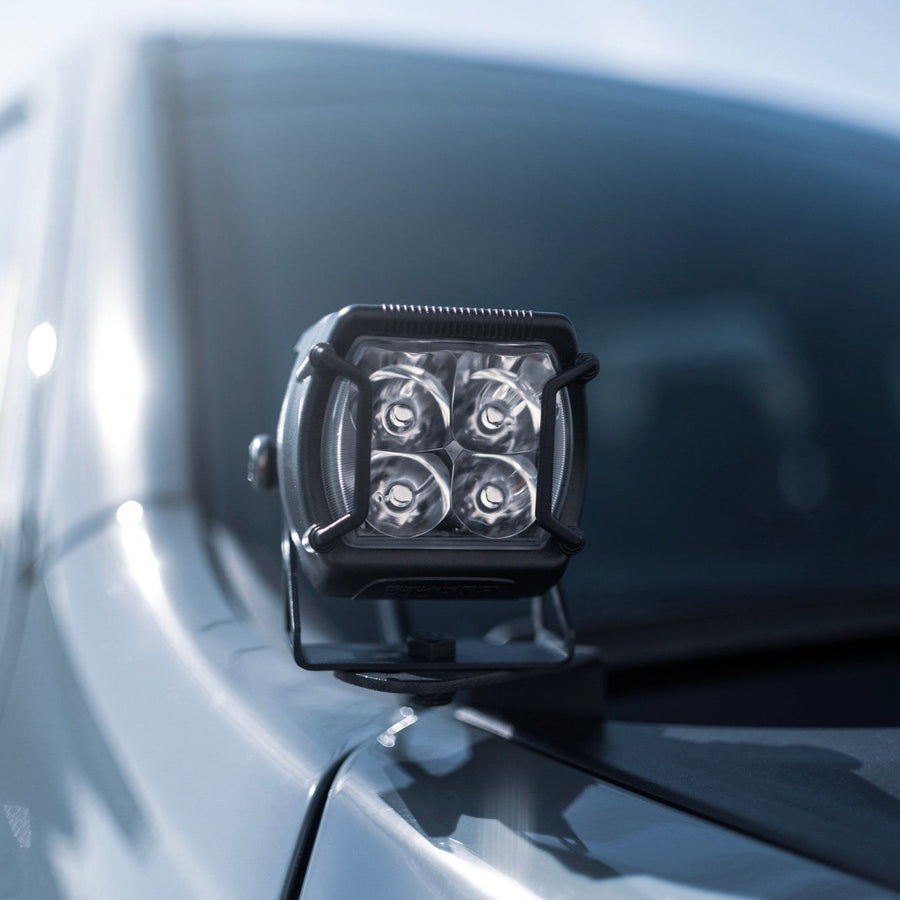

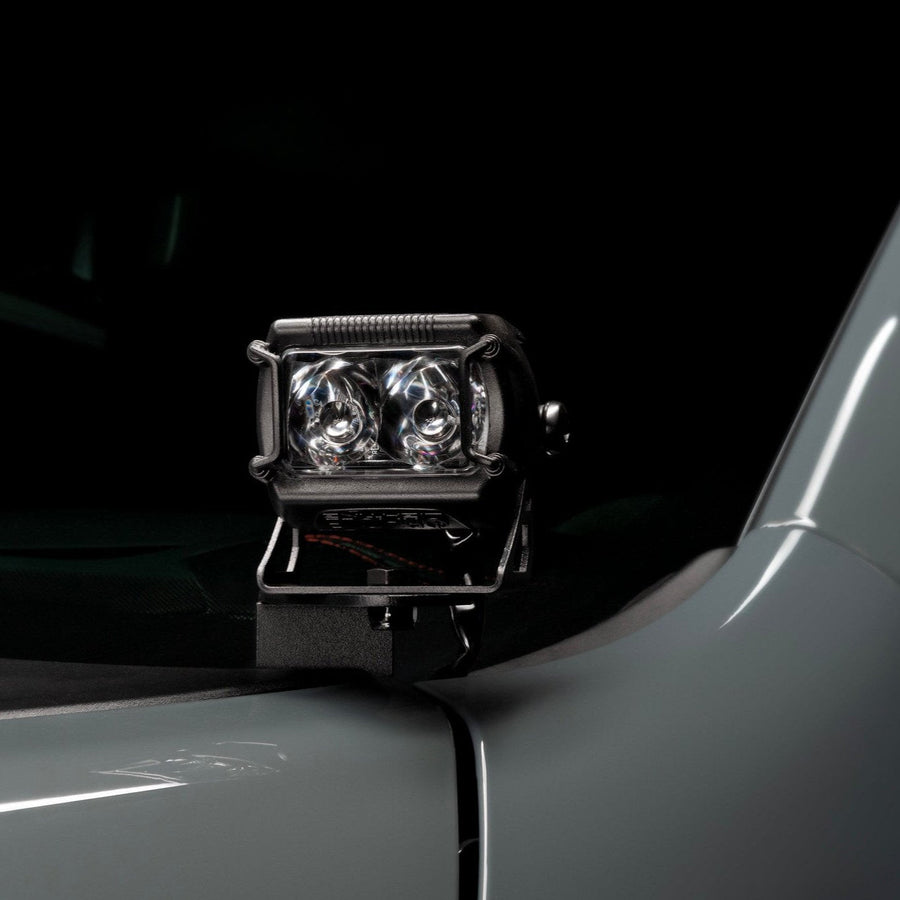

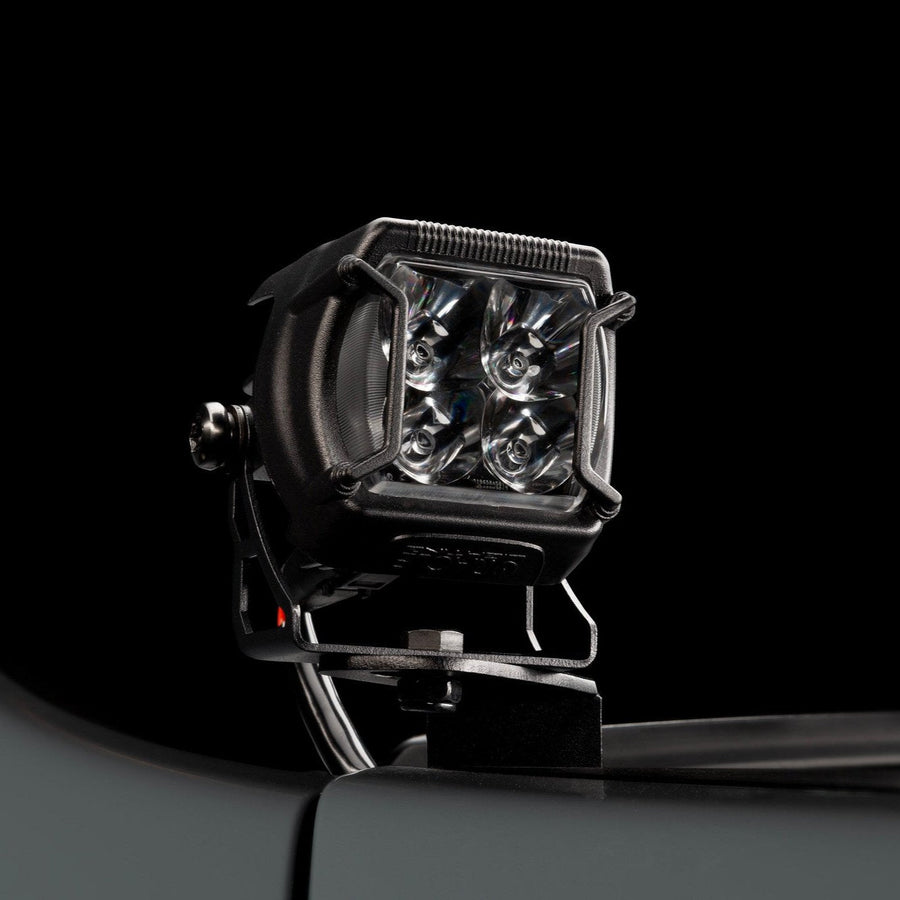

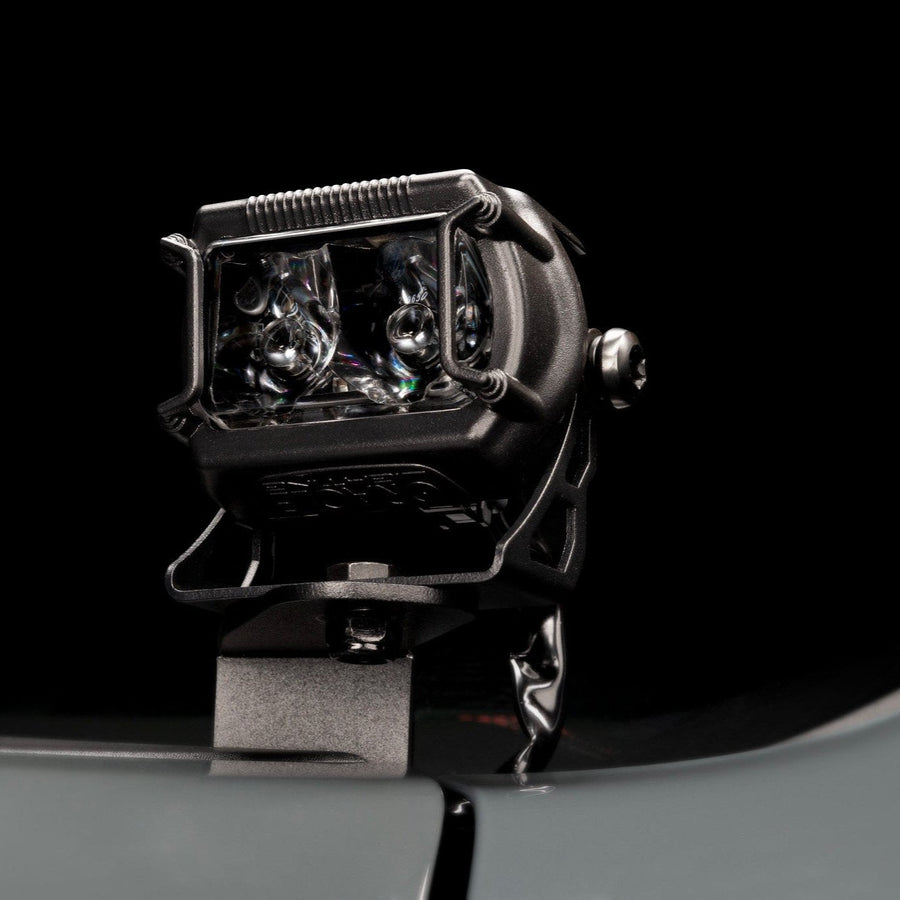

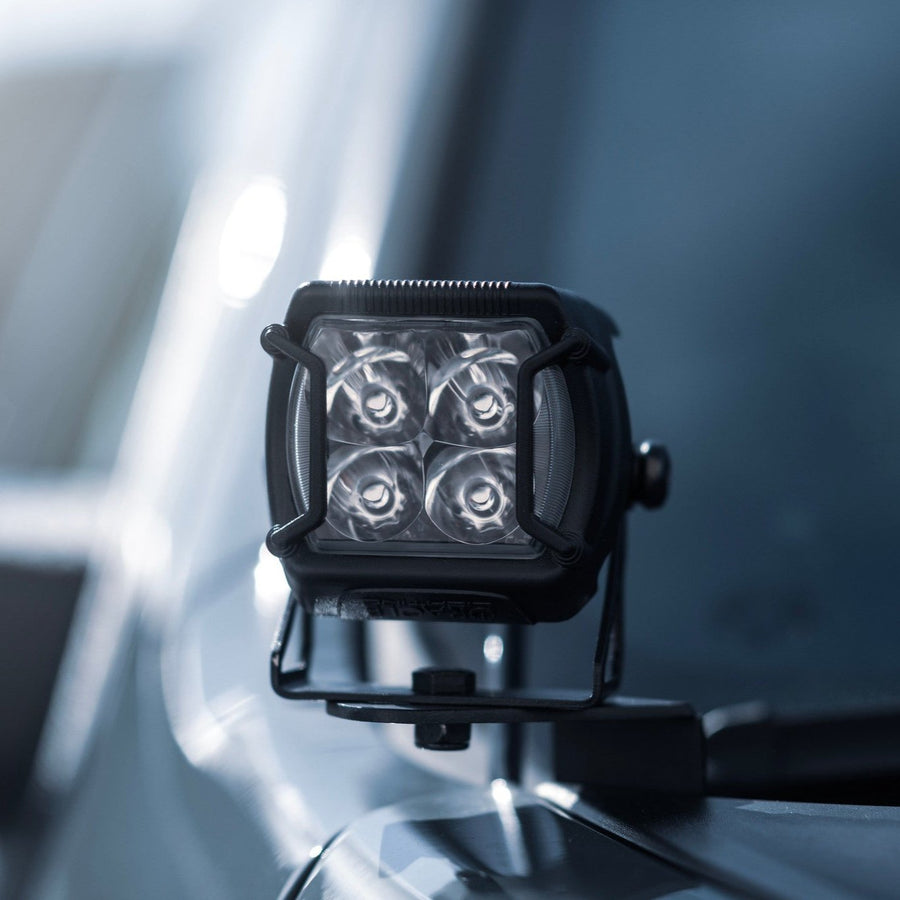

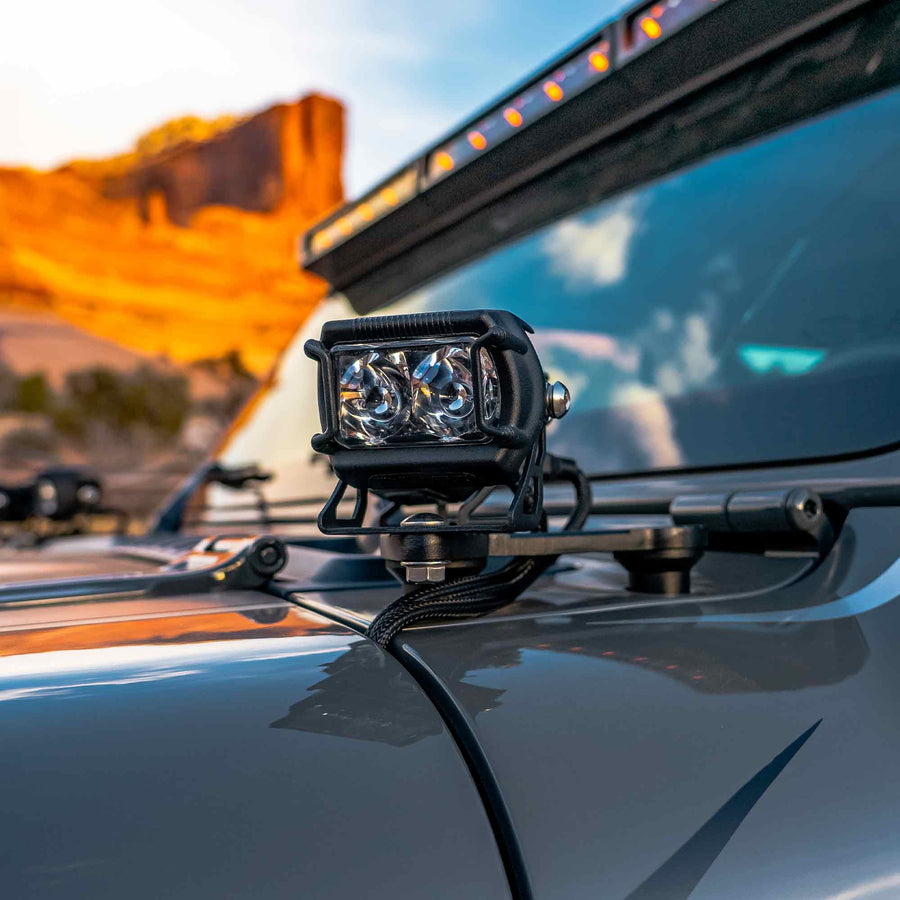

Styled with an angled front lens, the VEGA's patent-pending design more closely reflects OEM surfaces in many popular mounting positions. The beam pattern is horizontally symmetrical, so the lights can be mounted upside down or right side up without changing the beam angle. The result is a compact product with thoughtful styling and a versatile install footprint that adapts to your vehicle's unique mounting requirements.
VEGA™ Series 2 (20W) Specifications
Raw Lumens: 2,000 lm
Beam Angle: Spot Light
Chip Power: 10W x 2 LED (20W)
Power Draw: 1.35A
LED Chip: OSRAM KW CSLNM1.TG
CCT Color Temp: 6000K
Candela (10m): 96,730 cd
Lux (10m): 967.3 lux

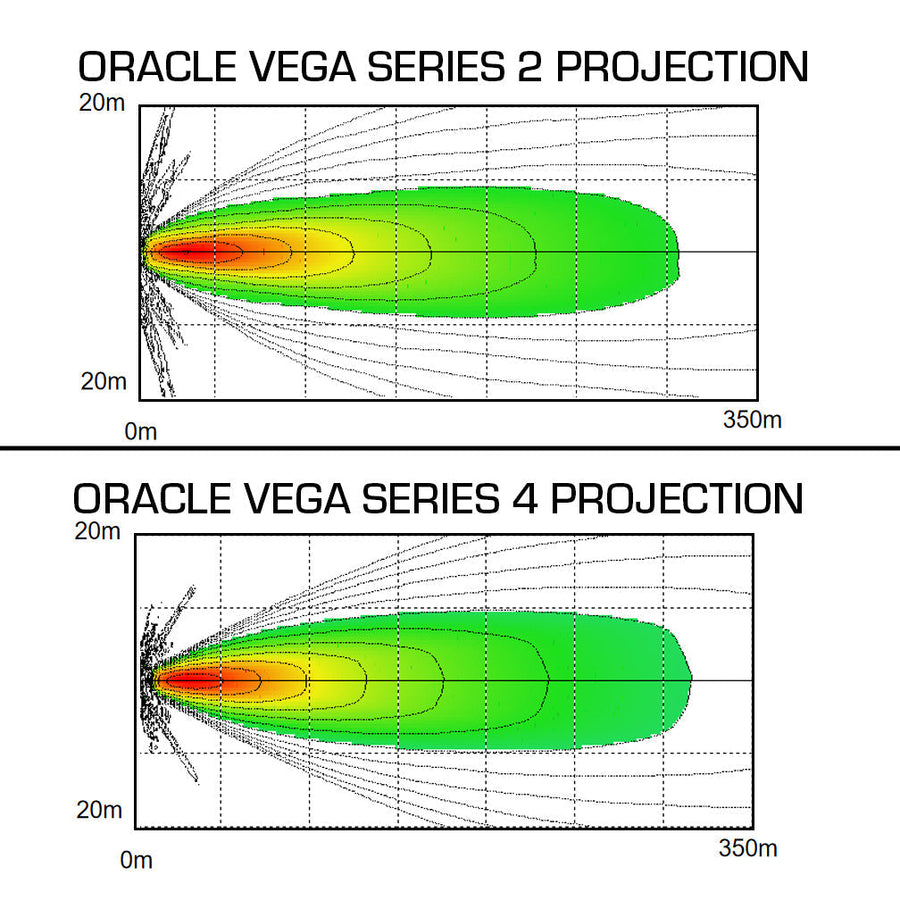

Projection Distance: 988 ft
Operating Temp: -40°F to 185°F
Connector Type: Deutsch DT 2-Pin
Lens Material: Polycarbonate
Housing Material: Powdercoated Aluminum
Mounting Hardware: 304 Stainless Steel
Ingress Protection: IP69K
Lamp Dimensions: 60mm x 63mm x 80mm
Lamp Weight: 1.25 lbs
Warranty Term: 5 Years
VEGA™ Series 4 (40W) Specifications
Raw Lumens: 4,000 lm
Beam Angle: Spot Light
Chip Power: 10W x 4 LED (40W)
Power Draw: 1.5A
LED Chip: OSRAM KW CSLNM1.TG
CCT Color Temp: 6000K
Candela (10m): 99,680 cd
Lux (10m): 996.8 lux
Projection Distance: 1,049 ft
Operating Temp: -40°F to 185°F
Connector Type: Deutsch DT 2-Pin
Lens Material: Polycarbonate
Housing Material: Powdercoated Aluminum
Mounting Hardware: 304 Stainless Steel
Ingress Protection: IP69K
Lamp Dimensions: 75mm x 85mm x 82mm
Lamp Weight: 1.67 lbs
Warranty Term: 5 Years

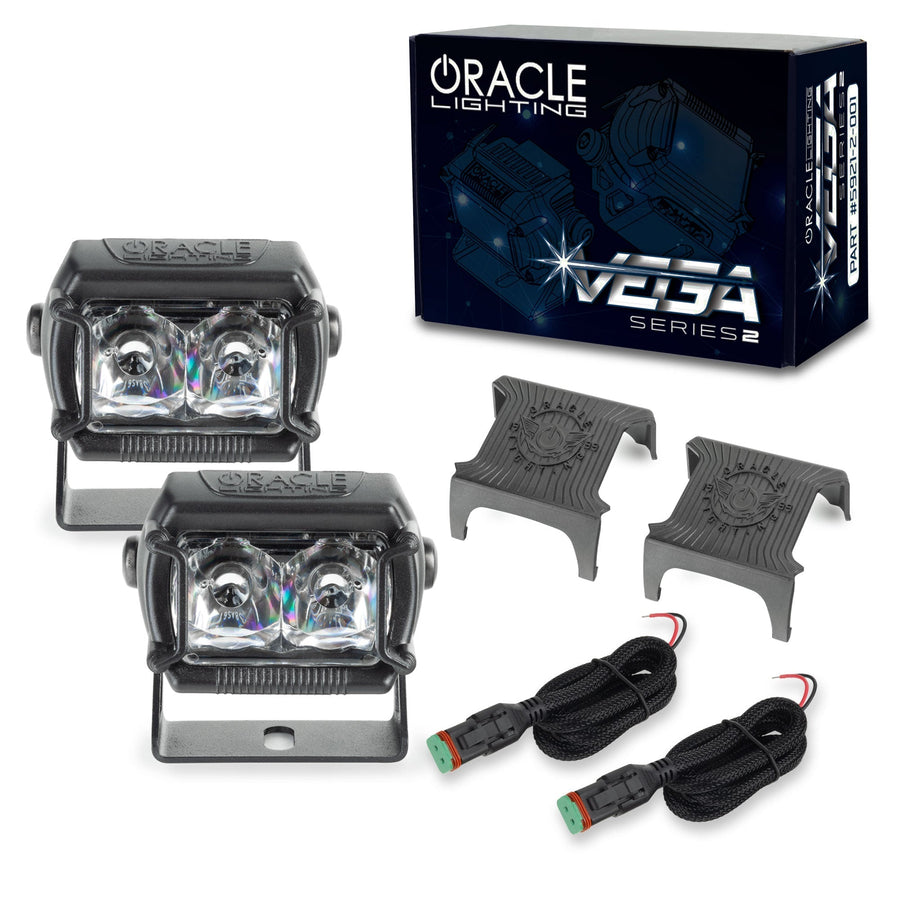

VEGA 20W Series 2
(2) Vega 20W Series 2 Spotlights
(2) Deutsch DT 24" Cable Whips
(2) Black-Out Lens Covers
(2) Standard Universal Brackets
(2) Stainless Steel Hardware Sets

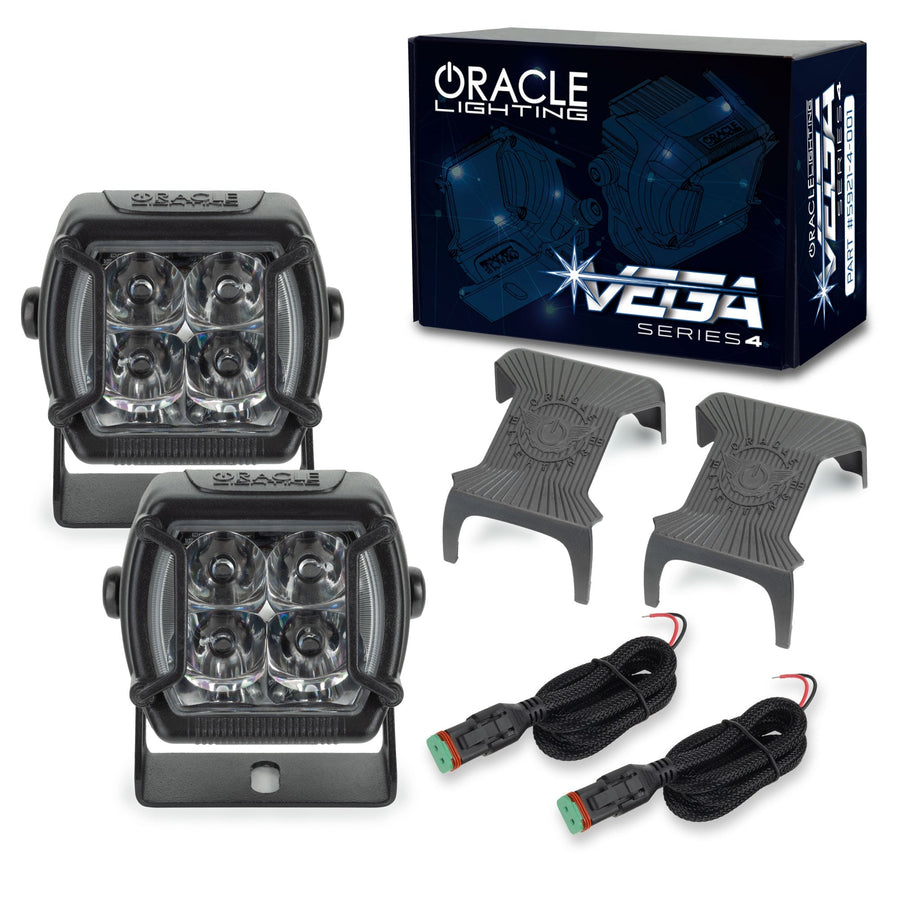

VEGA 40W Series 4
(2) Vega 40W Series 4 Spotlights
(2) Deutsch DT 24" Cable Whips
(2) Black-Out Lens Covers
(2) Standard Universal Brackets
(2) Stainless Steel Hardware Sets
Why Oracle?
All of our products are engineered and designed right here in Metairie, Louisiana. With over 15 years of experience building lighting for the automotive aftermarket, we control every step of the process - from R&D to final assembly - so you're getting a part built to a standard, not just a spec sheet.
Whether it's an install question, a fitment question, or you just want a second opinion before you order - pick up the phone and talk to someone who actually knows the product. No call centers, no scripts. Just people who know Jeeps, Broncos, Tacomas, and trucks as well as you do.
We don't make one-size-fits-all lighting. Every product is engineered around the specific fitment, electronics, and driving demands of the platform it's built for - so what you install is what was designed for your vehicle from day one.
Before anything ships, it's been run through real-world abuse - mud, vibration, weather, and mileage - not just a bench test. If it can't survive the trail or the daily commute, it doesn't make it to your truck.
We stand behind what we build. Every Oracle product ships with a manufacturer warranty and a team that actually honors it - because a good part with no support isn't a good deal.
Orders ship quickly from our Metairie facility, with tracking sent the moment your parts are on their way - so you know exactly when to expect them, every time.
5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)
J
John Strader
Great Oracle Product
I love my new lights. They really good too. Installed of them and wish I had bought them sooner.
