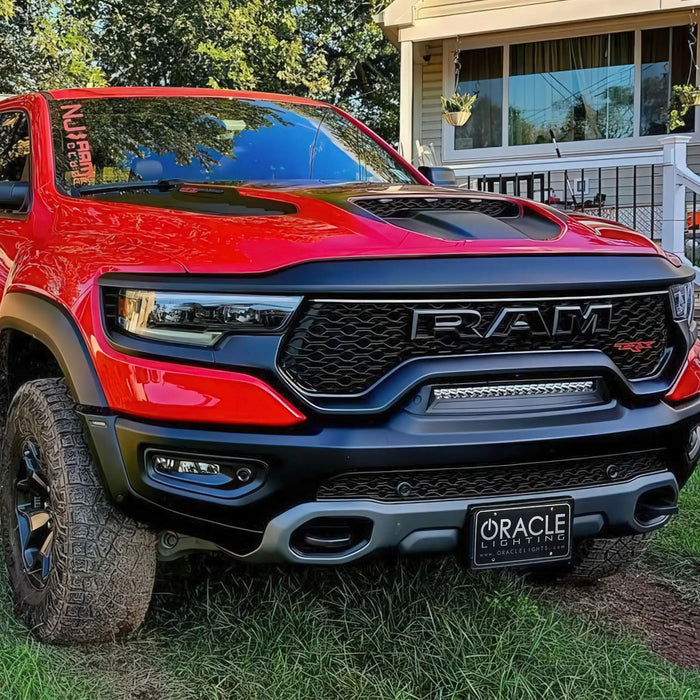

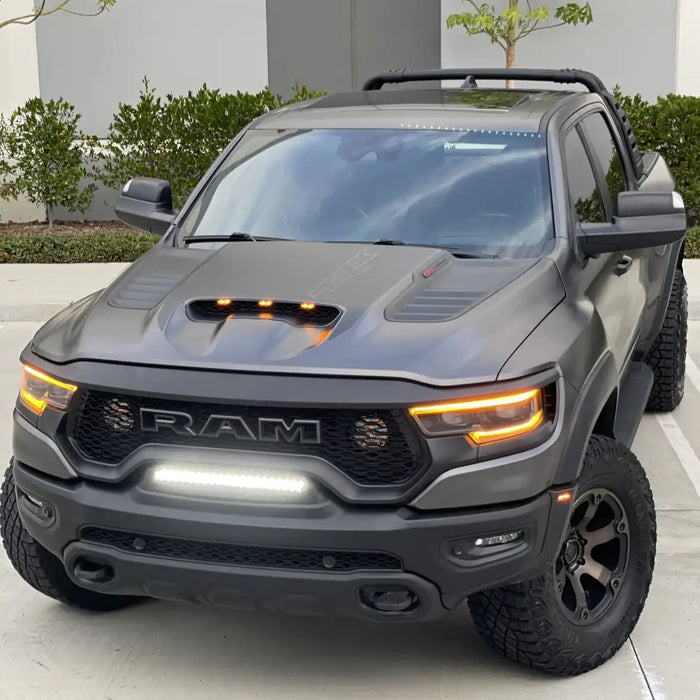

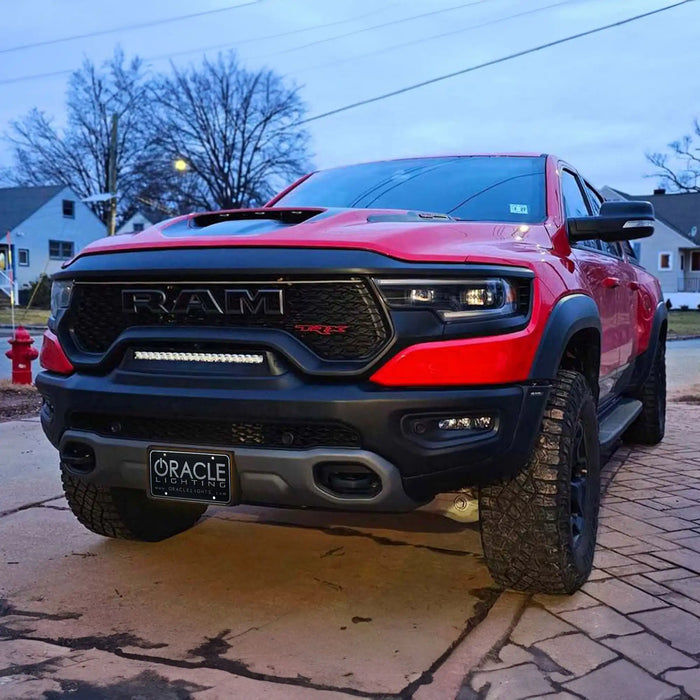

ORACLE Lighting 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

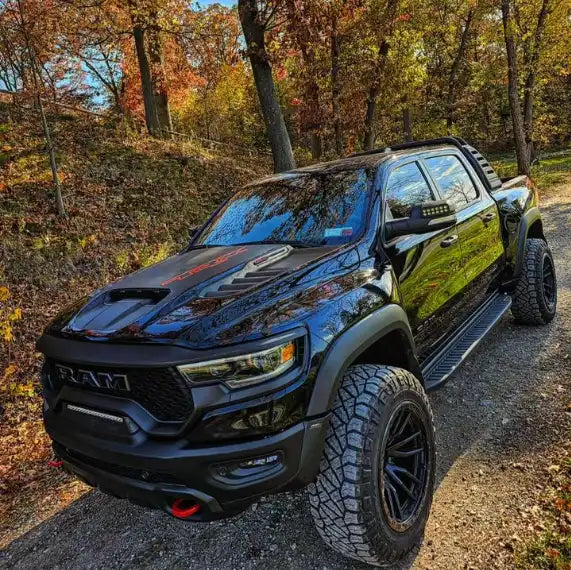

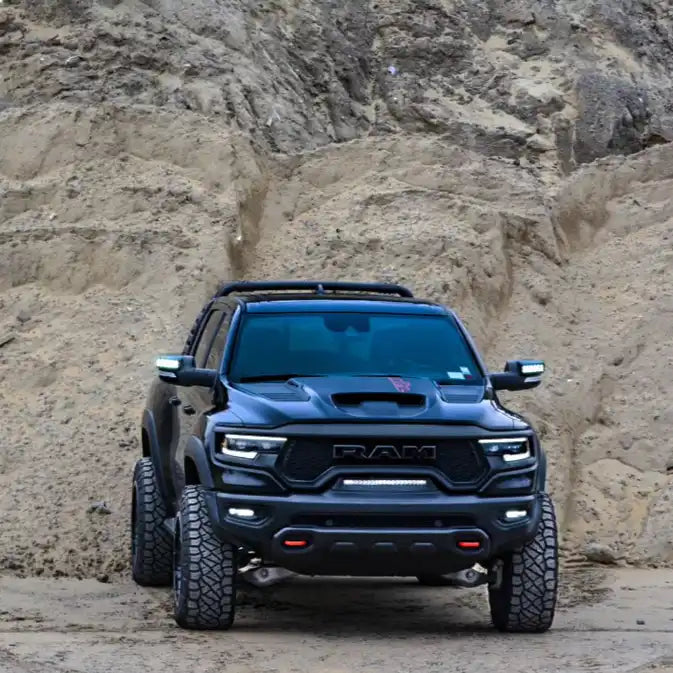

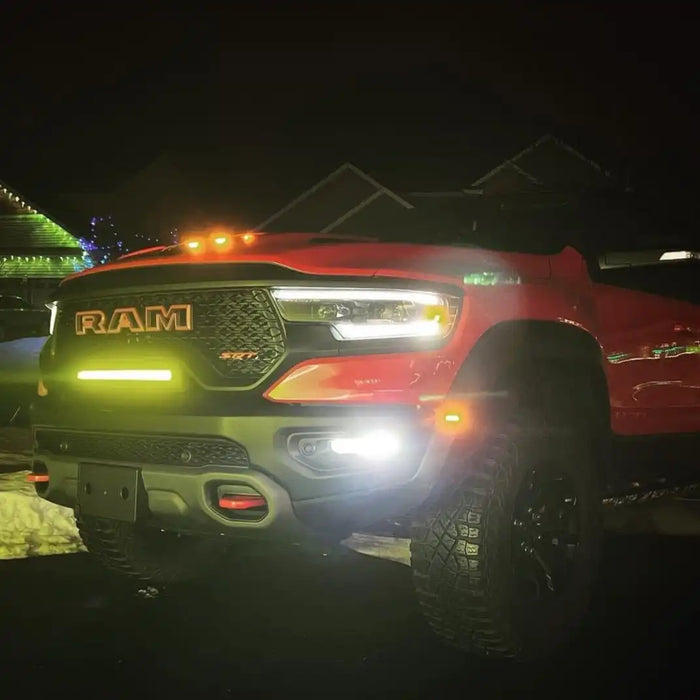

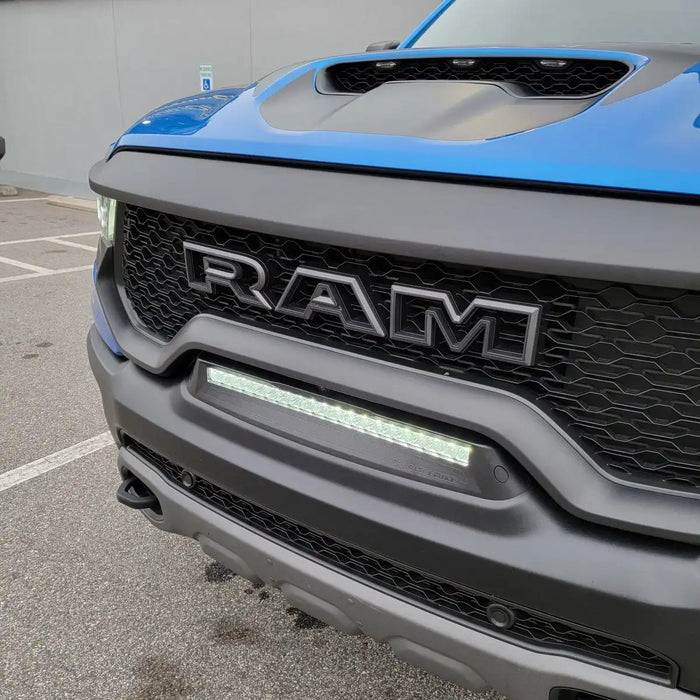

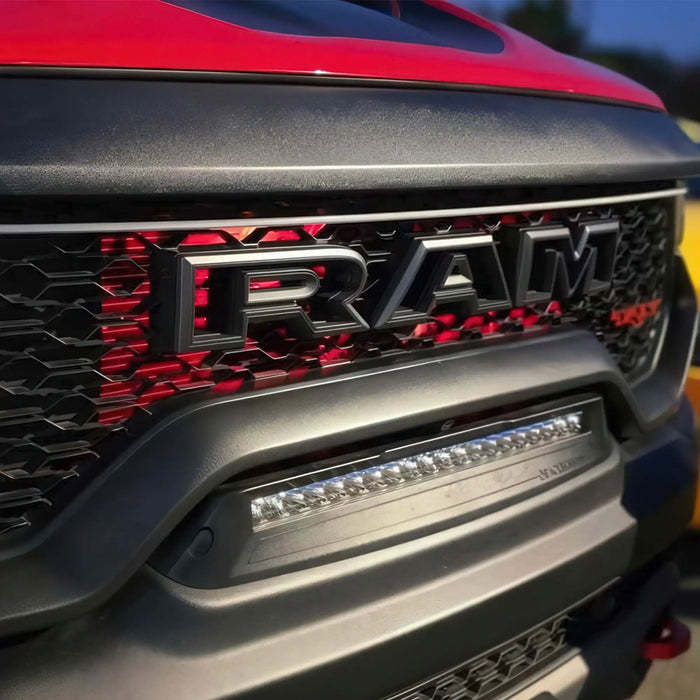

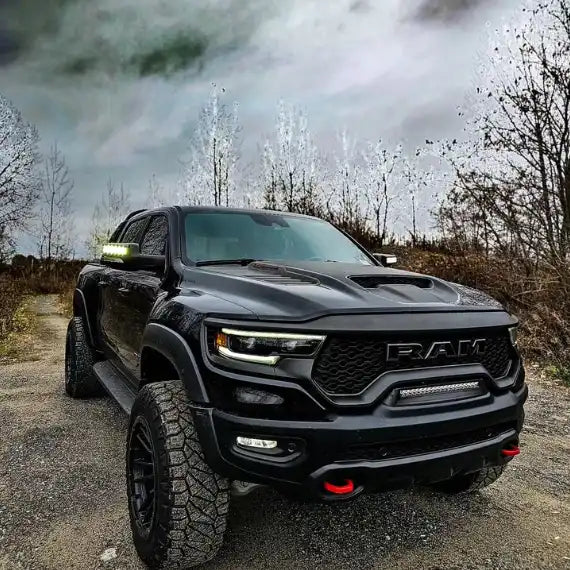

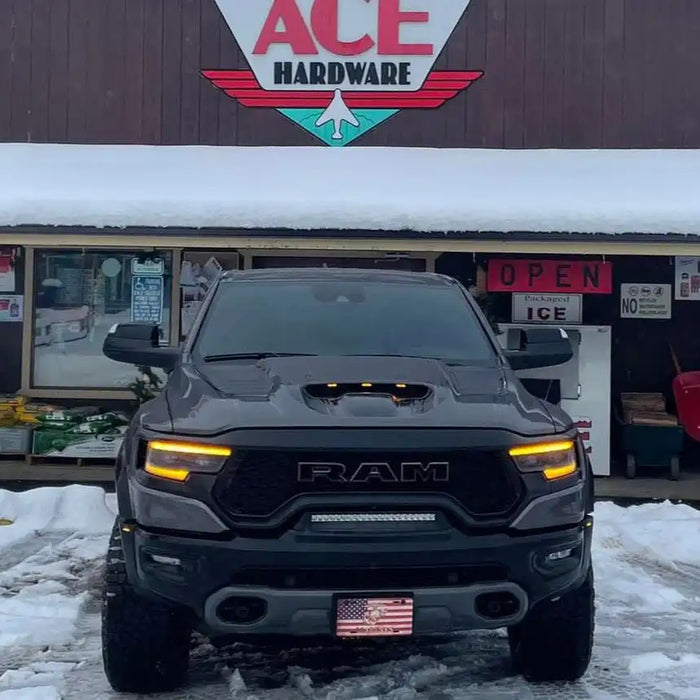

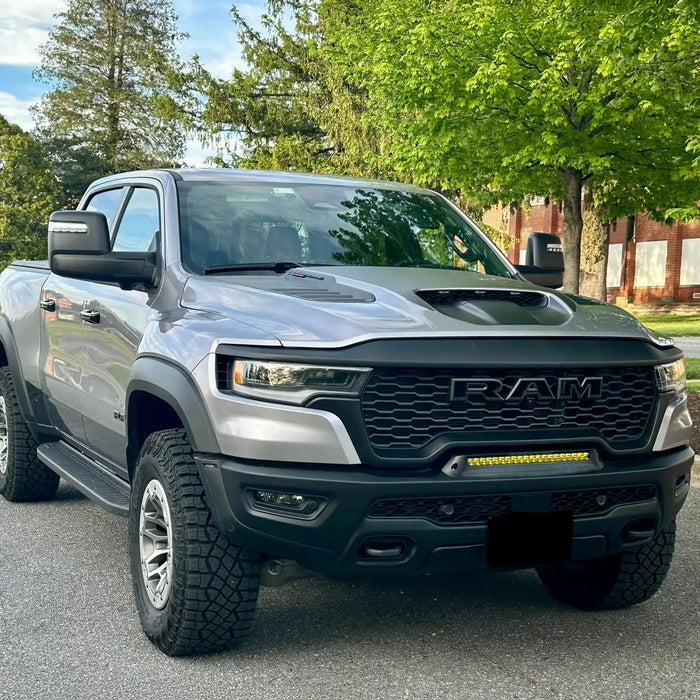

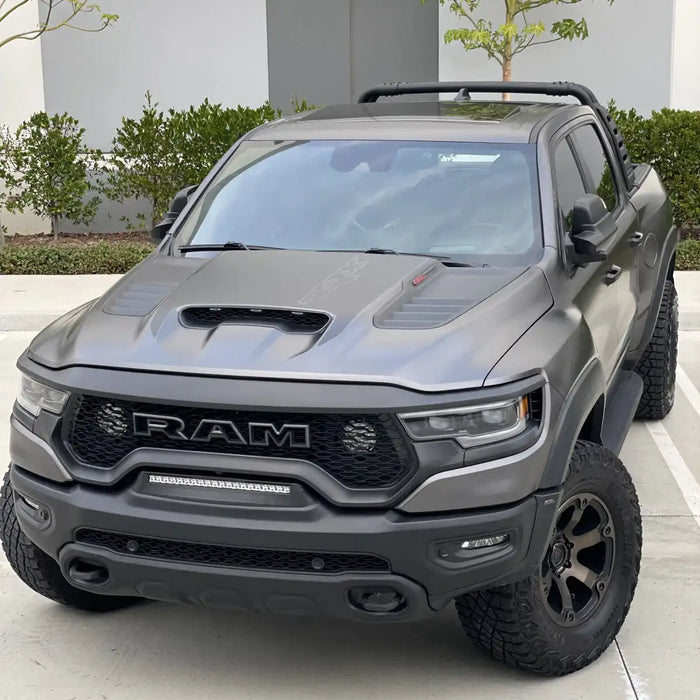

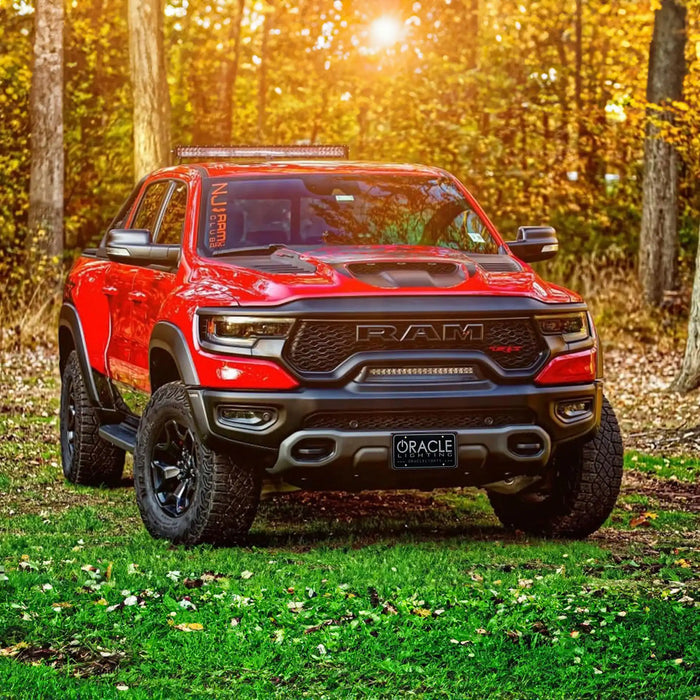

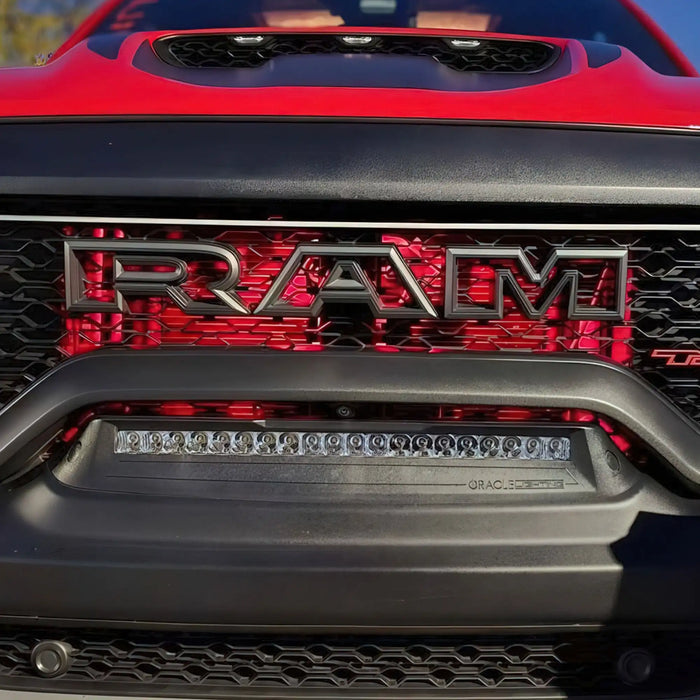

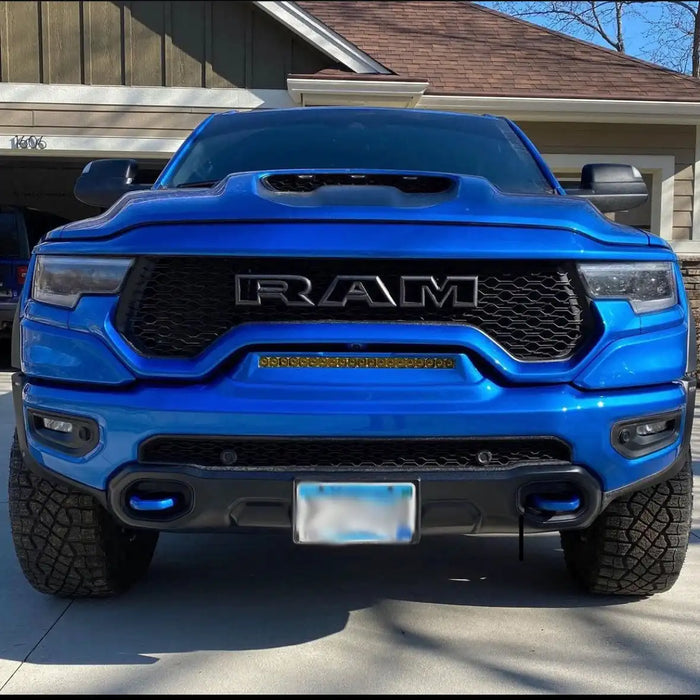

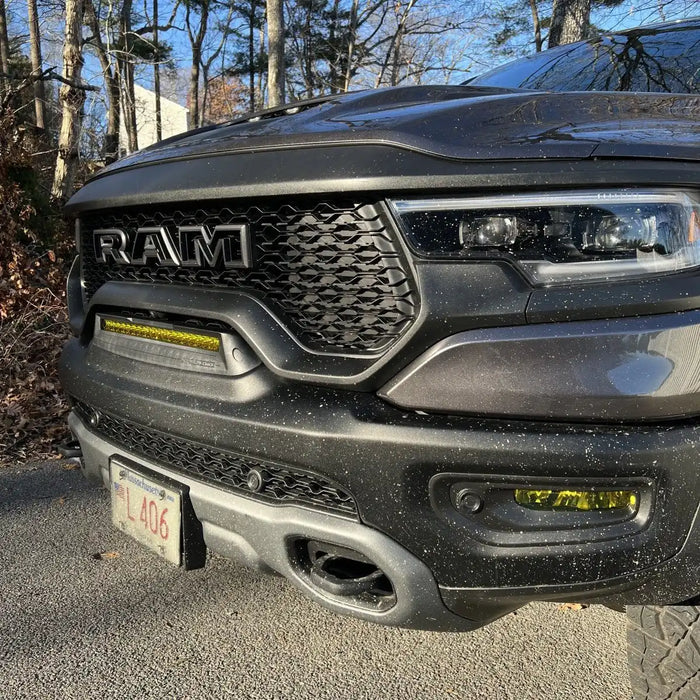

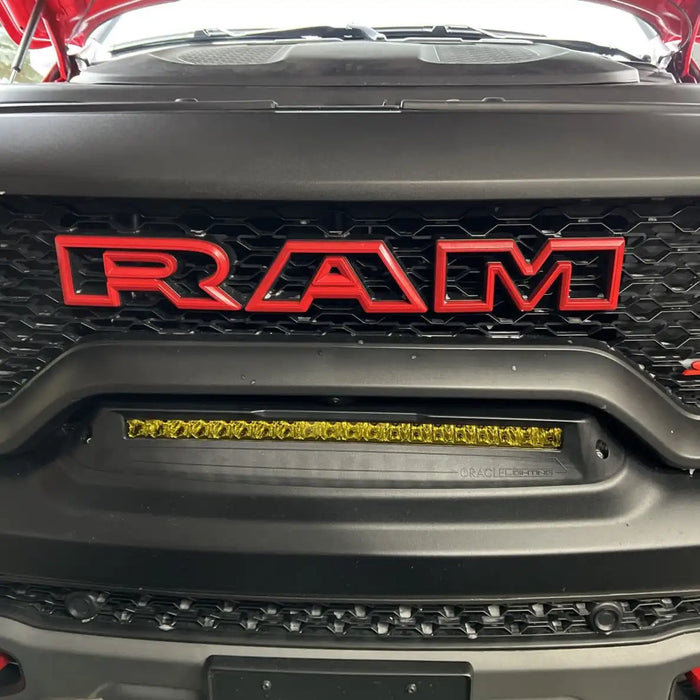

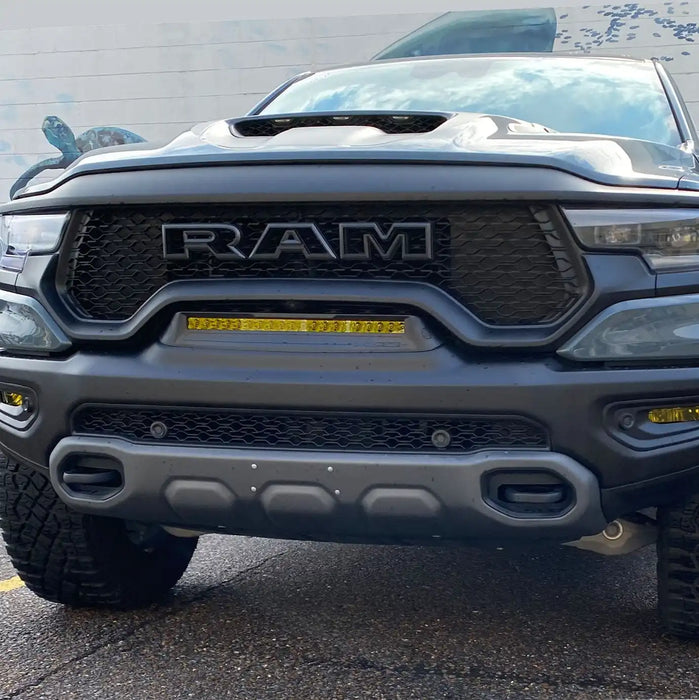

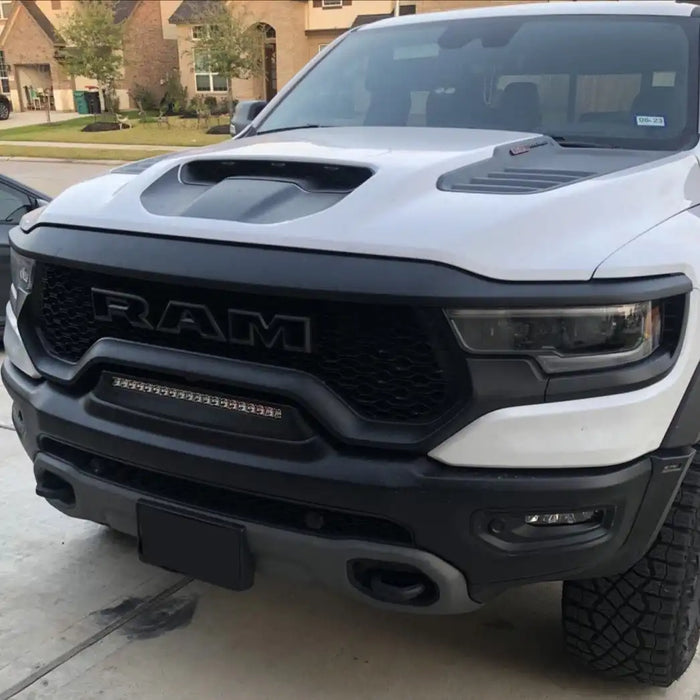

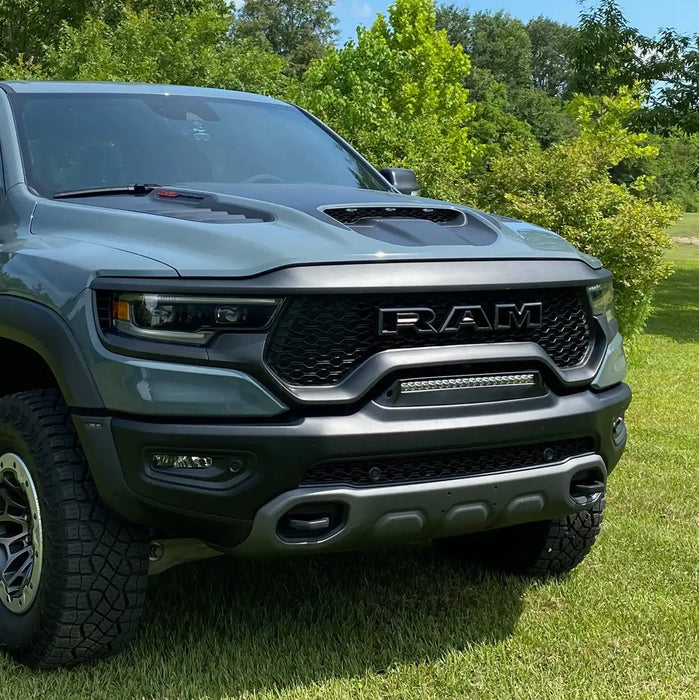

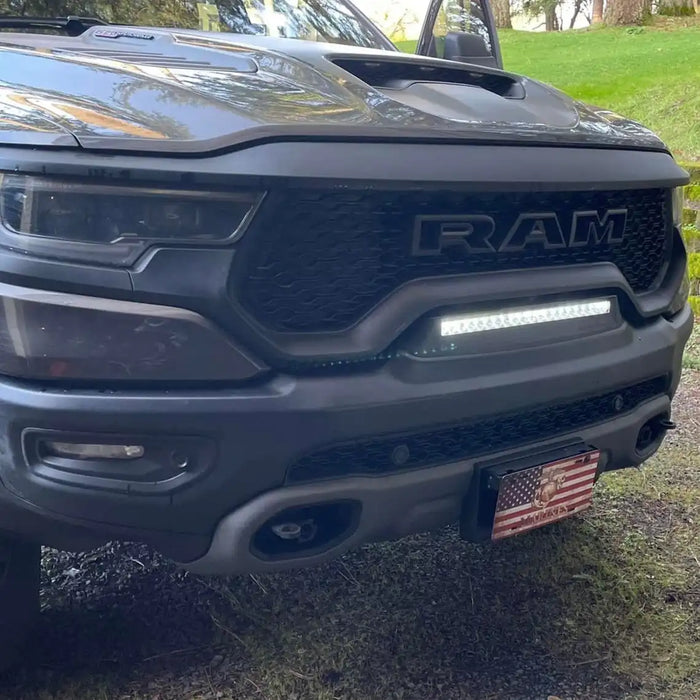

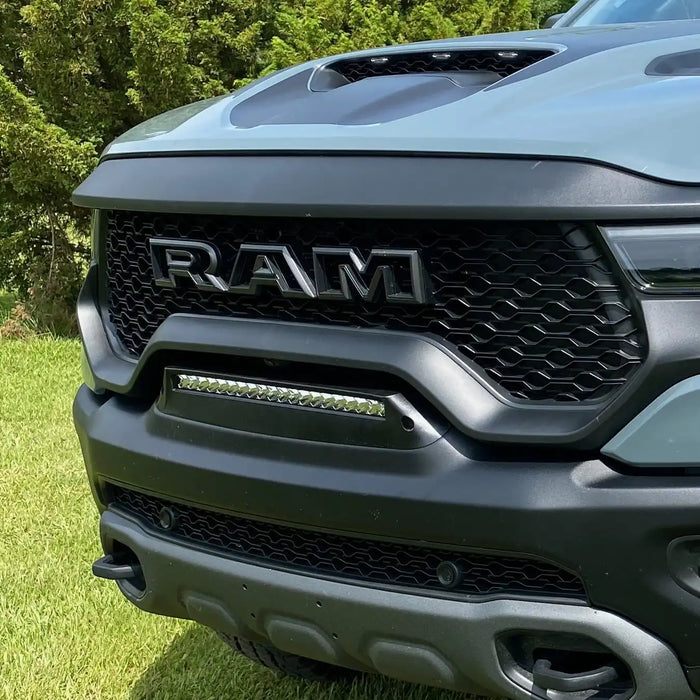

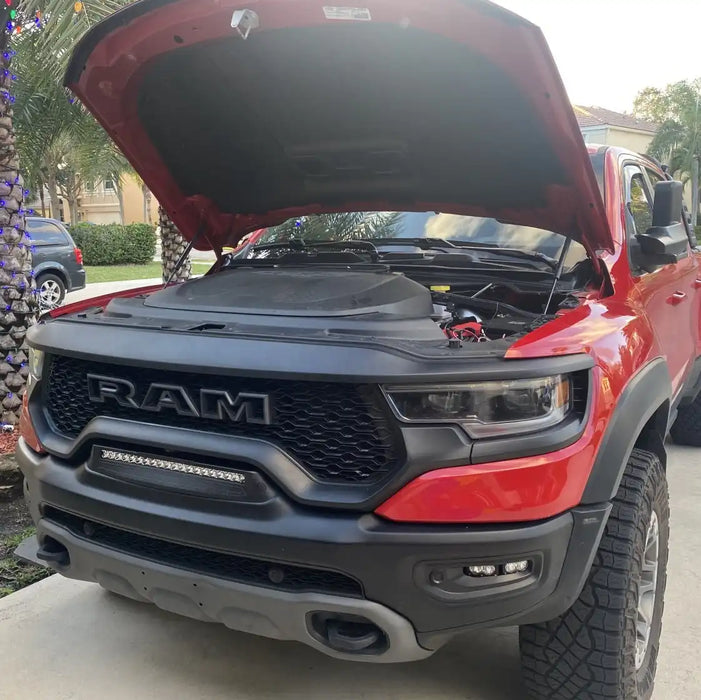

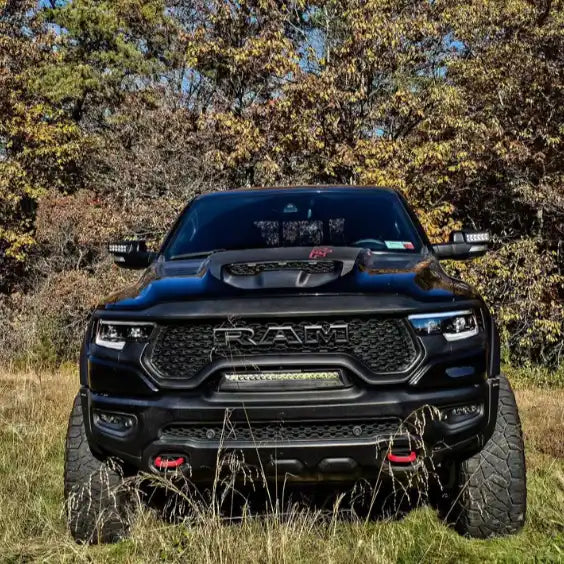

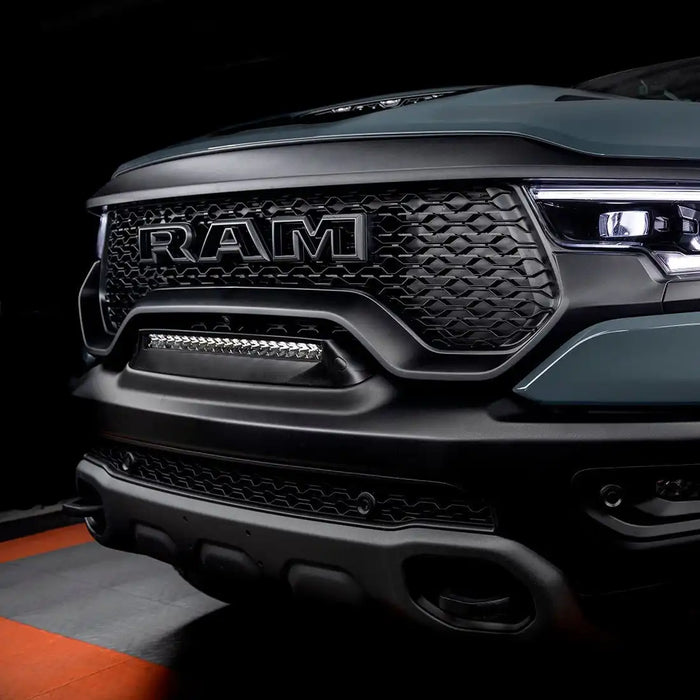

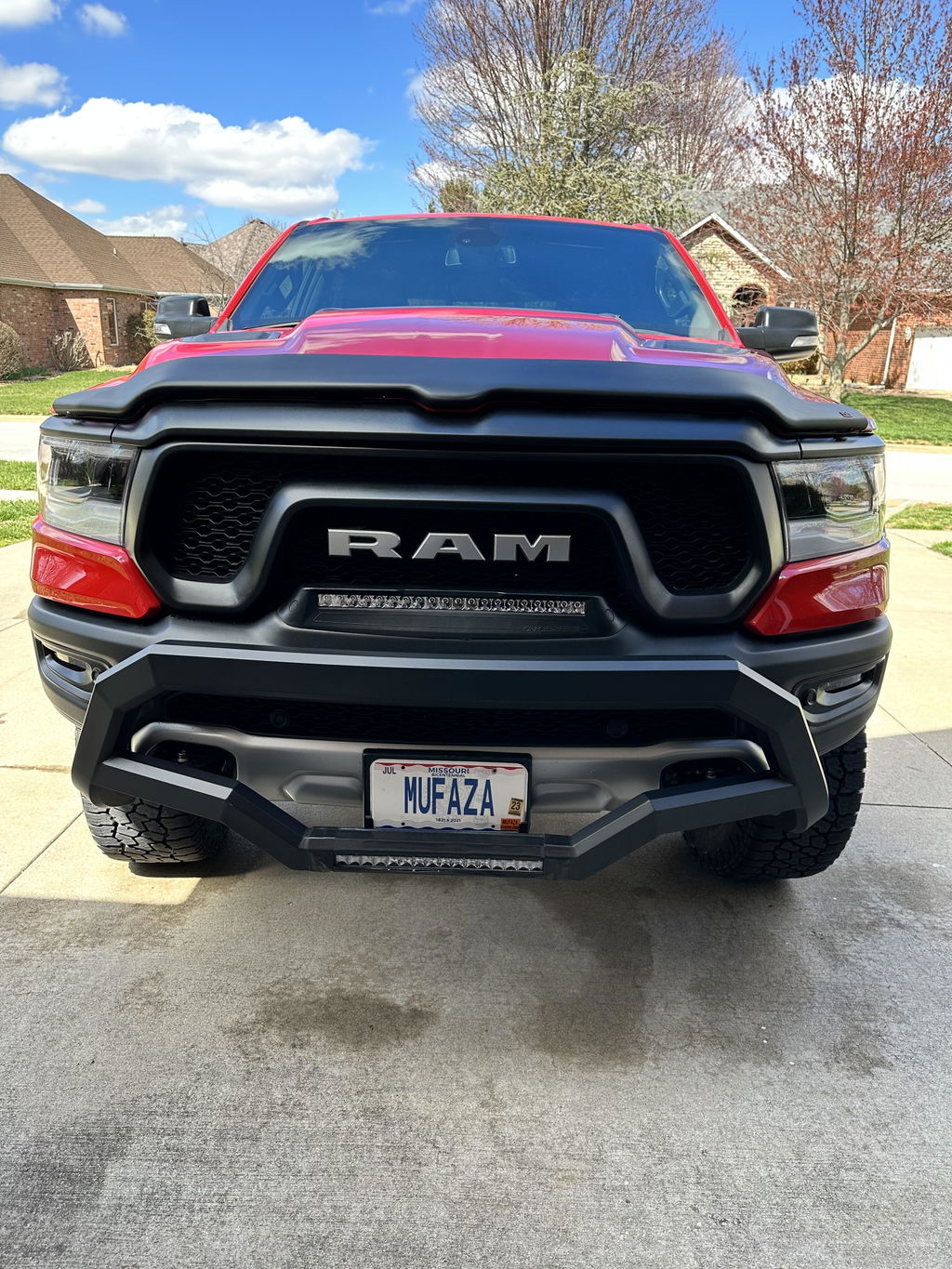

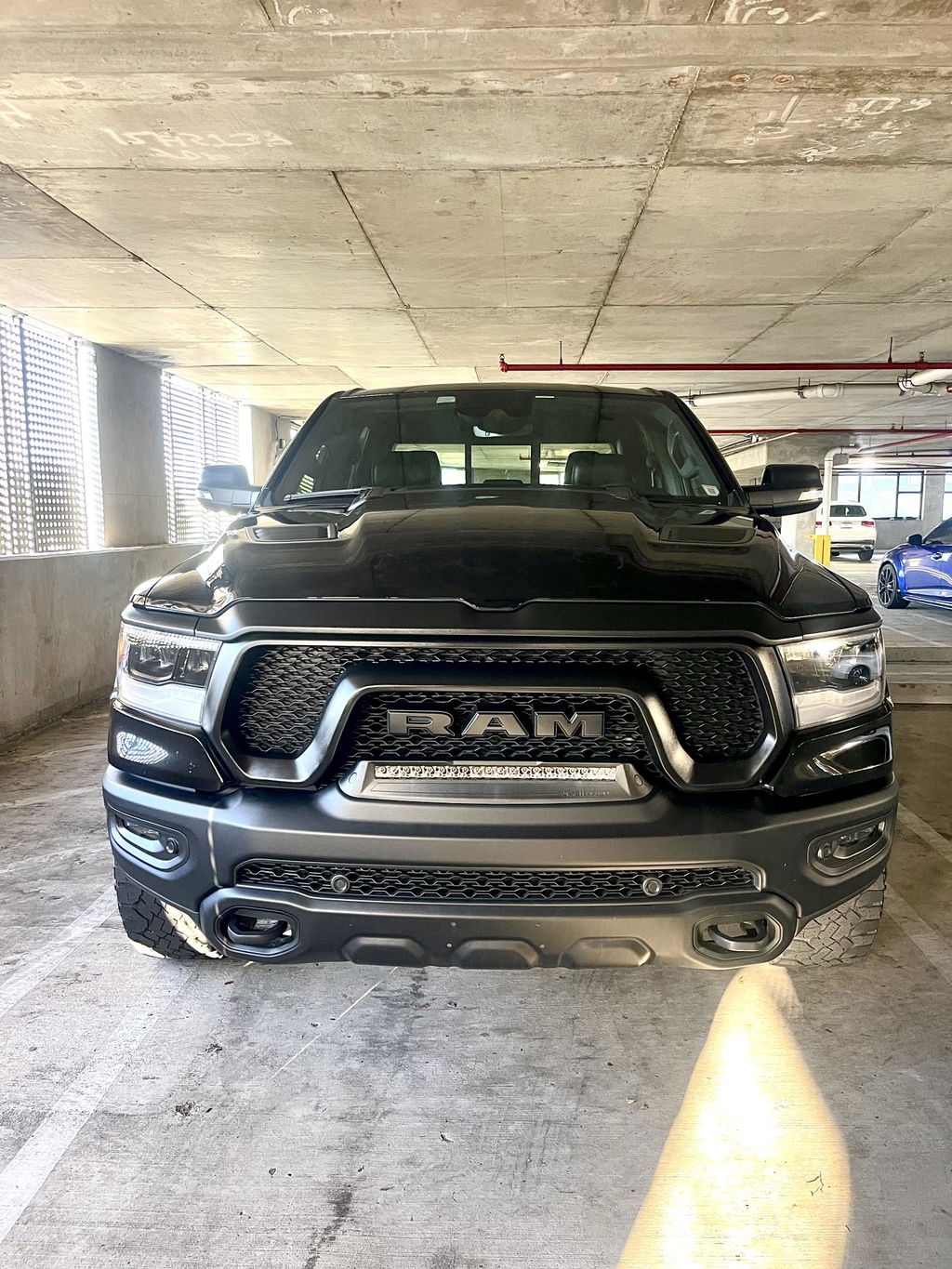

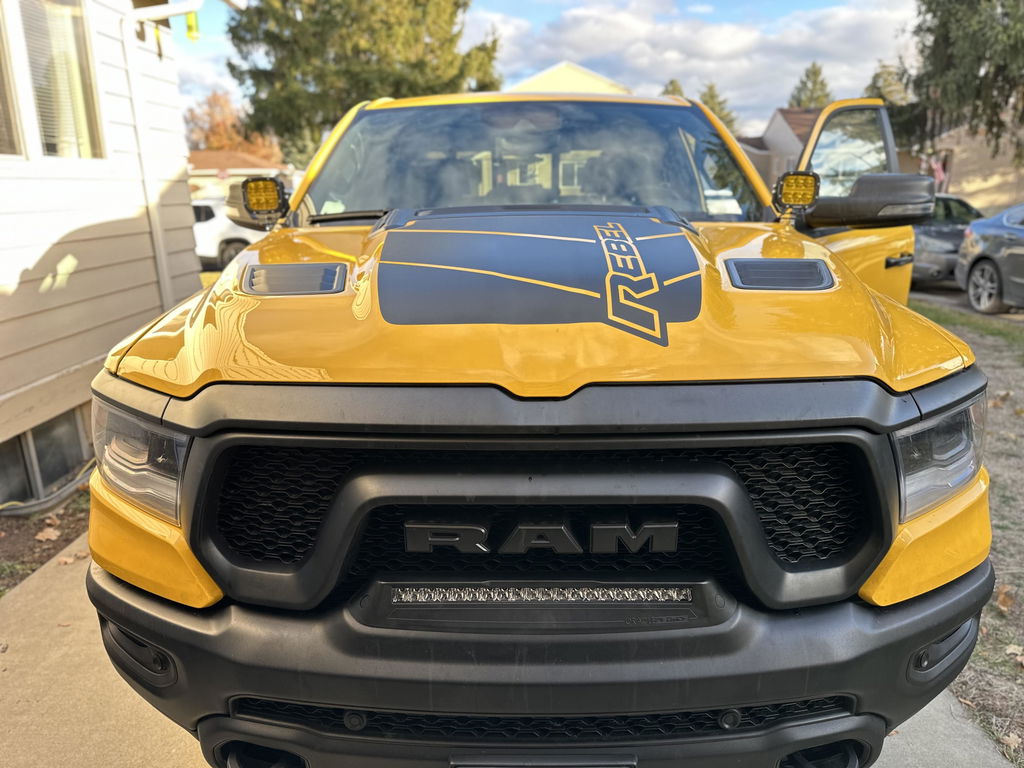

Looking for a 2019+ RAM 1500 light bar system with a seamless look? This unique new lighting system from ORACLE provides functional forward LED lighting while maintaining a factory appearance. Our high-powered 100W LED light bar is fitted into a housing that is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel.

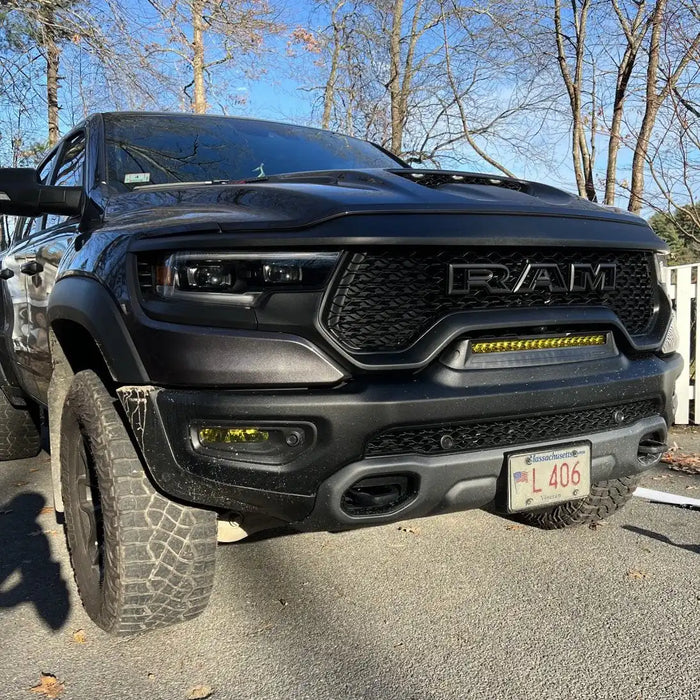

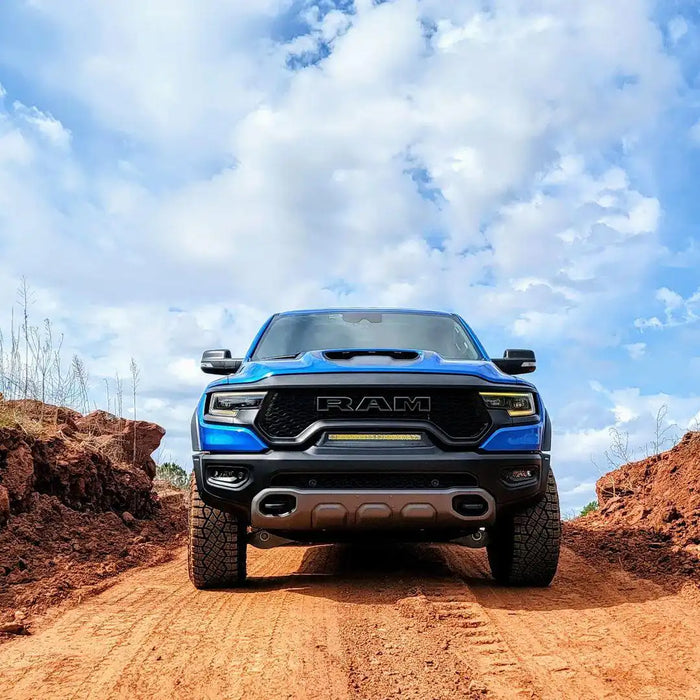

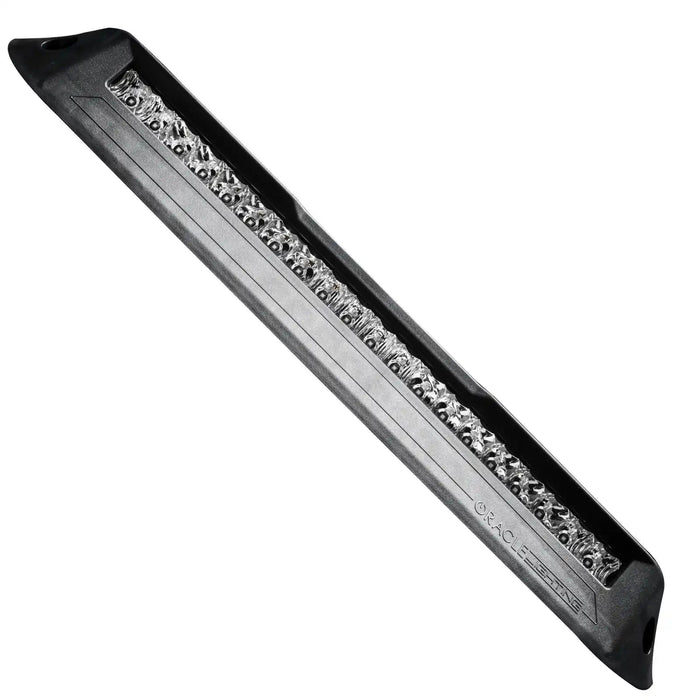

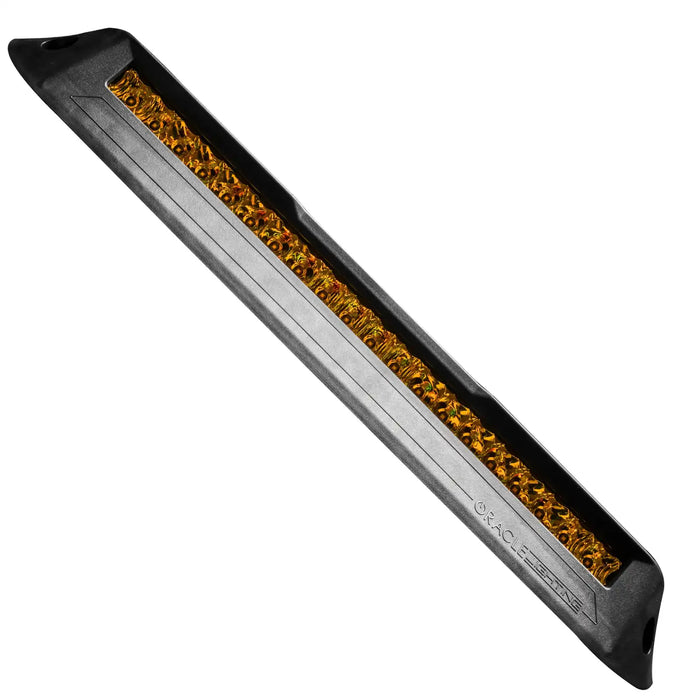

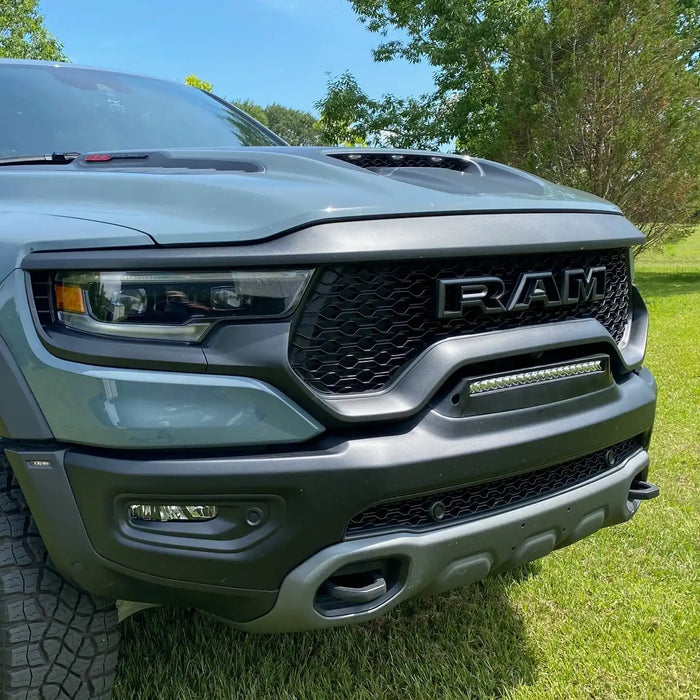

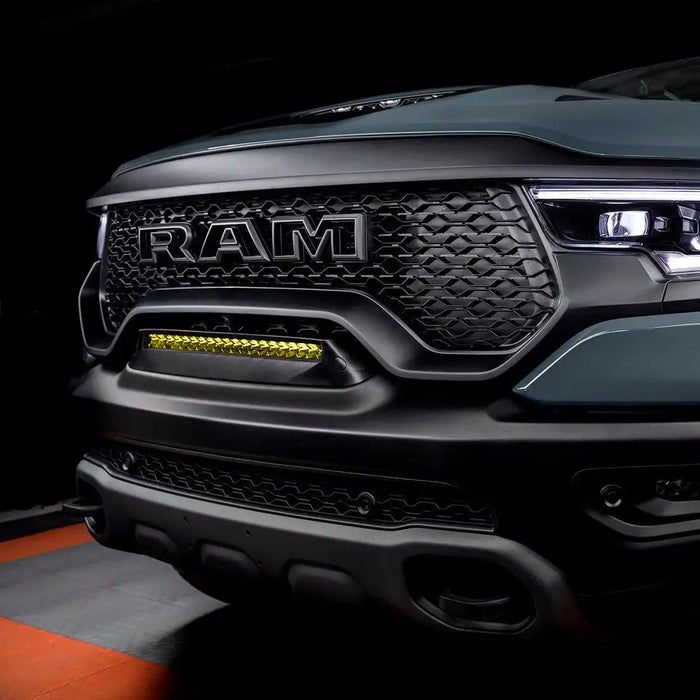

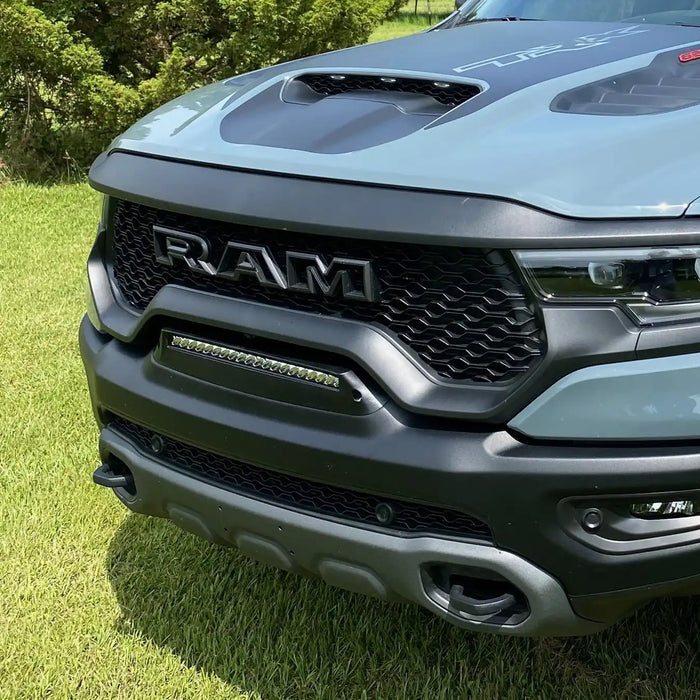

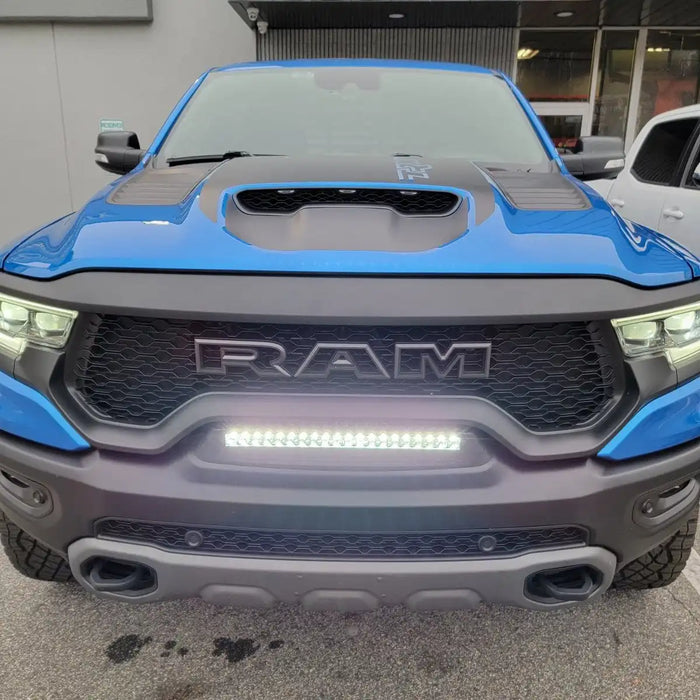

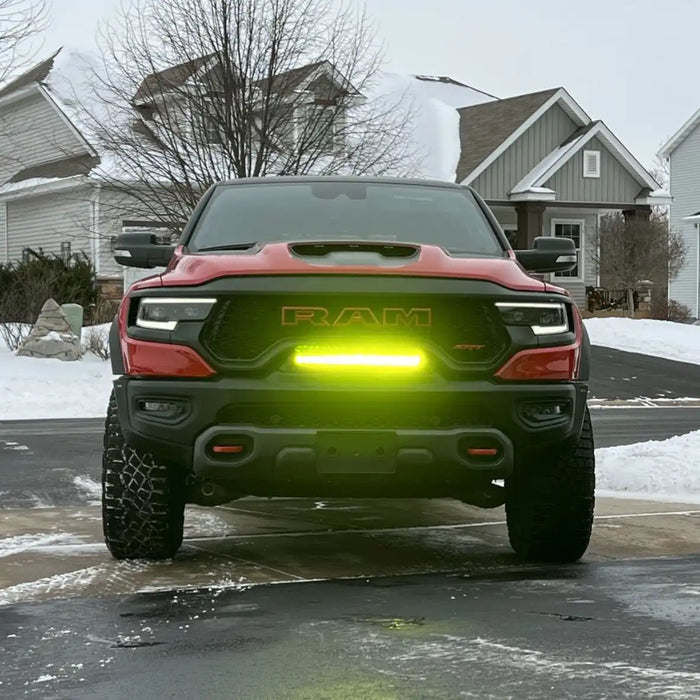

Choose between pure white LED emitters, yellow LED emitters, or amber LED emitters for a custom lighting solution. The rugged construction of the RAM light bar provides durability in any condition, and the expertly designed system exhibits high-performance illumination with a seamless appearance.
The projection of the RAM light bar is a mixed beam with 8 of the LEDs using a flood (45° angle) beam and 12 of the LEDs using a spot (25° angle) beam so the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33° (8x45° + 12x25°) and calculating based on 14000Lm, the total candela of the light is 54107.70cd.
The lighting system is installed using rivet nuts, which require 2 holes 3/8” to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches. If your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504
|ORACLE Part#||LED Emitter Color|
View Install Instructions
• Housing: Polycarbonate
• Lens: Optically Clear Lexan
• Watts: 100W (20x 5W LED)
• Amperage: 7.5A @ 12VDC
• LED: Osram CRDP LED Chip
• Lumen Output: 12,000lm
• LED Life: 50,000+ Hours
• Optics: Mixed Spot/ Flood
• Color Temperature: 5500K(White only)
• Ingress Protection: IP69K
• Input Voltage: 9V-36V DC

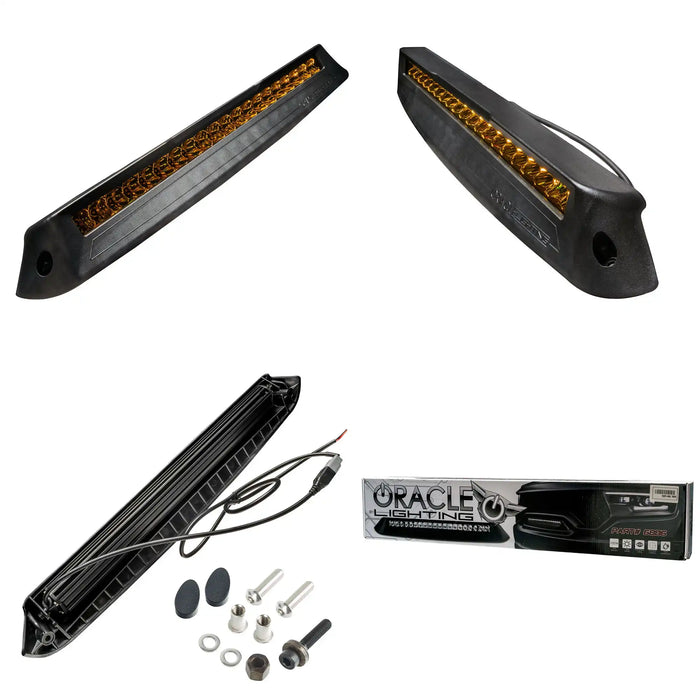

• Front Bumper Flush LED Light Bar System
• Mounting Hardware
• 2019-2022 RAM 1500 Rebel
• 2021-2022 RAM 1500 TRX
