Product Overview

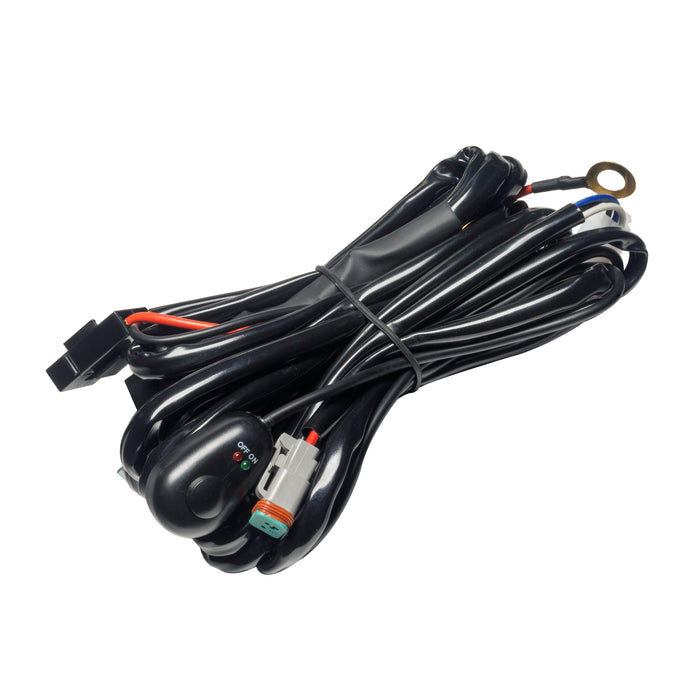

When adding auxiliary LED lighting to your off-road vehicle, a proper wiring harness is essential - and the ORACLE Switched LED Light Bar Wiring Harness is built to handle it right. The harness includes a 40A relay with connectors and a 30A in-line fuse for circuit protection, with a 288W maximum wattage output per harness.
Every connection is soldered and heat-shrunk for long-term reliability, and all connectors are weather-packed and cut to length for a clean, fast installation. The included pre-wired on/off switch gives you immediate control without additional wiring work. The 2-pin Deutsch connector is the industry-standard connection used across ORACLE's off-road LED light bar and auxiliary lighting lineup.
288W maximum per harness. Do not exceed 288W on a single harness. For dual-light setups exceeding 288W, use the ORACLE Dual Deutsch DTM 40A Relay Harness instead.
40A relay with connectors - handles high-current auxiliary lighting loads
30A in-line fuse - circuit protection included
288W maximum output - per single harness
2-pin Deutsch connector - industry-standard, compatible with all ORACLE off-road LED lighting
Pre-wired on/off switch - ready to mount, no additional wiring needed
All connections soldered and heat-shrunk - long-term durability in harsh conditions
Weather-packed connectors - sealed against moisture, dust, and vibration
Cut-to-length wiring - clean, fast installation
Universal fit - works with all ORACLE LED off-road lighting products
1-Year Limited Warranty
Part Number: 2088-504
Relay Rating: 40A
Fuse Rating: 30A In-Line
Max Wattage: 288W (single harness)
Connector Type: 2-Pin Deutsch
Switch: Pre-Wired On/Off (included)
Connections: Soldered & Heat-Shrunk
Weatherproofing: Weather-Packed Connectors
Wiring: Cut-to-Length
Fitment: Universal - all ORACLE LED off-road lighting
Warranty: 1-Year Limited
Universal
(1) ORACLE Switched LED Light Bar Wiring Harness - 2-Pin Deutsch
40A Relay with connectors
30A In-Line Fuse
Pre-Wired On/Off Switch
Installation Guide
ORACLE Lighting Switched LED Light Bar Wiring Harness - 2 Pin Deutsch
Connect the 2-pin Deutsch connector to your ORACLE LED light bar or auxiliary light. Route the harness to the battery, connecting the ring terminals to the + and − battery terminals. Mount the pre-wired on/off switch in your preferred location. The wiring is cut-to-length for a clean, fast installation. Estimated install time: ~15 minutes.
