ORACLE Lighting Dual Deutsch DTM 40A Relay Wiring Harness with Illuminated Switch

Original price $39.95 - Original price $39.95
Original price
$39.95 - $39.95
Current price $39.95
  • Product Description
  • Features
  • What's Included
  • Installation
  • ORACLE Part# 5890-LTH

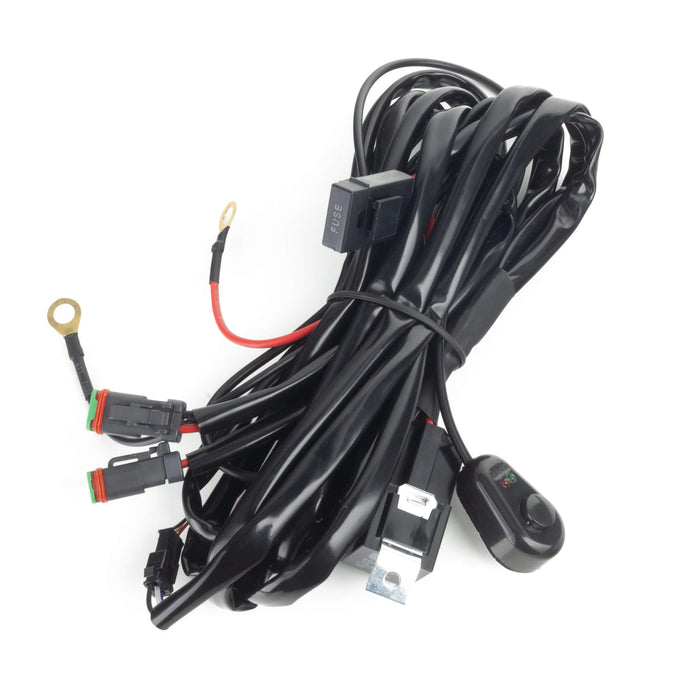

    Make your cube light or Auxiliary light installation simple and clean! The dual-output LED light wiring harness with switch and relay is a plug-and-play harness for LED cube lights, work lights, and off-road light bars. Each harness includes an illuminated On/Off switch with an LED indicator, fuse, and 12V automotive relay- all pre-wired and ready-to-install!

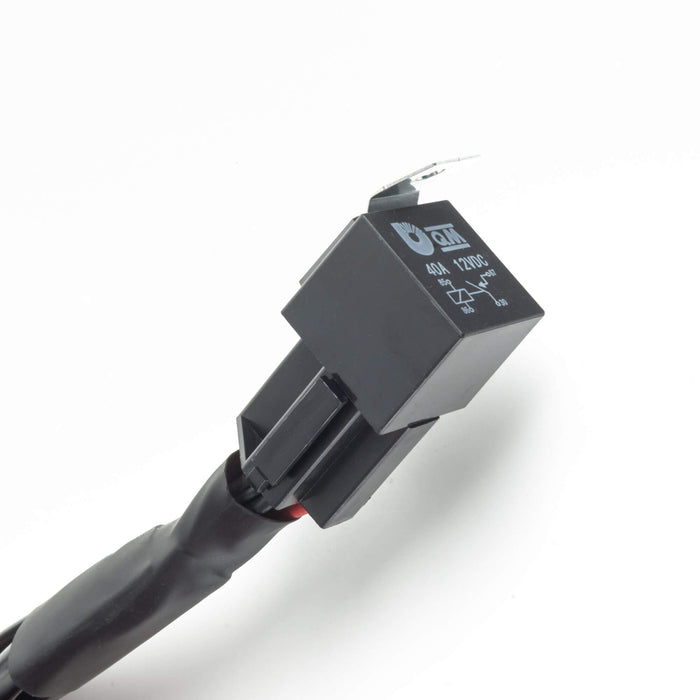

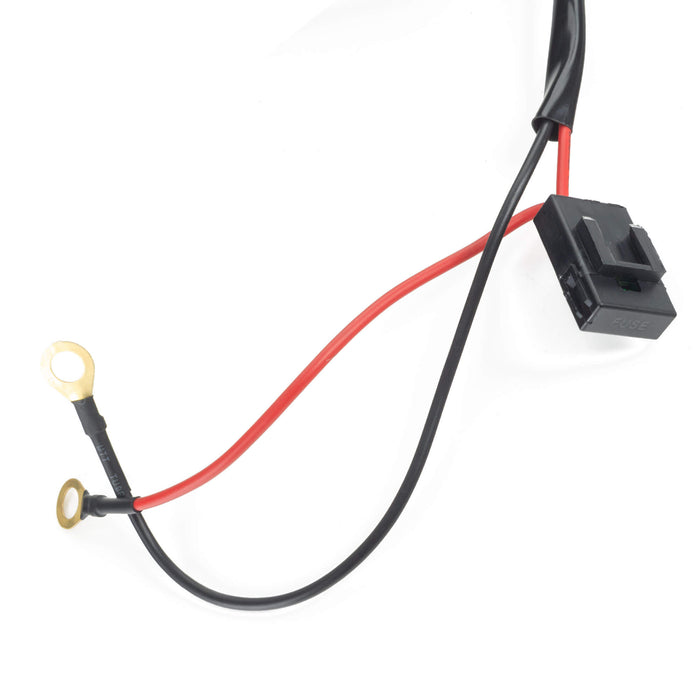

    When adding additional LED lighting to your off-road vehicle, the ORACLE Lighting’s Dual Auxiliary Lighting Relay Harness is a must-have. The harness includes a 40 AMP relay with dual Deutsch DTM connectors and a 30A AMP in-line fuse. The max wattage output is 115W per channel. (230W Total)

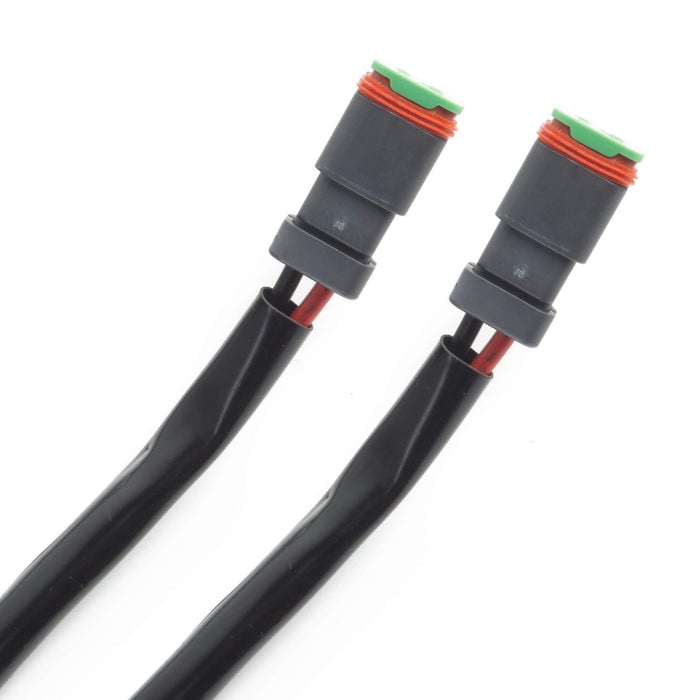

    These high-quality Deutsch DTM connectors fit most ORACLE Auxiliary lighting (including VEGA™) as well as many other high-end brands on the market. This simple plug-and-play design makes connecting multiple LED lights a simple process, cutting down on overall installation time.

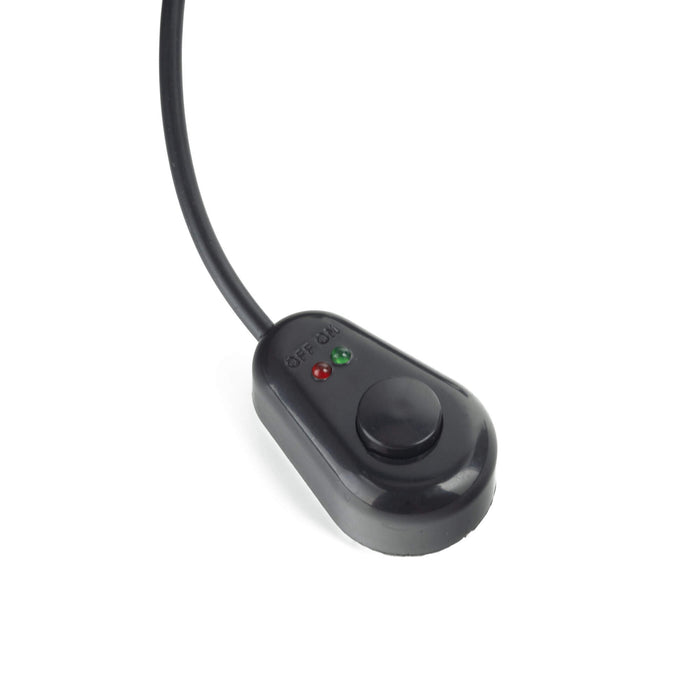

    A pre-wired on/off switch is included, and all connections are soldered and heat-shrunk to ensure longevity and durability even in the toughest conditions. These connectors are weather-packed and are cut to length to ensure a speedy installation for most normal applications such as A-Pillar Lighting and Bumper Lighting on most vehicles.

    With this harness from ORACLE Lighting, you can add new LED lighting to your next adventure without breaking a sweat!

    NOTE: You can add the new Trigger Systems Trigger ONE Bluetooth Relay to add wireless control of your lights from any Smartphone device. Simply unplug the existing relay and plug in the ONE. Once powered it can then be controlled via the free Trigger Plus app.

    The Trigger ONE works in new or existing installations to add wireless control as well as dimming and flashing to the attached accessory.

  • Product Specifications:
    • Easily connect two cube lights or pod lights
    • Includes Pre-Wired DT connectors
    • Wire length: 120 inches
    • Wire gauge: 16 AWG
    • 8  Amps/115 Watts Channel
    • Compatible with Trigger ONE Bluetooth Relay

  • In the Box:
    • One (1) Dual Deutsch DTM 40A Relay Wiring Harness
    • One (1) Illuminated switch
