Product Overview

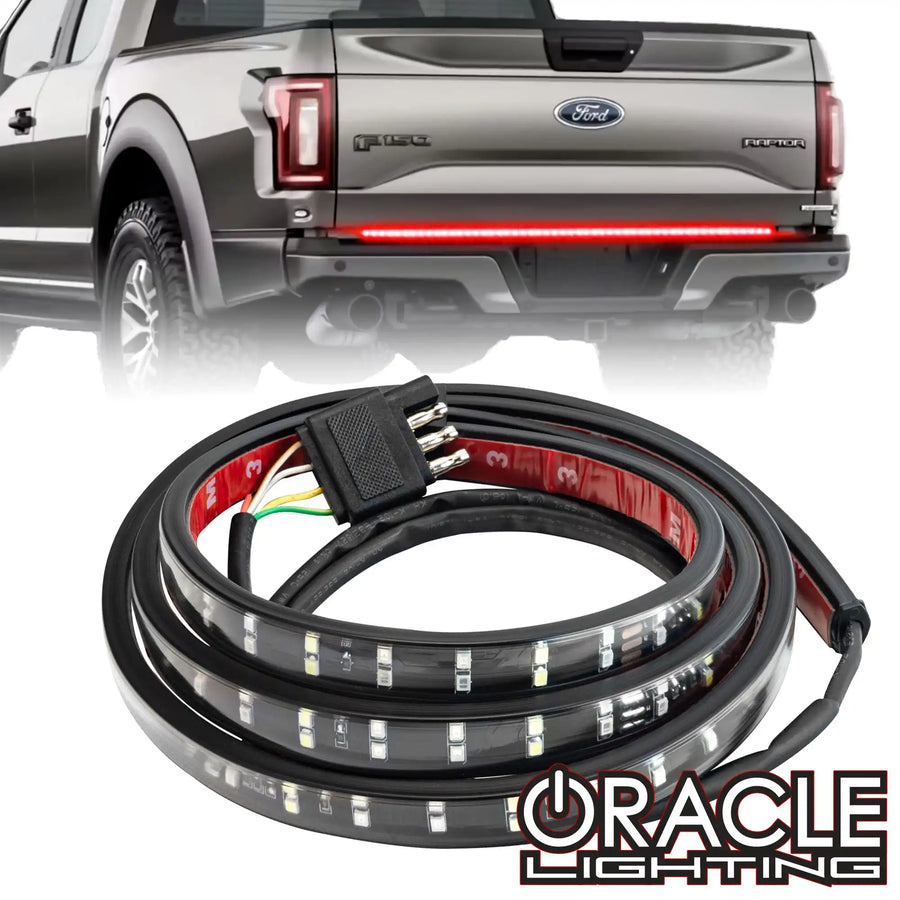

The ORACLE 60" Double Row LED Tailgate Light Bar is the ultimate safety and visibility upgrade for any pickup or work truck. The all-new double row design packs 216 total LEDs - 144 red and 72 white - delivering more than 2x the brightness of conventional single-row tailgate bars.
Simply plug into your factory 4-pin trailer light connector to activate running lights, brake lights, and turn signals instantly. A separate 12V wire taps into your factory wiring to power the ultra-bright white reverse lights. The IP67-rated waterproof silicone enclosure keeps moisture out in any conditions - rain, snow, or mud.
Cutting Note: This bar can be cut down from the opposite end of the cable to fit trucks under 60" in bed width. Cutting will result in one side's turn signal being shorter than the other - we recommend not connecting the turn signal wires if the bar is cut.
Double Row Design: 216 total LEDs (144 red + 72 white) - 2x the brightness of conventional tailgate bars

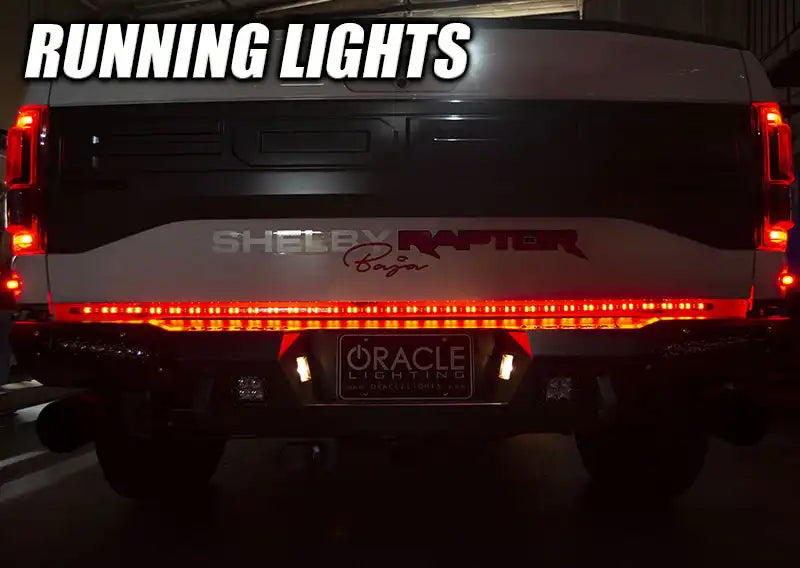

Running Lights: Extra smooth running light activated via 4-pin trailer plug

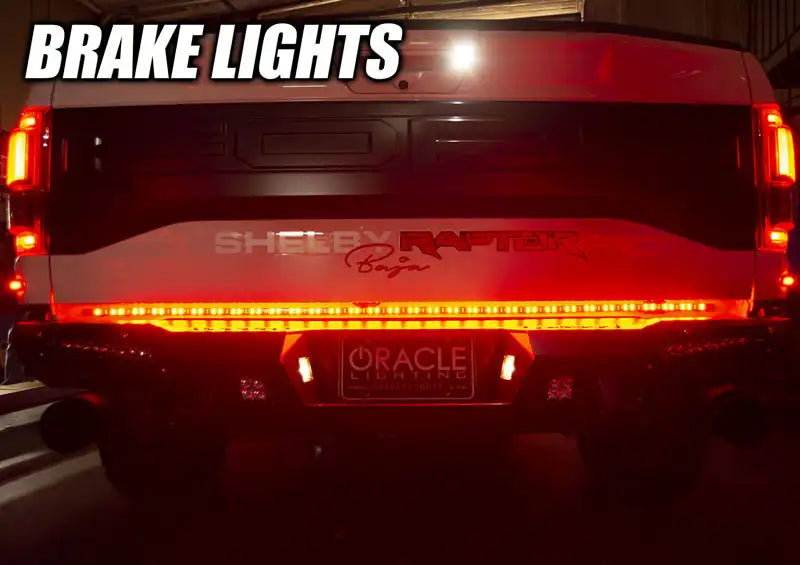

Brake Lights: Attention-grabbing red brake light - two rows of bright red every time you stop

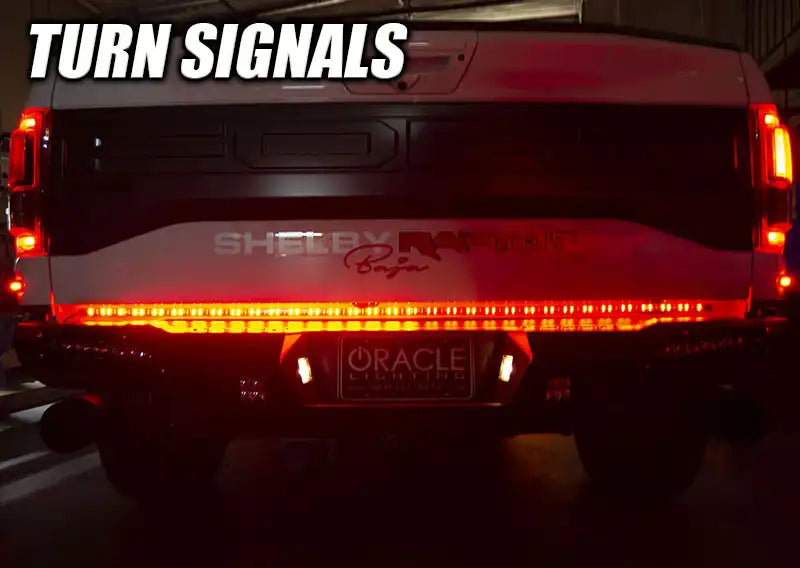

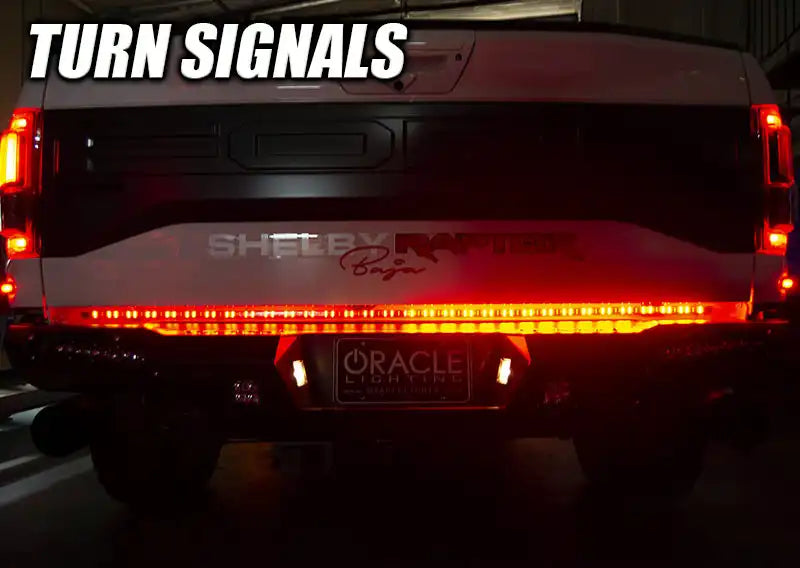

Turn Signals: Sequential turn signals integrated into the bar

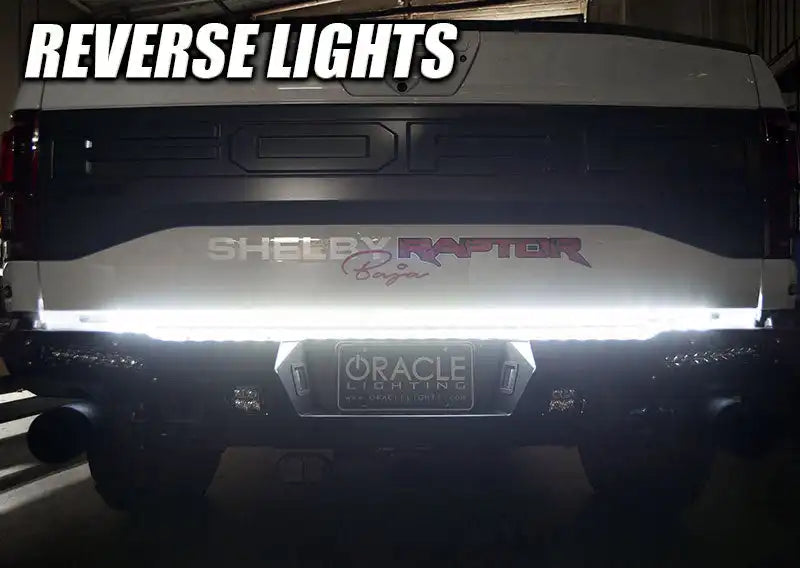

High-Power Reverse Lights: 72 bright white LEDs activated via a single 12V reverse wire tap
IP67 Waterproof: Full silicone enclosure rated for all-season, all-weather use

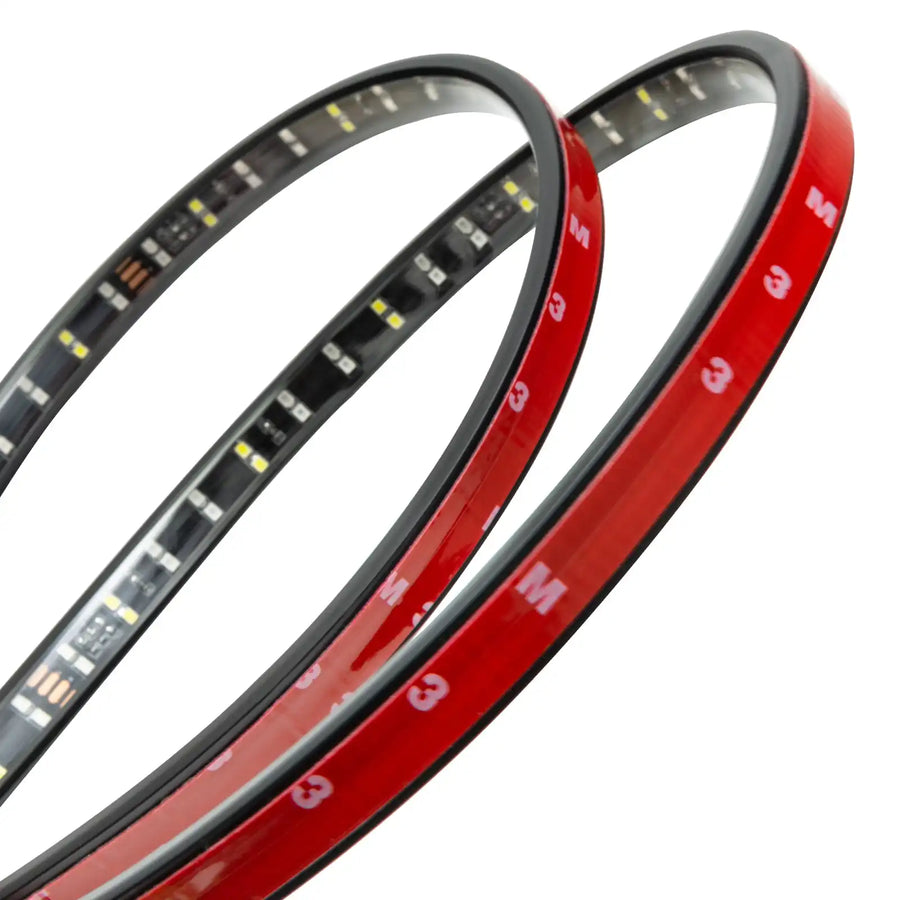

No Drilling Required: 3M VHB adhesive tape for peel-and-stick mounting
Plug & Play: Direct 4-pin trailer plug connection - no complex wiring
Cuttable: Can be trimmed to fit trucks under 60" bed width
Part Number: 3825-504
Length: 60"
LED Configuration: Double Row
Total LEDs: 216 (144 Red + 72 White)
Functions: Running / Brake / Turn / Reverse
Waterproof Rating: IP67
Connection: 4-Pin Trailer Plug
Reverse Light Wiring: 12V Wire Tap (Included)
Mounting: 3M VHB Adhesive + Screws & Brackets
Cuttable: Yes - From Opposite Cable End
Application: Universal Pickup / Work Truck
Warranty: 1 Year

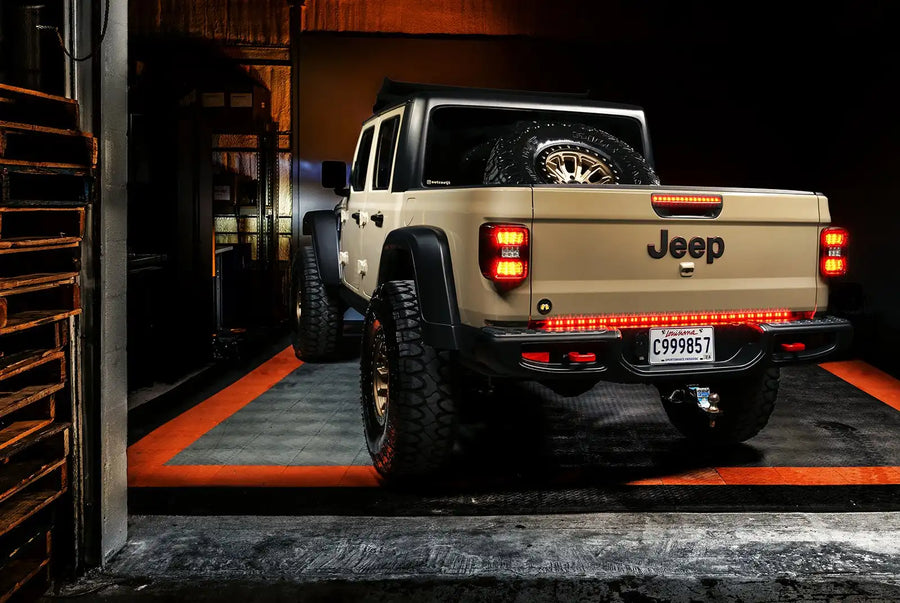

Universal fitment - designed for any pickup truck or work truck with a standard 4-pin trailer light connector and a tailgate width up to 60". Compatible with trucks including Ford F-150/F-250/F-350, Chevy Silverado, GMC Sierra, Ram 1500/2500/3500, Toyota Tacoma/Tundra, Nissan Titan/Frontier, and more.
Trucks Under 60": The bar can be cut from the opposite end of the cable. Cutting will cause one side's turn signal to be shorter - we recommend not connecting the turn signal wires if cut.

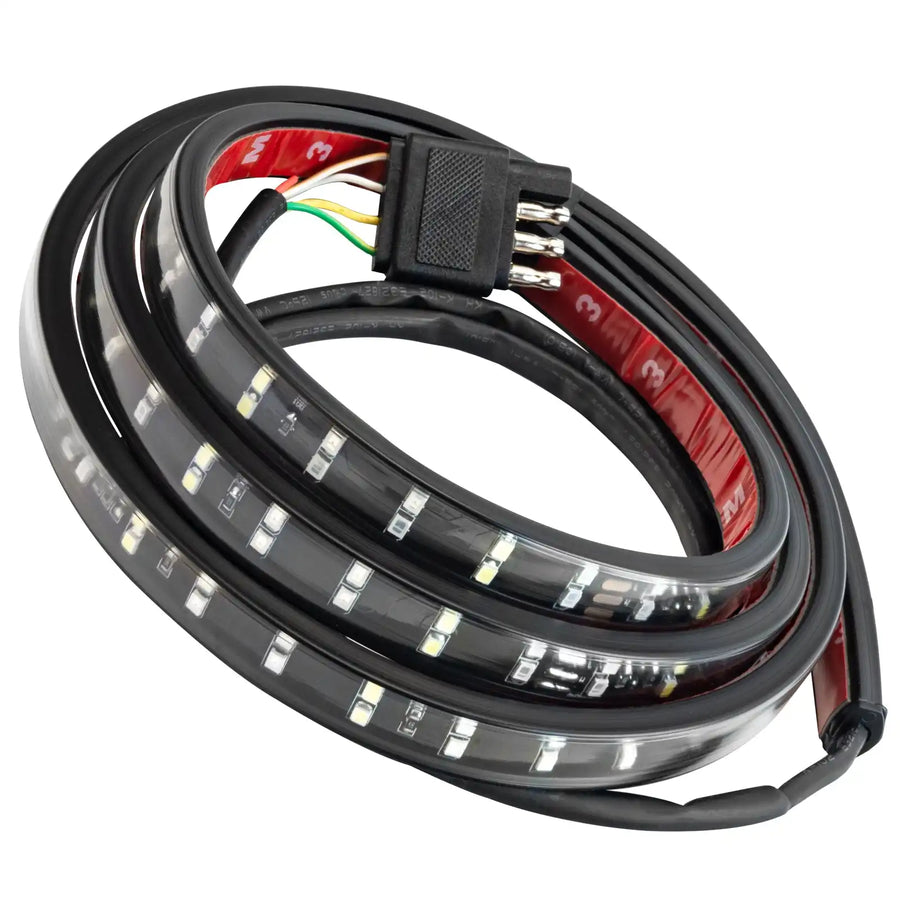

(1) ORACLE 60" Double Row LED Tailgate Light Bar
(4) Screws
(2) Brackets
3M VHB Adhesive Tape (Pre-Applied)
Online Installation Instructions
1-Year Warranty
