2018-2026 Jeep Wrangler JL LED Bumper Reverse Lights - 1000 Lumen High-Output Upgrade

Factory reverse lights - even LED-equipped models - often fail to provide adequate illumination for safe backing and clear backup camera footage in low-light conditions.

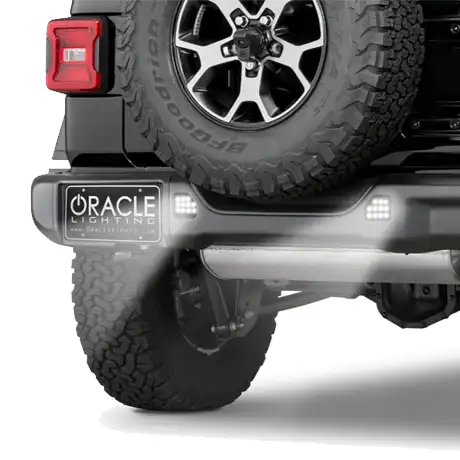

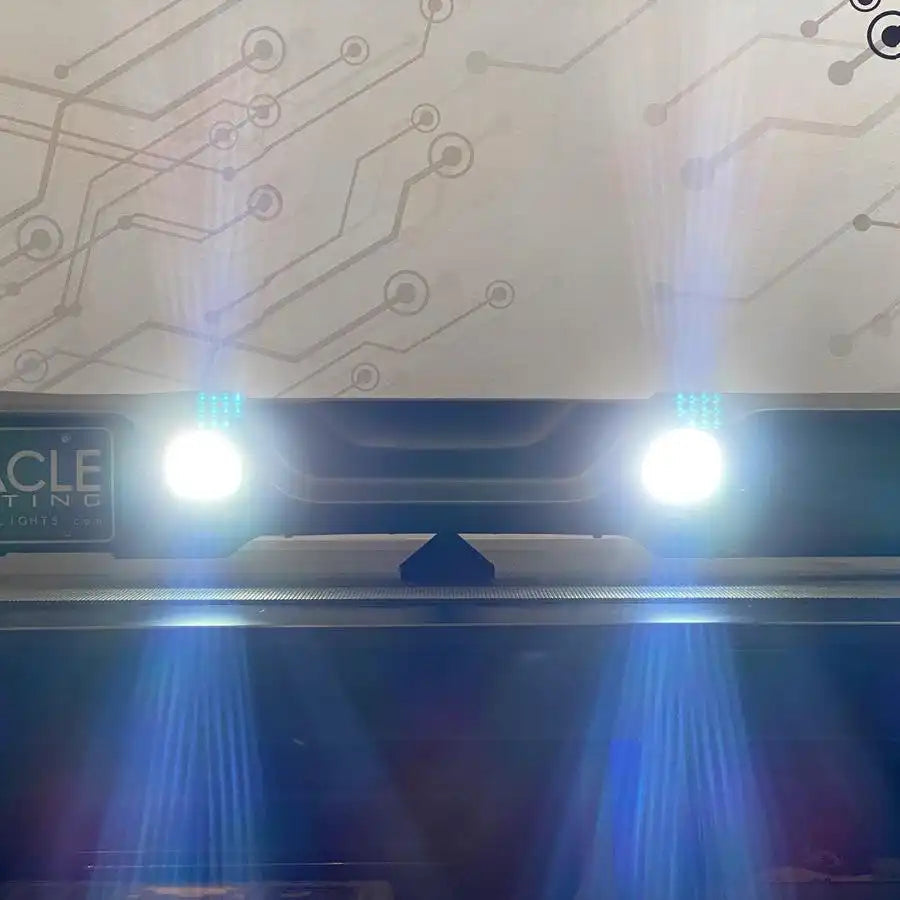

ORACLE Lighting's LED Bumper Reverse Lights solve this problem by replacing your factory bumper reflectors with high-performance auxiliary reverse lights. Engineered for 2018-2026 Jeep Wrangler JL models, these direct-fit reverse lights deliver over 1,000 lumens of bright white light to dramatically improve rear visibility and backup camera performance.

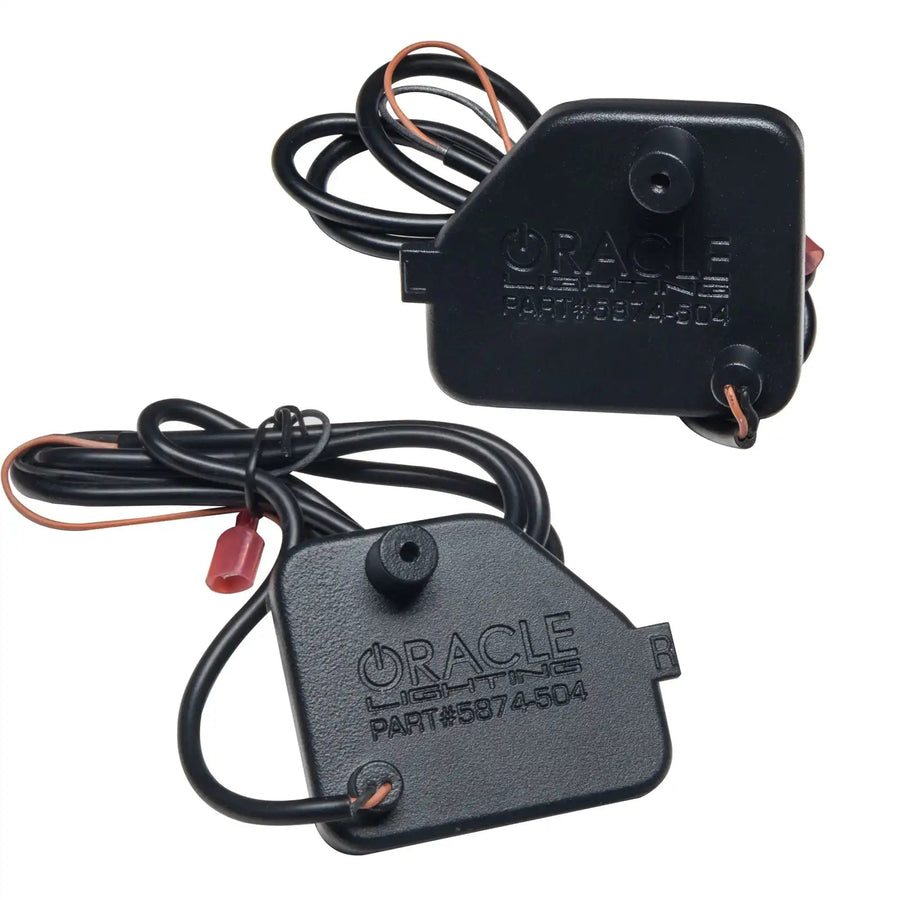

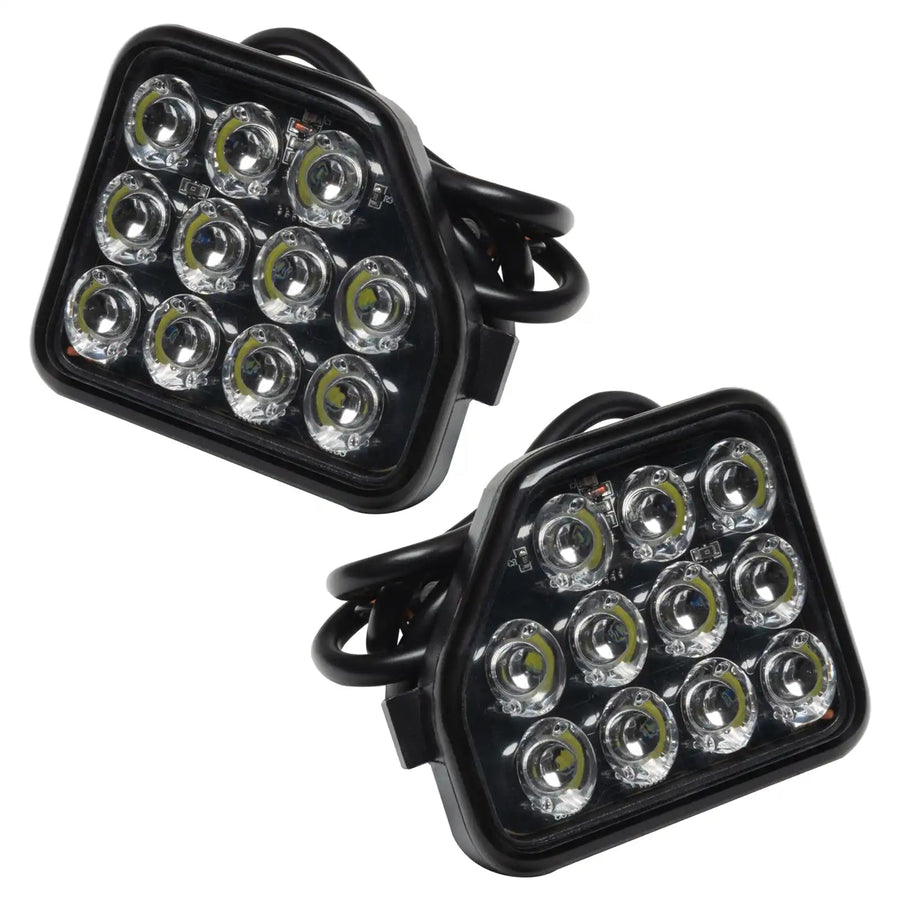

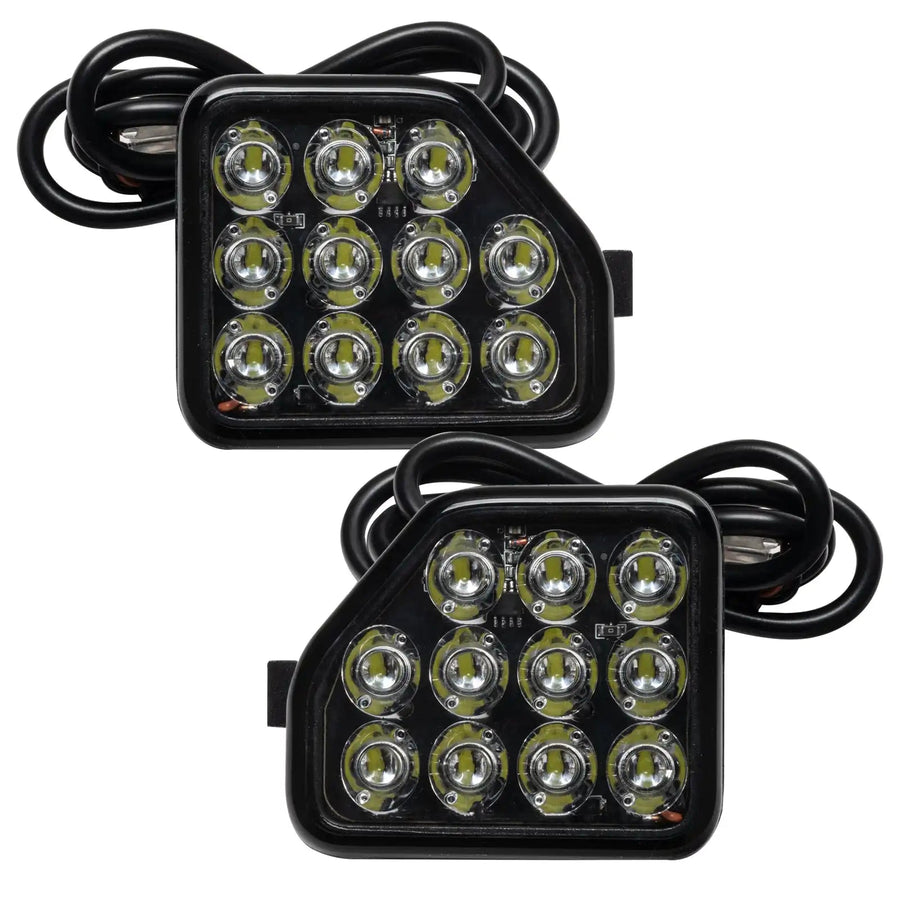

Each light features a premium cast aluminum housing with durable powder-coat finish and a clear PMMA lens for maximum light transmission. With 22 high-powered LEDs total (11 per side), these compact lights make a big difference when reversing at night.

• Part Number: 5874-504
• Lumen Output: 1,000+ raw lumens (500+ per light)
• LED Count: 22 total (11x 1W high-power LEDs per side)
• Lens Material: Clear PMMA
• Housing: Die-cast aluminum with powder-coat finish
• Beam Pattern: Wide optic-focused flood
• Installation: Direct-fit, factory mounting hardware
• Error Codes: None
• Warranty: 2-Year Replacement
• Patent: USD1004181S1 (Design Patent)

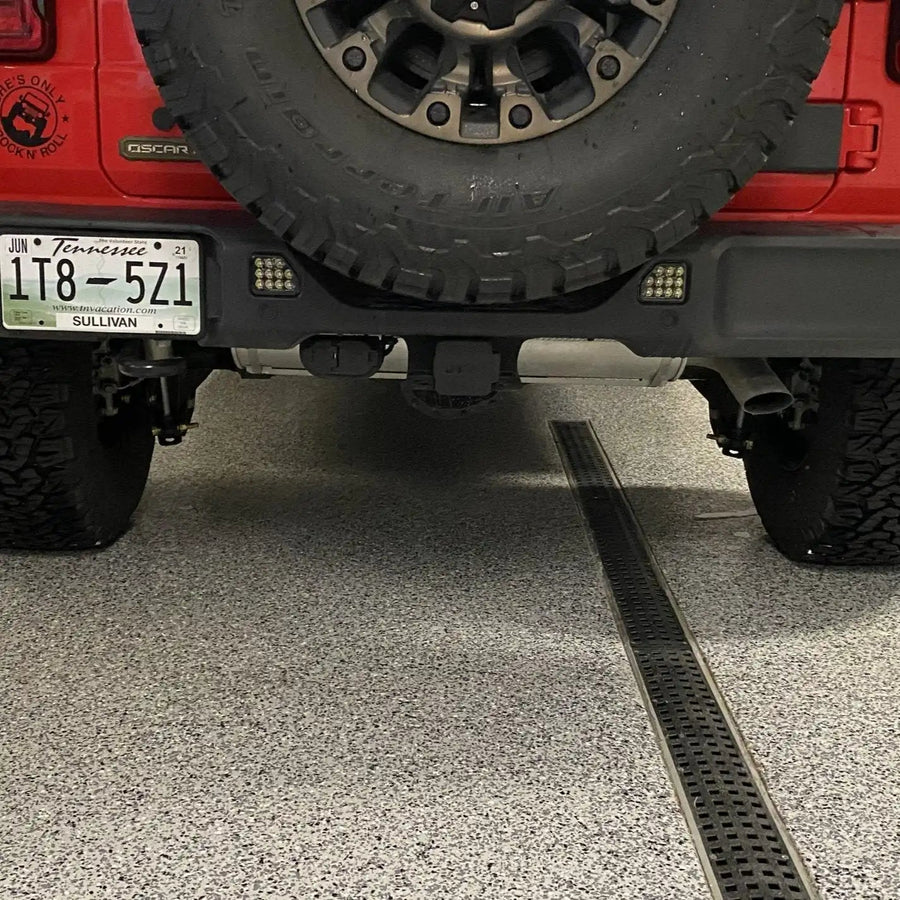

Fits: 2018-2026 Jeep Wrangler JL - all trim levels

Important Fitment Note for 2026 Jeep Wrangler JL

Jeep revised the rear bumper for the 2026 model year. On 2026 models, the rear access opening used to remove the factory reflector nut and install the ORACLE retaining screw is no longer present. Installation on 2026 vehicles requires removing the rear bumper. Plan for additional time, tools, and a second person to help lower and position the bumper.

Because of normal variation in factory bumpers, minor trimming or clearancing may be needed on some vehicles for a flush fit.

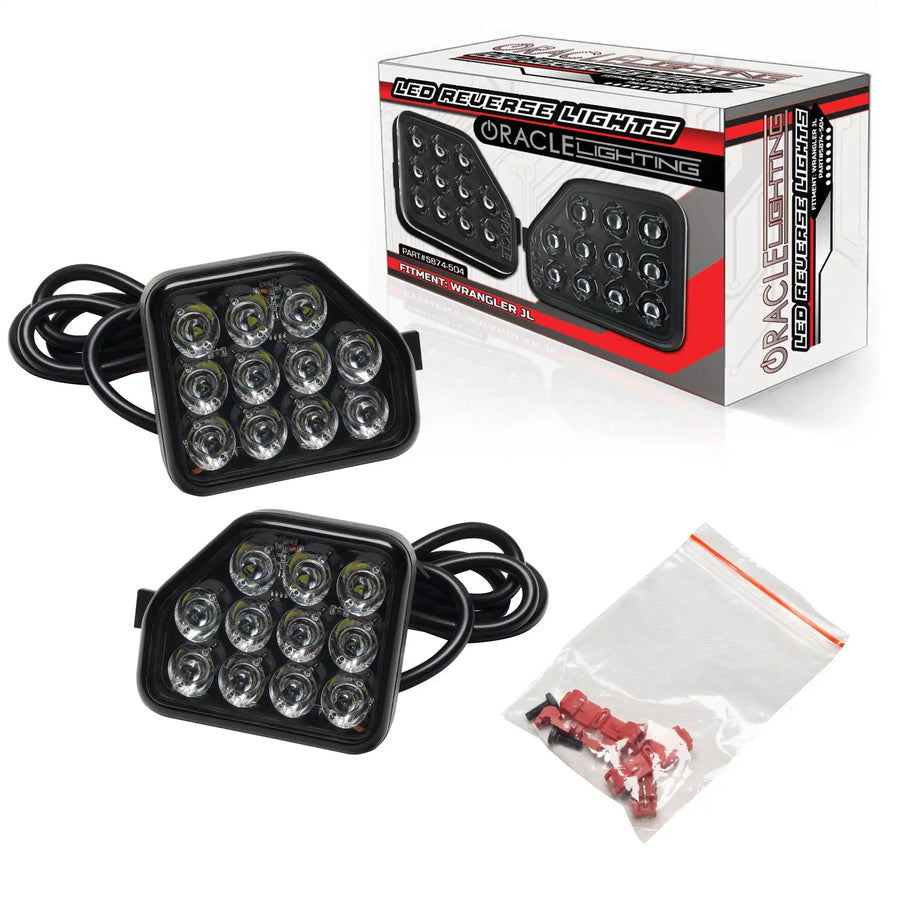

• (2) High-Output LED Bumper Reverse Lights for Jeep Wrangler JL
• T-tap wiring connectors for plug-and-play installation
• Factory mounting hardware
• Complete installation instructions

Installation Time is approximately 2 Hours

2026 Wrangler JL: Bumper Removal Required

1. Remove the lower inner fender liners for access to the bumper mounting hardware.
2. Remove the 4 bumper mounting bolts (16mm).
3. Remove the 4 bumper mounting nuts (16mm). A 16mm ratcheting box end wrench is recommended - a socket and ratchet will not fit the upper nut.
4. Disconnect the rear park assist sensor connector (if equipped).
5. Disconnect the 16-pin tow harness connector (if equipped).
6. Remove the rubber hitch cover (if equipped) for added clearance.
7. With a helper, pull the bumper rearward and rotate it to clear the rear tires. Protect painted surfaces during removal.
8. Install the reverse lights per the standard instructions, then reinstall the bumper and reconnect all connectors.

Warranty Policy

Returns & Exchanges

Shipping Policy

Why do I need upgraded reverse lights for my Jeep Wrangler JL?

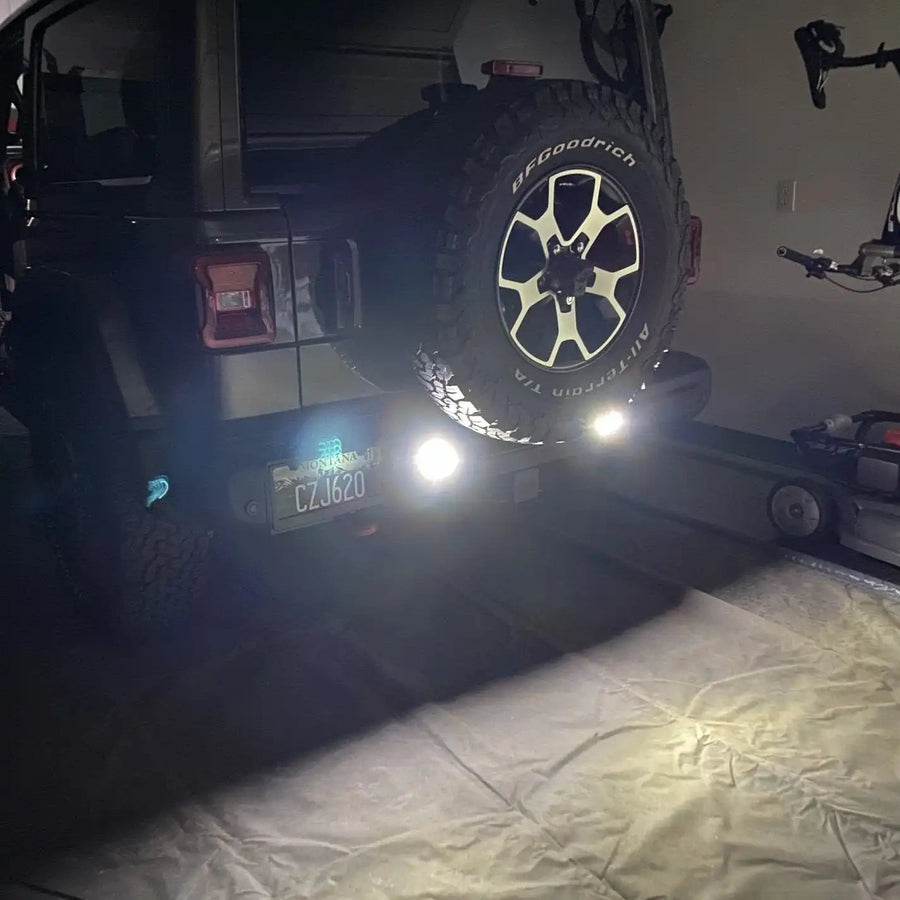

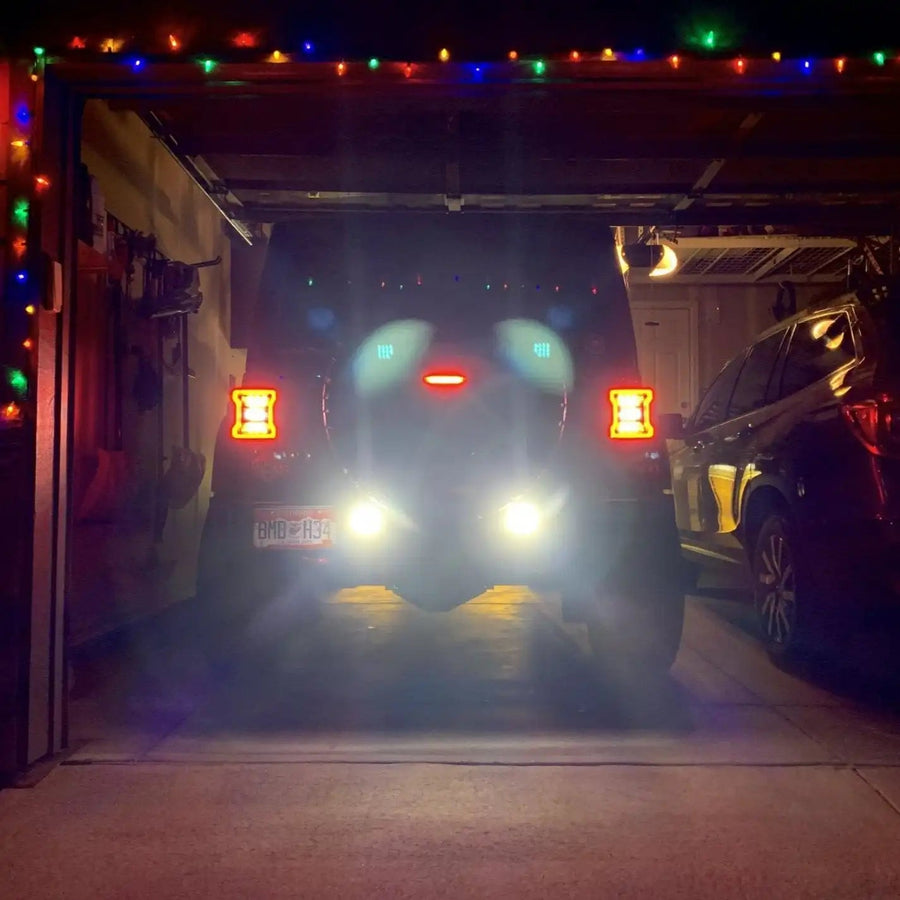

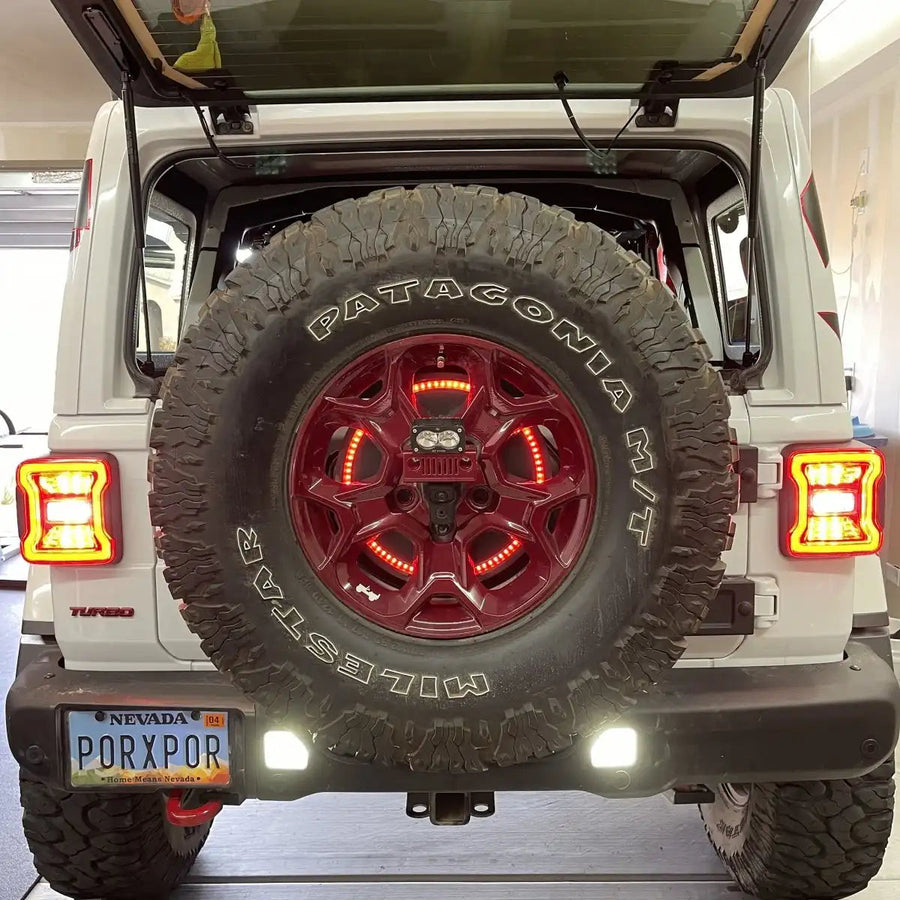

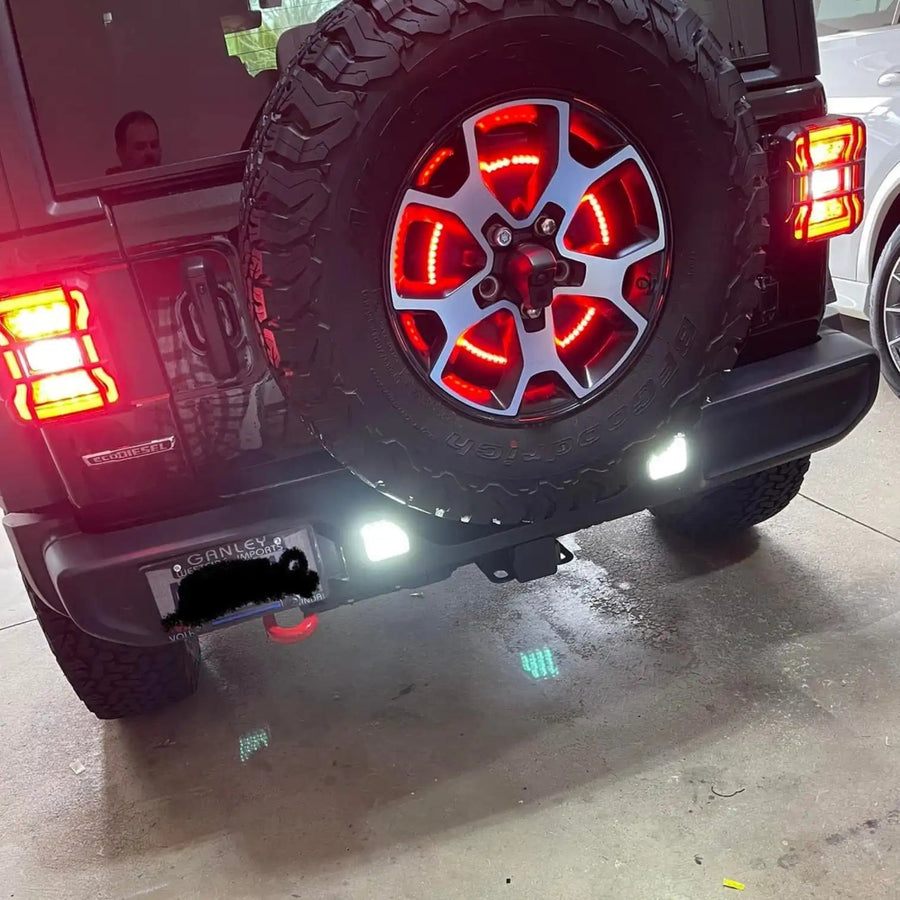

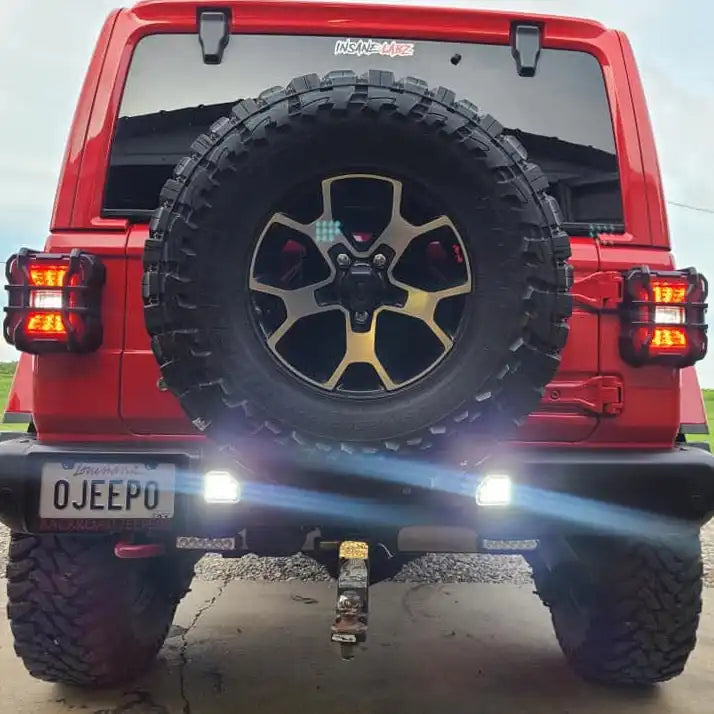

Factory Jeep Wrangler JL reverse lights are notoriously dim, even on models equipped with LED tail lights, resulting in poor backup camera performance in the dark and limited visibility when reversing. ORACLE Rear Bumper LED Reverse Lights (Part #5874-504) solve this common complaint by adding over 1,000 lumens of illumination directly into the rear bumper reflector area. Each light features 11 high-powered 1-watt LEDs with an optic-focused wide beam pattern that extends your field of view. This patented design seamlessly replaces factory bumper reflectors with a clean OE appearance while providing the bright illumination needed for safe nighttime backing and effective backup camera operation.

How bright are ORACLE bumper reverse lights compared to stock Jeep JL lights?

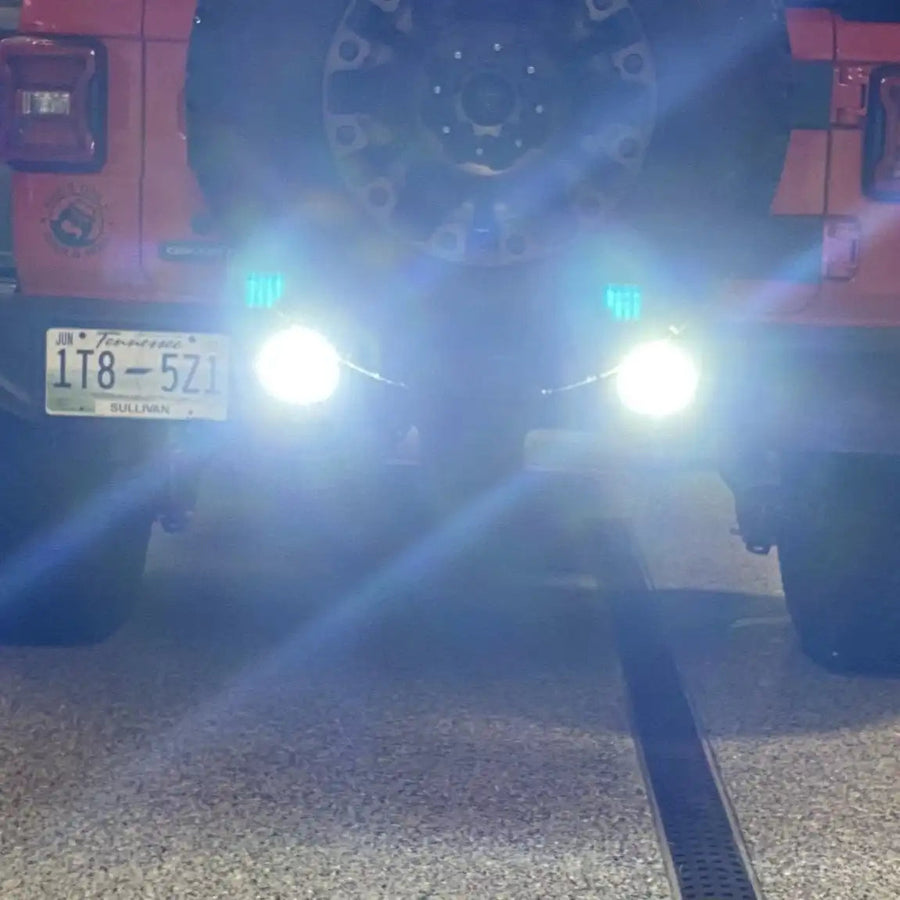

ORACLE Rear Bumper LED Reverse Lights deliver over 1,000 raw lumens total (500+ lumens per light), providing dramatically brighter illumination than factory Jeep Wrangler JL reverse lights. Each module contains 11 high-powered 1-watt LEDs arranged to create an optic-focused wide beam pattern, transforming nighttime backing from barely visible to daylight-like conditions according to customer reviews. For optimal performance, ORACLE highly recommends converting stock halogen reverse light bulbs in the tail lights to LED bulbs, which work synergistically with the bumper lights for maximum rear illumination.

Will I need to modify my steel bumper for the reverse light to fit?

These lights are designed as a direct-fit replacement for the Jeep Wrangler JL, using existing factory mounting hardware and maintaining a clean OE appearance. For stock plastic bumpers, installation is straightforward with no modification required. Factory steel bumpers are stamped, so the opening size can vary slightly. Most steel bumpers require a small amount of grinding to the bumper opening for the light to sit flush - grind gradually and test the fit often. Any exposed bare steel should be primed and painted to prevent rust. Modifying the bumper for fitment does not void your ORACLE warranty as long as care is taken so the light itself is not damaged in the process.

Do ORACLE bumper reverse lights cause error codes on Jeep Wrangler JL?

No. ORACLE Rear Bumper LED Reverse Lights are specifically engineered to tap into the existing reverse light power source without triggering any error codes on your Jeep Wrangler JL. The kit integrates seamlessly with the factory electrical system, whether you have halogen or LED factory tail lights. You can also upgrade to ORACLE's plug-and-play wiring adapter (Part #5879-504) for even easier, error-free installation.

What's included with the ORACLE Wrangler JL bumper reverse light kit?

The kit (Part #5874-504) includes 2 complete LED reverse light modules, T-tap wiring connectors, factory mounting hardware, and complete installation instructions. Each light features cast aluminum housing with powder-coat finish, clear PMMA lenses, and 11 high-powered 1-watt LEDs (500+ lumens per module). For easiest installation, ORACLE recommends adding the optional plug-and-play wiring adapter (Part #5879-504, sold separately).
