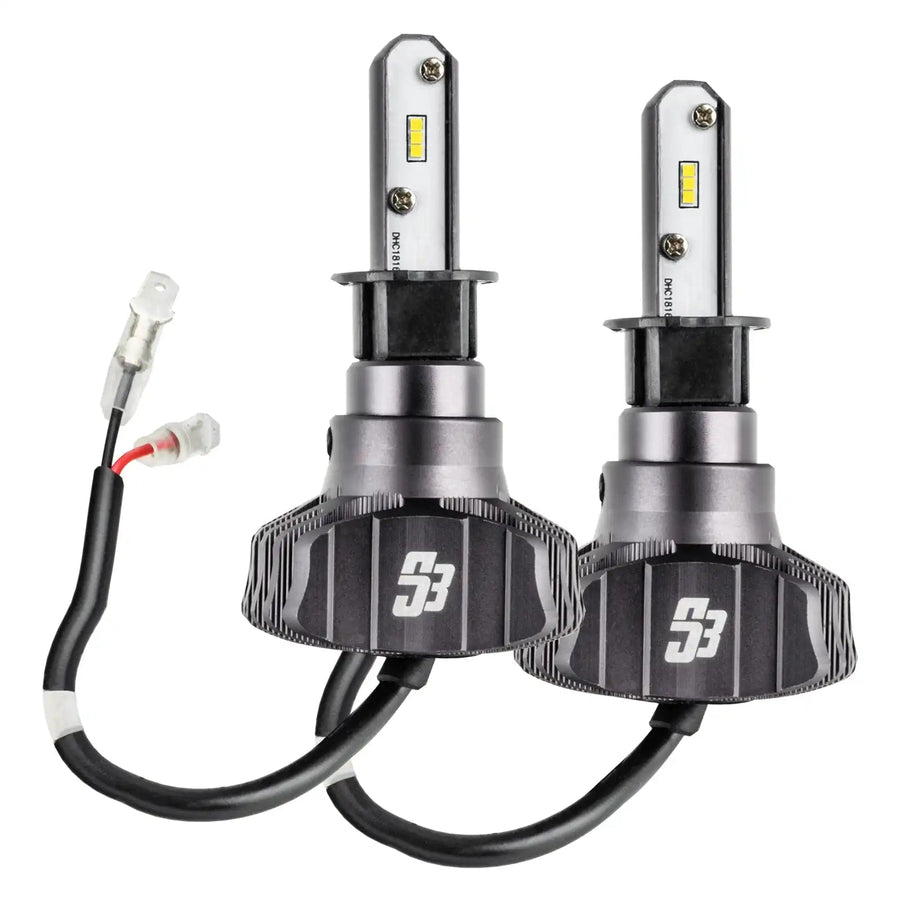

ORACLE Lighting H1 - S3 LED Light Bulb Conversion Kit High/Low Beam (Projector)

Original price $75.50 - Original price $75.50
Original price
$75.50
$75.50 - $75.50
Current price $75.50

ORACLE Part# S5243-001

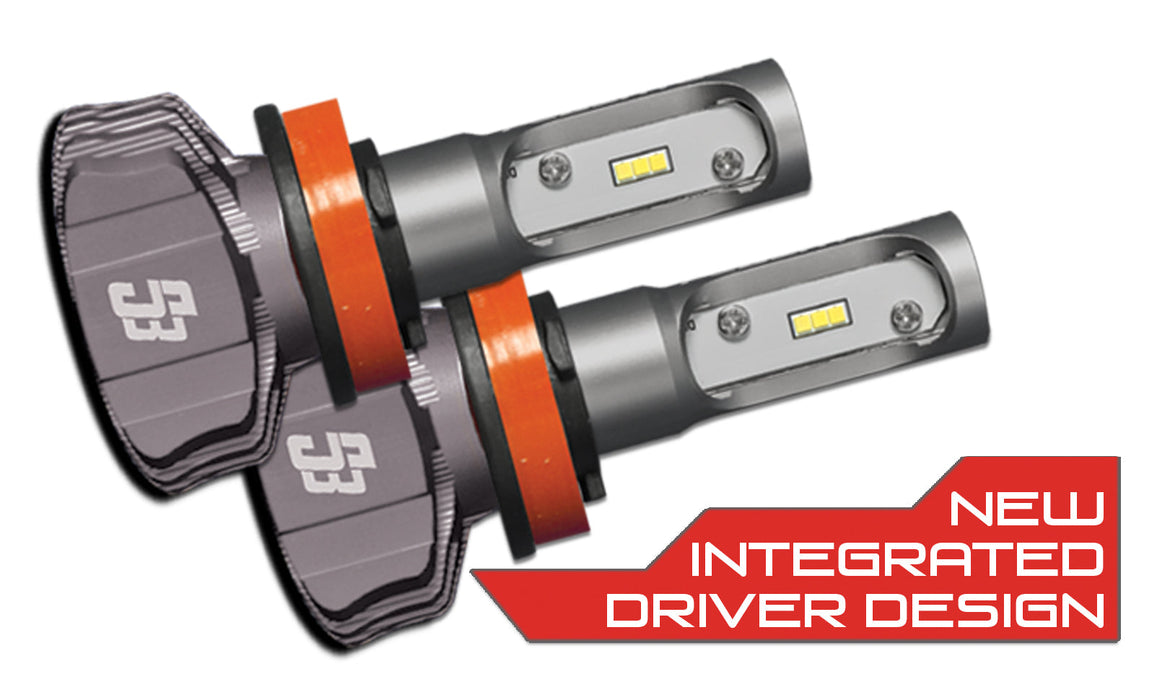

ORACLE Lighting S3 LED Conversion Bulbs Instantly provide 3200 Lumens of Crystal Clear 6000K light output. The electronic components of the S3 Headlight bulbs are housed in a sealed waterproof heat-sink design, eliminating the need for external drivers and cooling fans.



The CSP (Chip Scale Package) LED Chip Design features a small package size but high intensity volume per unit with less heat value resulting in industry-leading Luminous Efficacy (science talk for “Best Bang for your Buck”). This new low-profile design reduces common bulb fitment issues for an easy Plug & Play DIY installation.

“Dodge, Chrysler, Jeep, or later model EU (Mercedes, BMW, Audi, ETC) may require additional CAN-BUS decoder harnesses in the event flashing, strobing, or shutting down with engine ON occurs.”

Product Specs:
• Operating Voltage: 12V/24V
• Color temperature: 6000K
• Material: 6160 aluminum
• PCB: Double Layer Copper
• Current Demand: <1 Amp
• Warranty: 1 Year Limited
• LED Chip Type: CSP
• Brightness: 3200 Lumens
• Power Draw: 12W / Bulb
• luminous Efficacy: 130lm/W*
• Industry-Leading Efficacy Ratio

View Installation Instructions
