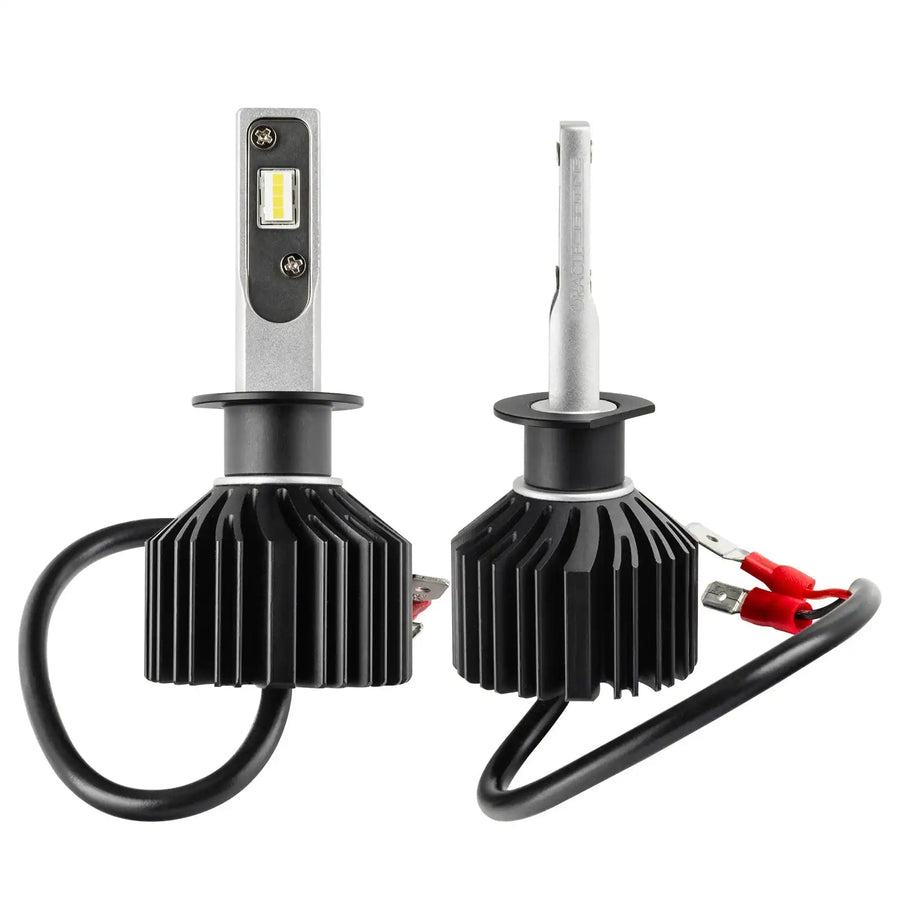

ORACLE Lighting H1 - VSeries LED Light Bulb Conversion Kit (High Beam)
ORACLE Part# V5243-001
Looking for a bright, versatile, and easy to install LED Headlight Conversion Option? The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value for the features you get with this all-new design technology.
Learn more here
*These bulbs will not replace “XS” bulbs, please purchase our Premium or S3 bulbs*
“Dodge, Chrysler, Jeep, or later model EU (Mercedes, BMW, Audi, ETC) may require additional CAN-BUS decoder harnesses in the event flashing, strobing, or shutting down with engine ON occurs.”
• FIRST 6-Volt Daytime Running Light Compatible LED Bulb Available.
• LED Bulb features Precision Filament Geometry for no-Glare Illumination.
• No Fan, Head-Sink, or other obstructing/ cumbersome cooling system.
• Physically matches original bulb for OEM fitment and easy DIY installation.
• 2.65X increased visibility when compared to Stock Halogen Bulbs.
• Color Temp: 6000K
• Input Voltage: 6-32V DC
• DRL Compatible: YES
• Power Draw: 17W/ Bulb
• Lumens: 3,600LM/ Set
• Efficacy: >100lm/W*
• Industry-Leading Efficacy Ratio
The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wirebond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. What does this mean for you? An ultra-luminous and extremely efficient light output with superior durability and reliability.
This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life.
V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb..
Until now LED Headlight bulbs have relied on passive thermal management systems such as large heat sinks, metal ribbons, or loud cooling fans. These methods can be unreliable and almost always make the installation process more difficult and time consuming for the installer. ORACLE Lighting’s new V-Series bulbs feature our SmartDrive™ Active Thermal Regulation (ATR) temperature management. The integrated constant current linear LED driver inside the bulb uses a system called “thermal foldback” to protect the LEDs and the bulb components.The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. If the bulb becomes hot and surpasses optimal working temperature, the driver can reduce the current by altering the PWM duty cycle until temperature stabilizes. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened. Although reducing the current reduces luminosity, the current reduction is minimal and such that the change in luminosity is below the threshold that a consumer can detect. Fortunately, the human eye is poor at detecting luminosity changes in high-brightness devices so there is reasonable flexibility in the balance between controlling temperature and noticeably compromising luminosity.
