Product Overview

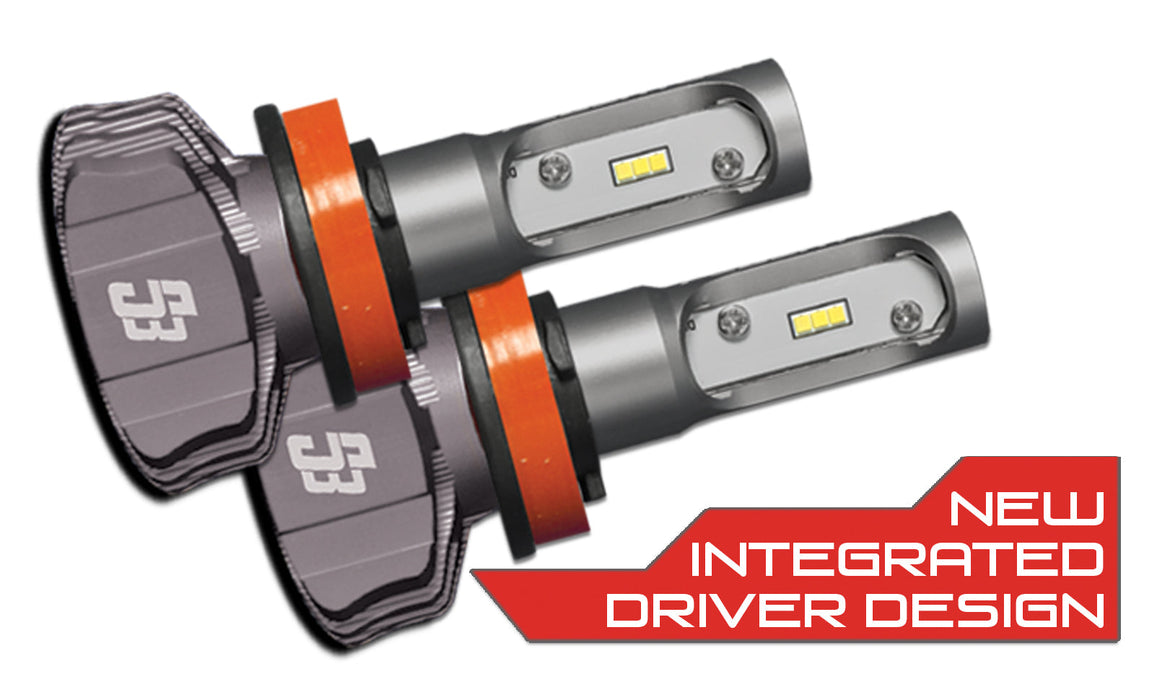

ORACLE Lighting S3 Pro LED Conversion Bulbs instantly upgrade your low beam headlights with 4,860 lumens of crystal clear 6000K output. The electronic components are housed in a sealed waterproof heatsink design, eliminating the need for external drivers and cooling fans.
The CSP (Chip Scale Package) LED Chip delivers a small form factor with high-intensity output and lower heat value - resulting in an industry-leading 130 lm/W luminous efficacy ratio. The low-profile design reduces common bulb fitment clearance issues for an easy plug & play DIY installation.
4,860 Lumens of Output - dramatically brighter than stock halogen low beams; see farther, react faster
6000K Crystal White - clean, modern HID-like color temperature that improves road contrast and visibility
True Plug & Play - direct H11 fitment, no wiring, no cutting, installs in minutes
CSP LED Technology - industry-leading 130 lm/W efficacy; maximum output with lower heat value
Low-Profile Design - reduces common bulb fitment clearance issues
3-Year Limited Warranty - backed by ORACLE Lighting's quality guarantee
CSP Chip Scale Package LED - small form factor, high-intensity output with lower heat value

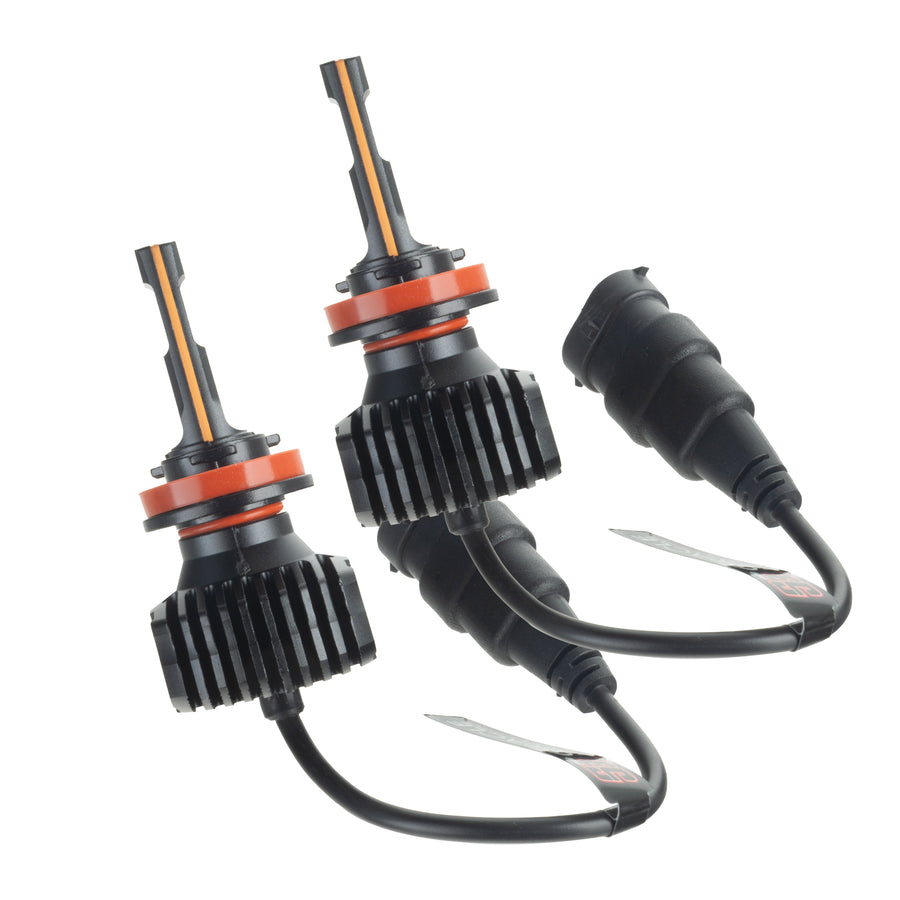

Integrated Sealed Waterproof Heatsink - no external drivers or fans needed
Low-Profile Design - reduces common bulb fitment clearance issues
Industry-Leading 130 lm/W luminous efficacy ratio
12V/24V Dual-Voltage compatibility
Direct Plug & Play H11 replacement - no modifications required
3-Year Limited Warranty backed by ORACLE Lighting
Part Number: S5235-001
Bulb Fitment: H11
Application: Low Beam Headlight (Universal)
Brightness: 4,860 Lumens per bulb
Color Temperature: 6000K (Crystal White)
Power Draw: 18W per bulb
Current Demand: 1.5 Amp
Operating Voltage: 12V / 24V
Luminous Efficacy: 130 lm/W*
LED Chip Type: CSP (Chip Scale Package)
Housing Material: 6160 Aluminum Alloy
PCB: Double Layer Copper
Waterproof Rating: Sealed / Waterproof Heatsink
Warranty: 3-Year Limited
*Industry-Leading Efficacy Ratio
CAN-BUS Note: Dodge, Chrysler, Jeep, or later-model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN-BUS decoder harnesses if flashing, strobing, or shutoff occurs with engine on.
