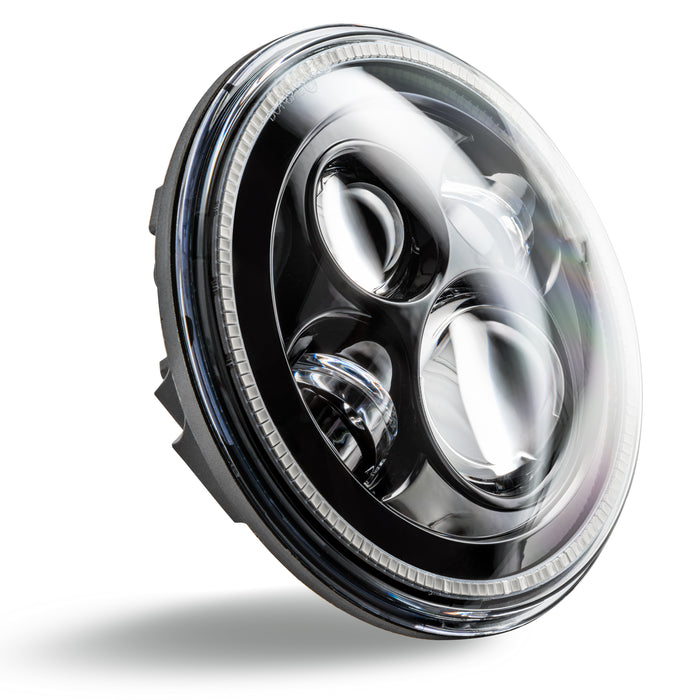

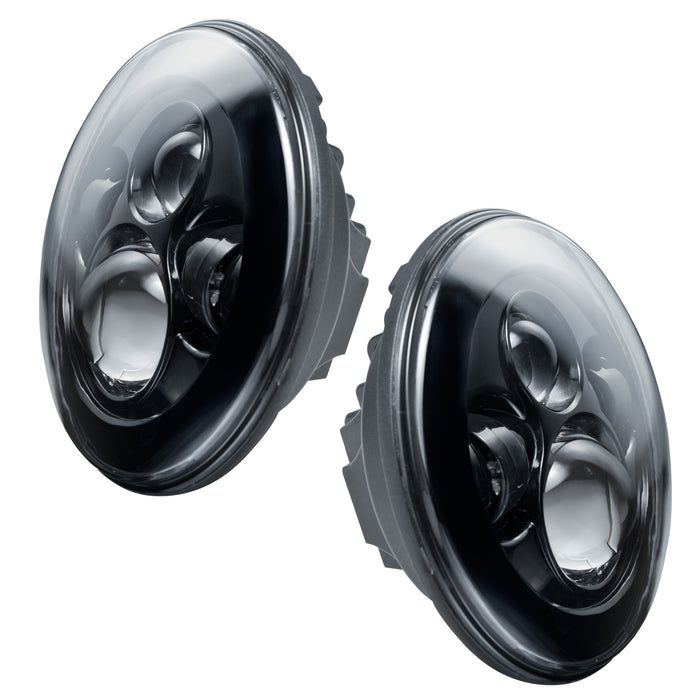

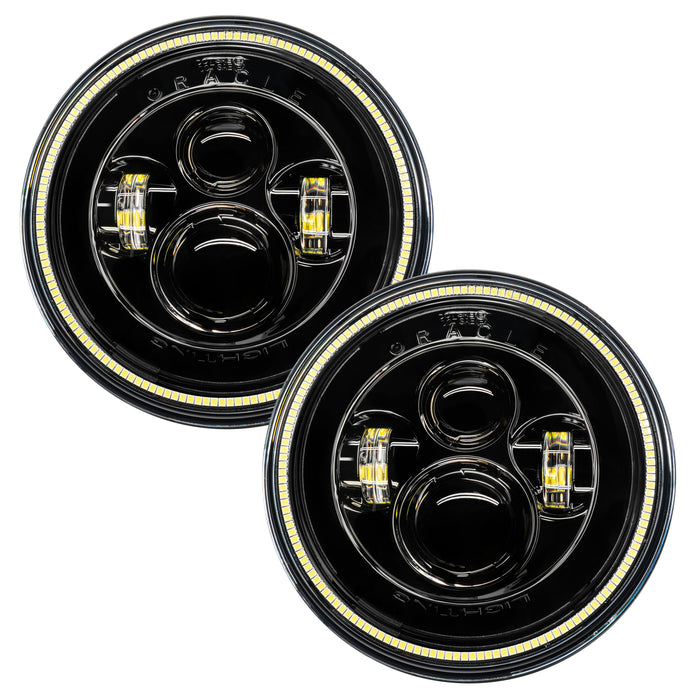

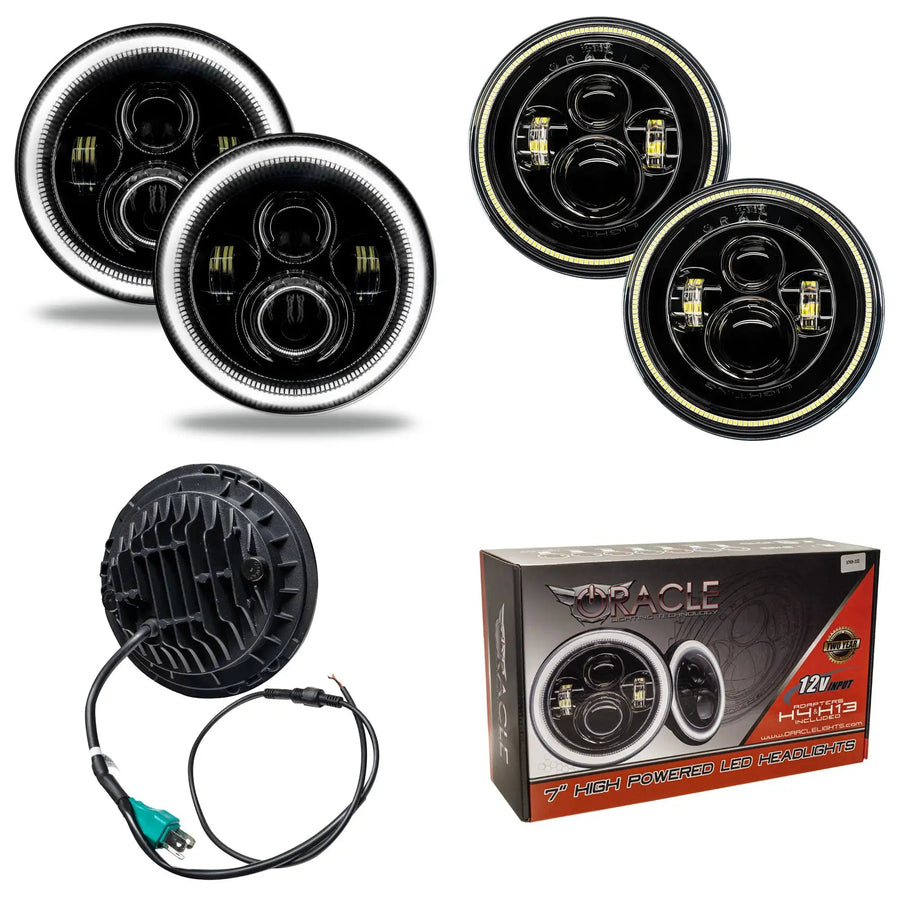

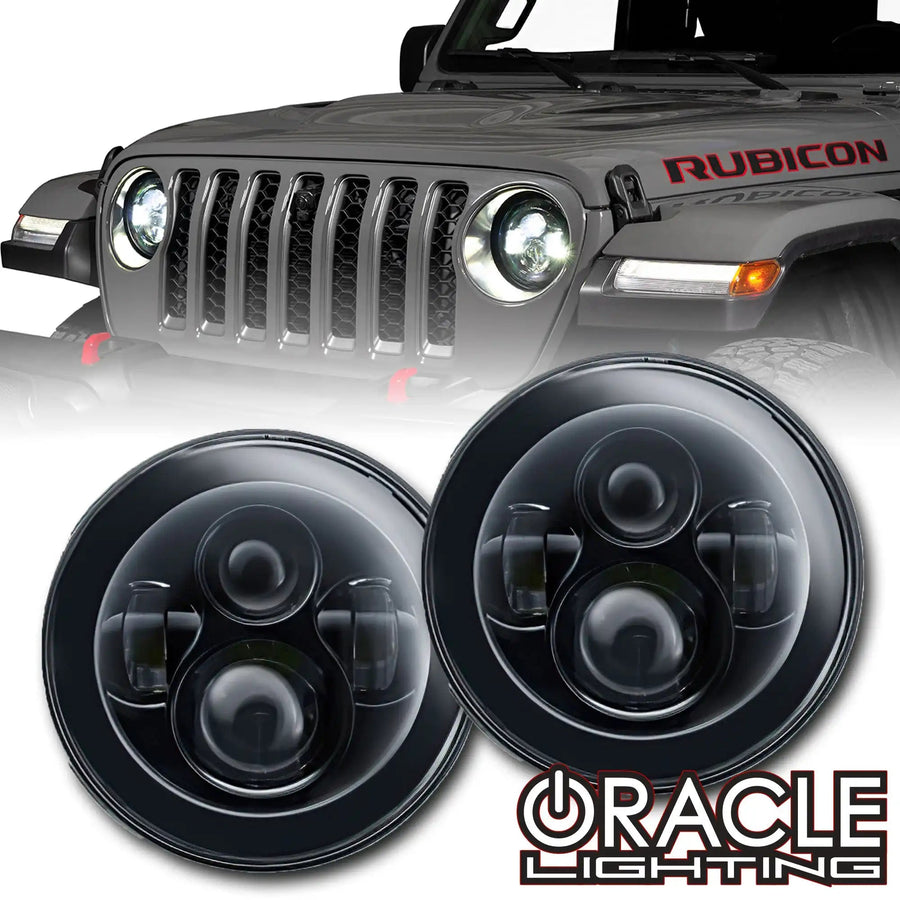

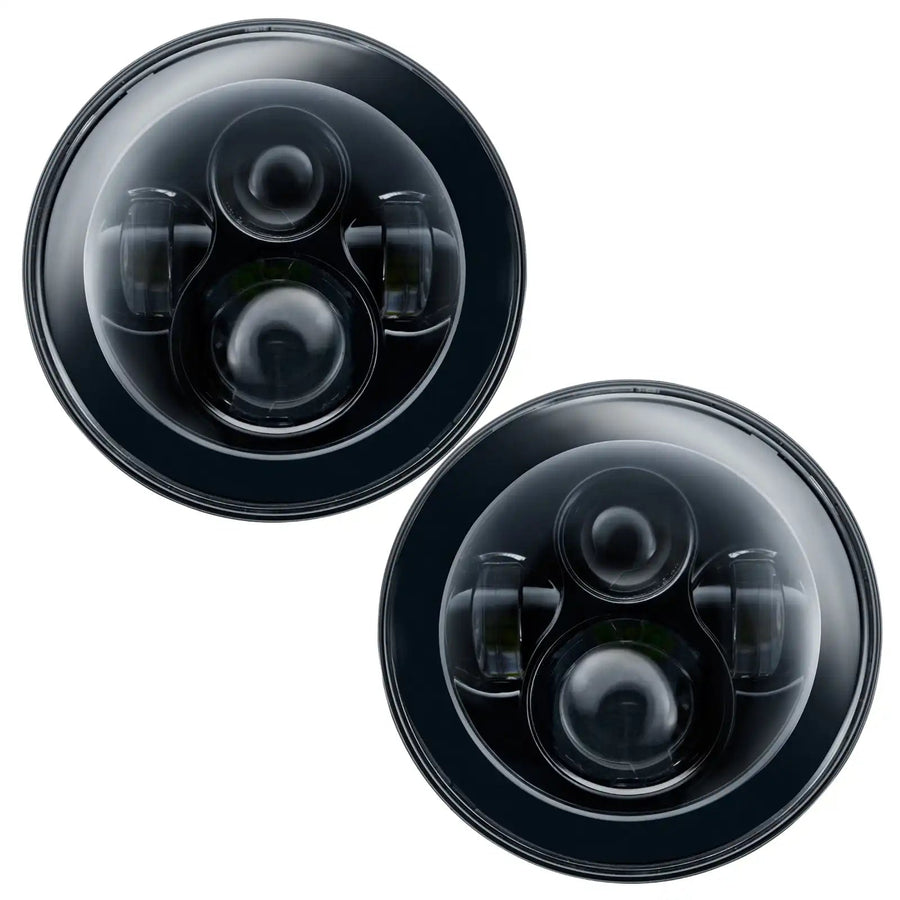

ORACLE 7" High Powered LED Headlights (Pair) - Black Bezel

  • $263.35

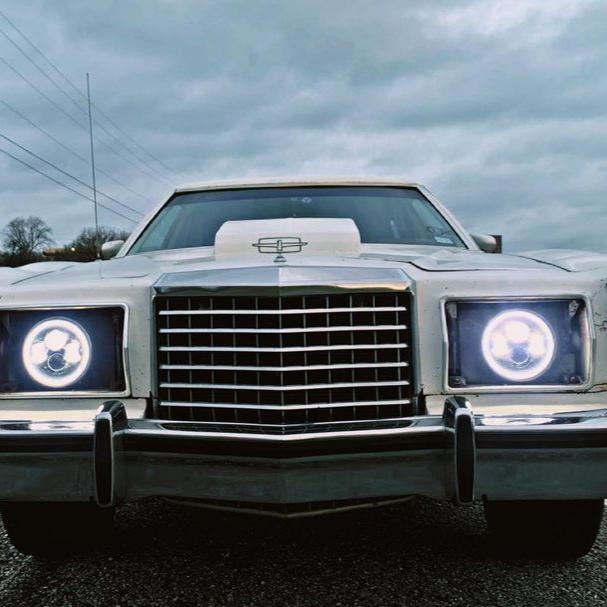

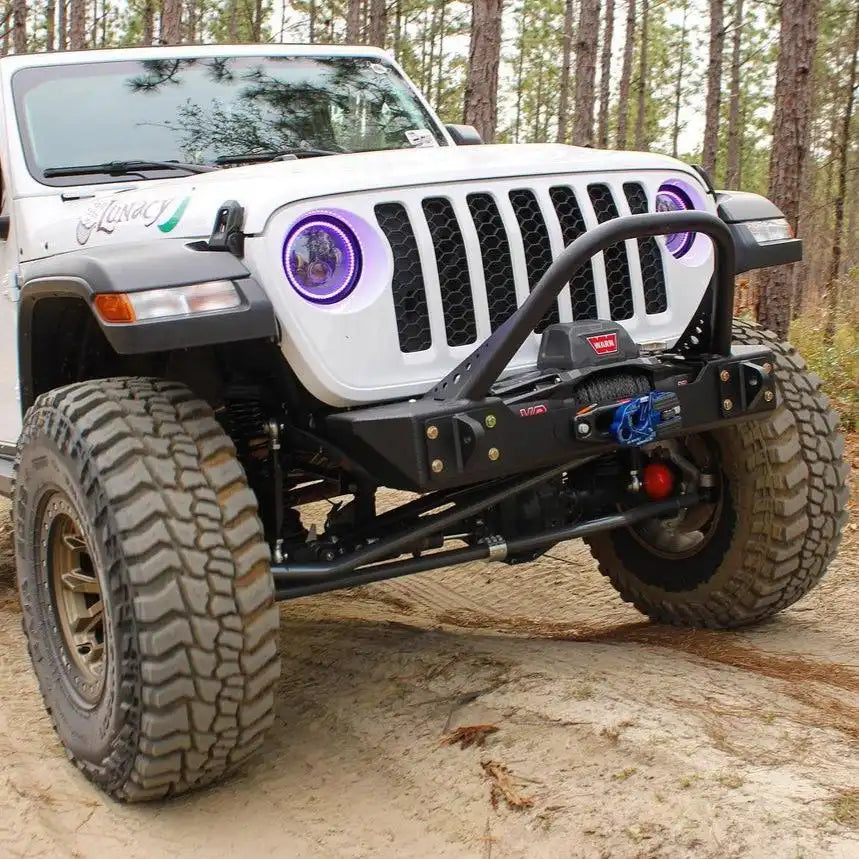

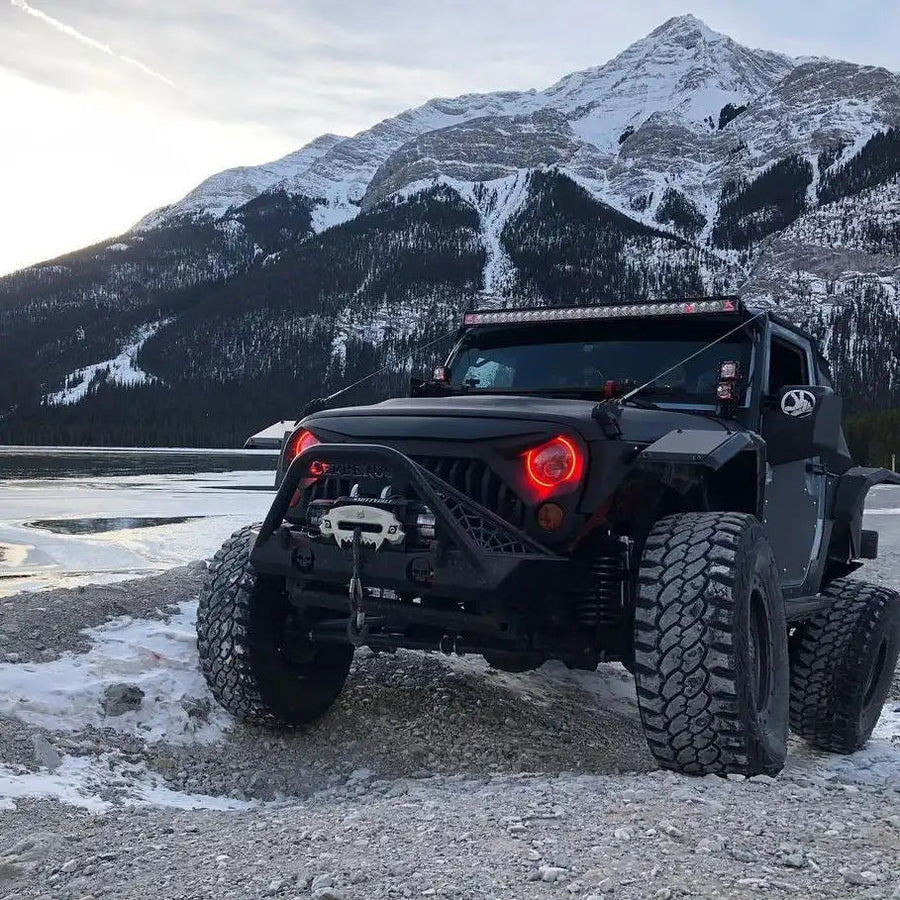

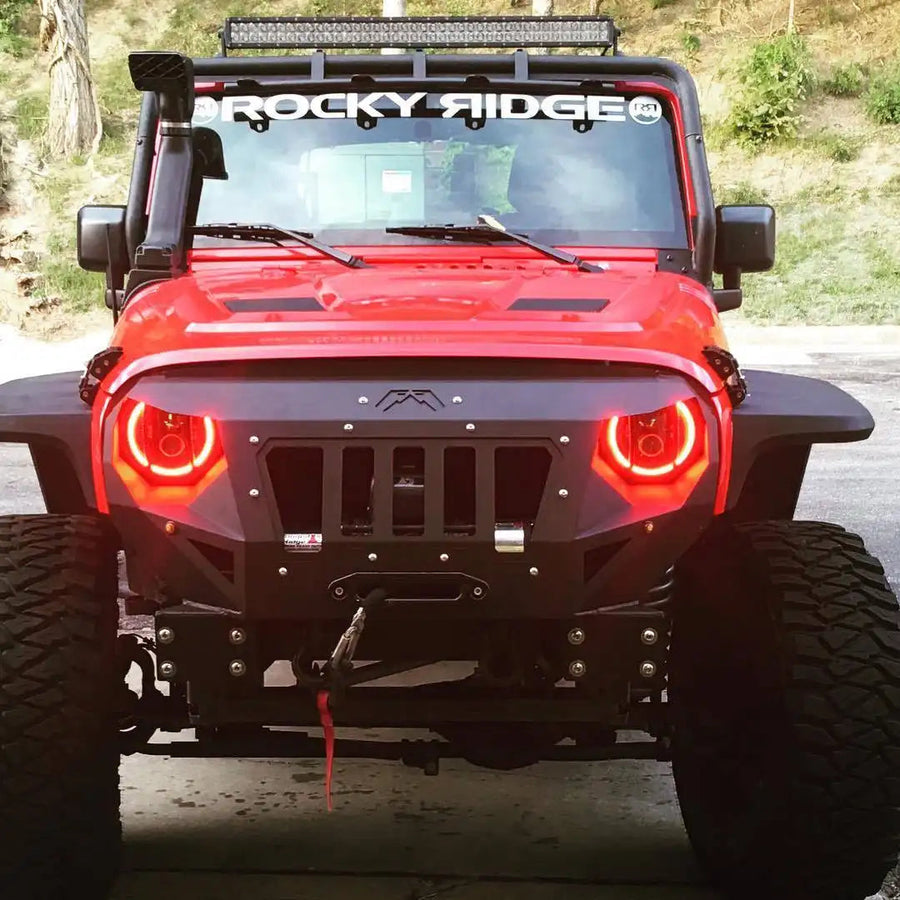

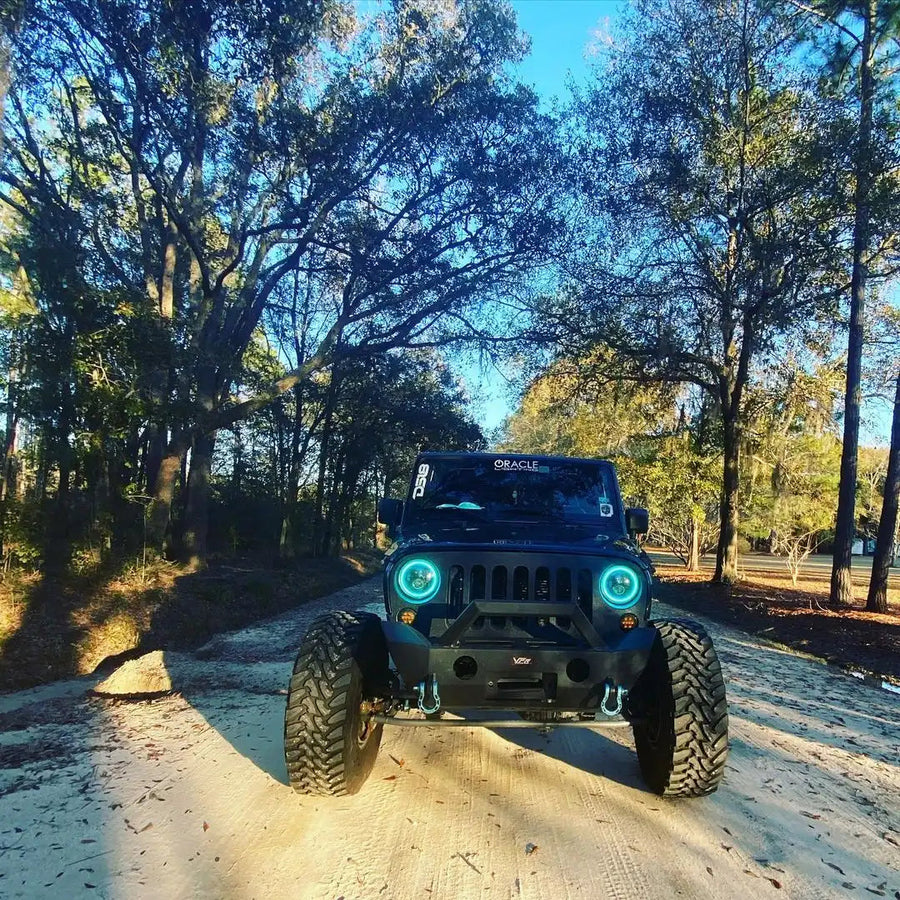

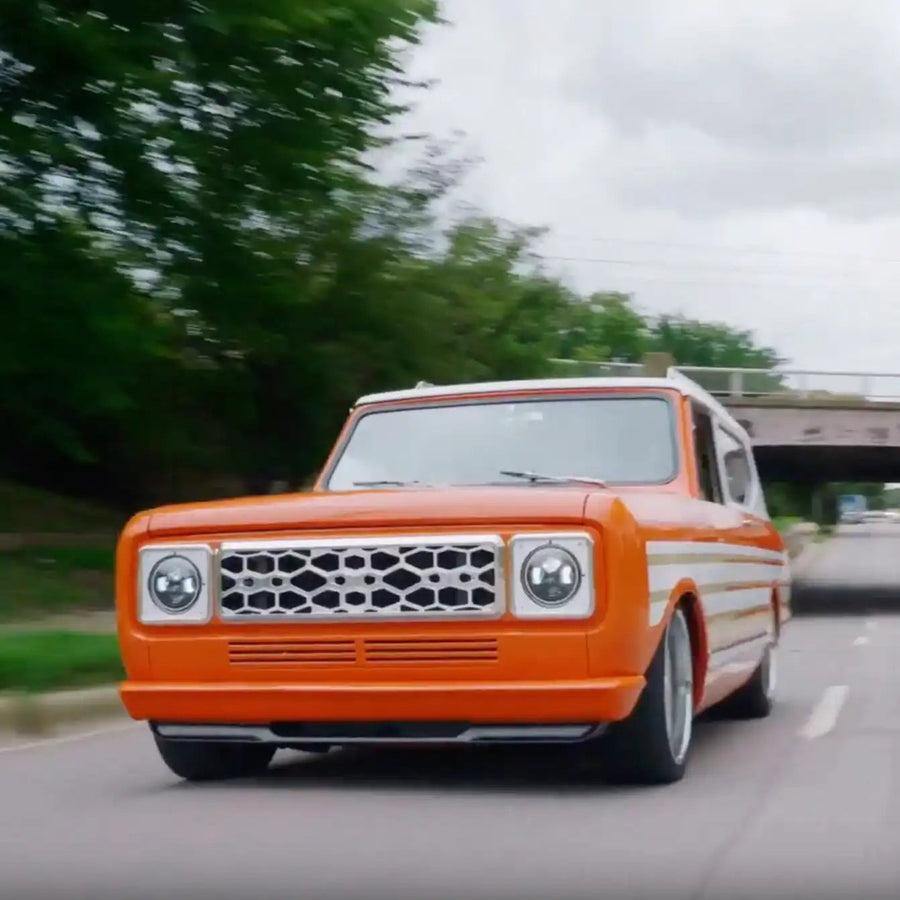

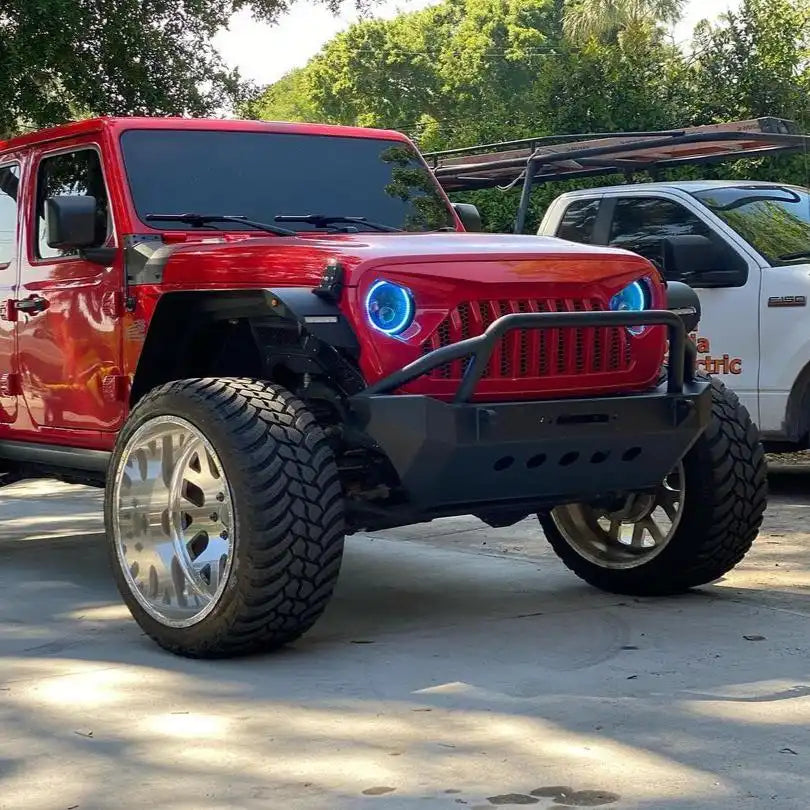

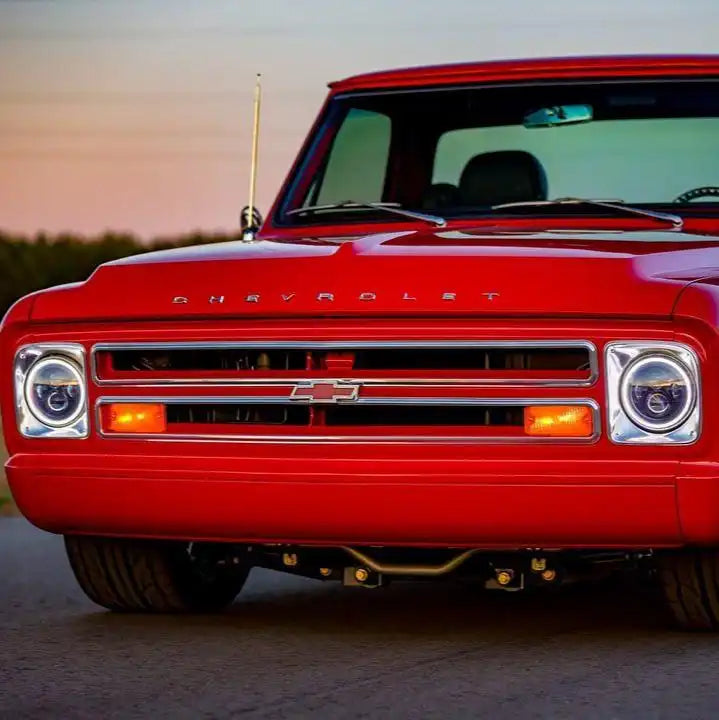

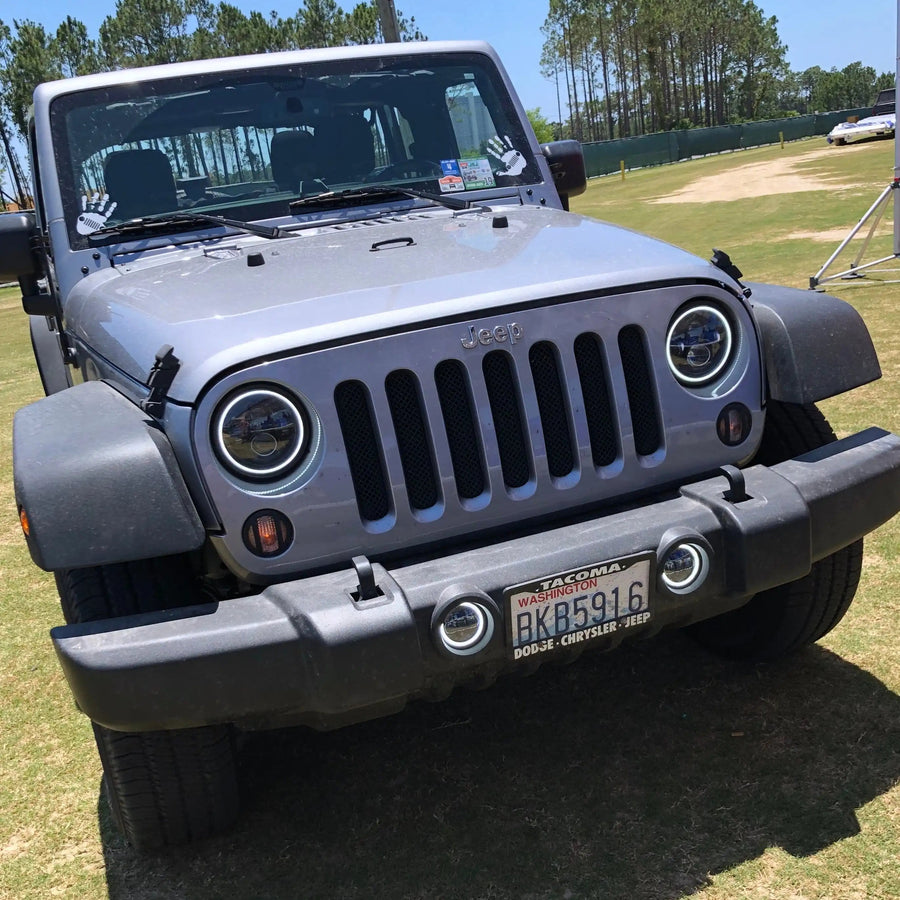

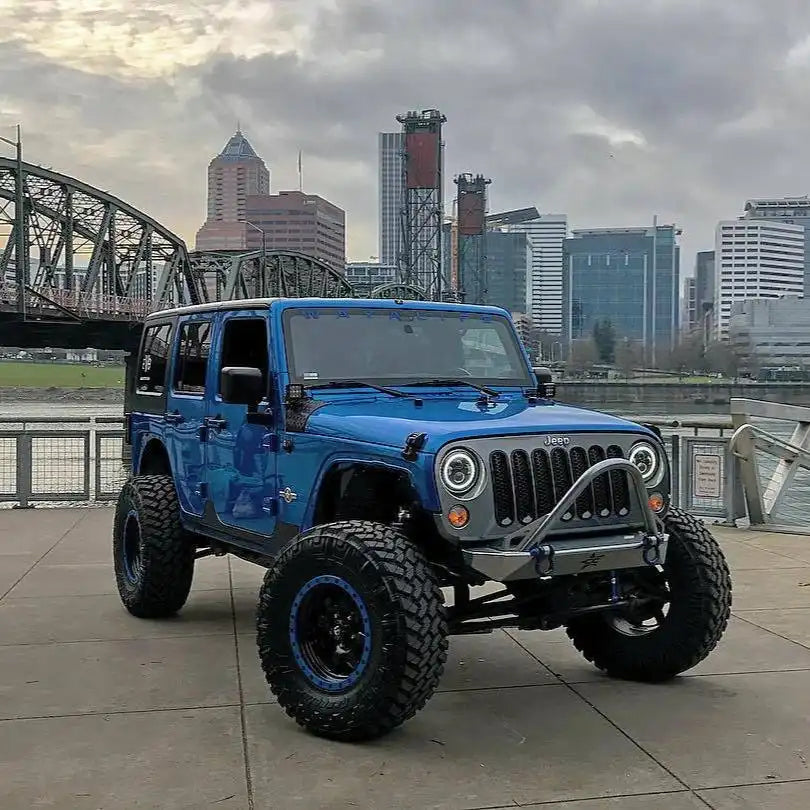

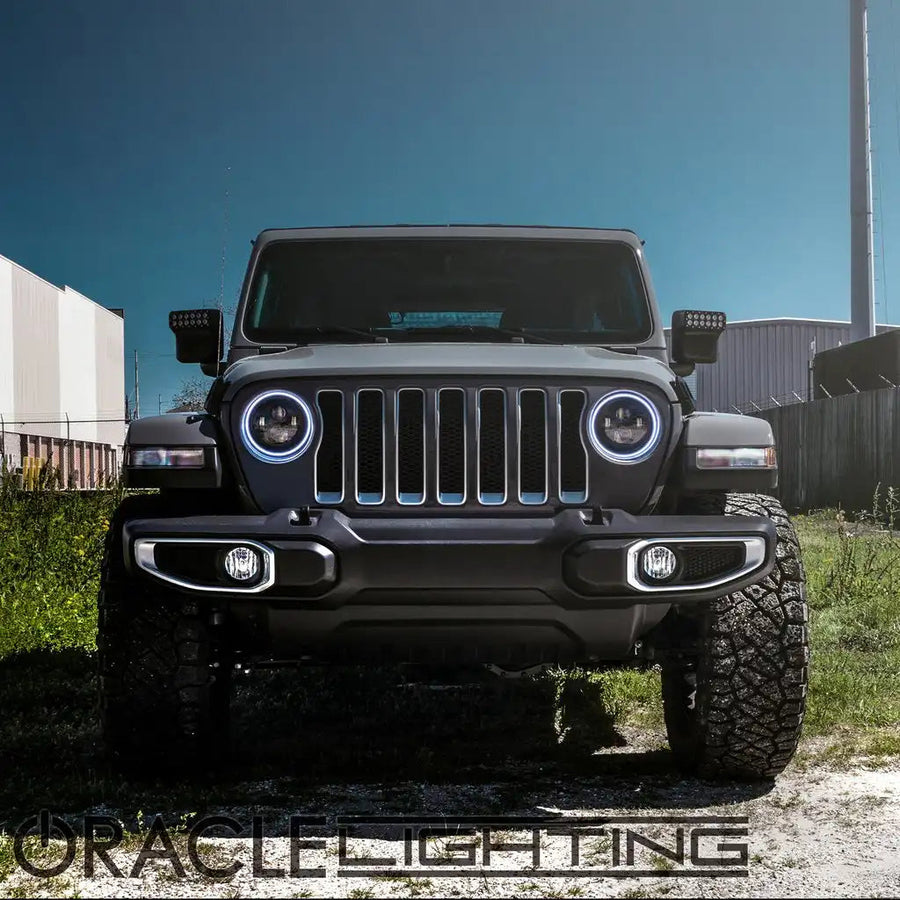

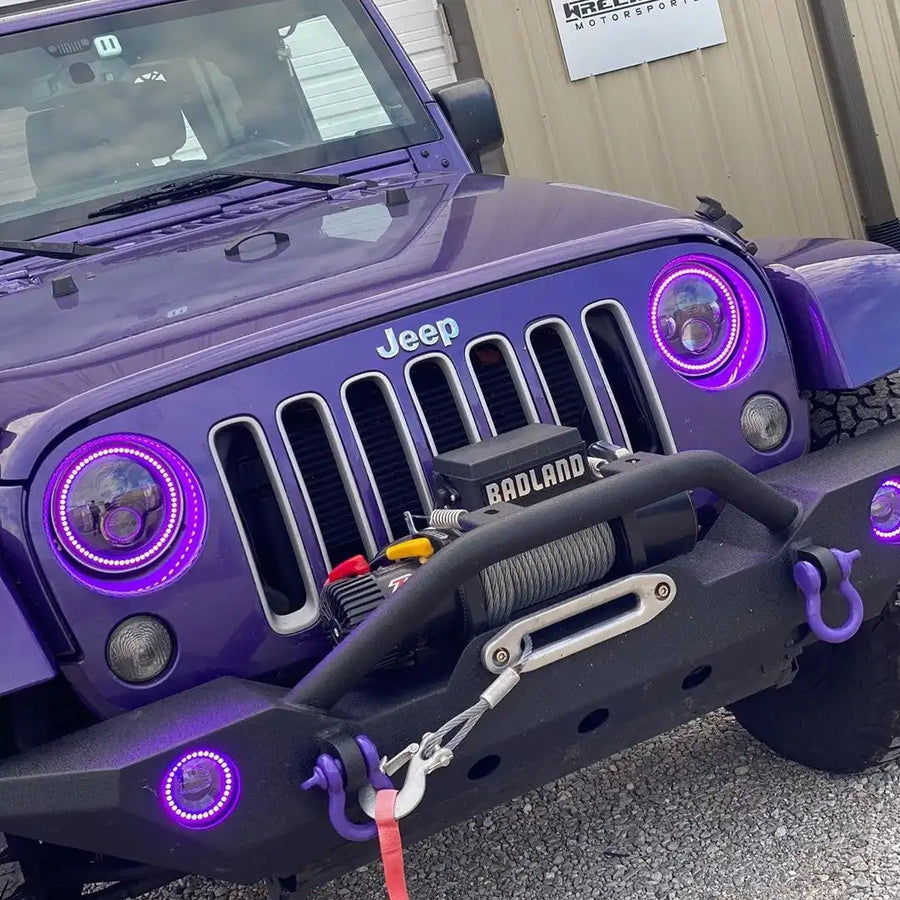

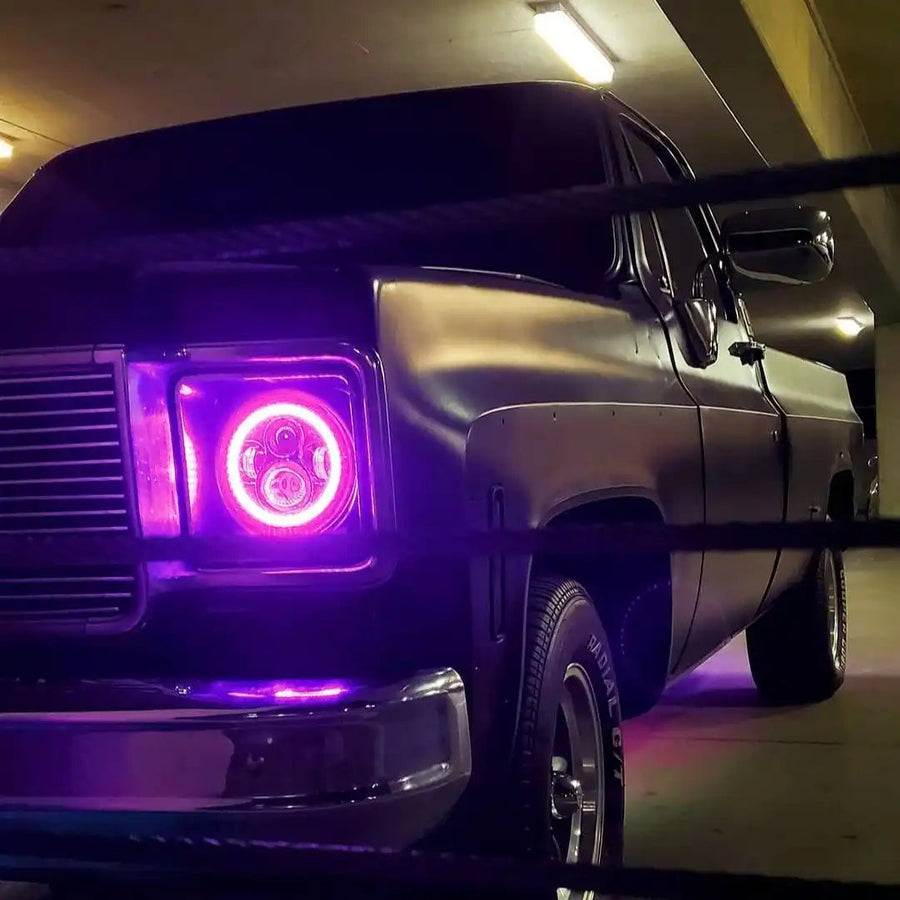

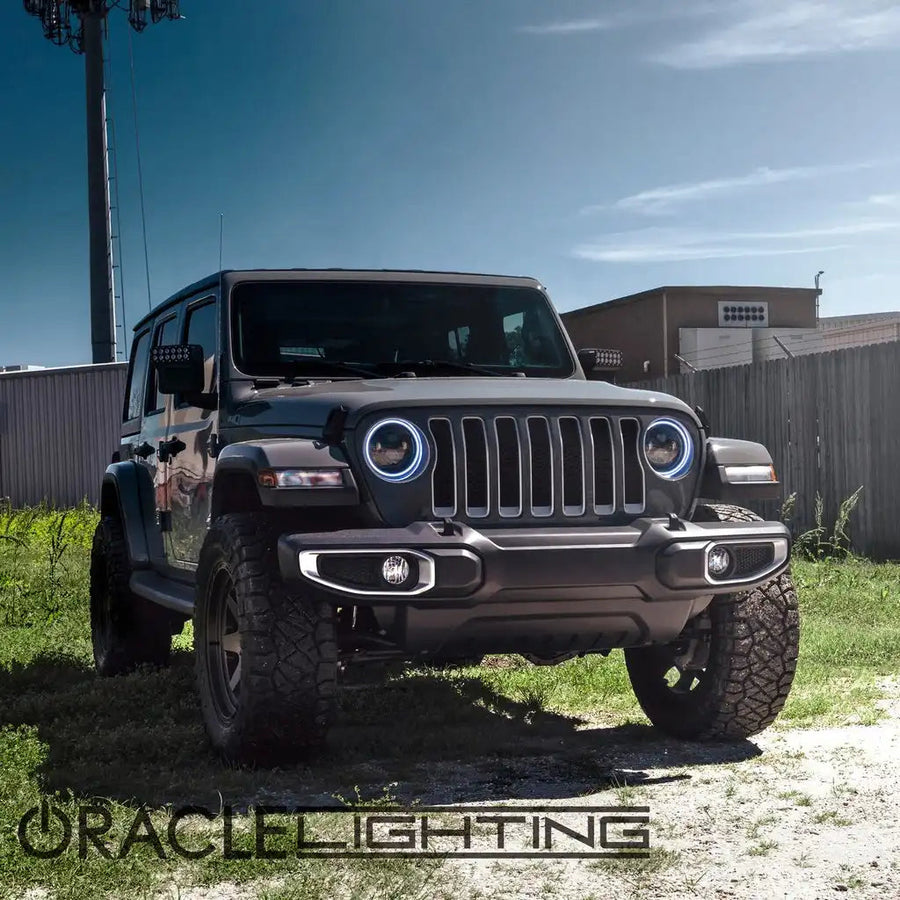

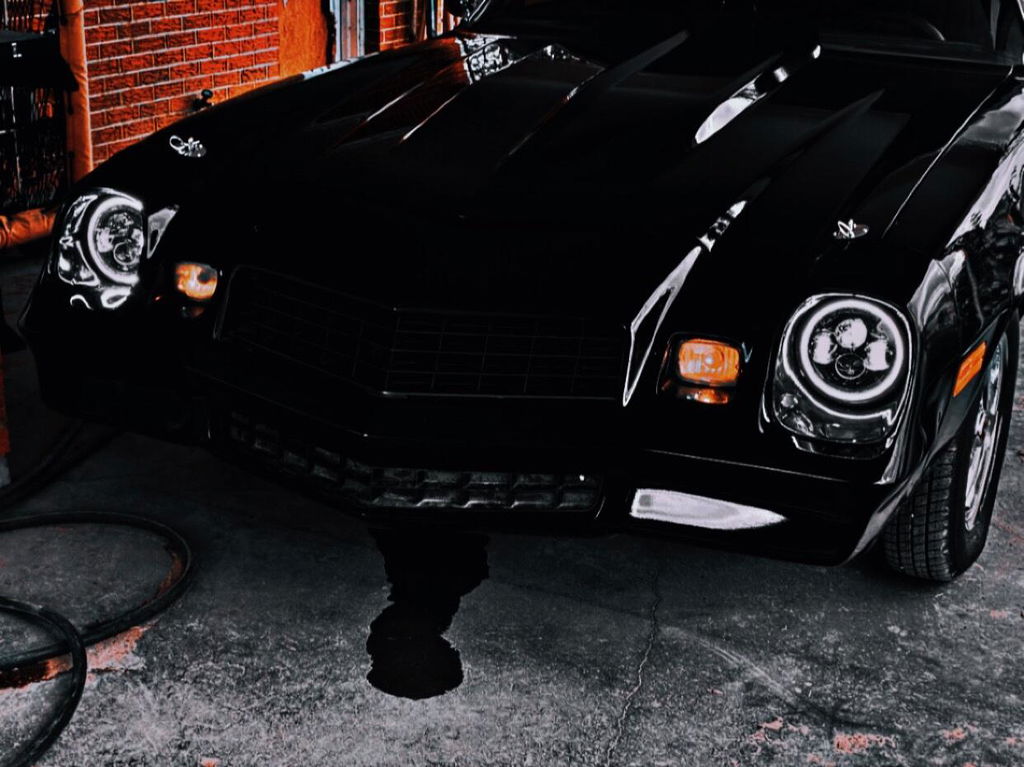

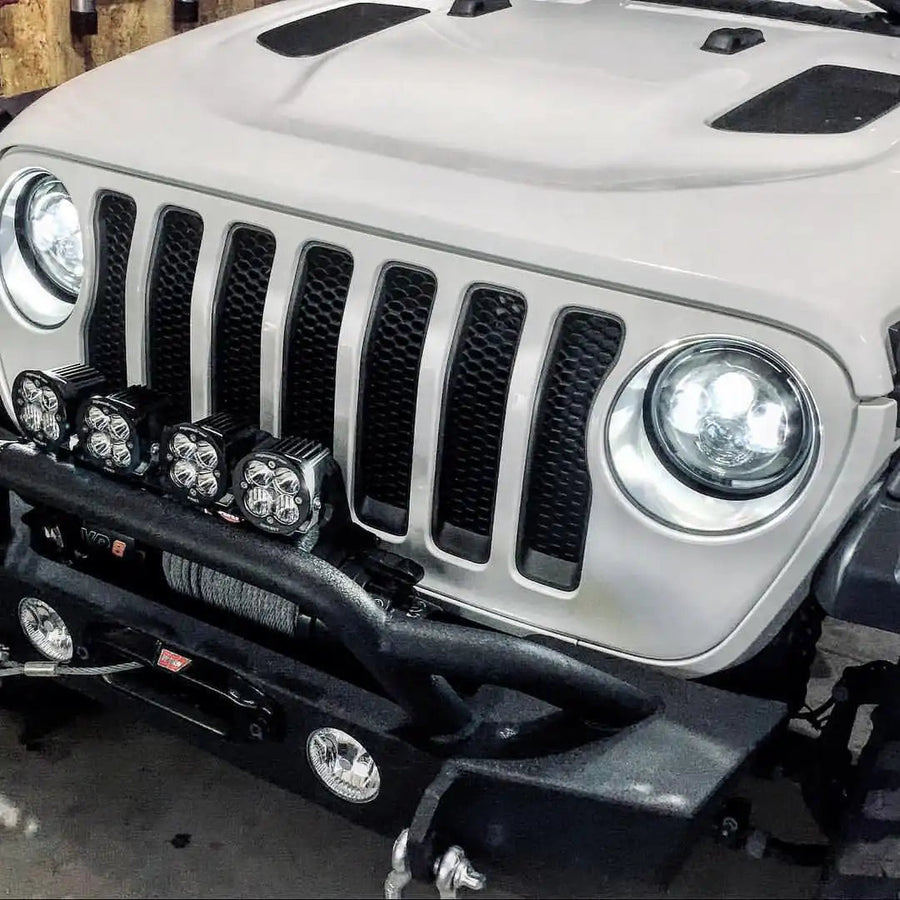

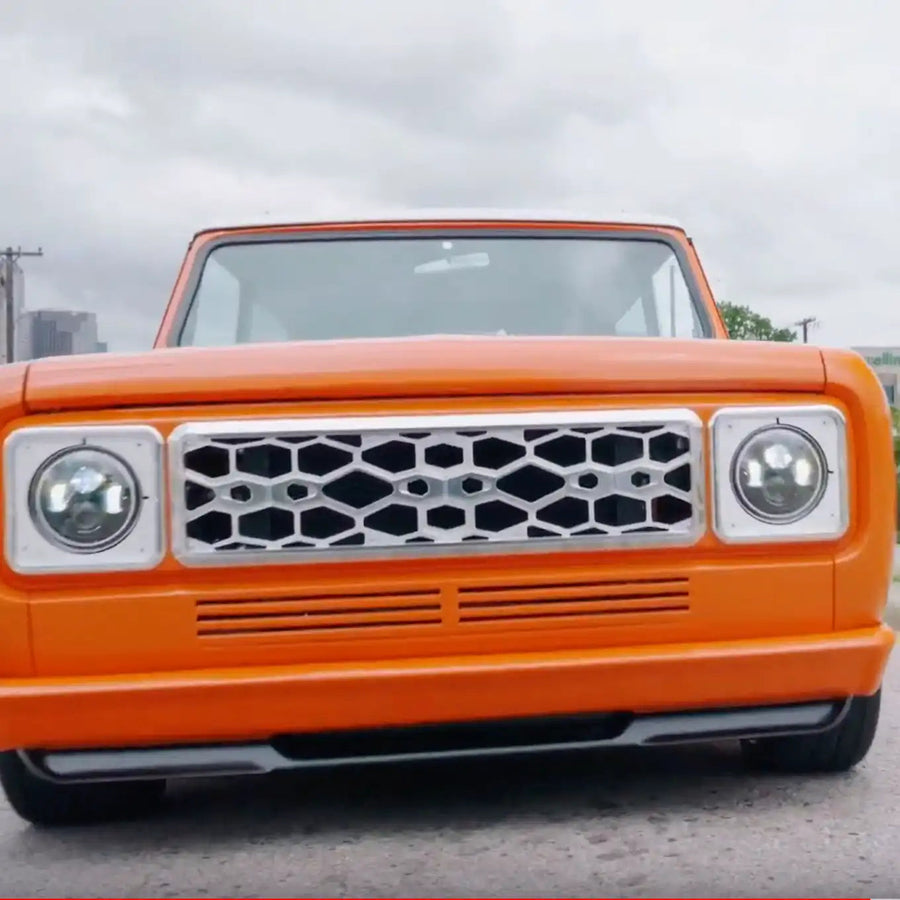

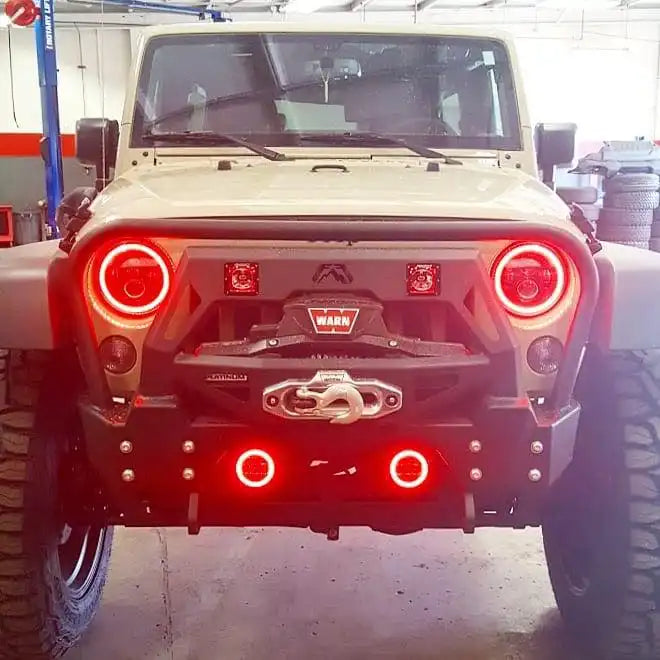

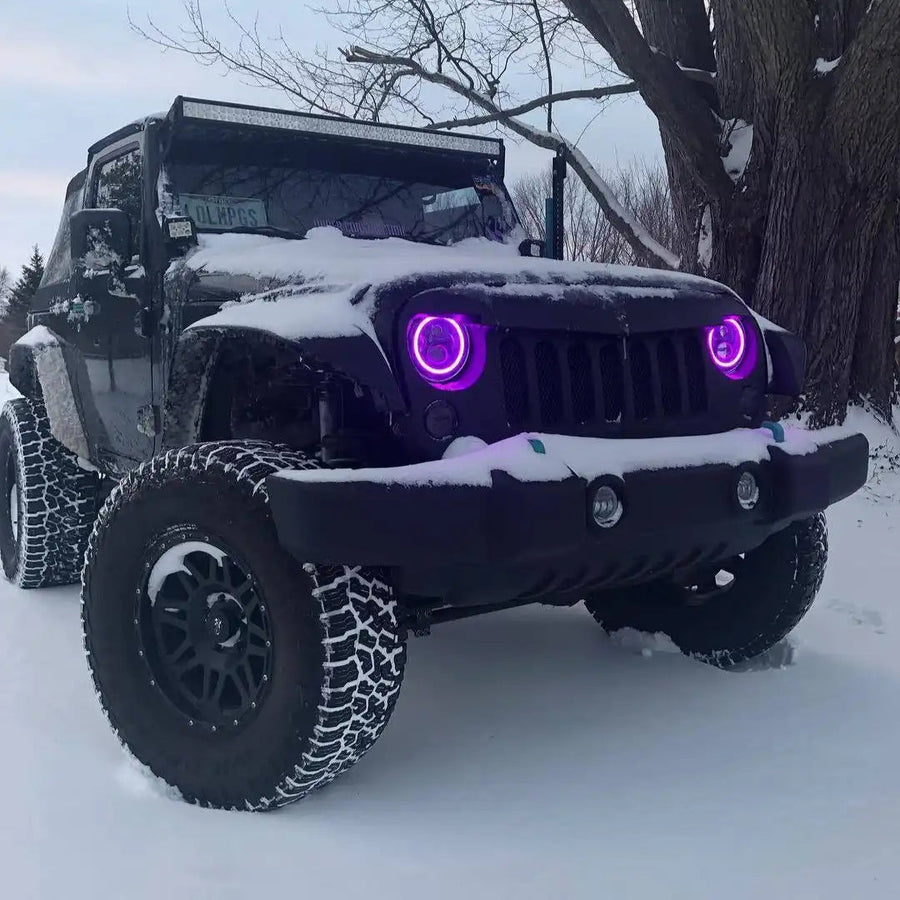

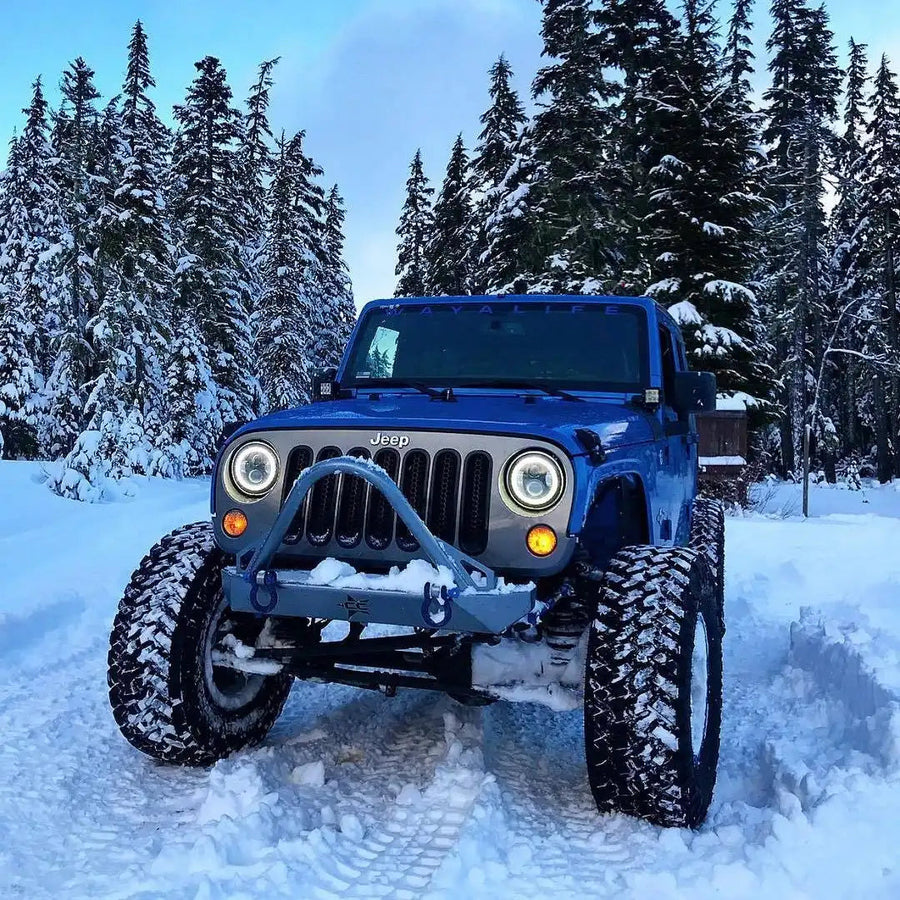

The Ultimate LED replacement headlight option for any vehicle with 7” Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 “Plug and Play” connectors. The kit even includes a set anti-flicker "Warning Cancelers" at no additional charge. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization!

Latest Product Improvement

• Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.

• Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.

• Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.

• Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.

 LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.

(ORACLE Lighting authentication embossed on the inner lamp bezel)

HALO KIT TYPE ORACLE PART# COLOR/OPTION
LED Halo Kit
5769-504 NO HALO

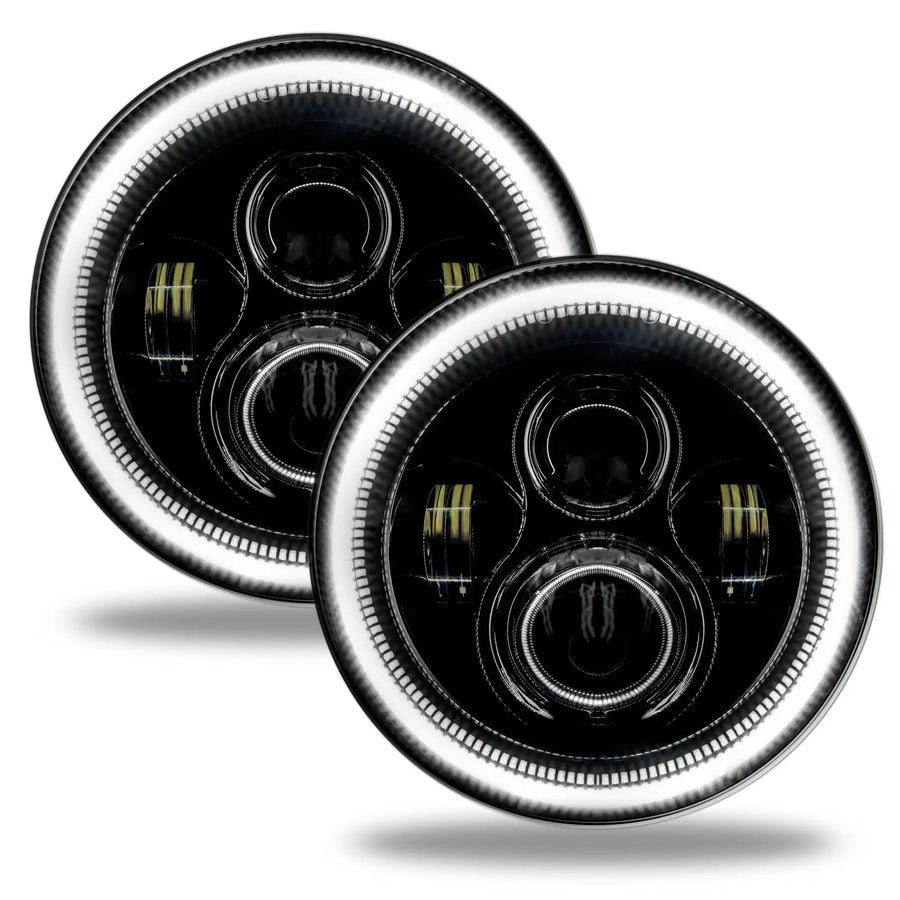

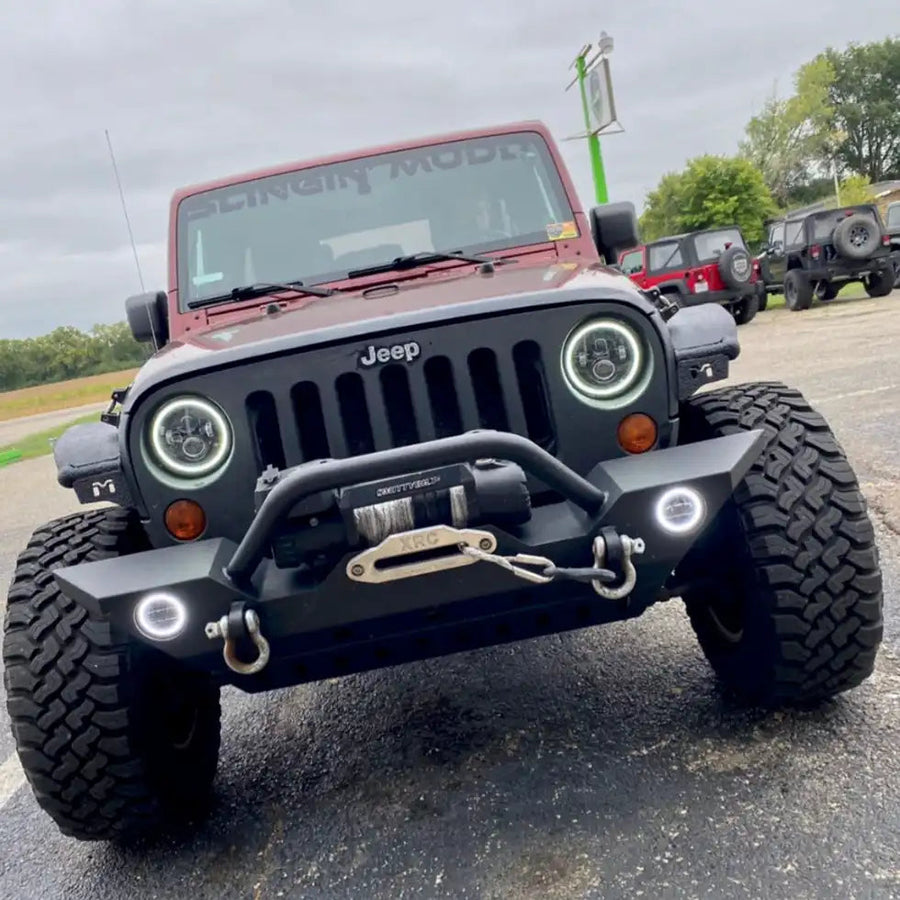

LED Halo Kit 5769-001 White
LED Halo Kit 5769-002 Blue

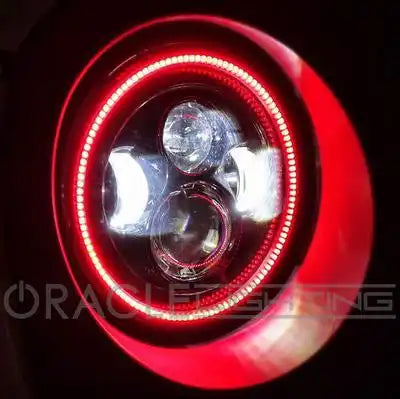

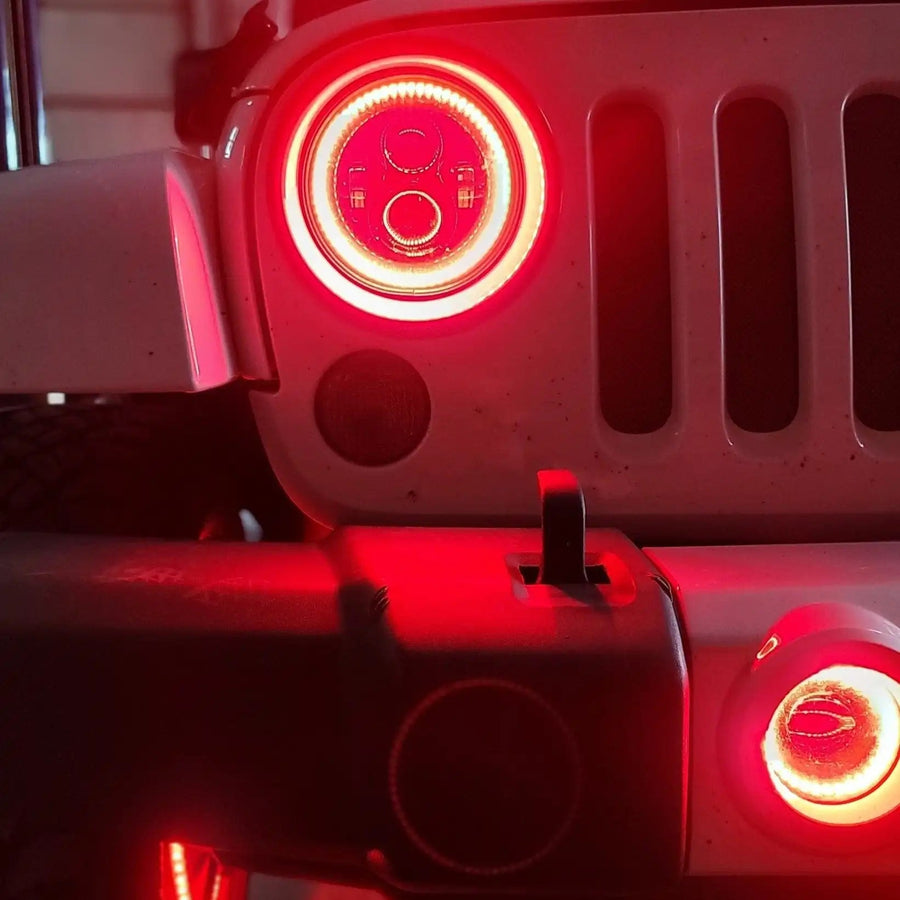

LED Halo Kit 5769-003 Red

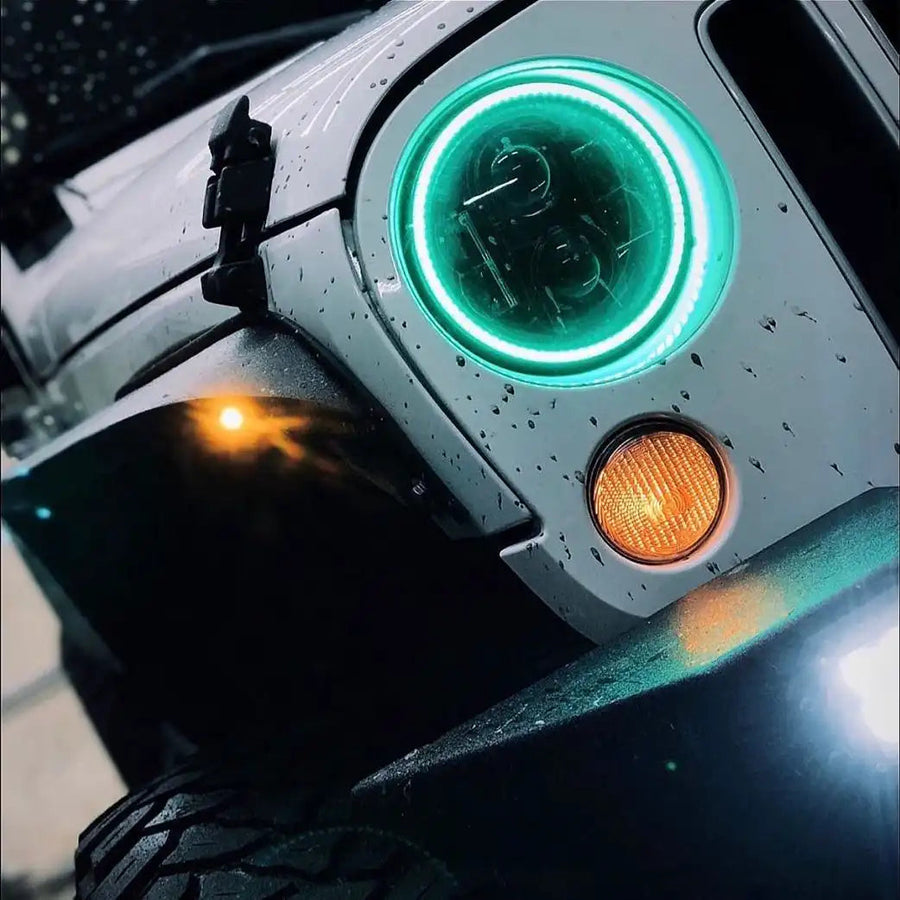

LED Halo Kit 5769-004 Green

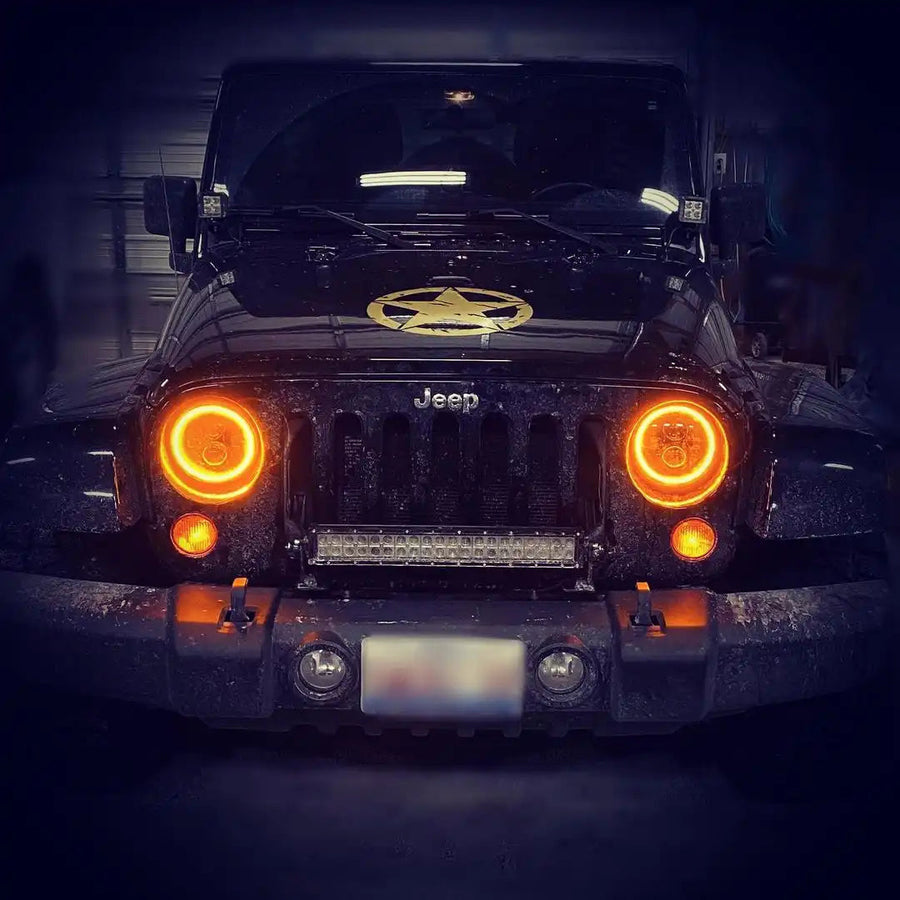

LED Halo Kit 5769-005 Amber

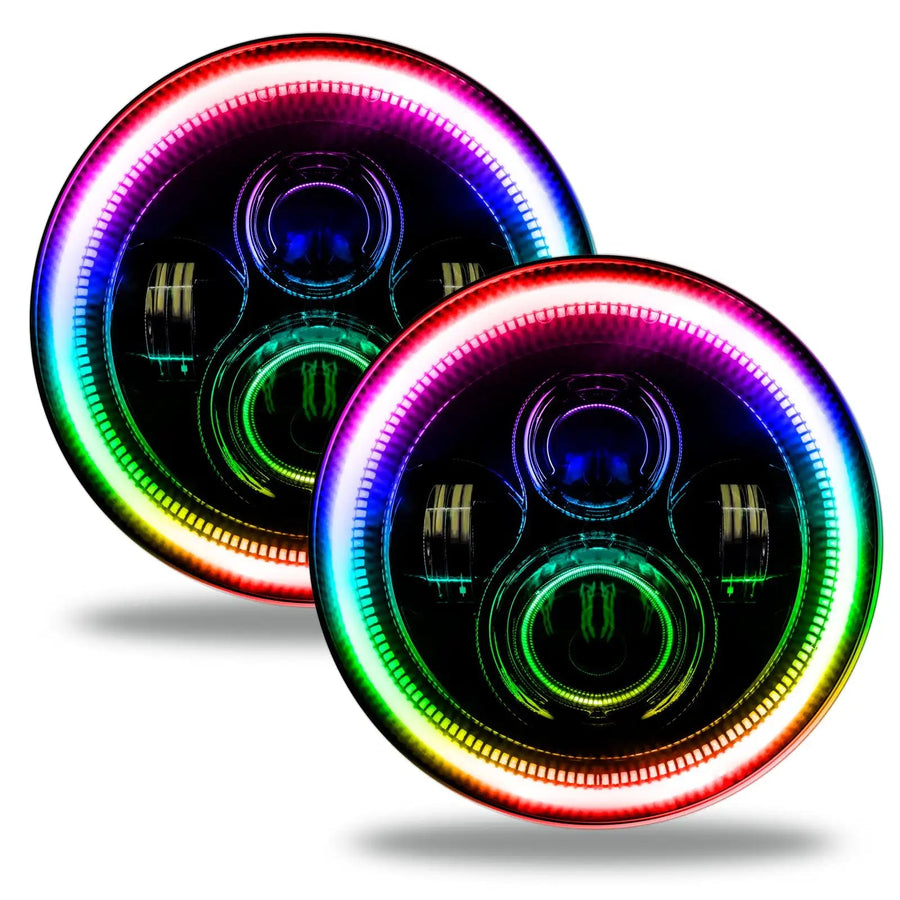

LED Halo Kit 5769-334 ColorSHIFT - No Controller

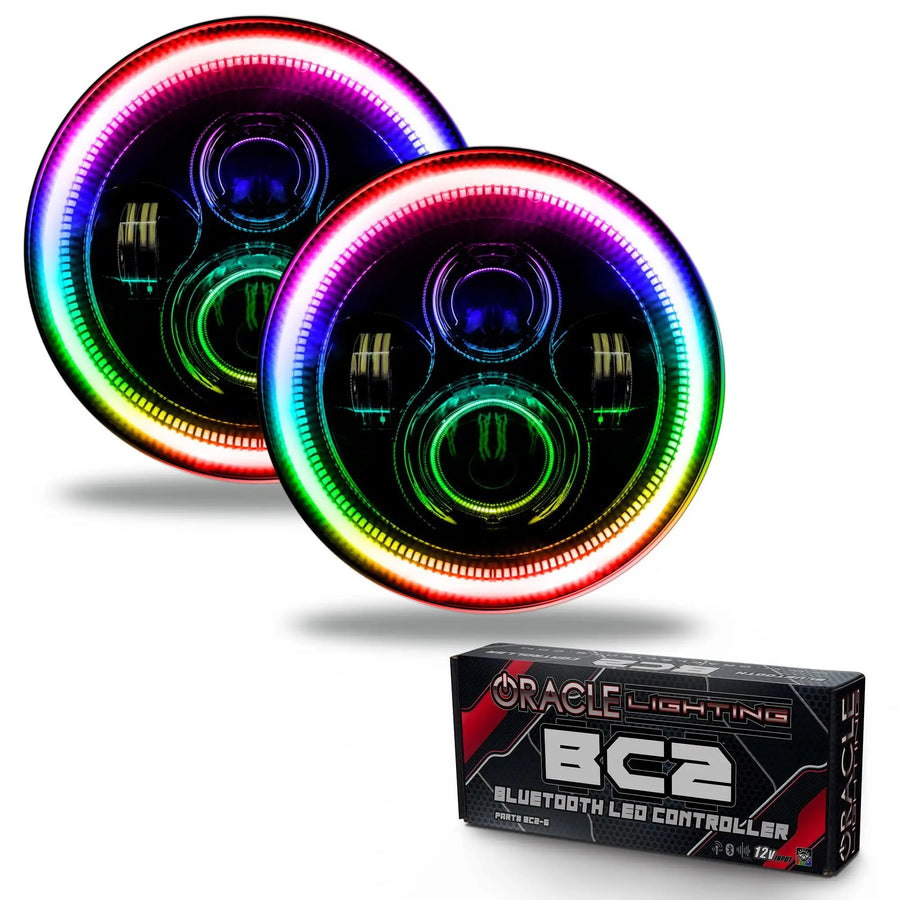

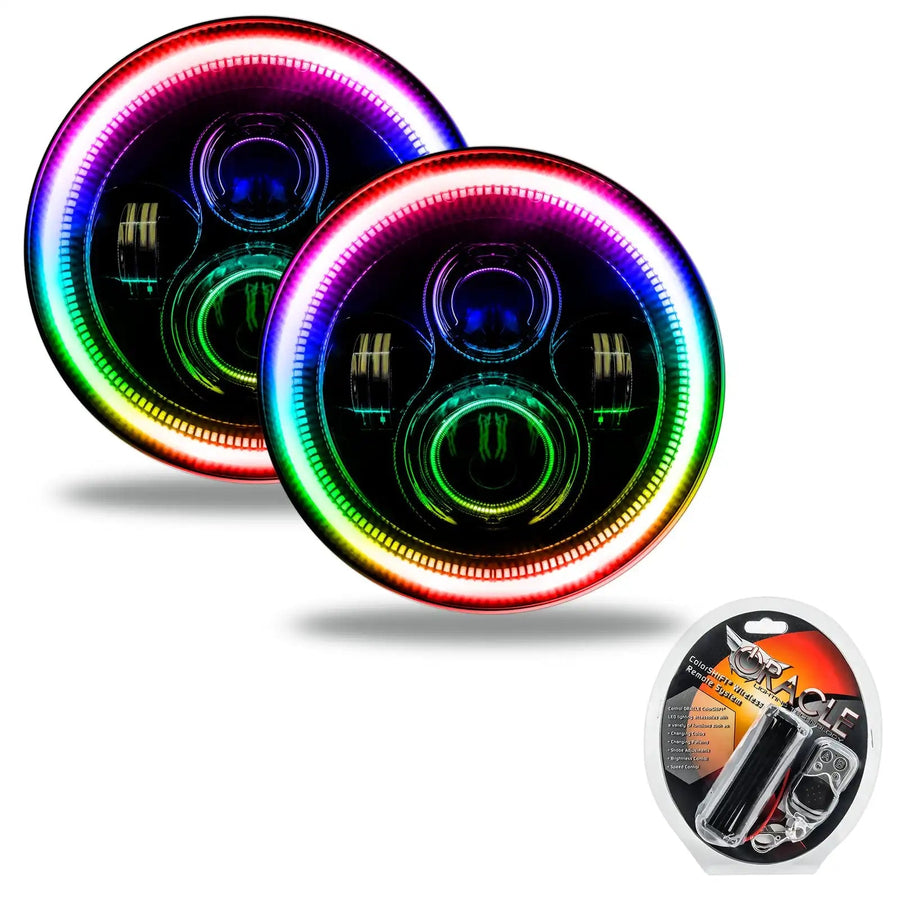

LED Halo Kit 5769-330 ColorSHIFT
LED Halo Kit 5769-333 ColorSHIFT - 2.0
LED Halo Kit 5769-331 ColorSHIFT - WIFI


With Headlight Brackets & Bezels

HALO KIT TYPE ORACLE PART# COLOR/OPTION
LED Halo Kit
5769B-504
NO HALO
LED Halo Kit 5769B-001 White
LED Halo Kit 5769B-002 Blue
LED Halo Kit 5769B-003 Red
LED Halo Kit 5769B-004 Green
LED Halo Kit 5769B-005 Amber
LED Halo Kit 5769B-334 ColorSHIFT - No Controller
LED Halo Kit 5769B-330 ColorSHIFT
LED Halo Kit 5769B-333 ColorSHIFT - 2.0
LED Halo Kit 5769B-331 ColorSHIFT - WIFI


Product Features: (Per Light)
• Low Beam Wattage: 30W Normal/36W Max
• Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
• High Beam Wattage: 40W Normal/48W Max
• High Beam Lumens: 3600 Lumens/4800 Raw Lumens
• Color Temperature: 6000K (Cool White Color)
• Input Voltage of Light: 12-24V DC
• Input Voltage of Halo (If Included): 12V DC
• Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
• Optional: ORACLE Halo Rings Pre-Installed
• Premium Performance Phillips Luxeon ZES LEDs
• Die-Cast Housing with Corrosion Resistant Coating
• Heavy Duty Solid State Electronics
• Hard-coated Polycarbonate Lens
• Wide Beam Pattern with Sharp Cut-Off Line
• Easy Plug & Play Installation
• 2 Year Warranty
• DOT and SAE Certified

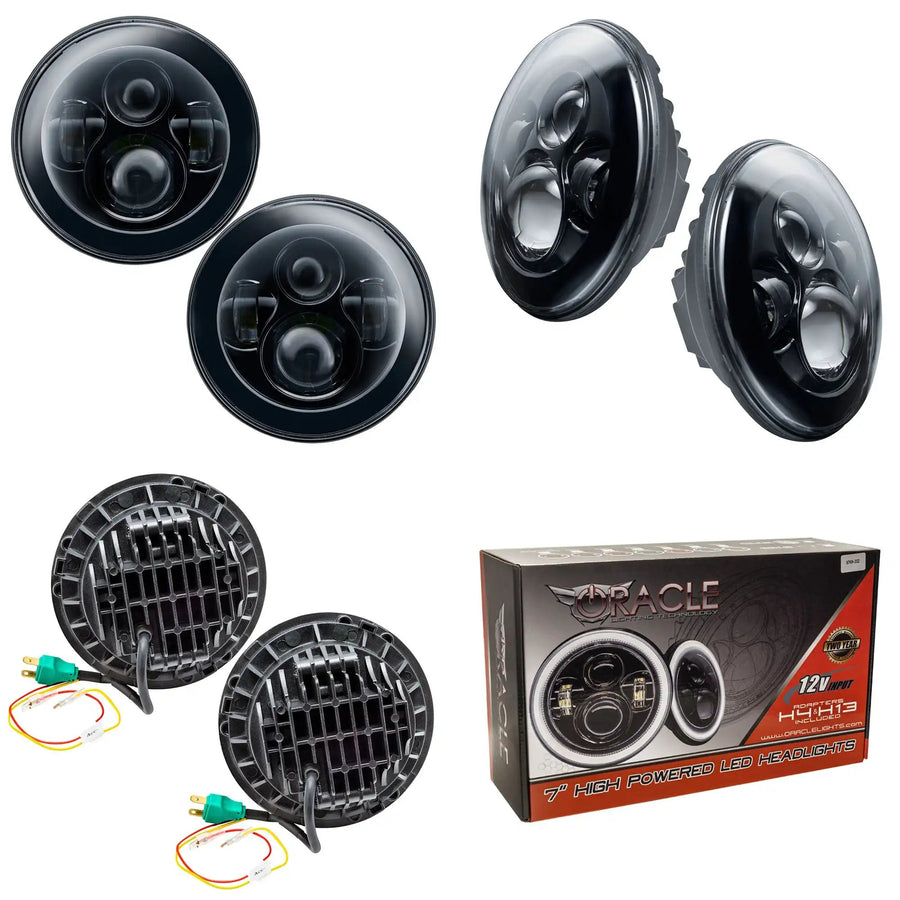

Package Includes:
- 2 x ORACLE 7" High Powered LED Headlights (Pair) - Black Bezel

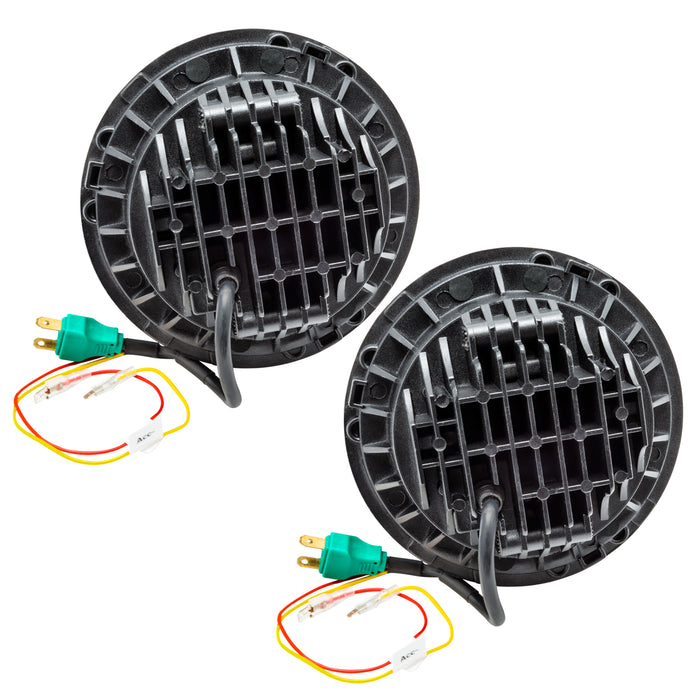

- 2 x "Plug & Play" Wiring Adapters
- 2 x Anti-flicker "Warning Cancelers"


With Headlight Bracket Upgrade:
- 2 x ORACLE 7" High Powered LED Headlights (Pair) - Black Bezel with ORACLE Halos Pre-installed inside the Headlights. Plus a pair of Headlight Brackets & Bezels for easy installation.

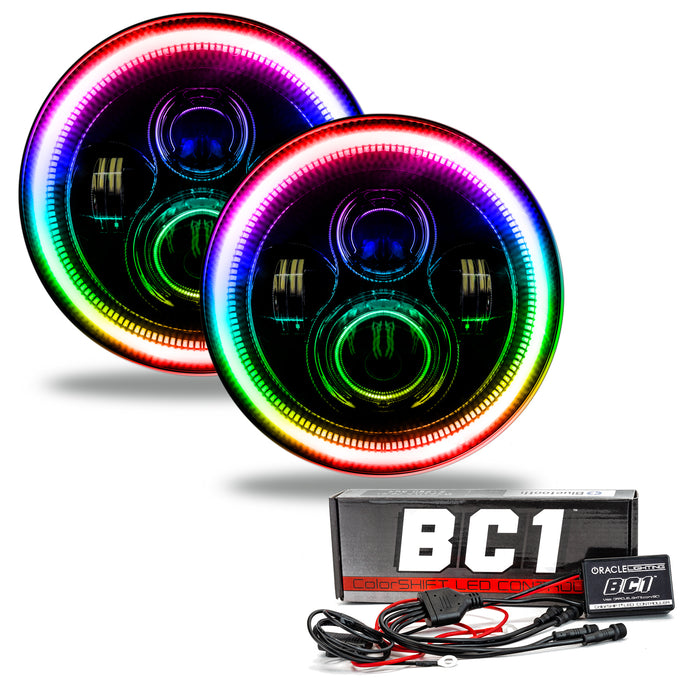

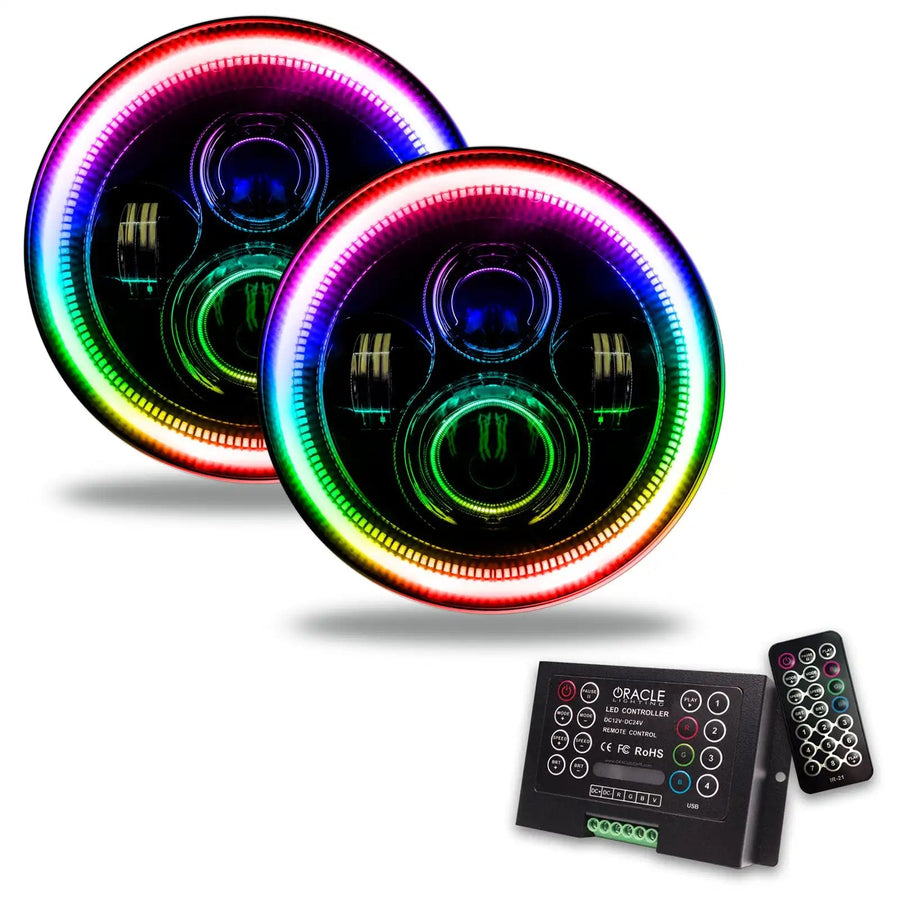

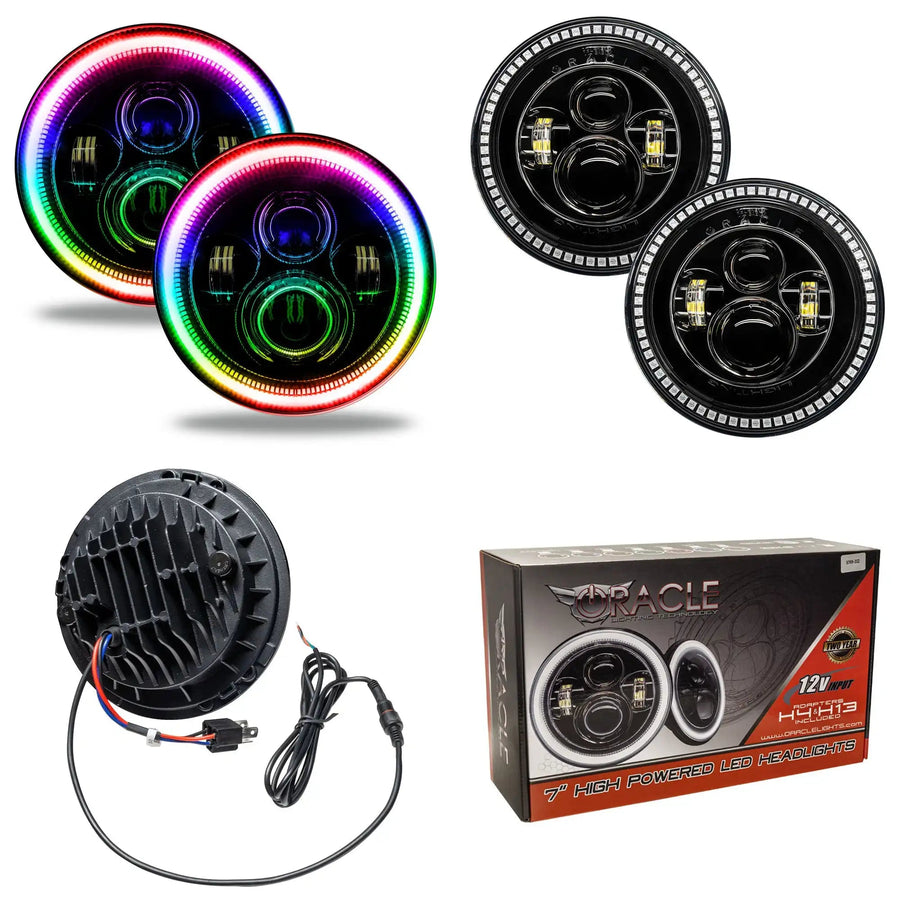

With ColorSHIFT Upgrade:
- 2 x ORACLE 7" High Powered LED Headlights (Pair) - Black Bezel with ORACLE ColorSHIFT Halos Pre-installed inside the Headlights
- 1 x ORACLE ColorSHIFT Controller Module
- 1 x ORACLE ColorSHIFT  Wireless Remote

Download Install Guide Download Wiring Guide
