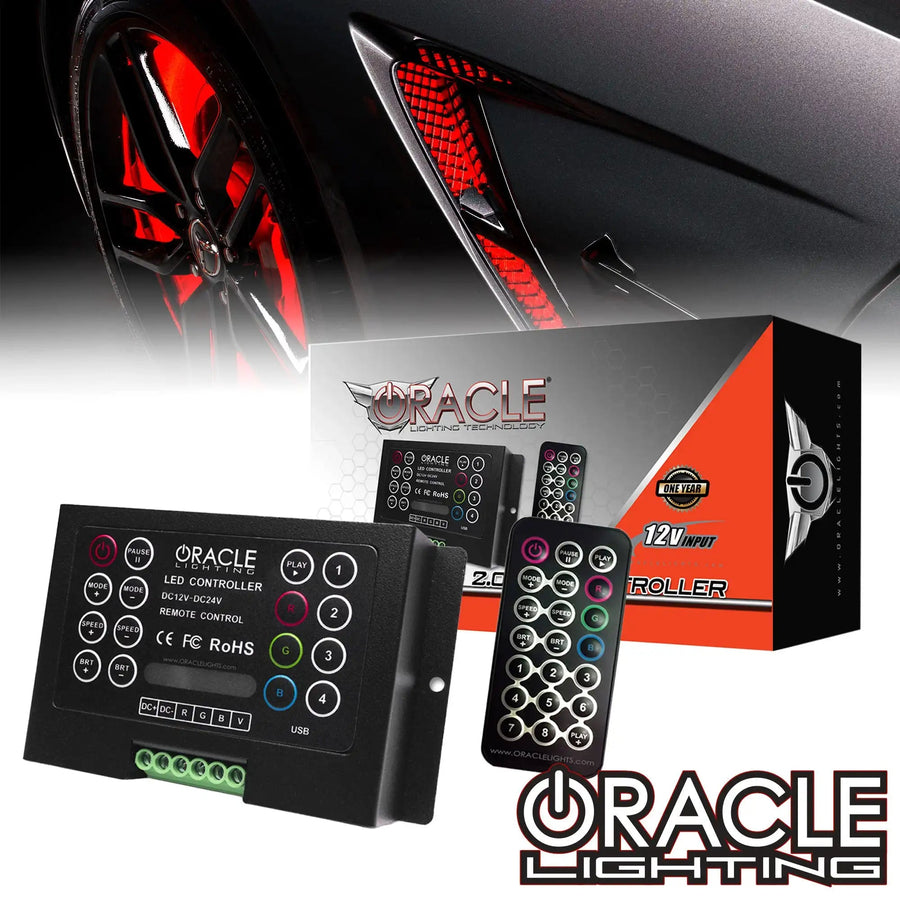

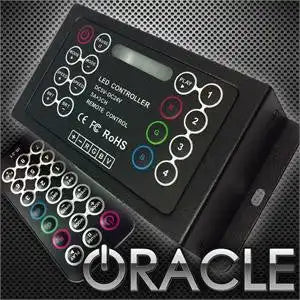

ORACLE Lighting ColorSHIFT 2.0 Infrared Remote Controller

Name: ORACLE Lighting ColorSHIFT 2.0 Infrared Remote Controller
Rating: 5.00 (2 reviews)

$155.99

SKU: 1706-504

Increments of 1 Minimum of 1 Maximum of

Product Overview

The ORACLE ColorSHIFT® 2.0 Controller is a major leap forward from the previous generation. It can be programmed by the operator for an almost endless number of colors and functions, all saveable to 8 onboard memory preset slots. The controller box itself features a built-in LED preview window so you can see exactly what color your LEDs are set to at a glance.

With 18A total output (6A × 3 channels) - twice the capacity of the previous version - this single controller can power significantly more lights. The 2.0 also introduces infrared wireless control, replacing the RF system used in earlier versions to eliminate frequency conflicts. White color temperature is fully tunable from 3000K to 15000K, giving users precise control over warm-to-cool white output in addition to full RGB.

Important: The controller module must be mounted inside the vehicle’s cabin . Do not mount in the engine bay or exterior locations.

18A Output (6A × 3CH @ 12VDC): Twice the output of the previous version - power more lights from a single controller
Infrared Wireless Remote: Eliminates RF frequency conflicts - precise, reliable color control from inside the cabin
IR Remote Repeater Included: Extends IR range for flexible remote placement
8 Memory Preset Slots: Save your favorite colors and patterns for instant recall
LED Preview Window: Built into the control box - shows the active color at a glance
Precise Color Dialing: Tune to any color including whites from 3000K-15000K
12+ Pre-Programmed Color Patterns: Ready-to-use patterns out of the box
Works with All RGB LEDs: Compatible with all ORACLE ColorSHIFT® products and standard RGB LEDs
Brightness Control: Full dimming control over LED output - a first for the ColorSHIFT® lineup

Part Number: 1706-504
Output: 18A Total (6A × 3CH)
Input Voltage: 12VDC
Control Type: Infrared (IR) Wireless
Color Patterns: 12+ Pre-Programmed
Memory Presets: 8 Slots
White Tuning Range: 3000K - 15000K
LED Preview Window: Yes - Integrated into Control Box
Brightness Control: Yes - Full Dimming
LED Compatibility: All RGB LEDs
Mount Location: Inside Vehicle Cabin (Required)
Warranty: 1 Year

Universal

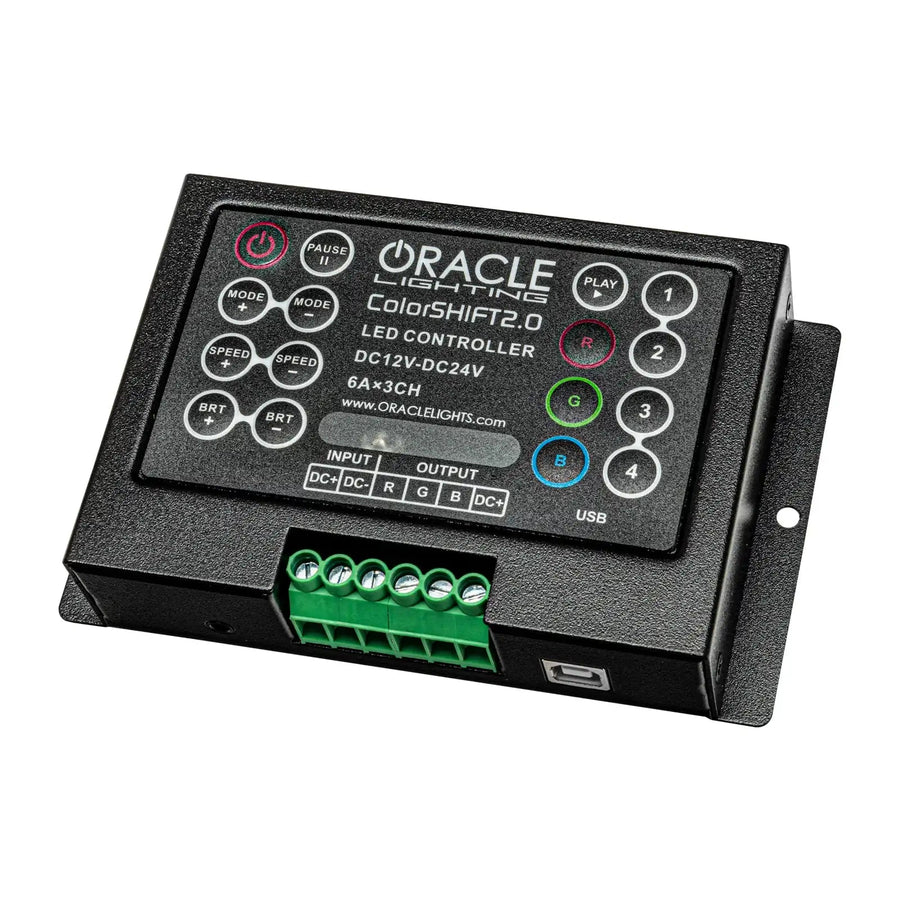

(1) ColorSHIFT® 2.0 LED Controller Module

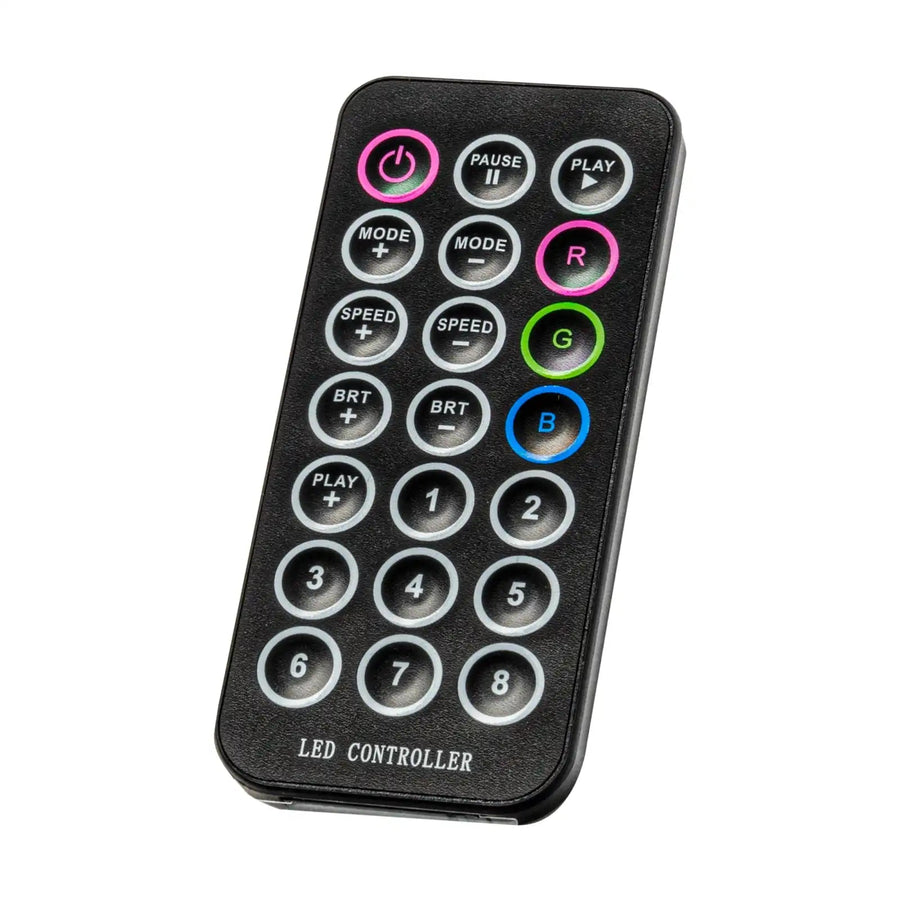

(1) ColorSHIFT® 2.0 LED Wireless IR Remote

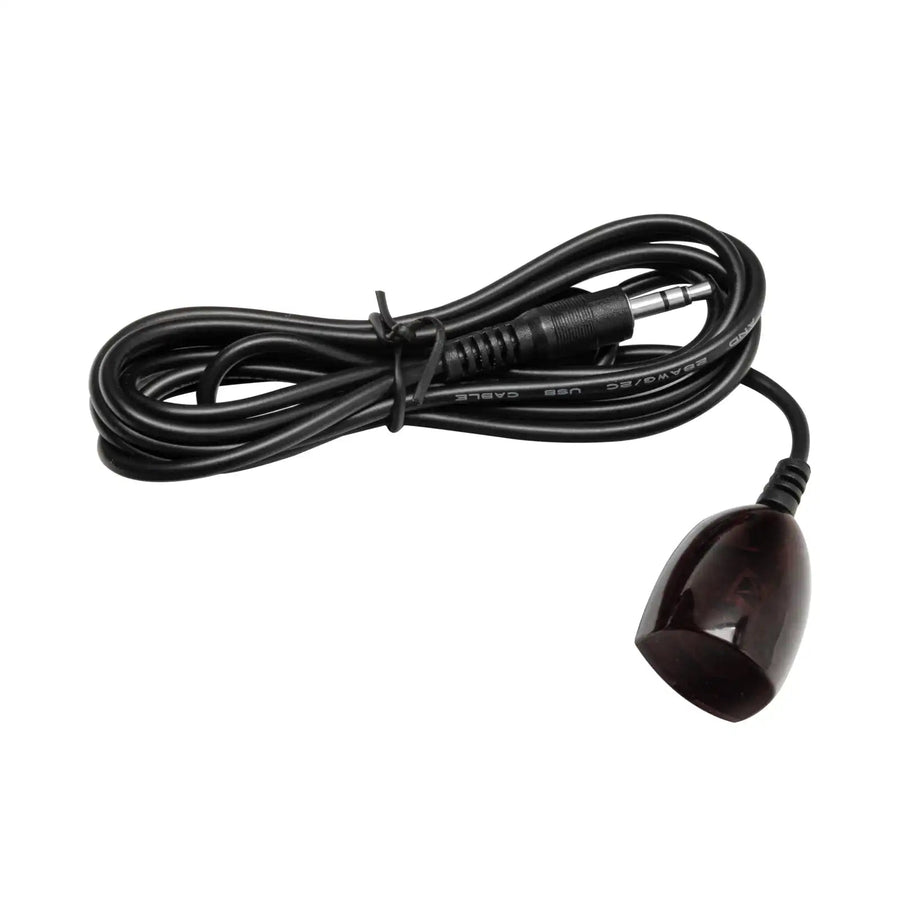

(1) IR Remote Repeater
1-Year Warranty

Warranty Policy

Returns & Exchanges

Shipping Policy

Installation Guide

ORACLE Lighting ColorSHIFT 2.0 Infrared Remote Controller

Mount the controller module inside the vehicle cabin. Connect your RGB LED outputs to the 3-channel terminals. Use the IR remote repeater to extend remote range if needed. Refer to the wiring diagram and PDF guide below for full installation instructions.
Download Install Guide (PDF)
⚠ Reminder: Controller must be mounted inside the vehicle’s cabin. Do not expose to engine bay heat or moisture.

View Installation Guide

Why Oracle?

All of our products are engineered and designed right here in Metairie, Louisiana. With over 15 years of experience building lighting for the automotive aftermarket, we control every step of the process - from R&D to final assembly - so you're getting a part built to a standard, not just a spec sheet.

Whether it's an install question, a fitment question, or you just want a second opinion before you order - pick up the phone and talk to someone who actually knows the product. No call centers, no scripts. Just people who know Jeeps, Broncos, Tacomas, and trucks as well as you do.

We don't make one-size-fits-all lighting. Every product is engineered around the specific fitment, electronics, and driving demands of the platform it's built for - so what you install is what was designed for your vehicle from day one.

Before anything ships, it's been run through real-world abuse - mud, vibration, weather, and mileage - not just a bench test. If it can't survive the trail or the daily commute, it doesn't make it to your truck.

We stand behind what we build. Every Oracle product ships with a manufacturer warranty and a team that actually honors it - because a good part with no support isn't a good deal.

Orders ship quickly from our Metairie facility, with tracking sent the moment your parts are on their way - so you know exactly when to expect them, every time.

5 stars: 2 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Great product

Definitely worth the money

ðŸ’¯

Everything works good , the only problem is that theres no instructions how to connect to Bluetooth, or connect the remote, also theres two other cables DRL & POWER WIRE GROUND neither instructions... but everything else it great
