ORACLE Lighting ColorSHIFT Wireless RF Controller
Original price
$118.98
-
Original price
$118.98
Original price
$118.98
$118.98
-
$118.98
Current price
$118.98
Compact wireless RF controller for 12V ORACLE ColorSHIFT® RGB LED accessories. Stainless steel key fob, anodized aluminum receiver box, Home-Link compatible — full color and pattern control from your hand or dash.
✓ 12V DC Input ✓ 60W Output (30W/Ch) ✓ Stainless Steel Fob ✓ Anodized Aluminum Box ✓ Home-Link Compatible ✓ Single Color & 7-Color Modes ✓ 15-Min Install ✓ 1-Year Warranty
ORACLE Part#: 1713-504 | Universal — Compatible with ORACLE ColorSHIFT® RGB LED Products
Product Overview ▼
The ORACLE ColorSHIFT® Wireless RF Controller (1713-504) is a compact, powerful solution for controlling your 12V ORACLE RGB LED lighting accessories without running wires to a switch panel. The stainless steel key fob fits comfortably in your hand or pocket, while the anodized aluminum receiver box mounts cleanly in any cool, dry location under the dash or in the engine bay.
Compatible with Home-Link technology for seamless integration with your vehicle’s built-in controls. Supports single-color static modes, strobe patterns, breathing mode, and a 7-color auto-cycling mode — all controllable from the 4-button fob.
Key Features ▼
- Wireless RF Control — no switch panel wiring required; control from anywhere in or around the vehicle
- Home-Link Compatible — integrates with your vehicle’s built-in Home-Link system

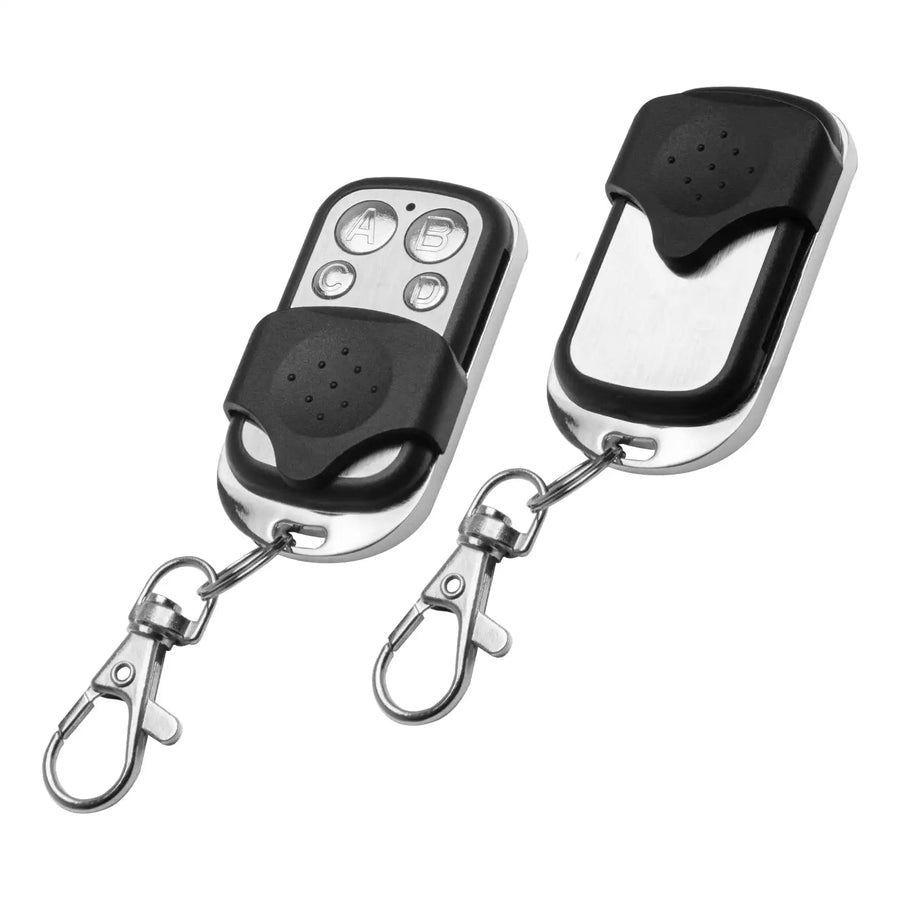

- Stainless Steel Key Fob — durable, premium feel with 4-button layout

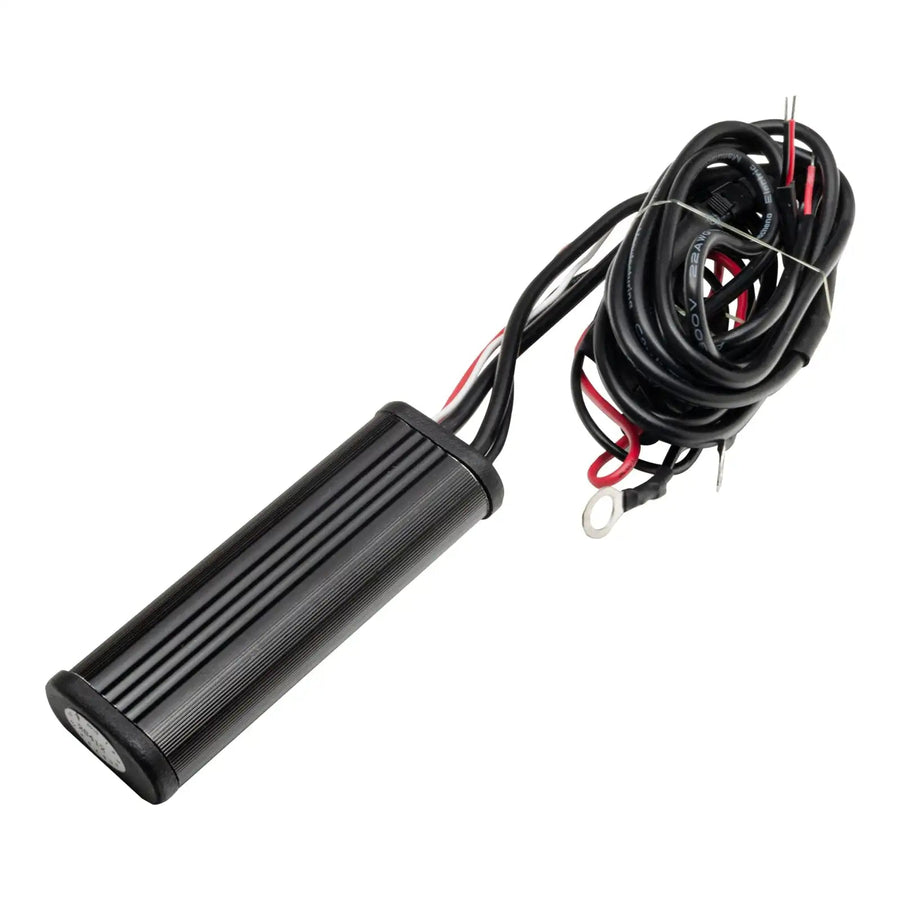

- Anodized Aluminum Receiver Box — compact, heat-resistant housing for clean mounting
- 60W Total Output — 30W per channel; handles a wide range of ORACLE RGB accessories
- Multiple Control Modes — single color, strobe, breathing, and 7-color auto-cycle
- Adjustable Speed & Brightness — speed and brightness controls built into the fob button functions
- 1-Year Warranty — backed by ORACLE Lighting
Performance & Technical Specifications ▼
Part Number1713-504
Input Voltage12V DC
Total Output60W
Output per Channel30W
Remote MaterialStainless Steel
Box MaterialAnodized Aluminum
Home-Link CompatibleYes
Control ModesSingle Color, Strobe, Breathing, 7-Color Cycle
Install Time~15 Minutes
Warranty1 Year
Controller Operation Guide ▼
Single Color Mode:
- A — Press to change colors / Hold to adjust brightness
- B — Press to cycle strobe patterns
- C — Press to initiate breathing mode
- D — On / Off
7-Color Changing Mode:
- A — Press multiple times until you reach the 7-color changing mode
- B — Press to speed up the function
- C — Press to slow down the function
- D — On / Off

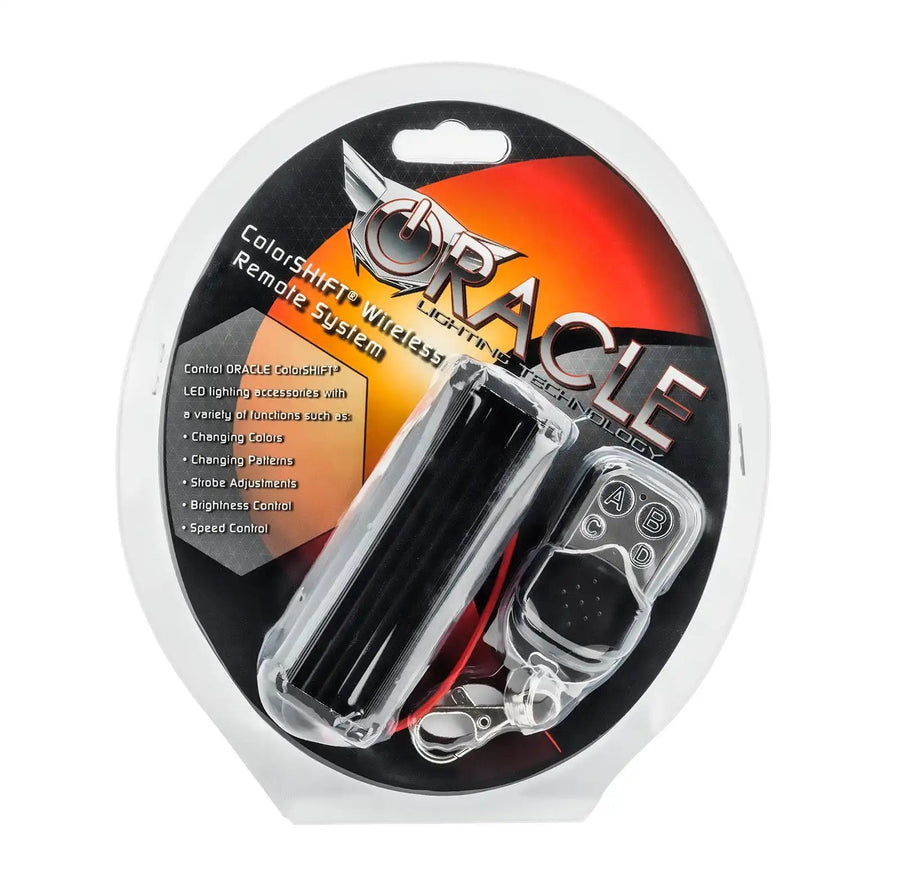

What's Included ▼

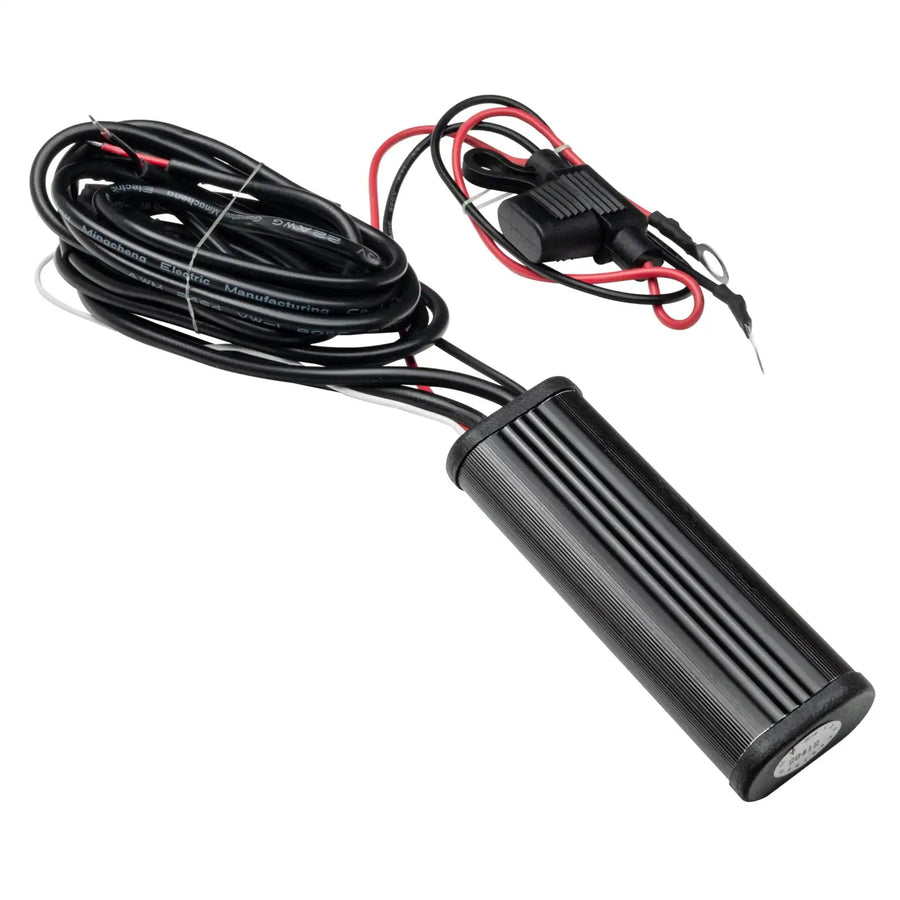

- (1) ORACLE ColorSHIFT® Wireless Controller Module (Receiver Box)
- (1) ORACLE ColorSHIFT® Wireless Key Fob

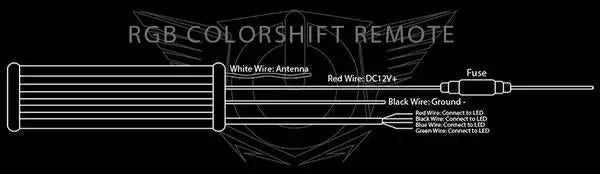

Installation Guide & Resources ▼
- Mount receiver box in a cool, dry location
- Extend antenna wire for best RF reception

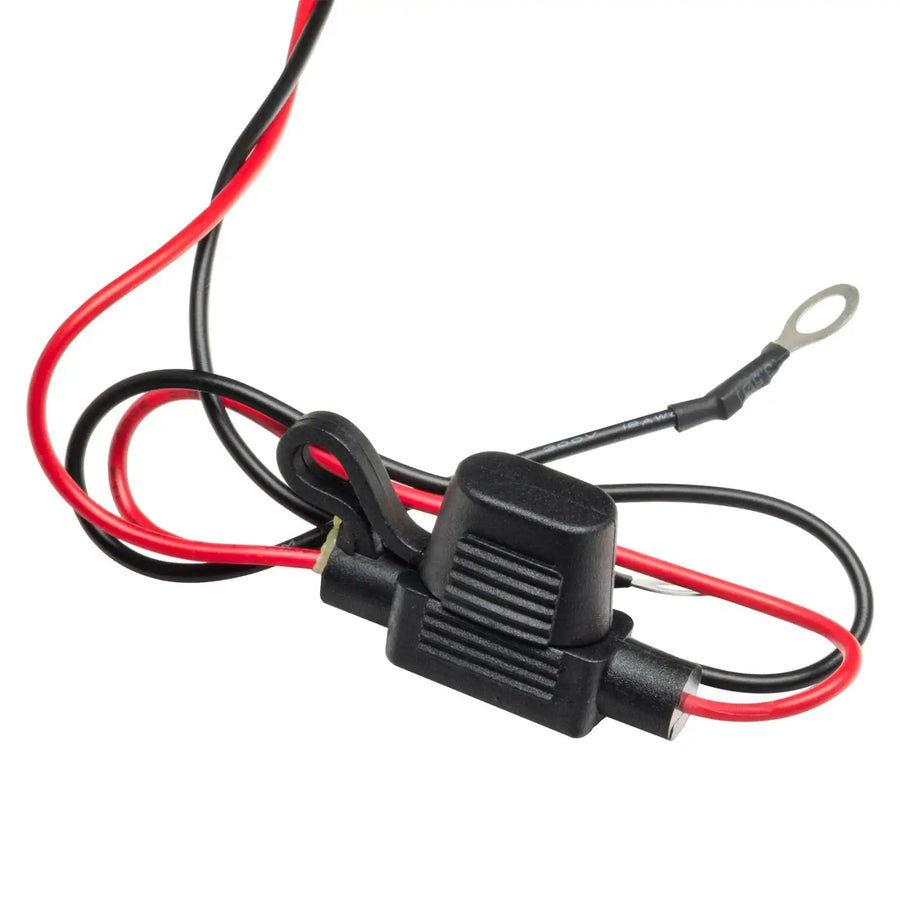

- Remove fuse while installing
- Output wire with Red line is (+) 12V
