ORACLE 2009-2014 Ford F150/Raptor LED Off-Road Side Mirrors
ORACLE Part # 5752-001

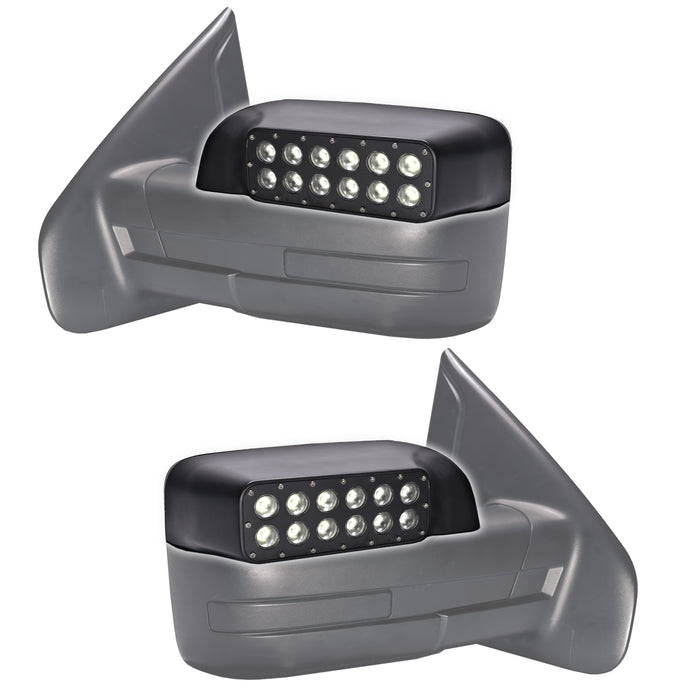

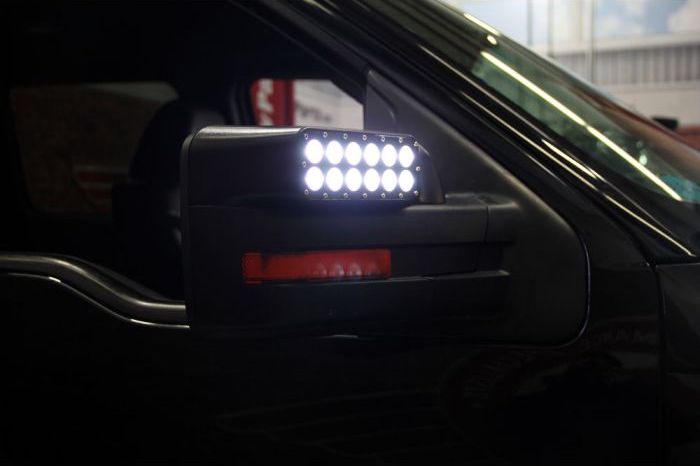

This innovative new product from ORACLE Lighting features a set of high powered LED light bars integrated into the factory-style side mirrors caps of 2009 to 2014 Ford F-150 Trucks and Raptor SVTModels. This integration allows for easy installation and a clean, almost OEM look while providing functional peripheral illumination for the driver. The LEDs are custom design that features a total of 24 LEDs producing approximately 2250 Lm. Each unit has a 45° beam angle to optimize the driver's peripheral visibility.
*Don't be fooled by imitators, ORACLE Lighting is the original designer for this product. Chinese copies out in the market do not provide the illumination, quality, or durability of the original ORACLE design.
Why is peripheral illumination important? Factory headlights and most auxiliary lights only illuminate the area in front of the vehicle. Ideally for off-road activities, such as trail riding, the driver needs to be able to clearly see the area on the sides of the trail to spot obstructions, which would otherwise go unnoticed and could be a potential hazard.
Besides being functional these new LED Mirrors from ORACLE Lighting look great as well! The LED light bar is a custom design that features a total of 24 powerful Cree LEDs. This gives the driver a increased visibility and peripheral illumination. Each unit has a 45° beam angle to optimize the driver's peripheral visibility whether riding on the trail or in the desert. Multiple aluminum heat sinks are used to effectively wick heat away from the LEDs and are designed to use the airflow through the mirror housing to increase cooling similar to a radiator.

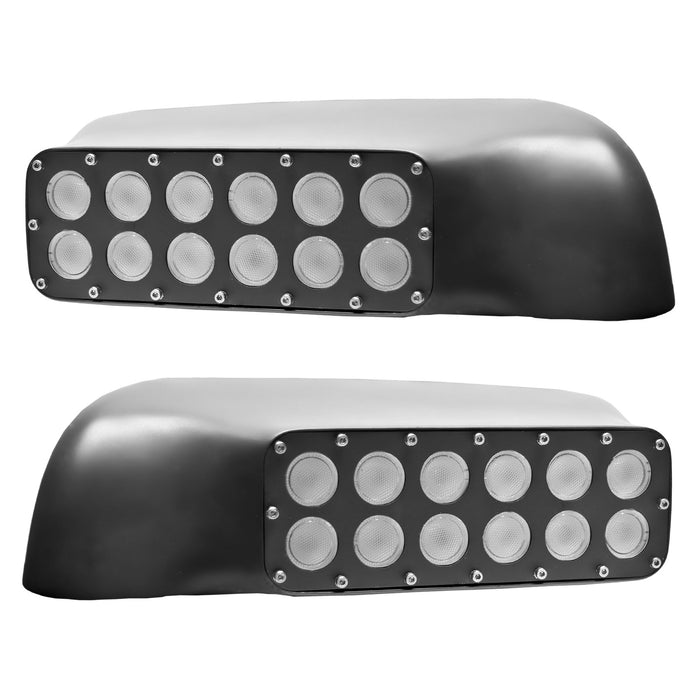

The housing material is made from rugged Polycarbonate which is 2x stronger than the factory ABS housing- and bolts onto the vehicle using the factory mounts for easy installation. A set of anodized rock guards protects the LED acrylic lenses, which also houses the DBM Reflex LED optics. These efficient optics focus the light for optimal visibility from the driver seat position.
The Side-mirror is the only part of the vehicle designed to be in the driver field of vision wheel driving- this makes it an ideal location to mount effective and functional lighting to enhance driver visibility during night-time trail rides. The driver needs to be able to clearly see the area on both of the sides of the trail to spot obstructions, which could go unnoticed and be a potential hazard.
Our goal developing this product was to create a LED light bar that could be seamlessly integrated into the vehicle design in a way the appears to be factory. Light bars tacked to bumpers and roof racks have poor integration and appear to be an afterthought. These mirrors provide a functional purpose and look good doing it... the best of both worlds!
- 24x 1W Cree LEDs
- 2200lm total output
- 45 Degree LED Beam Angle
- Advanced LED optics
- Uses Factory Mounts
- 6000K Color temp
- 2 Amp Power Draw
- 2 Year Warranty
- Trademarked Design
*Will not fit Tow-Mirror equipped vehicles.
Searching for 2015+ F150 Model? CLICK HERE
- 1 x Driver Side ORACLE 2009-2014 Ford F150/ Raptor LED Off-Road Side Mirror Cap
- 1 x Passenger Side ORACLE 2009-2014 Ford F150/ Raptor LED Off-Road Side Mirror Cap
