Product Overview

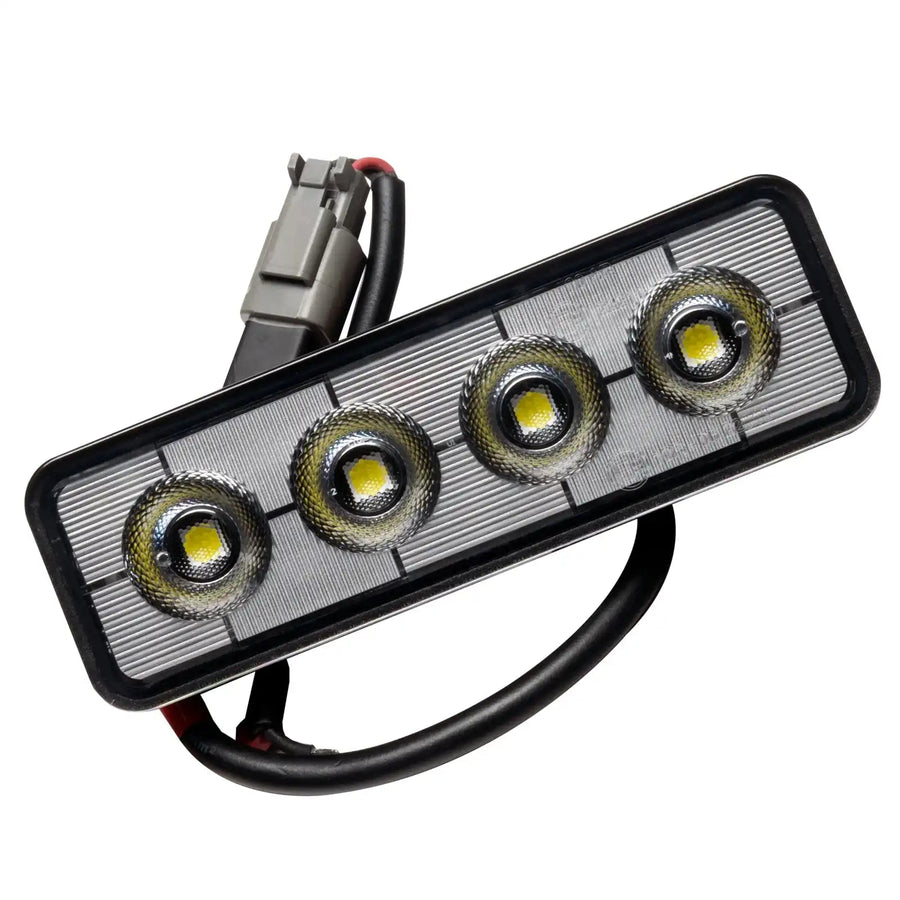

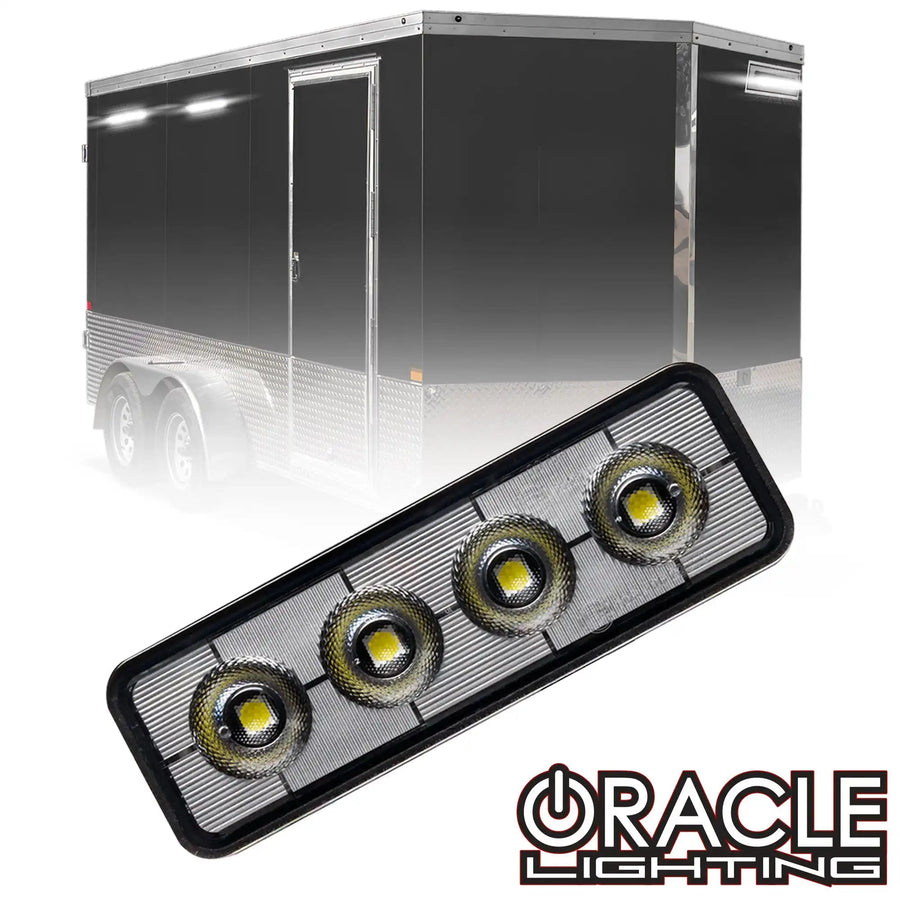

Developed to provide ample illumination when it matters most, the ORACLE Lighting 5" 24W Angled LED Scene Light is an efficient, purpose-built solution for exterior or interior lighting on RVs, trailers, utility vehicles, and powersports applications.

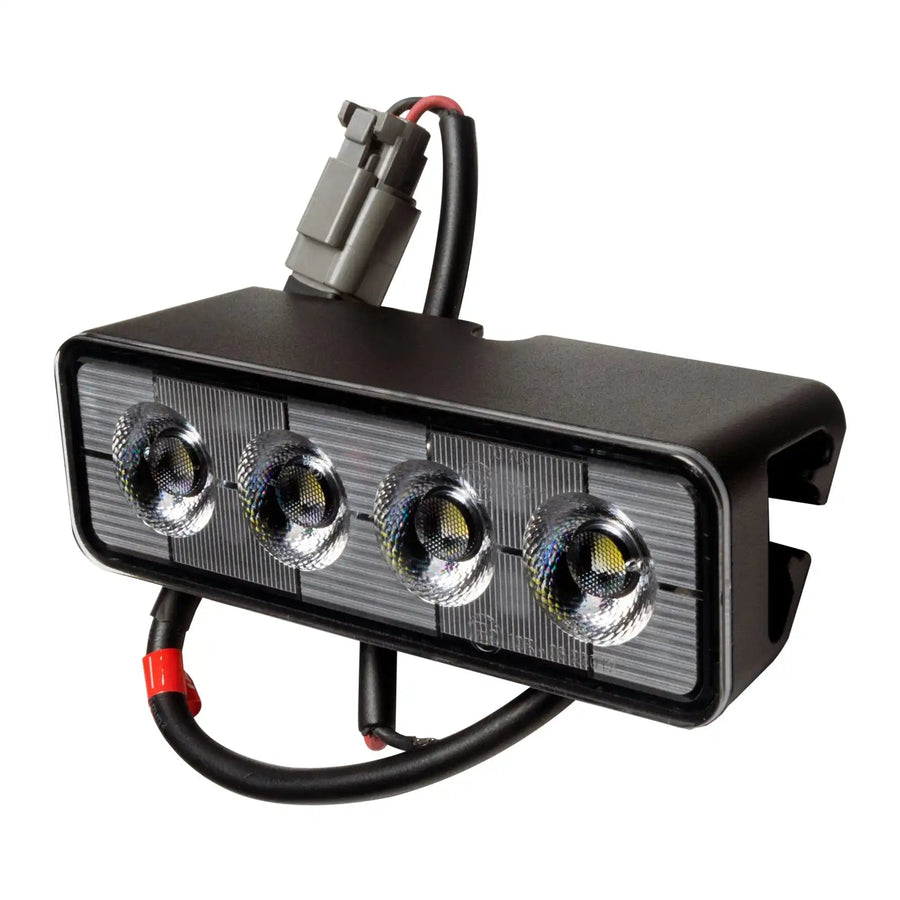

The unique vertical-side flush surface mounting design enables precise fitment and easy aiming, while the 70° wide-spread flood beam - powered by 4 x 6W LUMILEDS chips - delivers 2,800 raw lumens and 2,200 effective lumens of powerful, consistent white light.

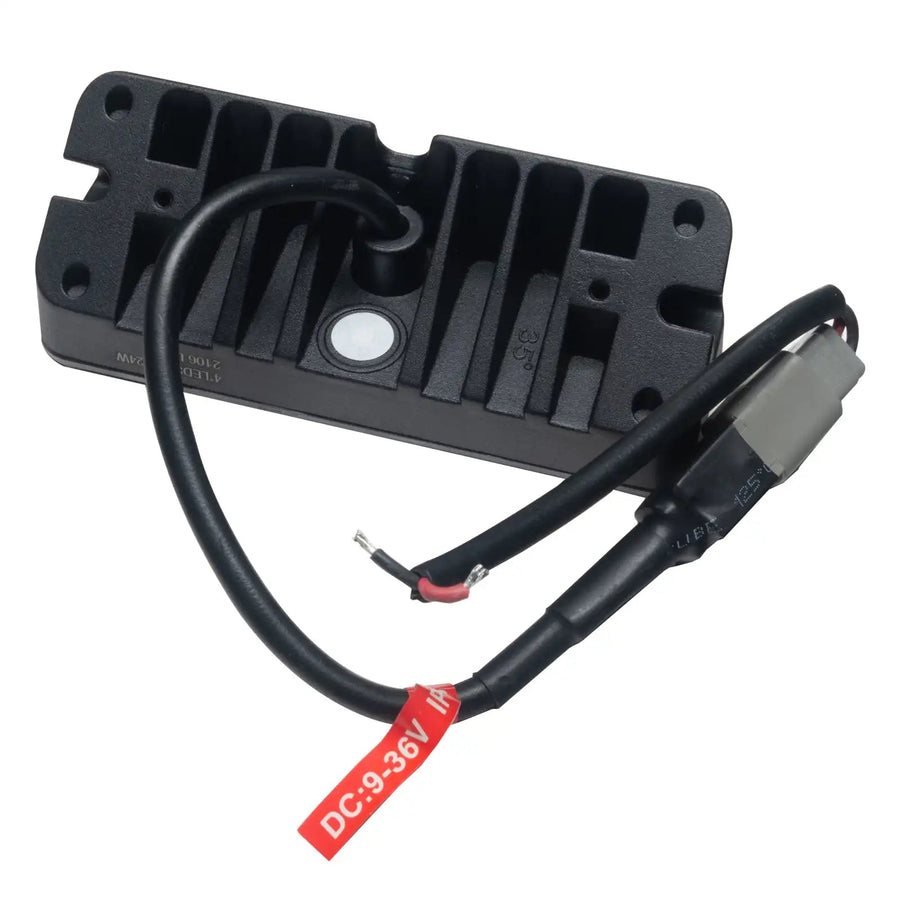

Built for abuse, the heavy-duty ADC12 housing with anodized polyester powdercoat features Electronic Thermal Management (ETM), IP68/69K waterproof breather vents, and a working temperature range of -40°F to +125°F for reliable performance wherever you run it.

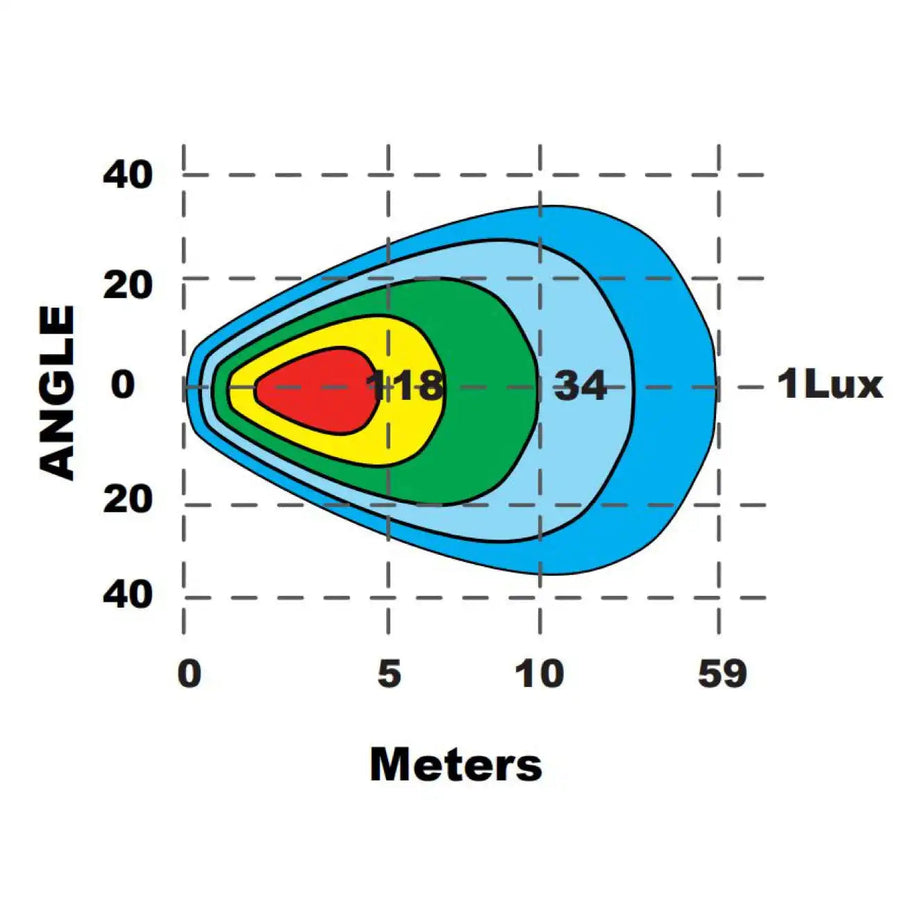

Flood Beam (70°)
Multi-Surface TIR LENS
Anti Rust/Corrosion/Freezing Resistance
Electronic Thermal Management (ETM)
Surface Mount (35° & 48°)
ECE R23/R10, CE, CISPR25
Over/Under Voltage Protection
Reverse Polarity Protection
UV Resistant, Shock Resistant
IP68/69K Waterproof Breather
50,000+ Hr LED Lifespan
1 Year Warranty
4pcs x 6W LED (LUMILEDS)
Color Temperature: 5700K
ADC12 Housing
Lexan Polycarbonate (PC) Front Cover
Anodized Polyester Powdercoat

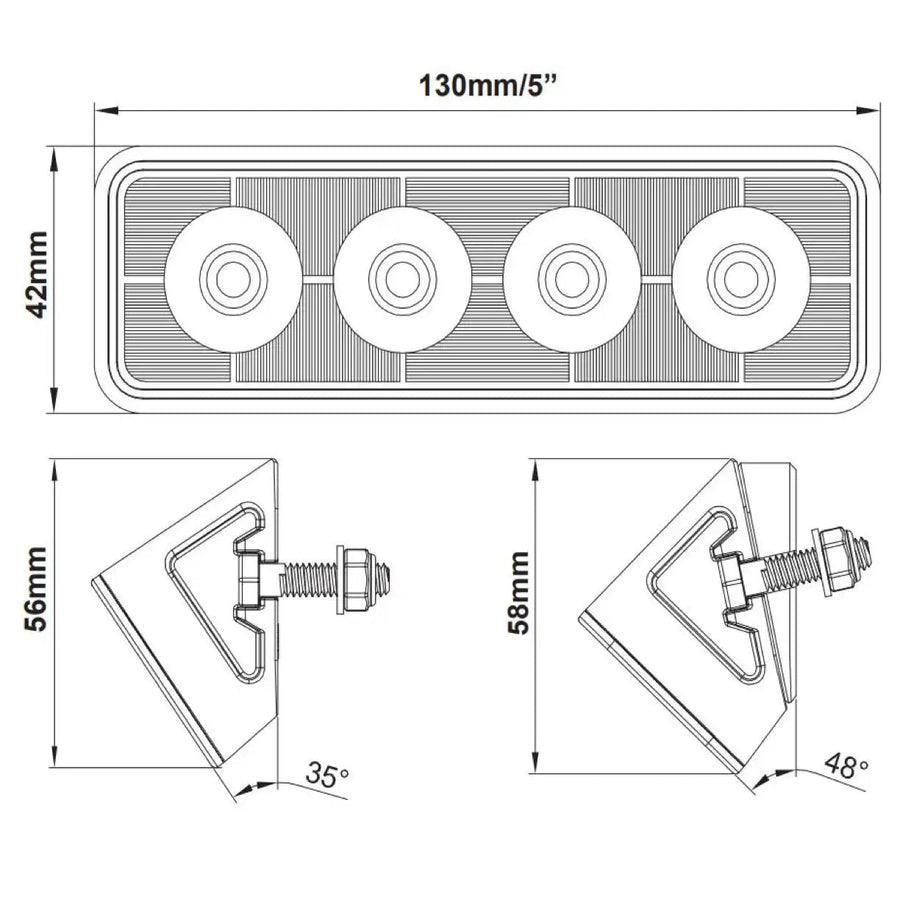

Dimensions: 130 x 42 x 42mm
AMP Draw (12V/24V): 1.6A / 0.8A
Raw Lumens: 2800LM
Effective Lumens: 2200LM
Peak Beam Intensity: 3400cd
Voltage: DC9-36V
Working Temperature: -40 to +60°C
Universal
(1) 5" 24W Angled LED Scene Light Flush Mount Bar

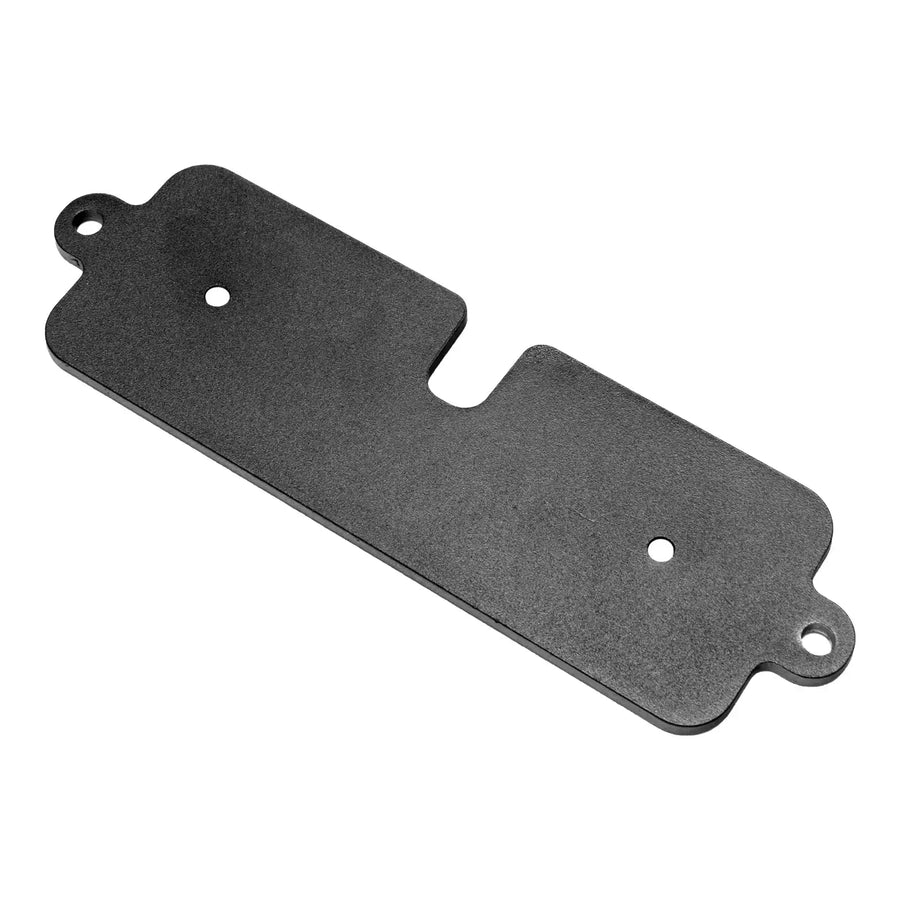

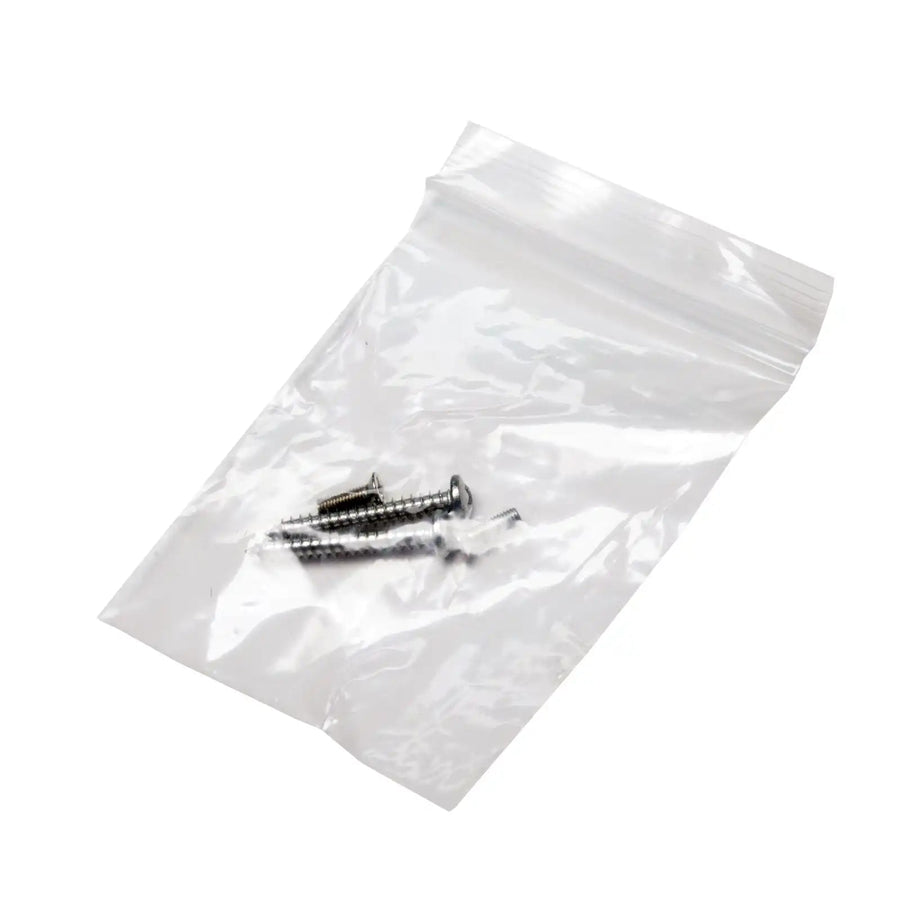

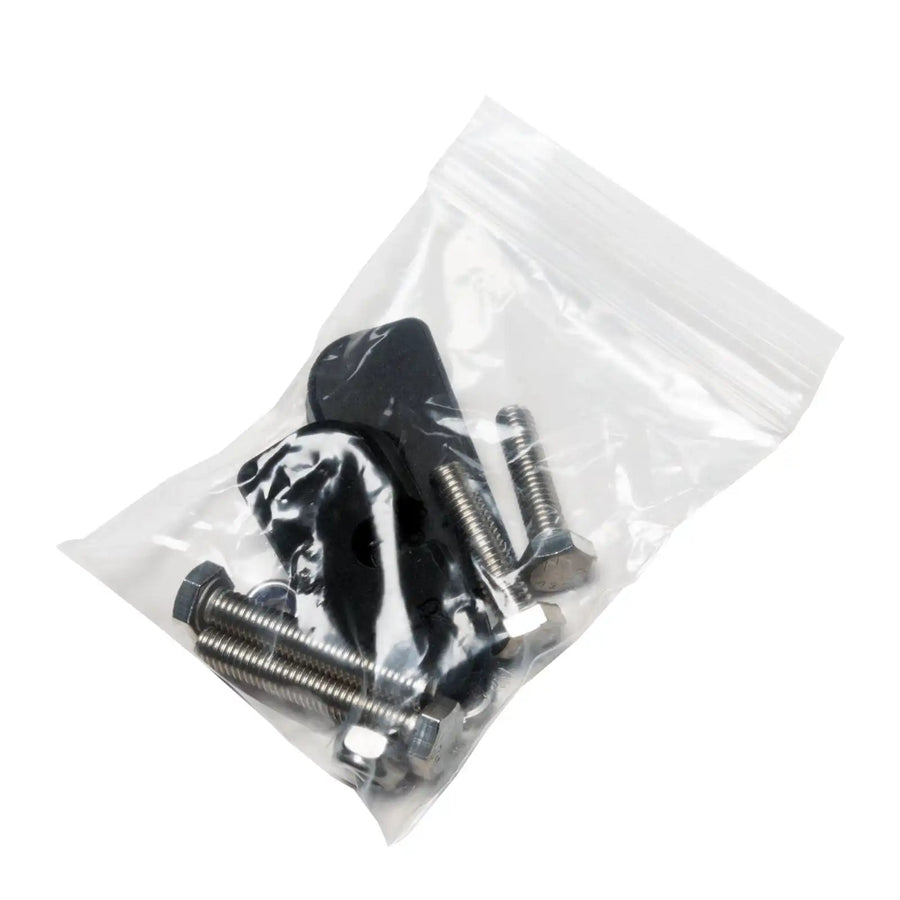

Installation Hardware
2916-001 - 5" 24W Angled LED Scene Light Flush Mount Bar
