ORACLE Lighting 9.5" 48W Angled LED Scene Light Flush Mount Bar

Powerful 48W LED scene light with a 70° wide-flood beam, IP68/69K waterproof rating, and flush surface mount design - built for RVs, trailers, UTVs, and utility vehicles that need serious illumination in any environment.

Sale price $137.99Regular price
Regular price $137.99
SKU: 2916-48-001

ORACLE Lighting 9.5" 48W Angled LED Scene Light Flush Mount Bar
Sale price $137.99Regular price
Regular price $137.99

Product Overview

Developed to provide ample illumination when it matters most, the ORACLE Lighting 9.5" 48W Angled LED Scene Light is an efficient, purpose-built solution for exterior or interior lighting on RVs, trailers, utility vehicles, and powersports applications.

The unique vertical-side flush surface mounting design enables precise fitment and easy aiming, while the 70° wide-spread flood beam - powered by 8 x 6W LUMILEDS chips - delivers 5,600 raw lumens and 4,400 effective lumens of powerful, consistent white light.

Built for abuse, the heavy-duty anodized polyester powdercoat housing features Electronic Thermal Management (ETM), IP68/69K waterproof breather vents, and a working temperature range of -40°F to +125°F (-40°C to +60°C) for reliable performance wherever you run it.

  • 70° Wide-Spread Flood Beam - Multi-surface TIR lens for broad, even illumination
  • 8 x 6W LUMILEDS Chips - Industry-leading LEDs for maximum output and longevity
  • IP68/69K Waterproof Rating - Fully sealed with breather vent for extreme environments
  • Electronic Thermal Management (ETM) - Actively manages heat for consistent performance
  • Flush Surface Mount Design - Angled 35° & 48° mounting options for precise aiming
  • Anti-Rust/Corrosion/Freezing Resistance - Built for harsh outdoor conditions
  • Over/Under Voltage Protection - Safe operation across 9-36VDC input range
  • Reverse Polarity Protection - Protects against incorrect wiring
  • UV Resistant & Shock Resistant - Durable polycarbonate front cover
  • 50,000+ Hour LED Lifespan
  • ECE R23/R10, CE, CISPR25 Compliant
  • 1-Year Warranty
  • Part Number: 2916-48-001
  • Wattage: 48W (8 x 6W LUMILEDS)
  • Raw Lumens: 5,600 lm
  • Effective Lumens: 4,400 lm
  • Peak Beam Intensity: 6,800 cd
  • Beam Pattern: 70° Flood
  • Color Temperature: 5,500K
  • Voltage Range: 9-36V DC
  • Amp Draw: 3A @ 12V / 1.5A @ 24V
  • Ingress Protection: IP68/69K
  • LED Lifespan: 50,000+ hours
  • Lens Material: Polycarbonate (PC)
  • Finish: Anodized Polyester Powdercoat
  • Dimensions: 242 x 42 x 42mm (approx. 9.5")
  • Working Temperature: -40°F to +125°F (-40°C to +60°C)
  • Compliance: ECE R23/R10, CE, CISPR25
  • Warranty: 1 Year

Universal

  • (1) ORACLE Lighting 9.5" 48W Angled LED Scene Light Flush Mount Bar

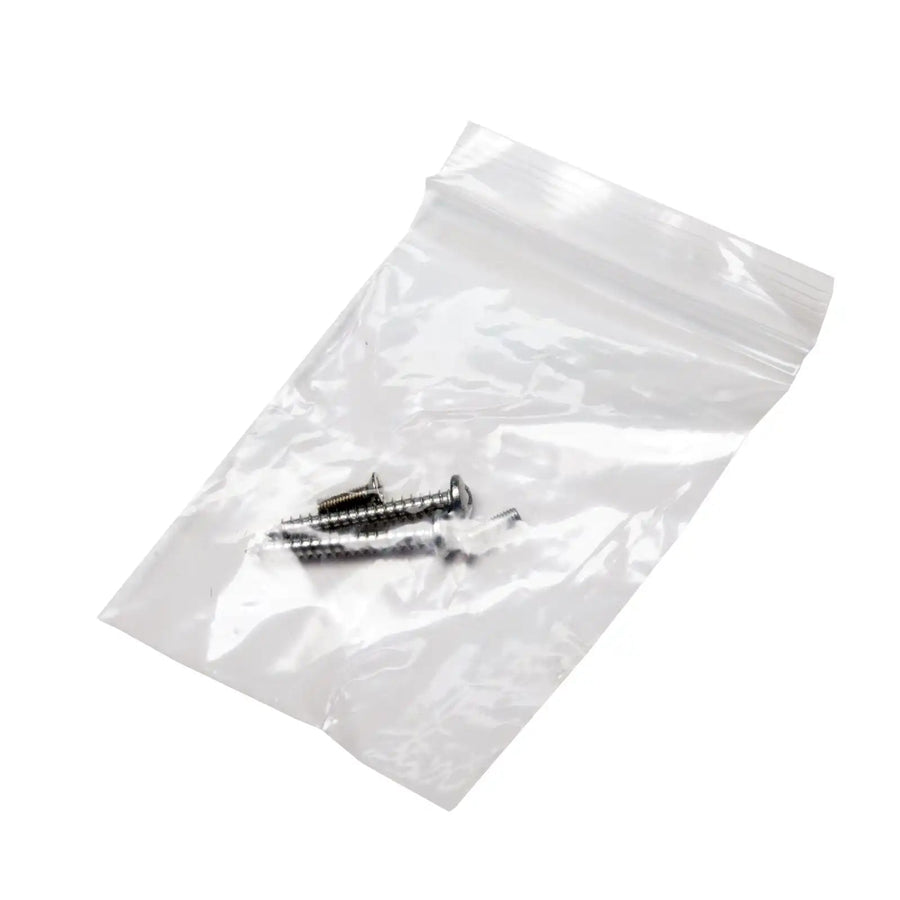

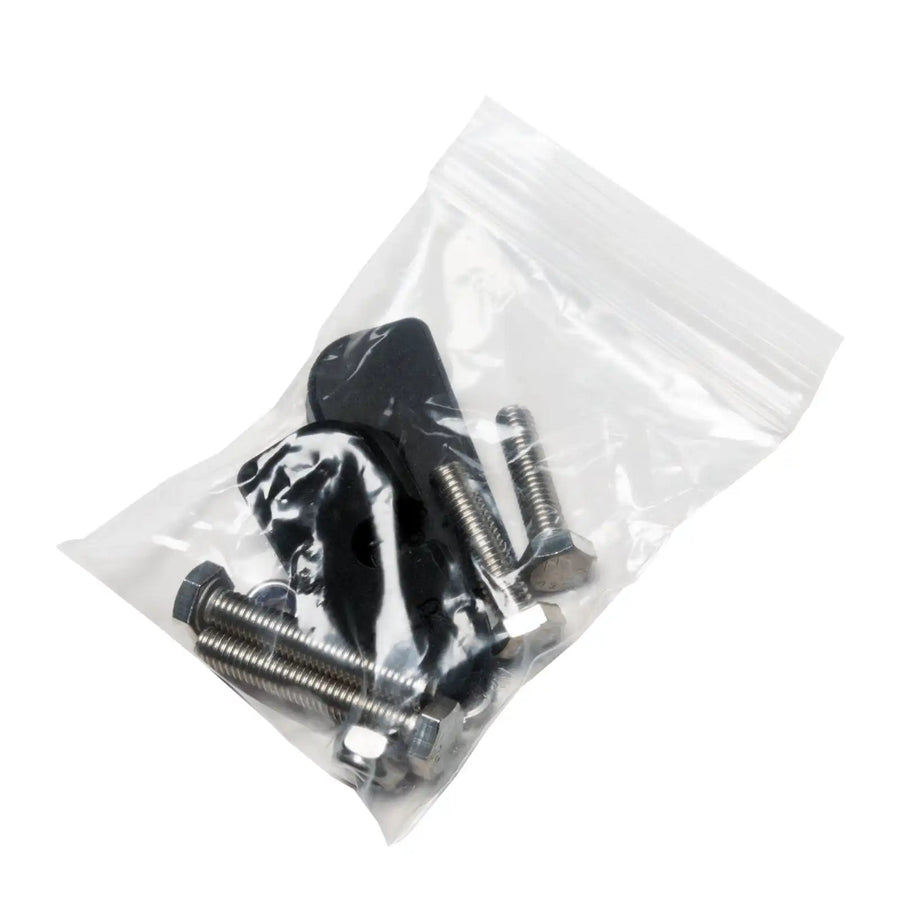

  • Installation Hardware
  • 2916-48-001 - 9.5" 48W Angled LED Scene Light Flush Mount Bar
