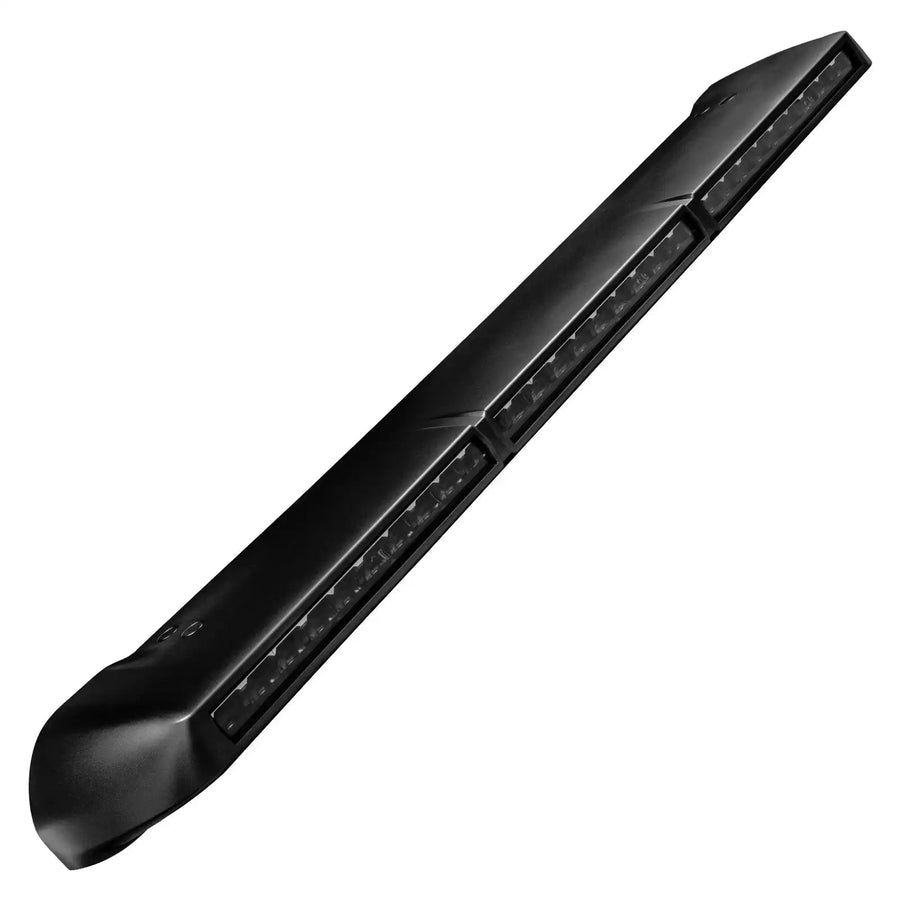

Angled view of black Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco

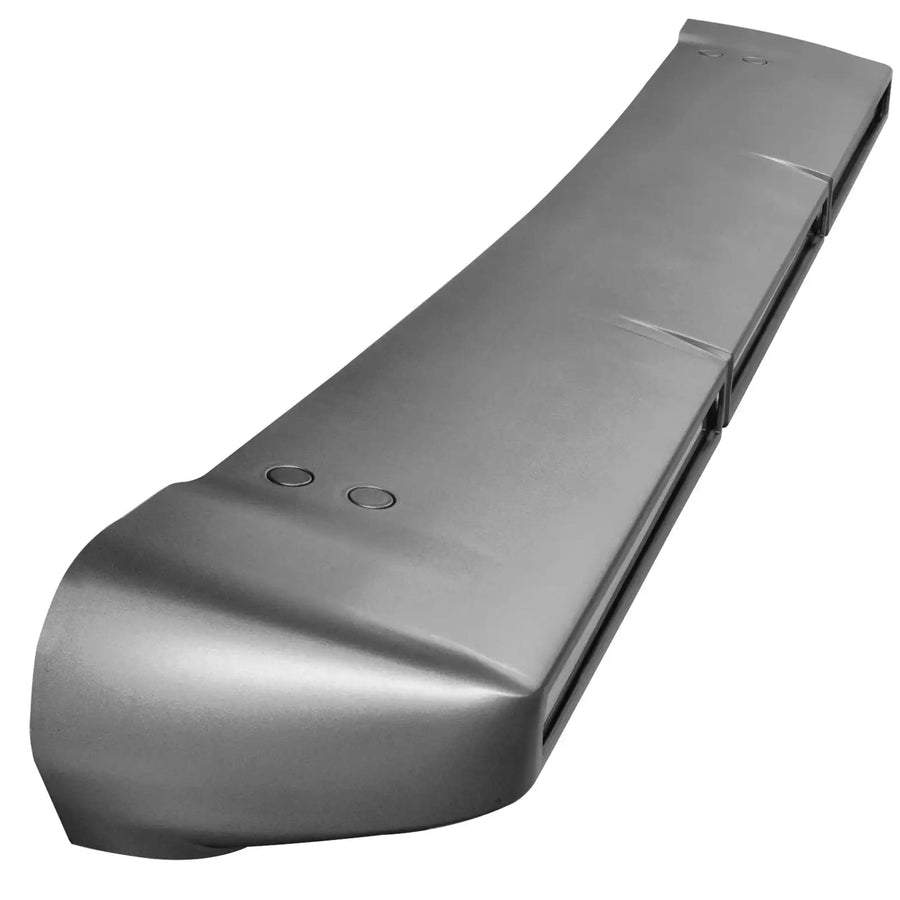

Angled view of carbonized grey Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco.

Ford Bronco Integrated Roof LED Light Bar | ORACLE 18,000 Lumens 240W

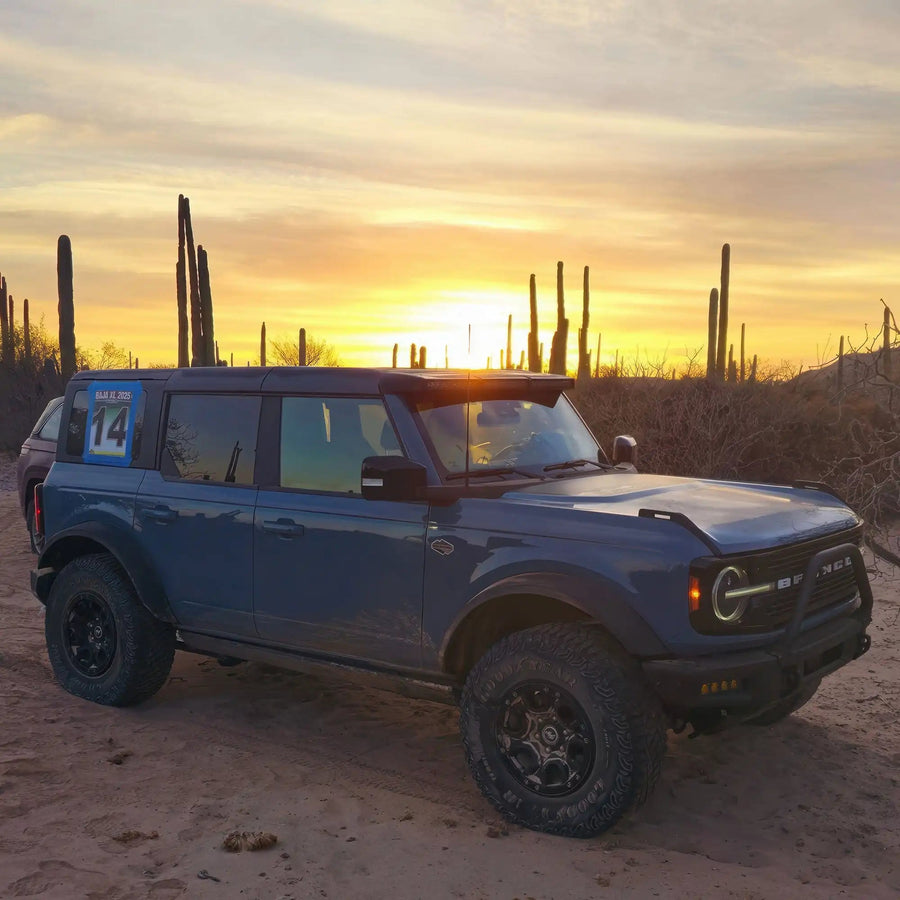

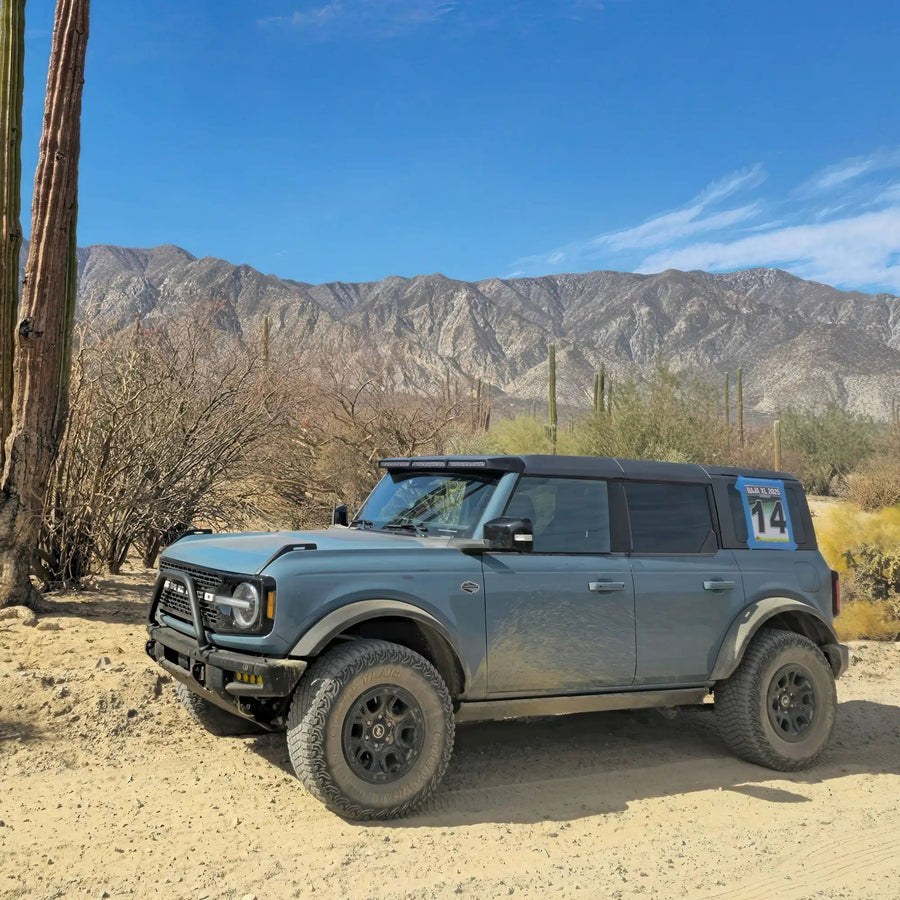

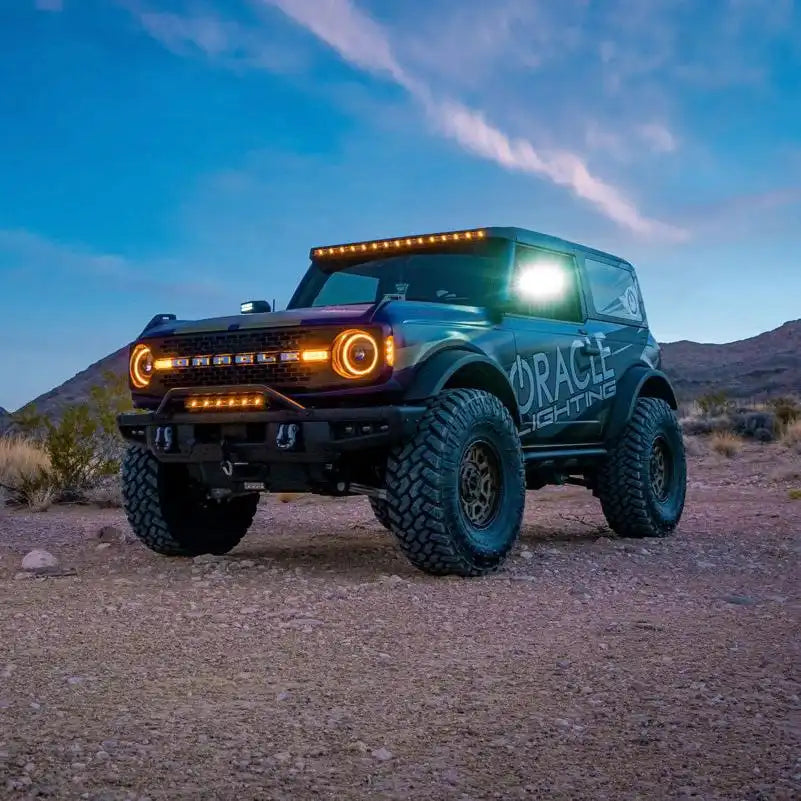

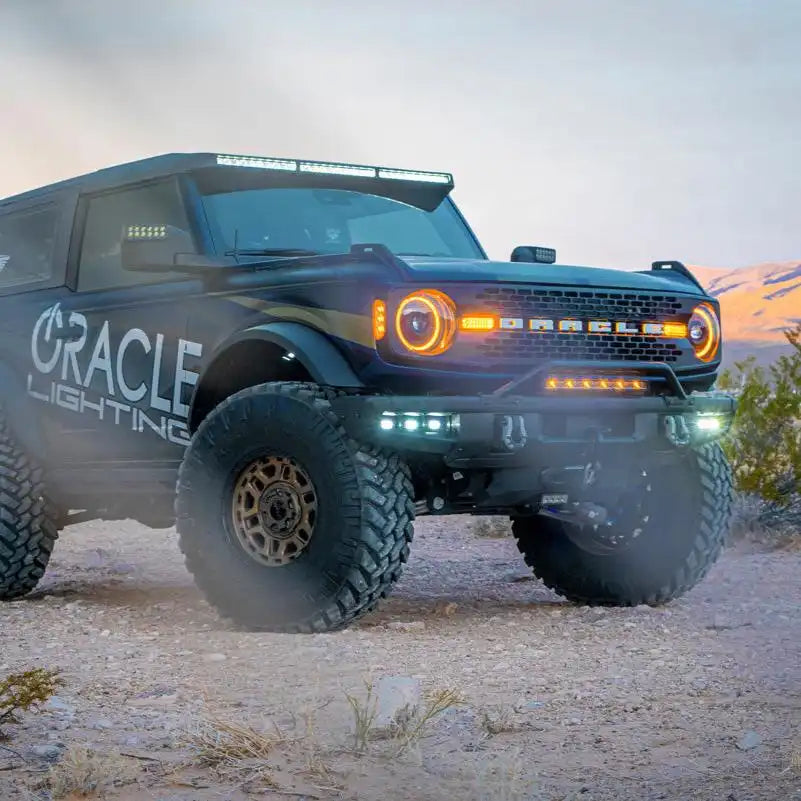

ORACLE Lighting wrapped Ford Bronco in the desert with Integrated Windshield Roof LED Light Bar System installed.

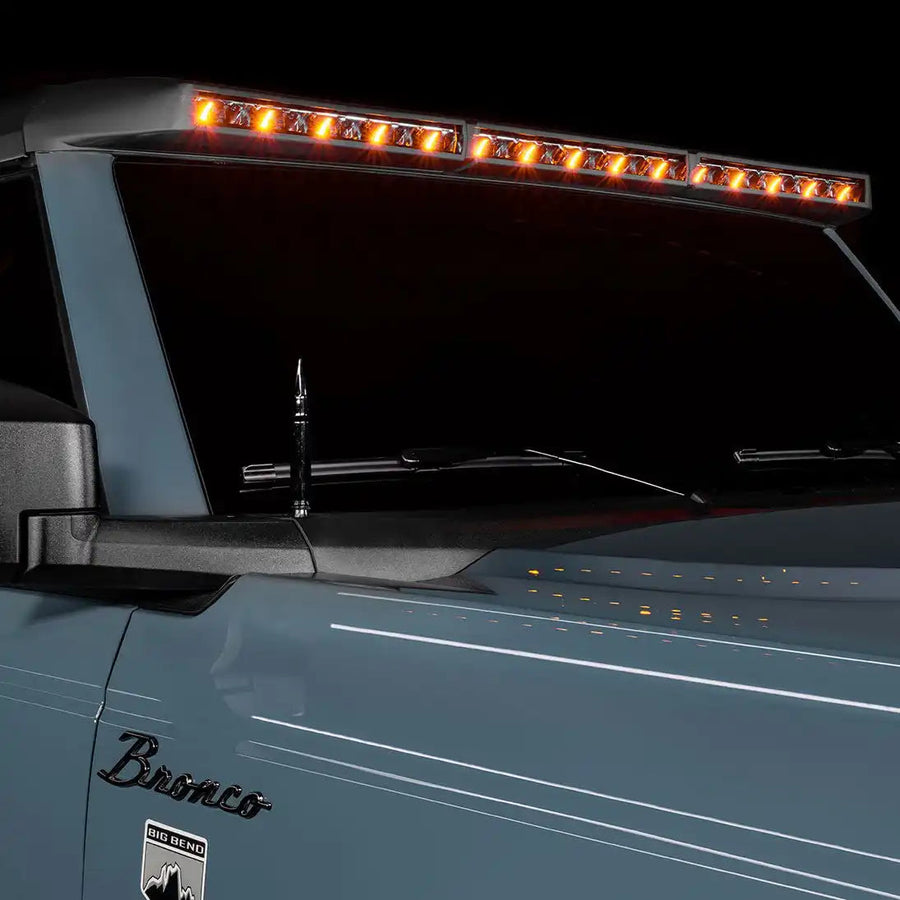

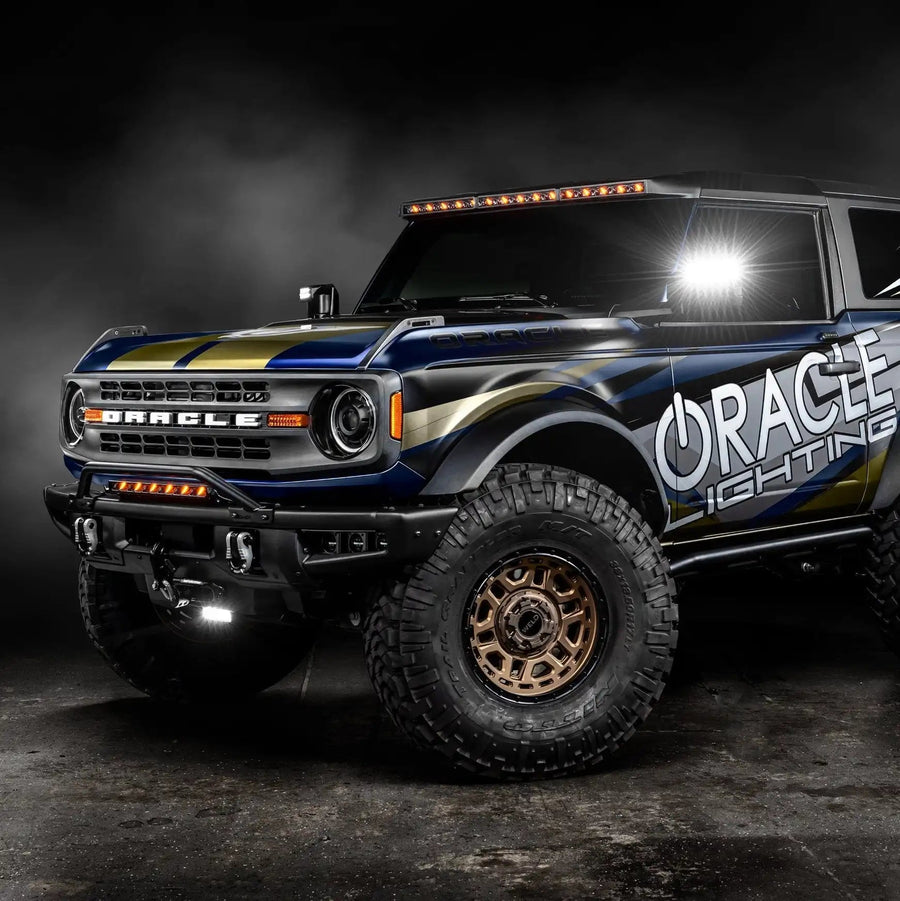

Three quarters view of ORACLE Lighting wrapped Ford Bronco with Integrated Windshield Roof LED Light Bar System installed and set to amber LEDs.

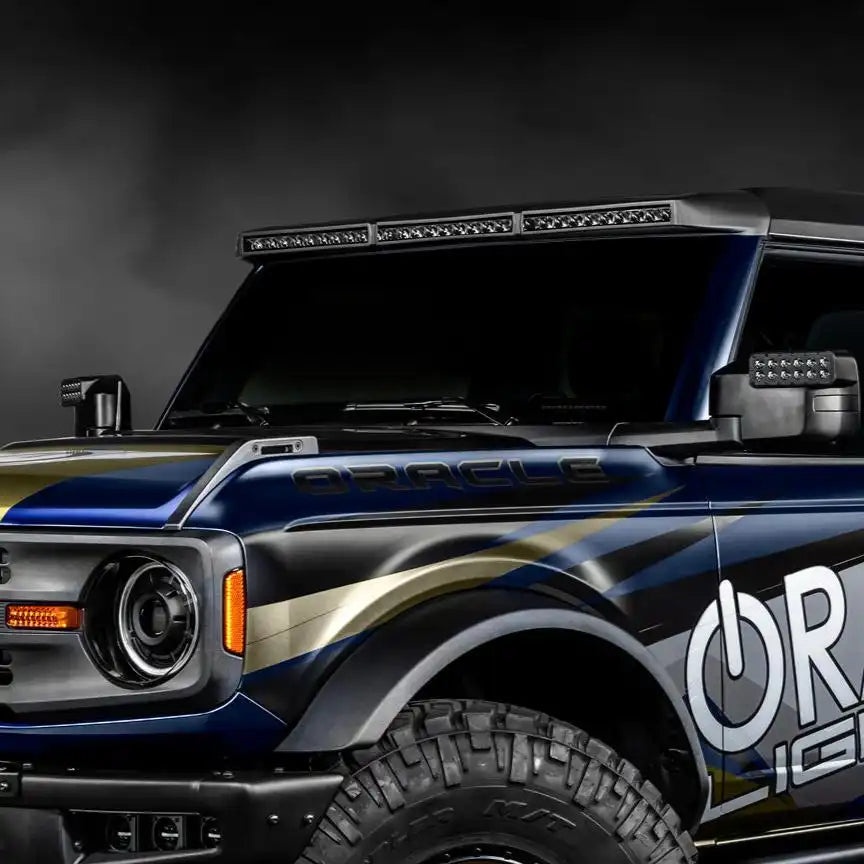

Close-up of Integrated Windshield Roof LED Light Bar System installed on the ORACLE Lighting Ford Bronco.

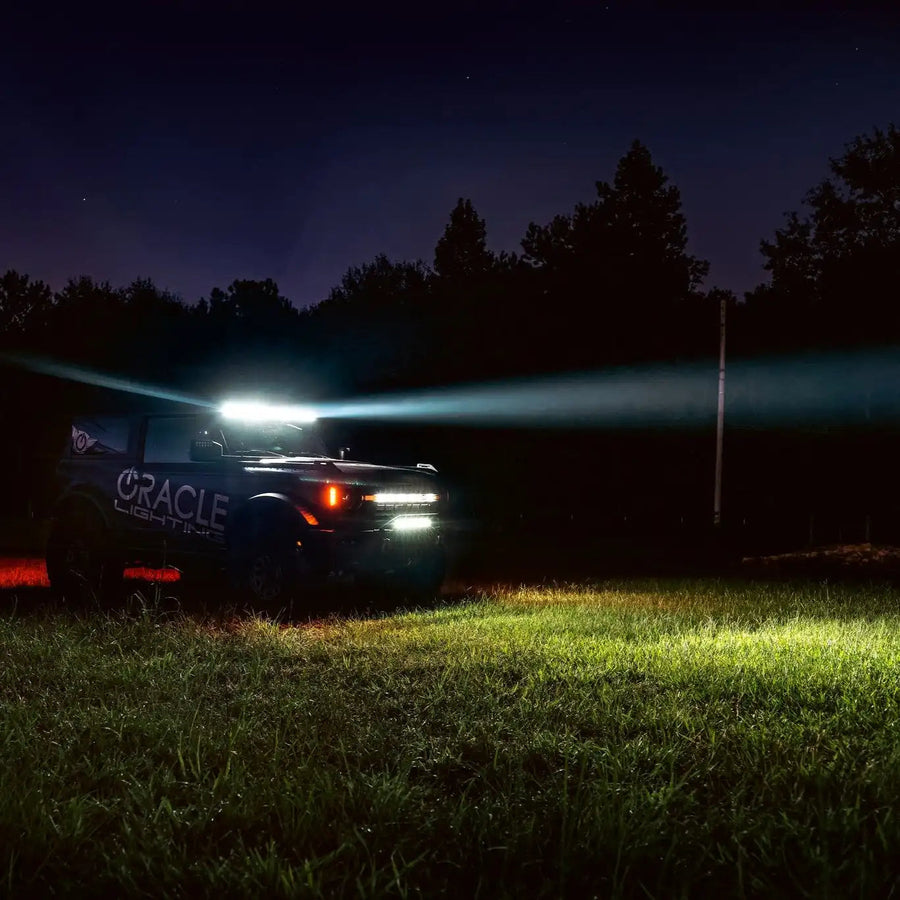

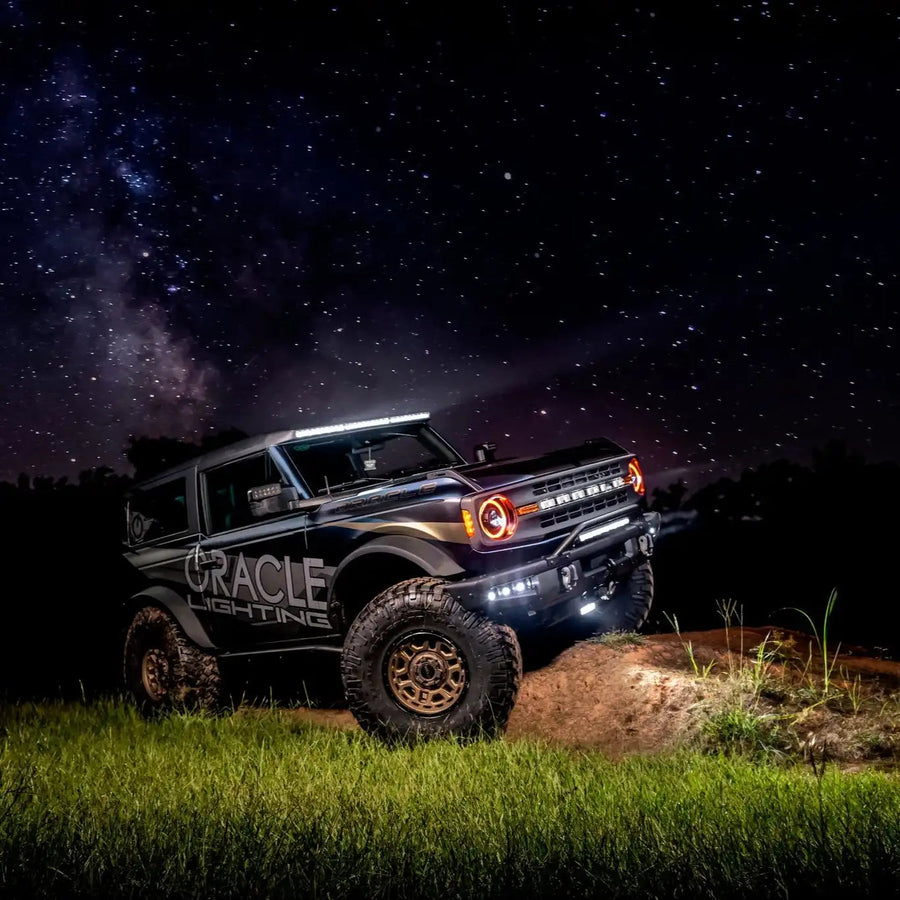

ORACLE Lighting wrapped Ford Bronco in an empty field at night, with a beam of light coming from the Integrated Windshield Roof LED Light Bar System.

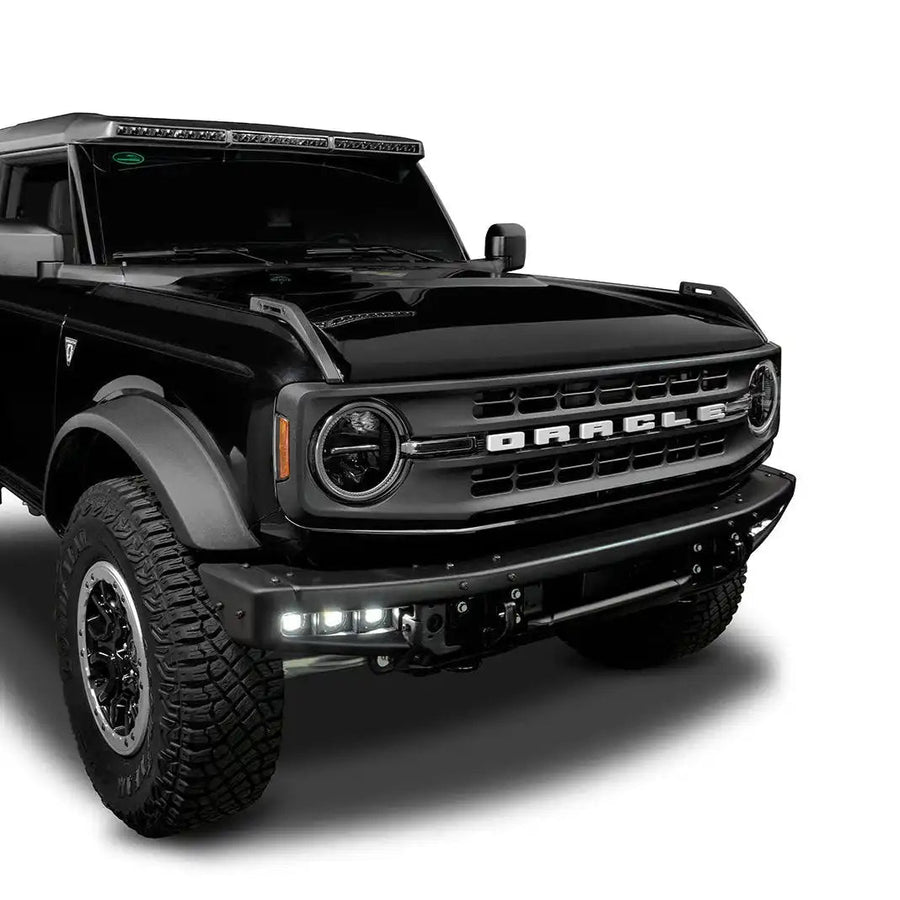

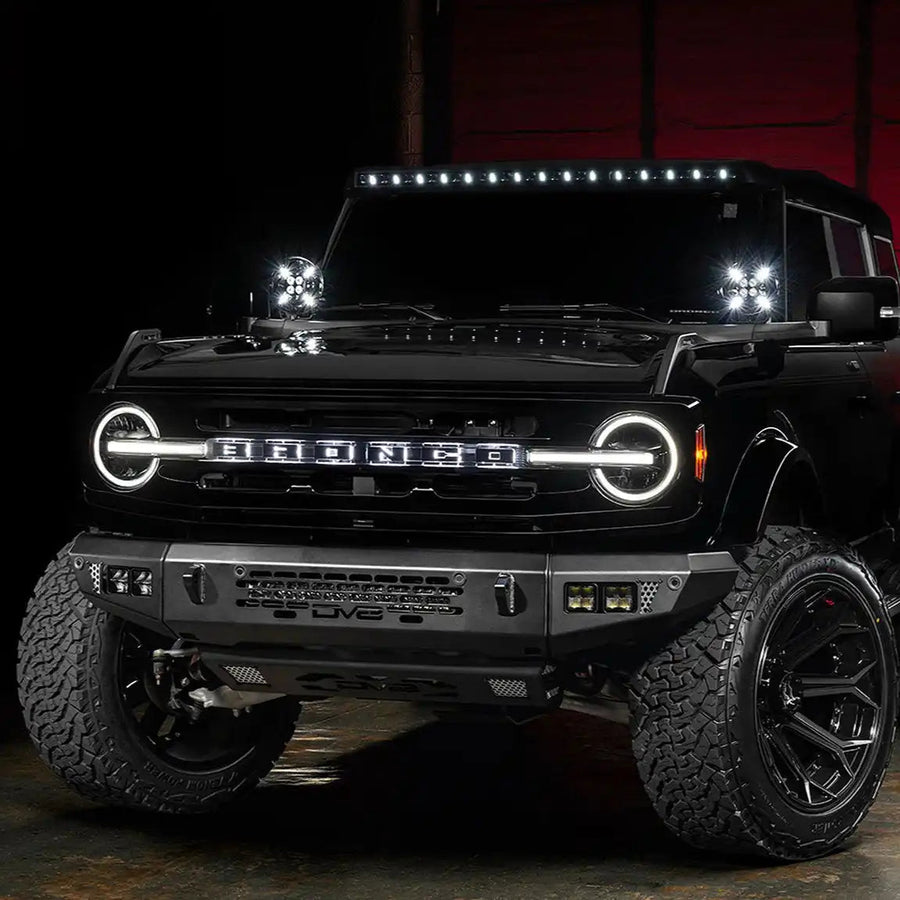

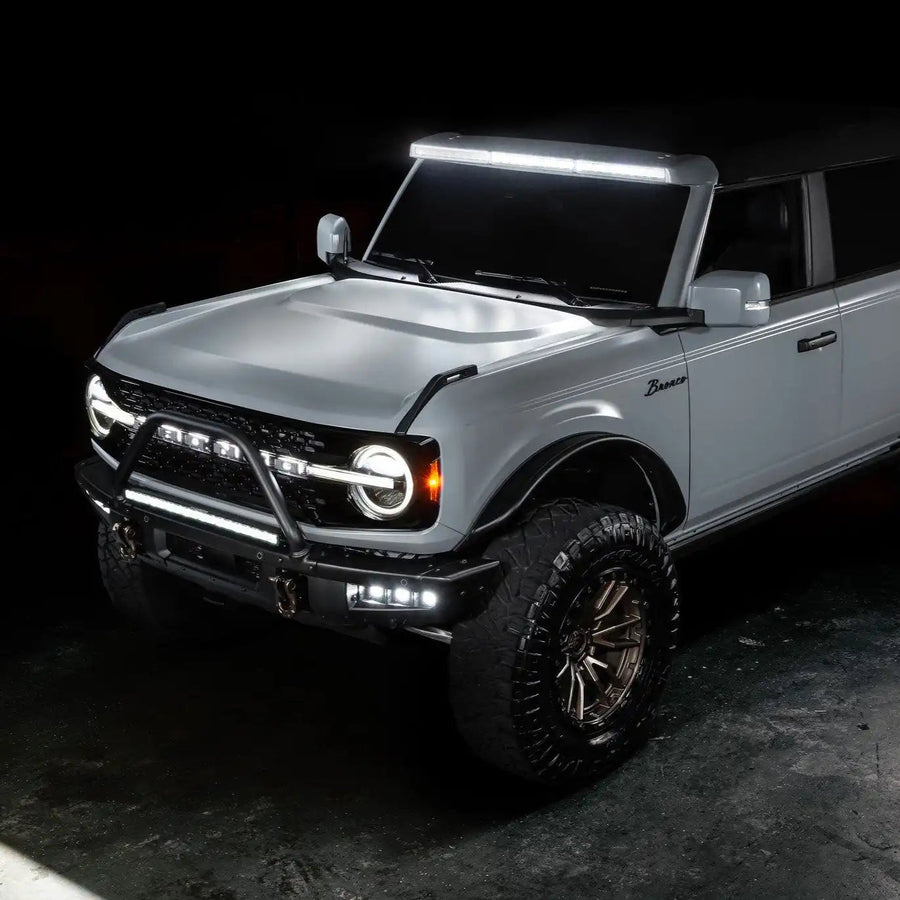

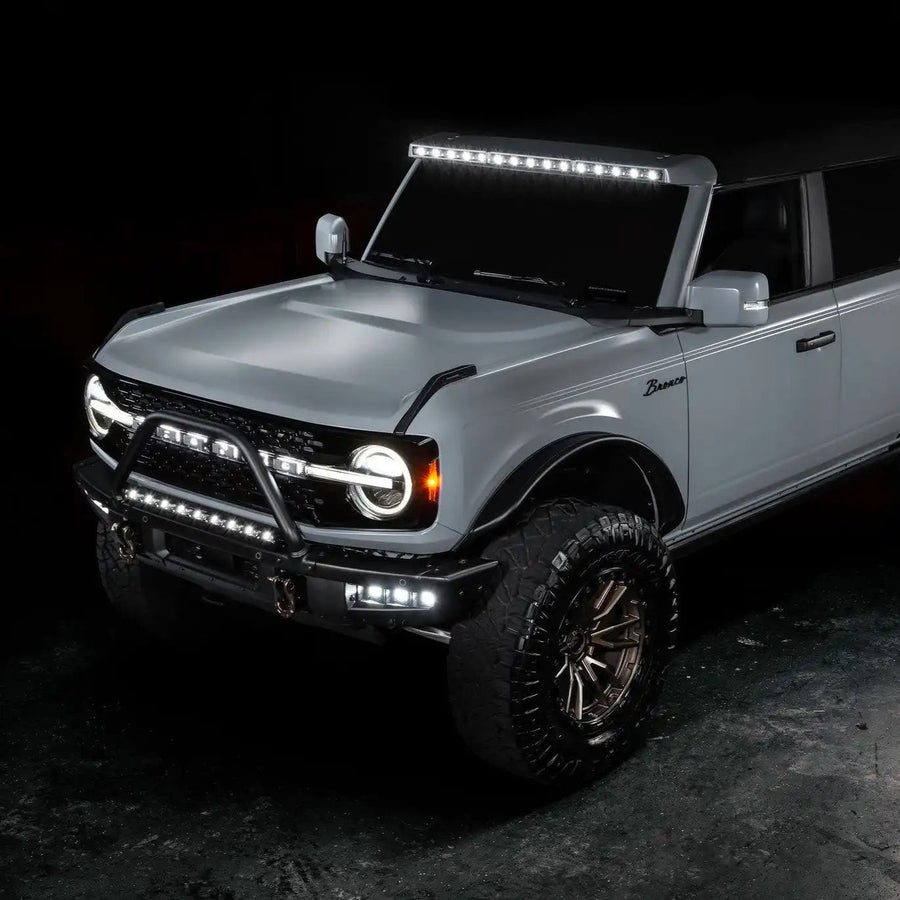

Studio shot of a black Ford Bronco equipped with the Integrated Windshield Roof LED Light Bar System.

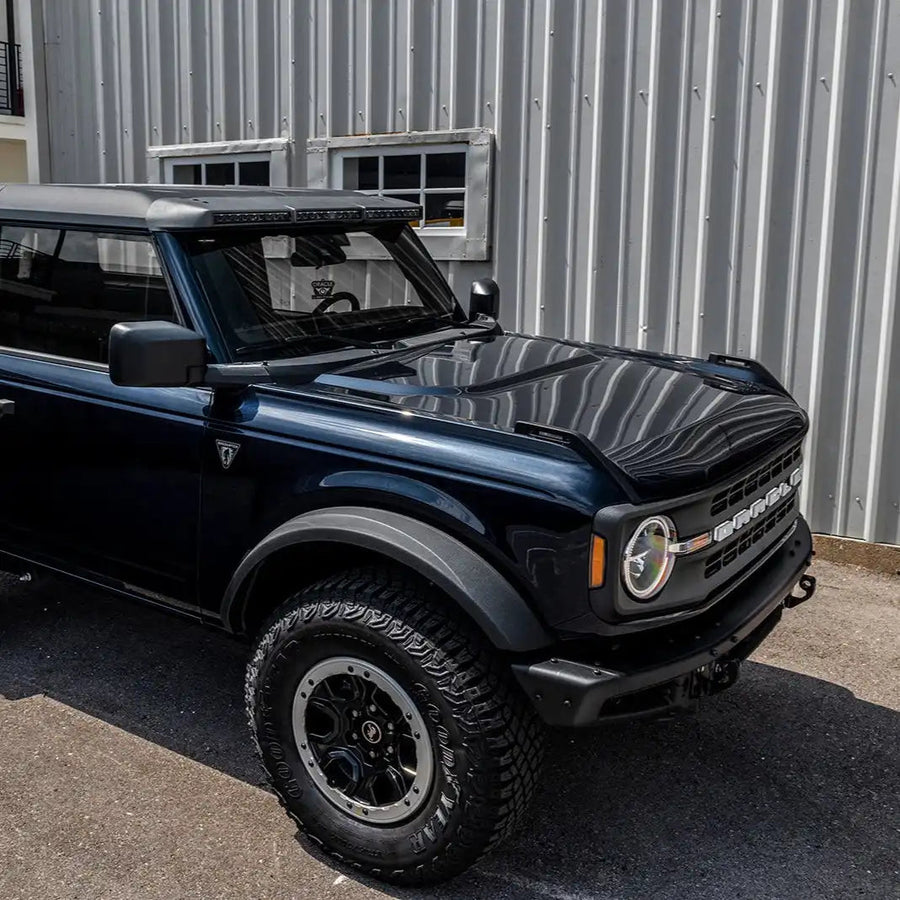

Blue Ford Bronco in a parking lot with Integrated Windshield Roof LED Light Bar System installed.

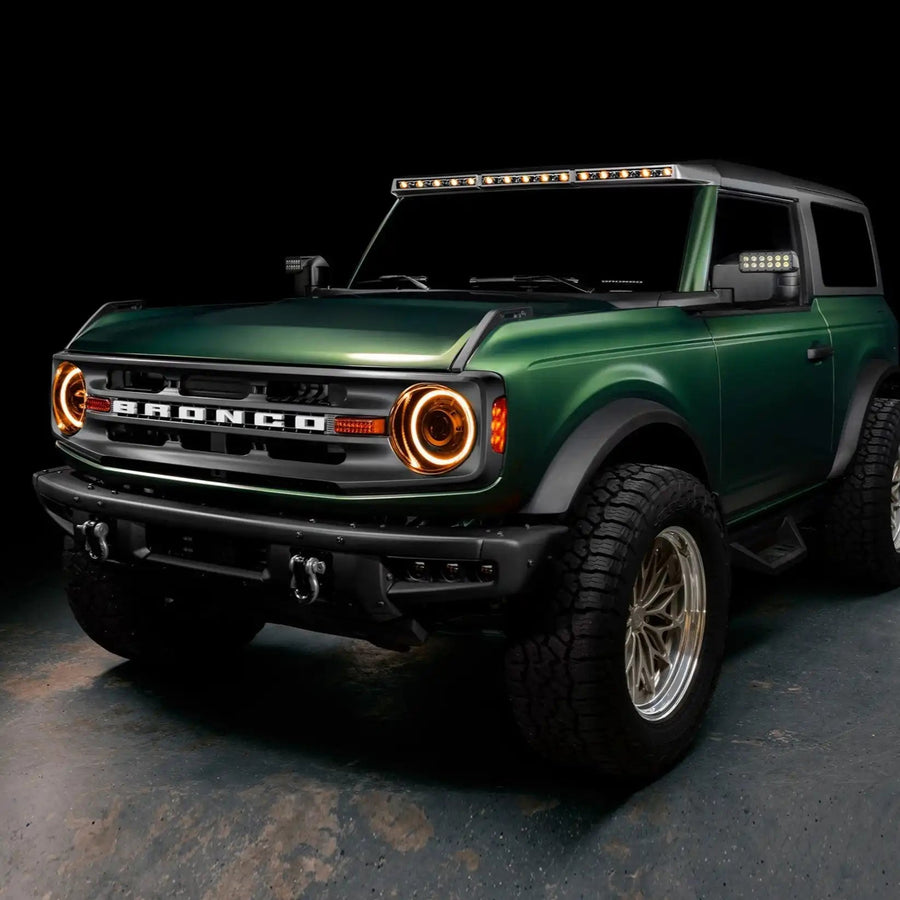

Three quarters view of a green Ford Bronco with multiple ORACLE Lighting products installed, including the Integrated Windshield Roof LED Light Bar System.

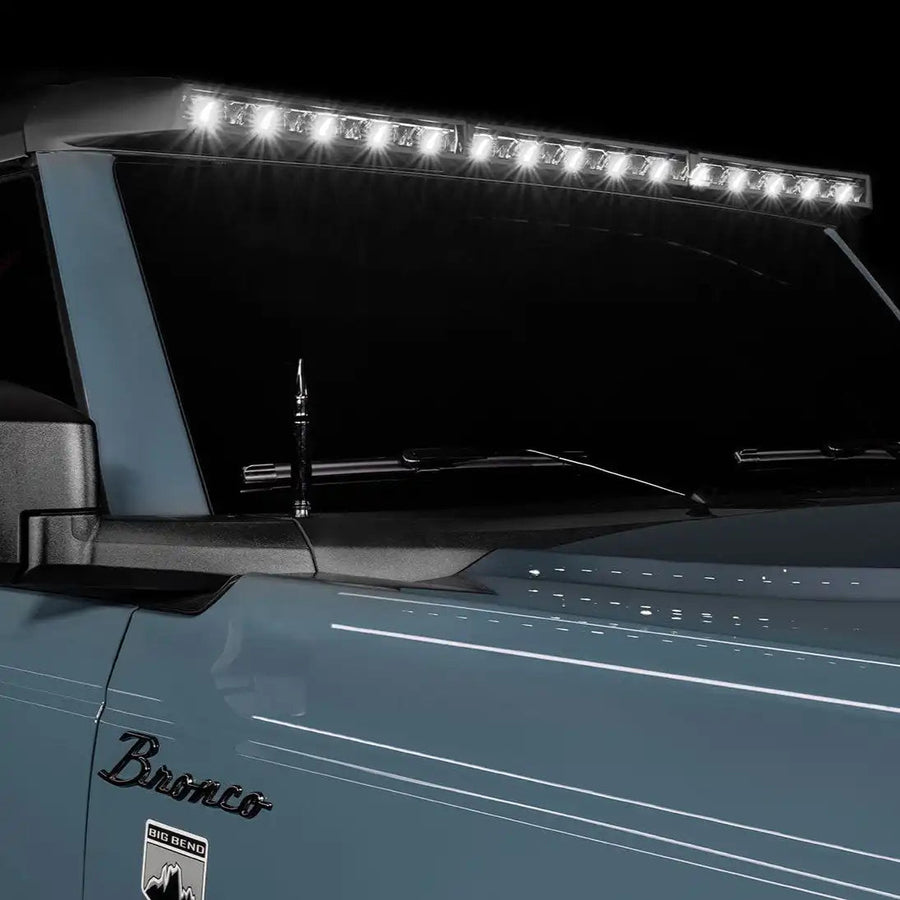

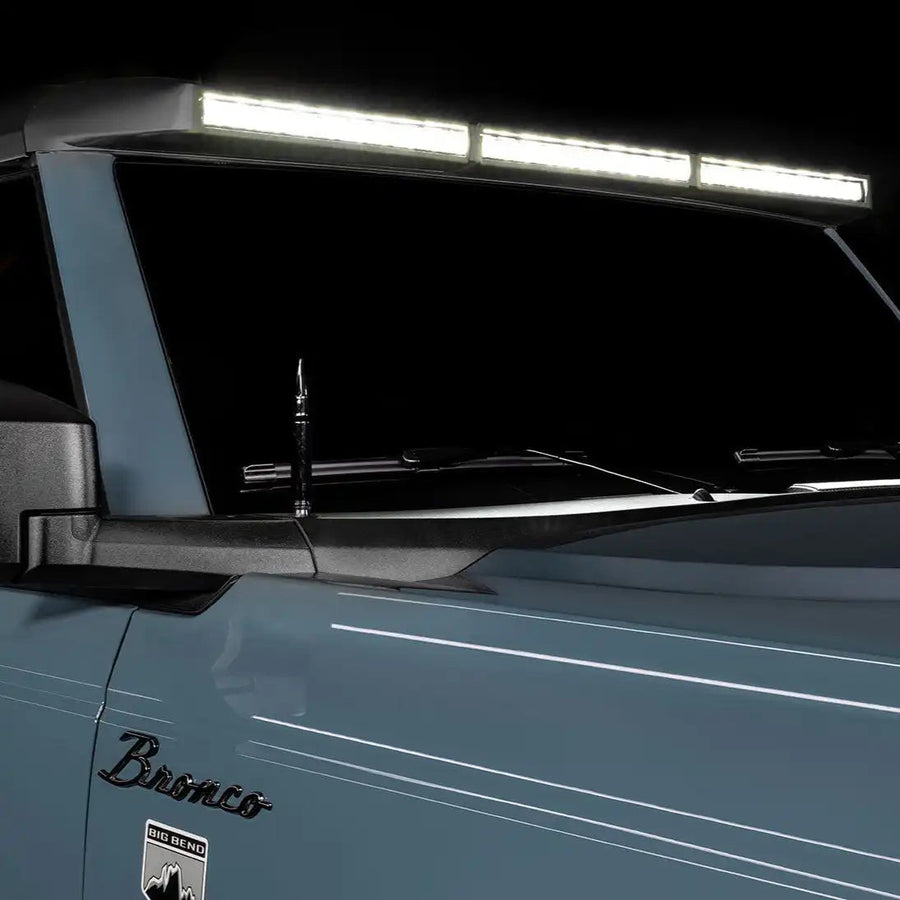

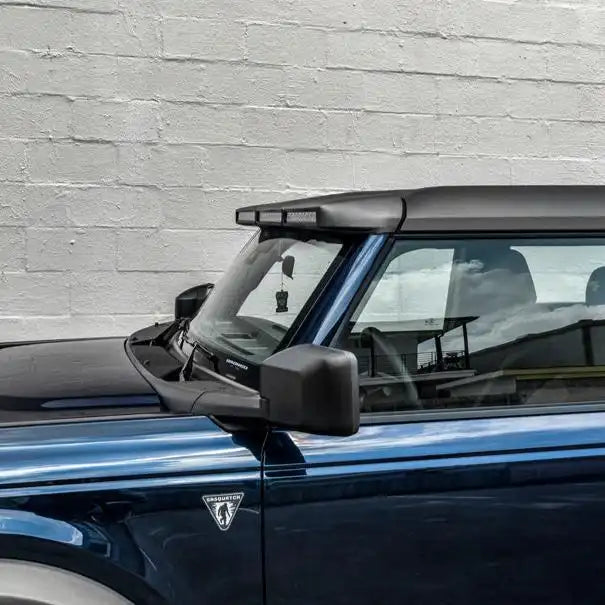

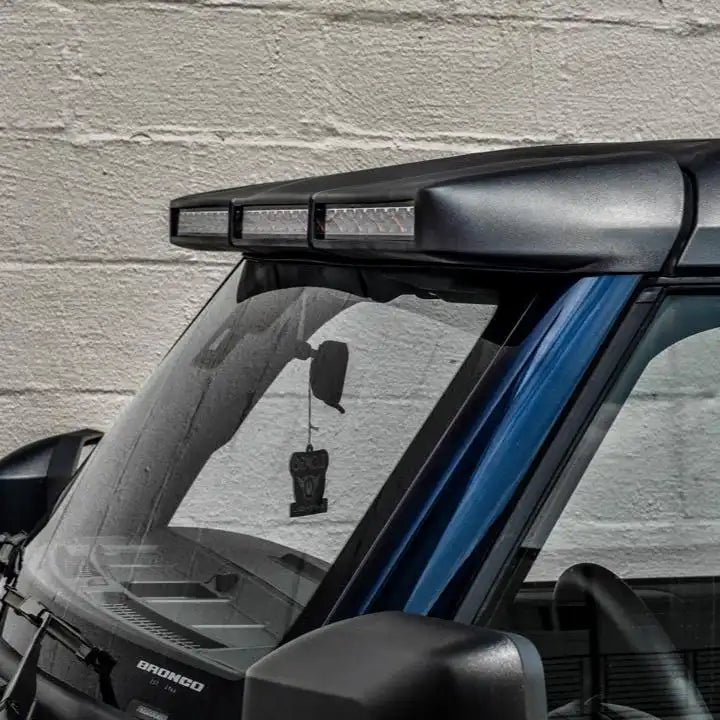

Side view of the Integrated Windshield Roof LED Light Bar System installed on a blue Ford Bronco.

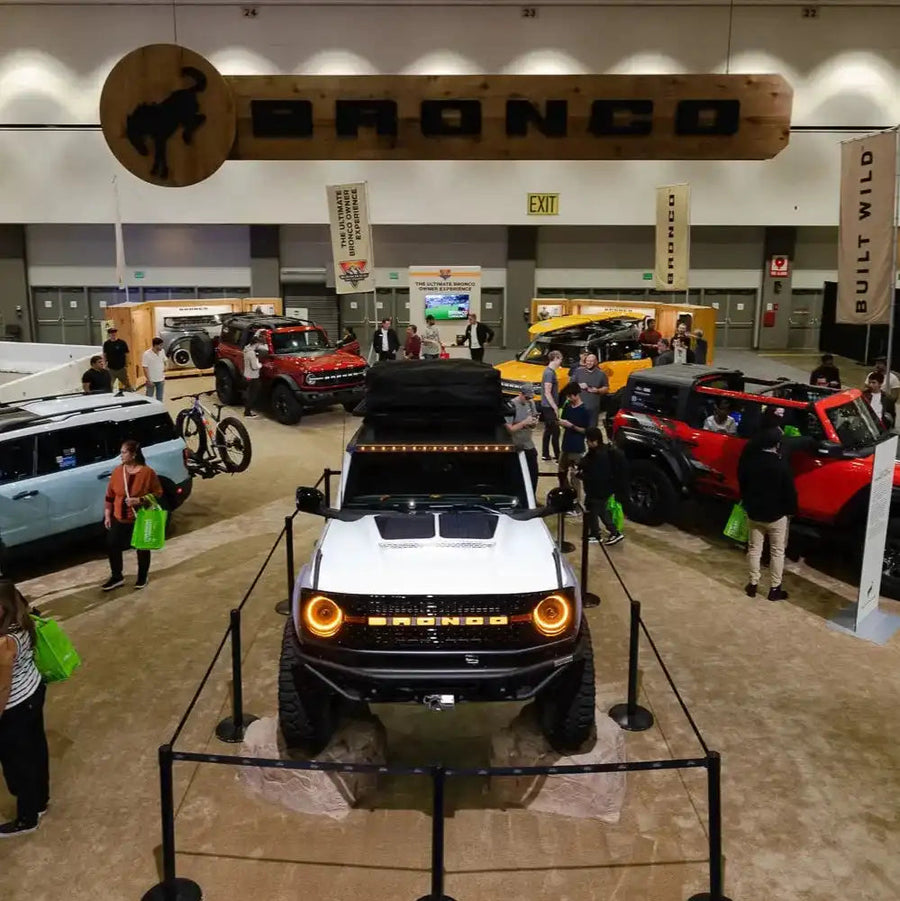

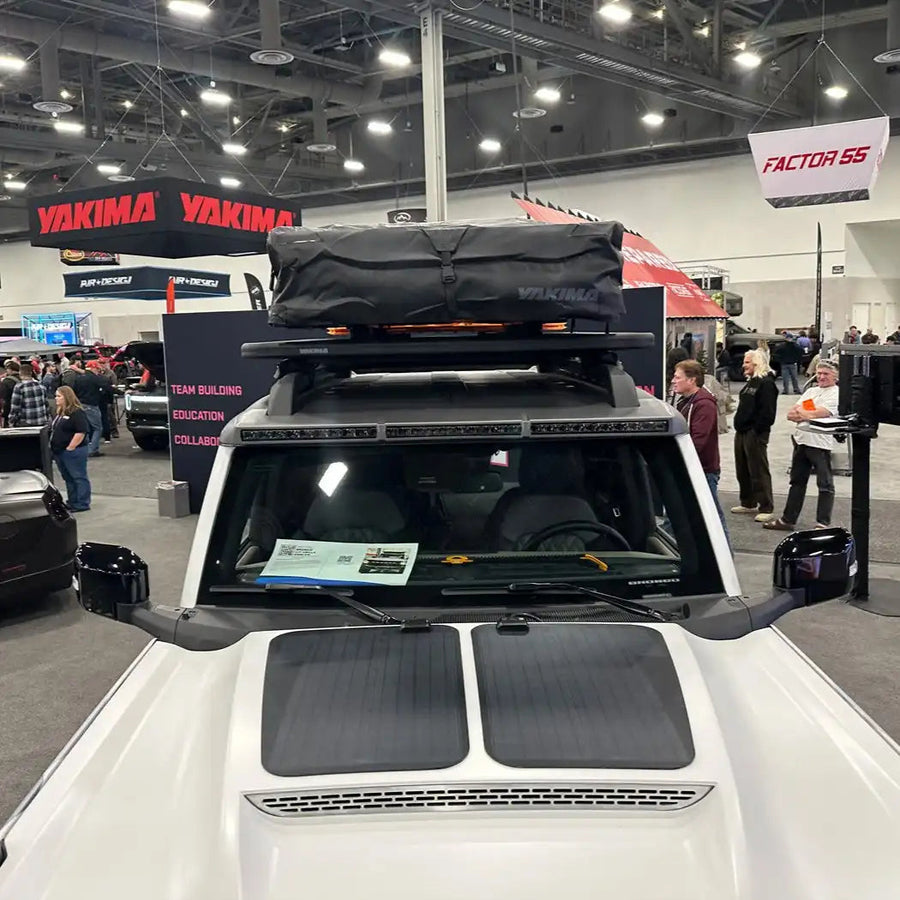

High angled photo of a Bronco showroom. In the center is a white Ford Bronco with Integrated Windshield Roof LED Light Bar System installed.

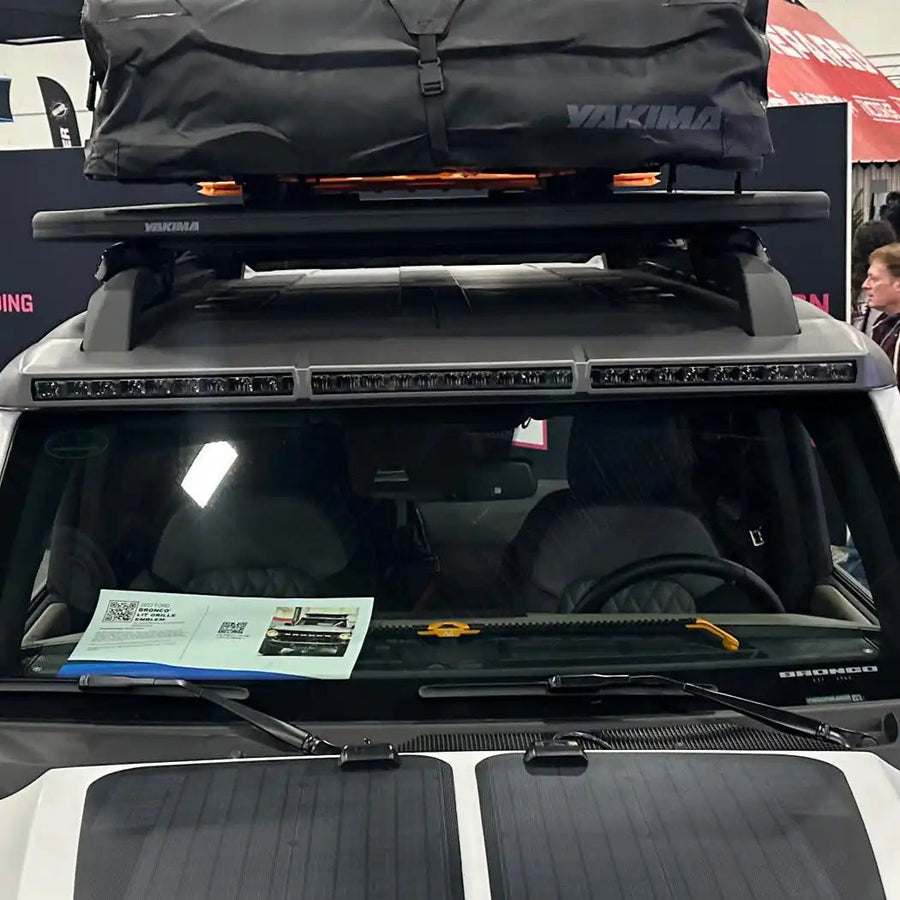

Close-up of a Integrated Windshield Roof LED Light Bar System installed on a white Ford Bronco.

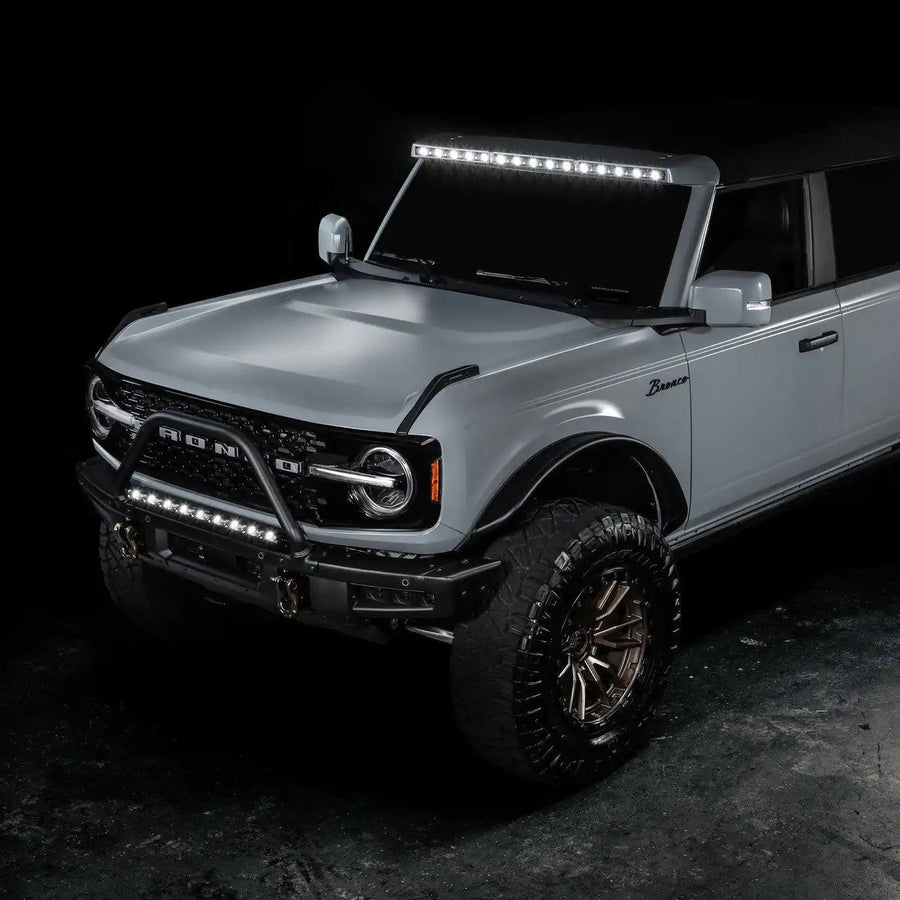

Three quarters view of a grey Ford Bronco with multiple ORACLE Lighting products installed, including the Integrated Windshield Roof LED Light Bar System.

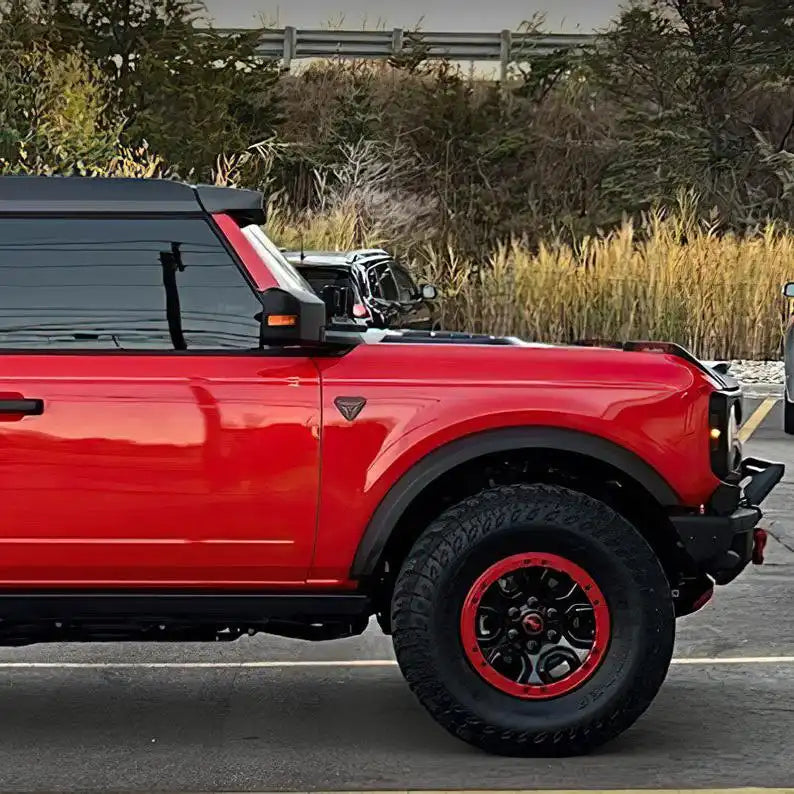

Side view of a red Ford Bronco with Integrated Windshield Roof LED Light Bar System installed.

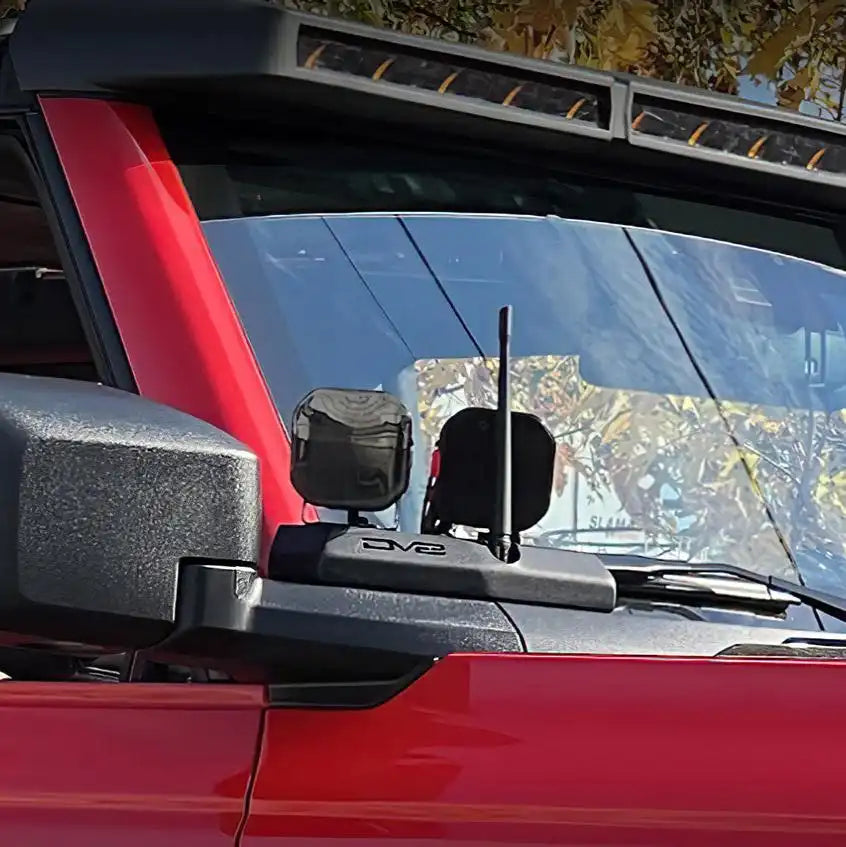

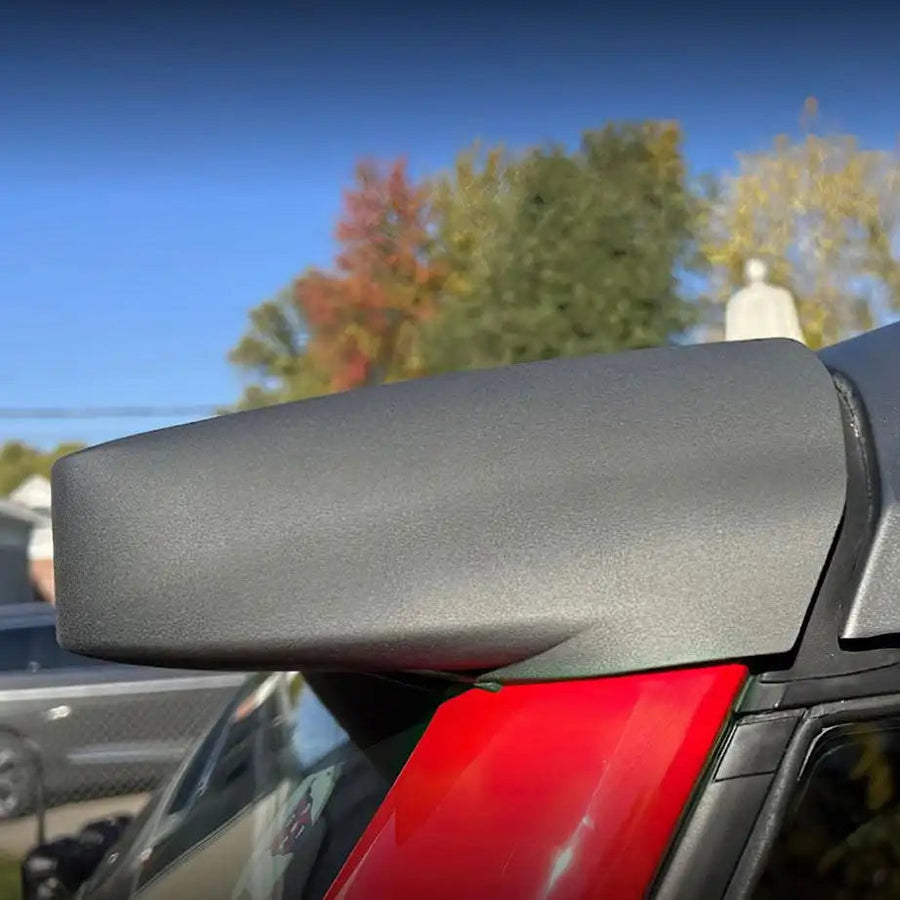

Close-up of a Integrated Windshield Roof LED Light Bar System installed on a red Ford Bronco.

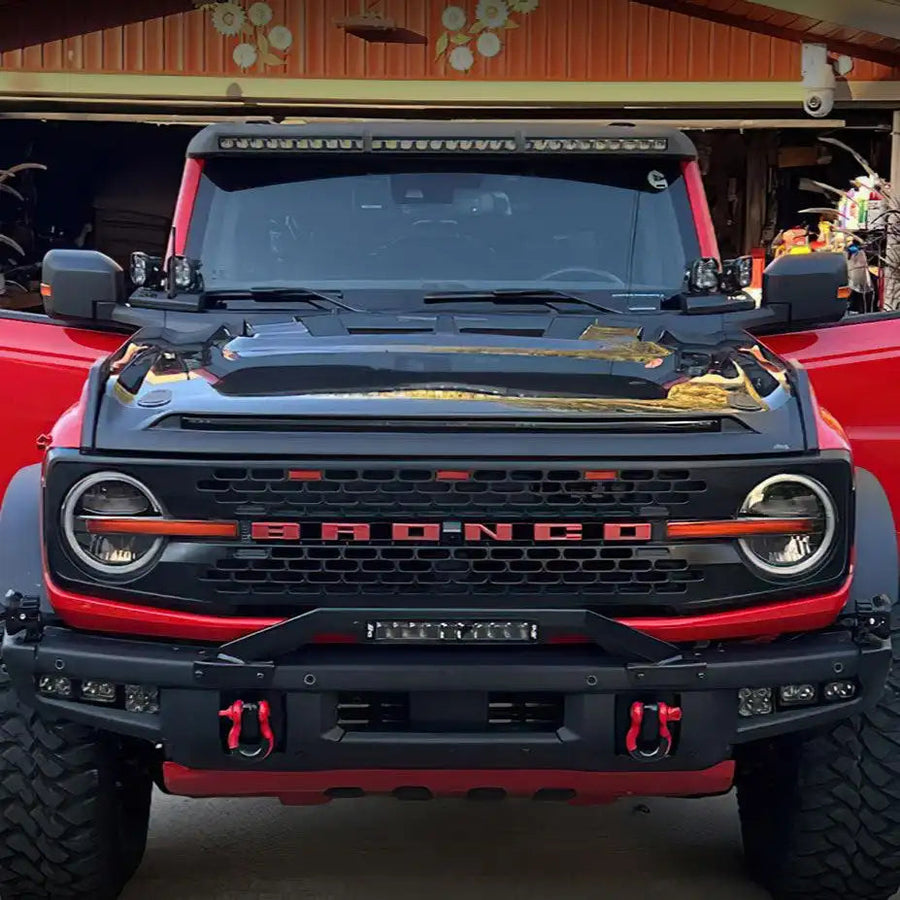

Front view of a red Ford Bronco equipped with the Integrated Windshield Roof LED Light Bar System.

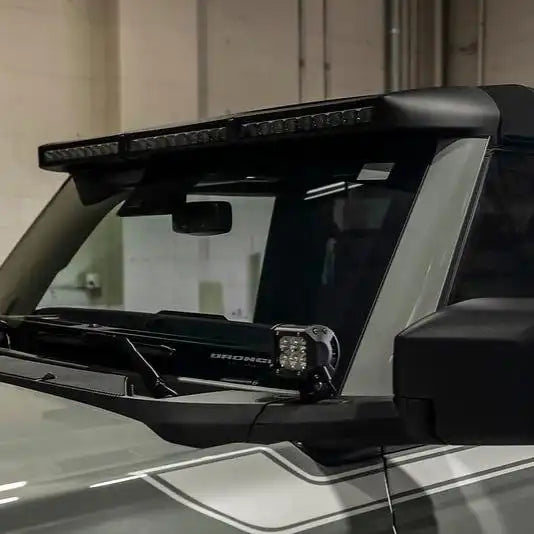

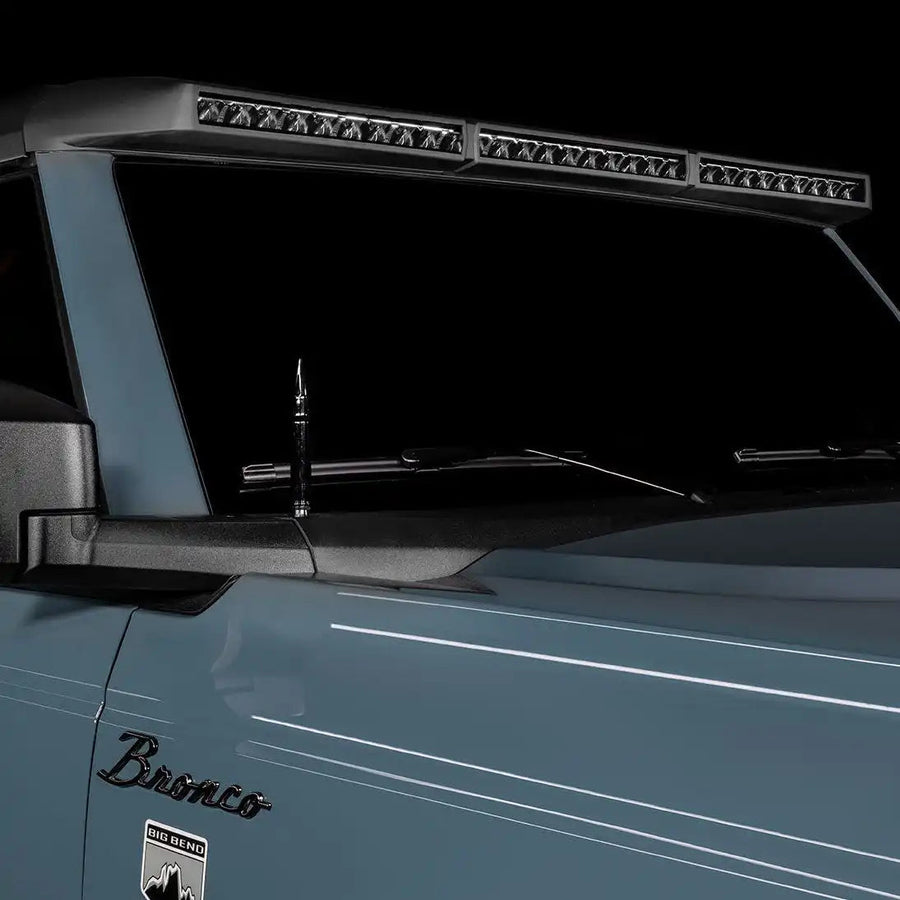

Close-up of a grey Ford Bronco with the Integrated Windshield Roof LED Light Bar System installed.

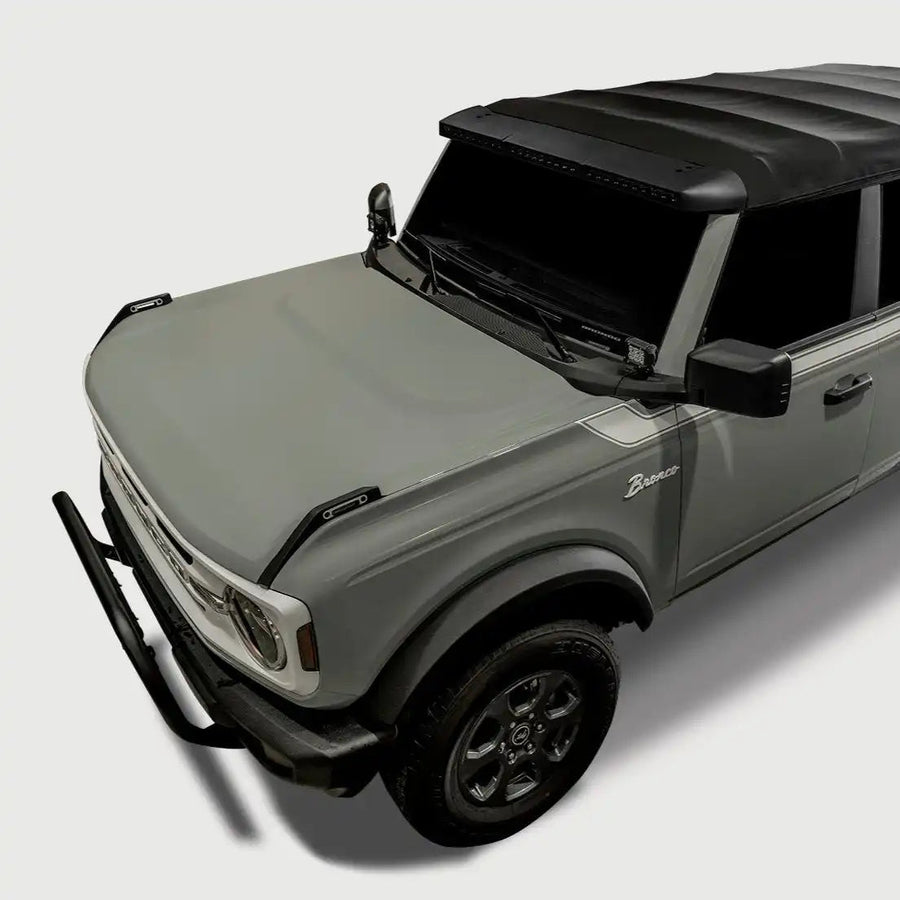

Top view of a soft top Ford Bronco with the Integrated Windshield Roof LED Light Bar System installed.

FREE SHIPPING OVER $100 1 YEAR WARRANTY FAST CUSTOMER SERVICE

Ford Bronco Integrated Roof LED Light Bar | ORACLE 18,000 Lumens 240W

Name: Ford Bronco Integrated Roof LED Light Bar | ORACLE 18,000 Lumens 240W
Rating: 5.00 (4 reviews)

$1,044.79 $1,305.99

$1,044.79

SKU: 5888-023

Housing Paint Color: Black(Currently Backordered)

Black(Currently Backordered)

Carbonized Grey

Increments of 1 Minimum of 1 Maximum of

Product Overview

Most roof-mounted light bars look like an afterthought and create wind noise at highway speeds. The ORACLE Integrated LED Light Bar System solves both problems with a revolutionary, patented design that Bronco enthusiasts have been waiting for. The molded cowling seamlessly blends into your Bronco's factory roofline - so natural, most people will think it came from the factory.

Unlike traditional external bars, this system mounts using factory accessory mounting points with no fabrication or drilling required. It retains full functionality whether you're running a hardtop, soft top, or going completely topless - true Bronco versatility for every season and every trail.

Ships in Black or Carbonized Grey with a paint-ready polycarbonate housing. Backed by IP68 waterproofing, electronic thermal management, voltage protection, and a 50,000+ hour LED lifespan for years of reliable off-road performance.

Compatibility Note: Not compatible with 2021+ Bronco Everglades models with pillar snorkel, or models with roof racks installed. Avoid automatic car washes with overhead brushes.

Patented integrated design - molded cowling matches factory roofline for a true OEM appearance

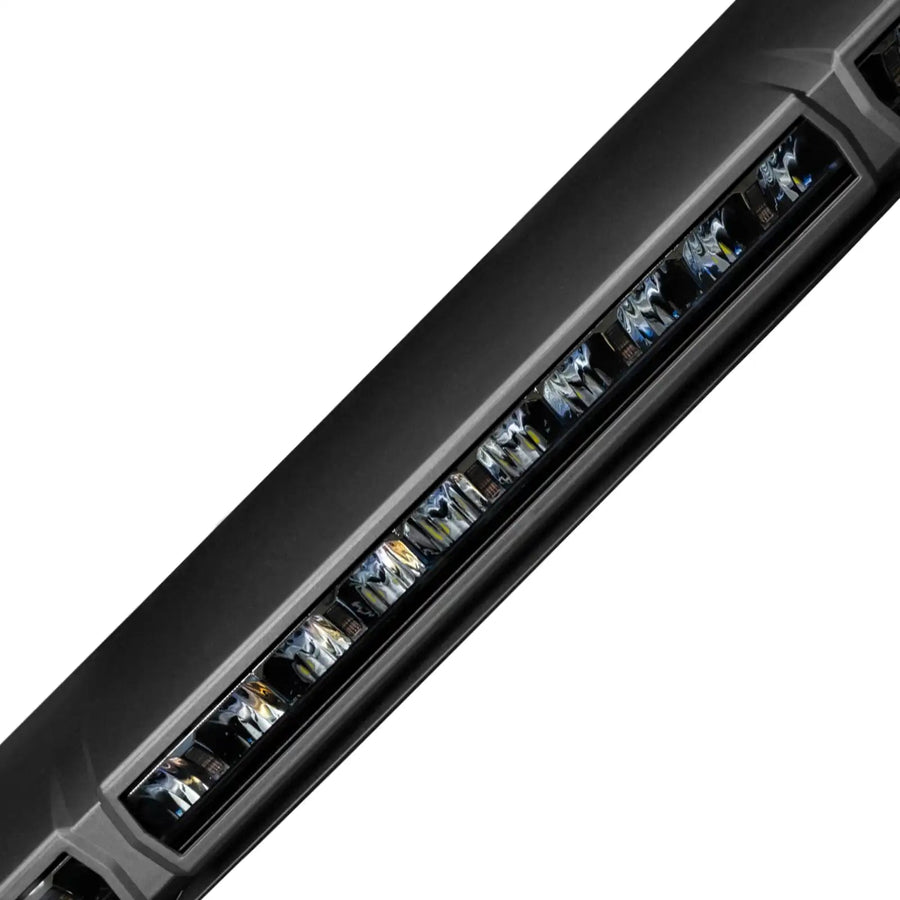

30x 8W LED emitters - reflector-facing technology maximizes output and throw distance
Dual-color clearance lights - selectable amber or white; wire to Aux, parking lights, or DRL

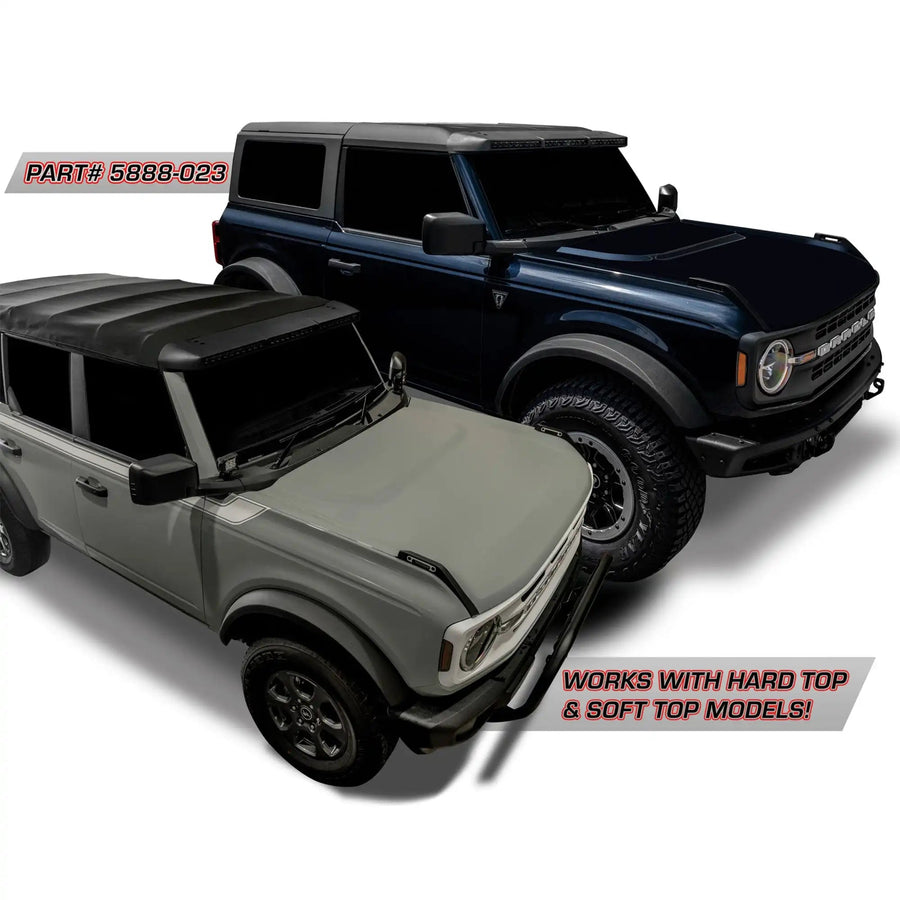

Topless & soft-top compatible - retains full functionality in all Bronco top configurations
Factory mounting points - uses existing accessory locations, no drilling or fabrication required
Aerodynamic & quiet - integrated cowl reduces wind noise vs. traditional external bars
Paint-ready housing - professionally paintable to match your Bronco's color
IP68 waterproof rating - fully submersible and weather-resistant
Electronic thermal management - prevents overheating in extreme conditions
Voltage protection - under/over voltage and reverse polarity protection
Premium materials - 6030 aluminum housing, Lexan polycarbonate lens, powder coat finish
50,000+ hour LED lifespan - years of reliable illumination
Assembled in the USA

Raw Lumens: 18,000 lm
Effective Lumens: 14,200 lm
Peak Intensity: 420,000 cd
Total Wattage: 240W
Amp Draw: 14A @ 12V DC
Beam Pattern: 40° Driving Beam
Max Projection: 1 Lux @ 648m (2,125 ft)
Color Temperature: 5500K-6000K (Bright White)
LED Emitters: 30x 8W High-Power
LED Lifespan: 50,000+ hours
Operating Voltage: 9-32V DC
Waterproof Rating: IP68 (Submersible)

Materials & Construction

Outer Housing: Polycarbonate (Paint-Ready)
Lamp Housing: 6030 Aluminum Alloy
Reflector: Plated Polycarbonate
Lens Material: Lexan Polycarbonate
Finish: Polyester Powder Coat
Breathers: Stainless Steel Anti-Fog Valves
Connectors: Molded IP68 Waterproof
Ingress Protection: IP68 (Dust & Water)

2021 Ford Bronco (All Trims)
2022 Ford Bronco (All Trims)
2023 Ford Bronco (All Trims)
2024 Ford Bronco (All Trims)
2025 Ford Bronco (All Trims)

Top Configuration Compatibility:

Hardtop (Factory or Aftermarket)
Soft Top
Topless / No Top

Not compatible with: 2021+ Bronco Everglades with pillar snorkel - or models with roof racks installed. Use included 15" wiper blades for proper clearance.

Integrated LED Light Bar Assembly with Molded Cowling
Polycarbonate Housing (Black or Carbonized Grey, paint-ready)
Complete Wiring Harness with IP68 Connectors
(6) Steel Truss Plates for Reinforcement
(4) Accessory Bolt Covers
(2) 15" Wiper Blades for Clearance
Installation Hardware & Mounting Bolts
Detailed Installation Instructions
1-Year Manufacturer Warranty

Wiring harness for Aux switches sold separately - see Required Accessories below.

Why Oracle?

All of our products are engineered and designed right here in Metairie, Louisiana. With over 15 years of experience building lighting for the automotive aftermarket, we control every step of the process - from R&D to final assembly - so you're getting a part built to a standard, not just a spec sheet.

Whether it's an install question, a fitment question, or you just want a second opinion before you order - pick up the phone and talk to someone who actually knows the product. No call centers, no scripts. Just people who know Jeeps, Broncos, Tacomas, and trucks as well as you do.

We don't make one-size-fits-all lighting. Every product is engineered around the specific fitment, electronics, and driving demands of the platform it's built for - so what you install is what was designed for your vehicle from day one.

Before anything ships, it's been run through real-world abuse - mud, vibration, weather, and mileage - not just a bench test. If it can't survive the trail or the daily commute, it doesn't make it to your truck.

We stand behind what we build. Every Oracle product ships with a manufacturer warranty and a team that actually honors it - because a good part with no support isn't a good deal.

Orders ship quickly from our Metairie facility, with tracking sent the moment your parts are on their way - so you know exactly when to expect them, every time.

5 stars: 4 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

New molding

Got my new molding put on and light is back on my bronco looking great thank you guys

Light bar

I absolutely love the look and it works very well for off roading at night . But now I have hit an owl or hawk and the plastic molding is coming apart

Happy Customer

Oracle's Intergrated light bar is very easy to install and is exceptionally bright. And as light bars go, the wind noise is practically unnoticeable at freeway speeds with no chatter from the cowl. Very happy with this light bar both in quality and performance and it will fetch a lot of compliments.

Great Light Bar....Needs slight alteration with soft top

Install was super easy and straight forward. The only issue is if you have a soft top like I do, the housing for the light bar can interfere with the operation of your top. A quick call to Oracle and they sent me a video clip explaining how to trim the housing to allow full operation of the top. Only thing that would make this better is if it fit with soft top without trimming. Light bar is very bright and marker lights look great! Oracle customer service was fantastic as well!
