Product Overview

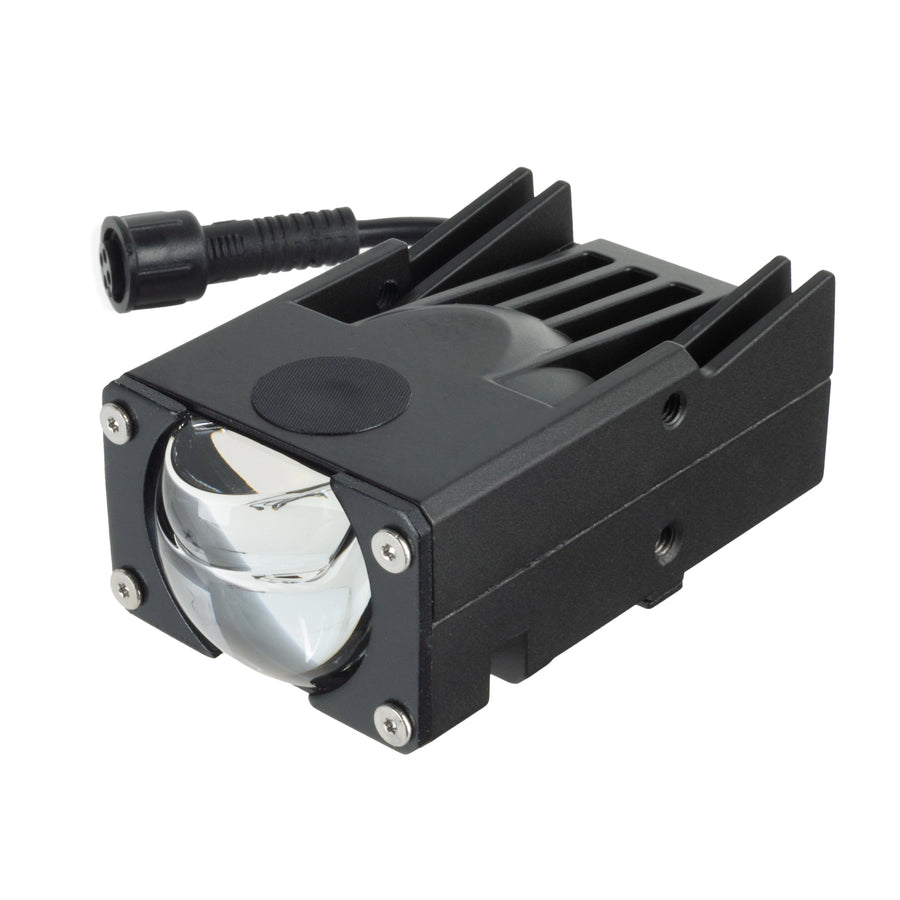

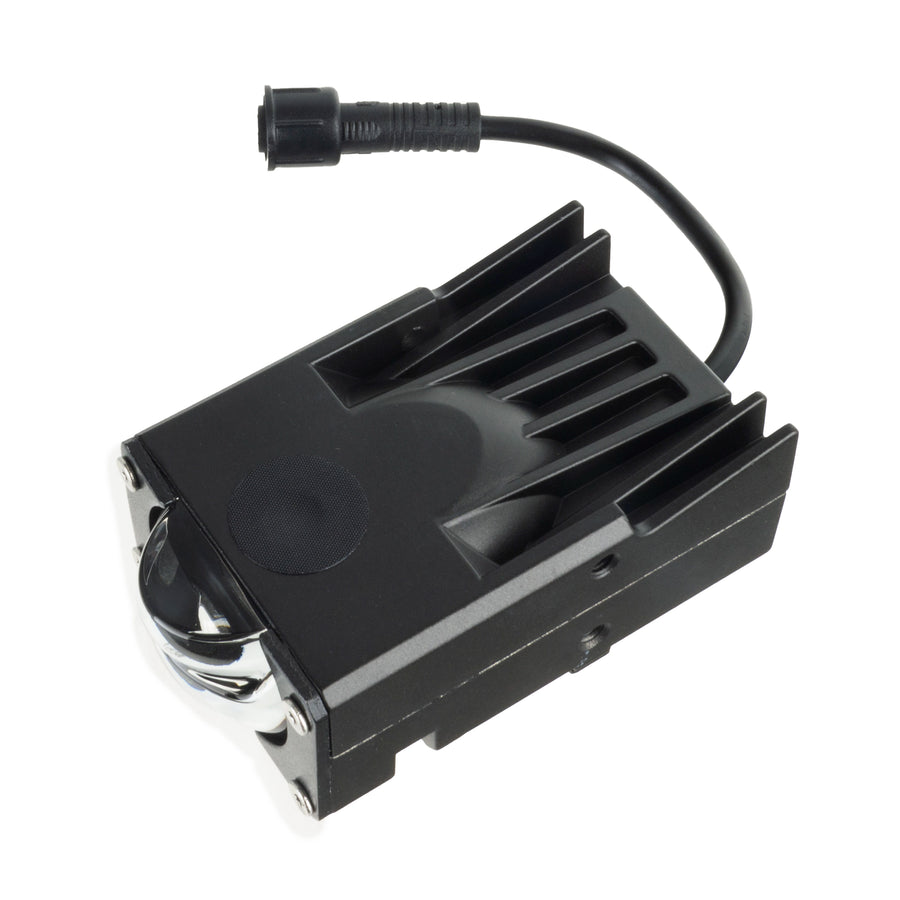

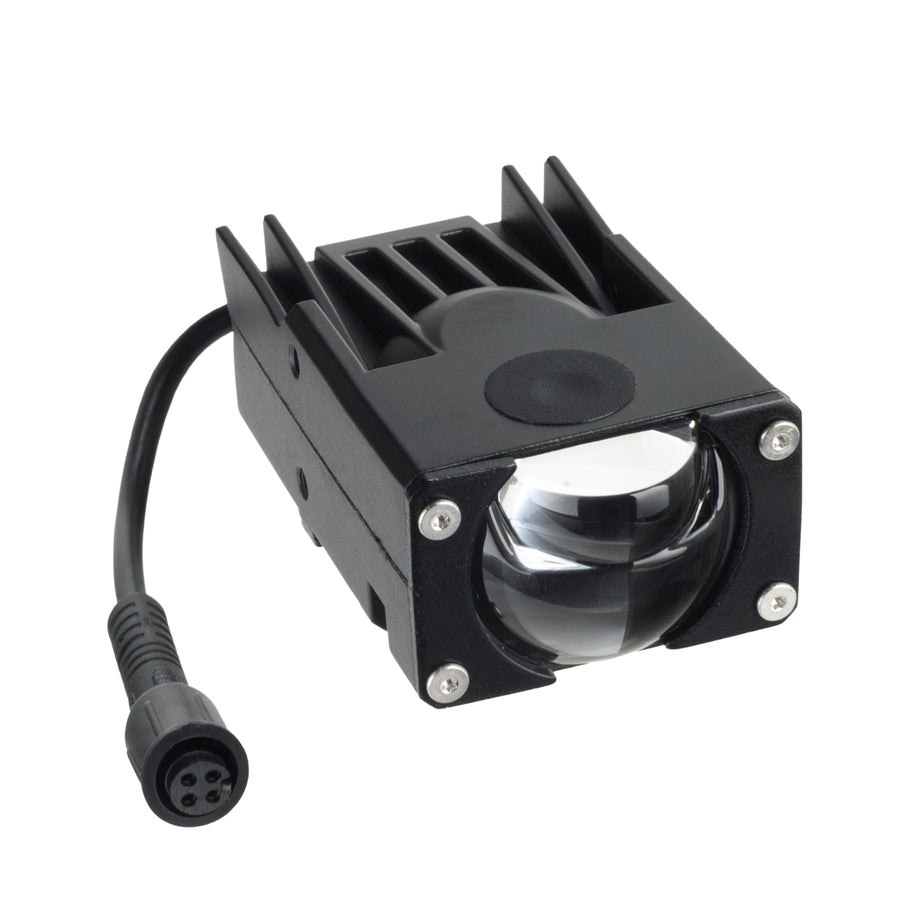

The ORACLE Lighting Mini Bi-LED Headlight Module is a compact, high-performance projector designed to deliver powerful illumination in a small, versatile form factor.
Engineered for universal fitment across a wide range of vehicles, this module combines advanced LED technology, precision optics, and rugged durability to provide both low and high beam functionality in a single unit.
Its integrated driver and wide voltage compatibility make it ideal for automotive, powersports, and utility applications where space, performance, and reliability are critical.
Bi-LED Functionality Integrated low beam and high beam in a single projector module
Sharp cutoff with wide, uniform beam distribution
Ultra-small footprint allows installation in tight housings
Ideal for custom retrofits and auxiliary lighting builds
45W LED power for strong, consistent illumination
Advanced optical lens for improved road visibility
Recommended use of 2-3 units per headlight
Operates on a wide voltage range of 9V-80V DC
Compatible with cars, trucks, powersports, and heavy equipment

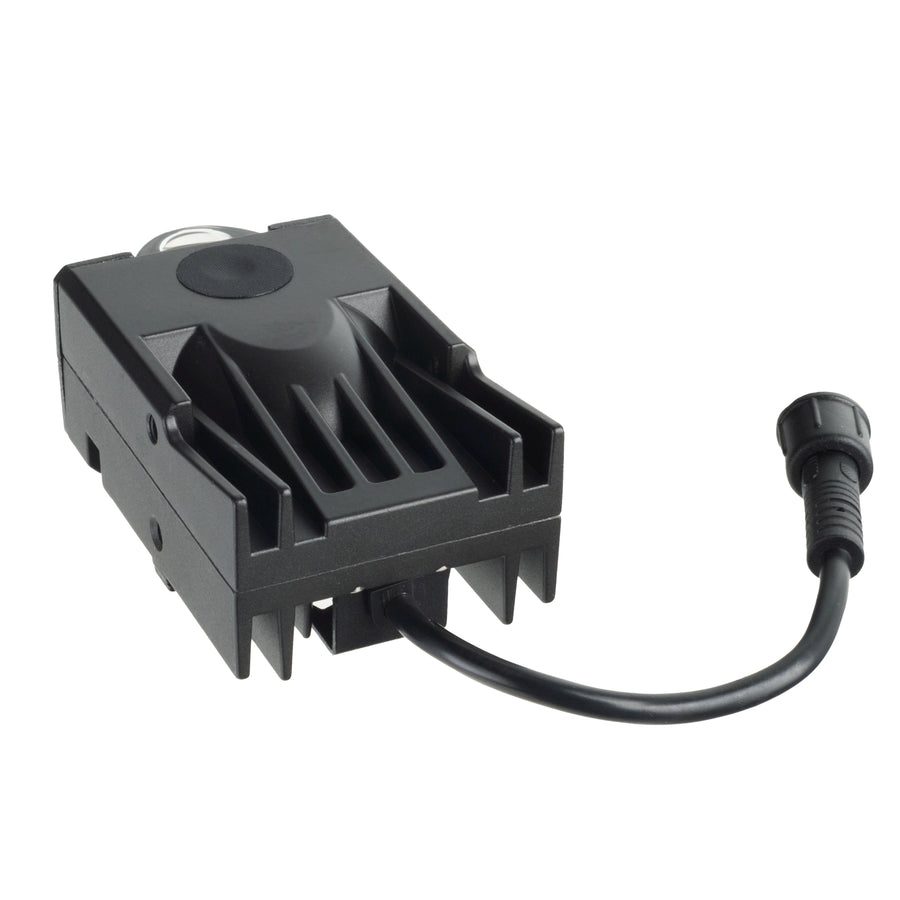

Built-in high-speed cooling fan helps maintain optimal operating temperatures
Aluminum housing functions as a heat sink for efficient heat dissipation
Extends LED lifespan and overall system reliability
Fully sealed housing protects against dust, water, and harsh environments
Designed for off-road, utility, and all-weather use
Balances internal and external humidity, temperature, and pressure
Helps reduce and vent condensation buildup inside the lens
The Mini Bi-LED projector is designed to provide both low and high beam functionality from a compact module, making it ideal for installations where space is limited but output and beam control still matter.
The low beam delivers a wide pattern with a sharp cutoff, while the high beam provides more focused forward throw for improved long-range visibility.
For best overall headlight performance in larger custom builds, ORACLE recommends using 2-3 modules per headlight.
Light Source: High-efficiency LED (3570 class)
Function: Bi-LED (Low Beam + High Beam)
Max Power Consumption: 45W
Operating Voltage: 9V-80V DC
Low Beam Pattern: Wide beam with sharp cutoff
High Beam Pattern: Focused beam with extended throw
Cooling System: Active + Passive
Housing Material: Aluminum Alloy
Design: Compact mini projector module
Mounting: Universal mounting compatibility
Waterproof Rating: IP67
Construction: Dustproof and water-resistant sealed housing
Warranty: 3 Year Warranty
Universal

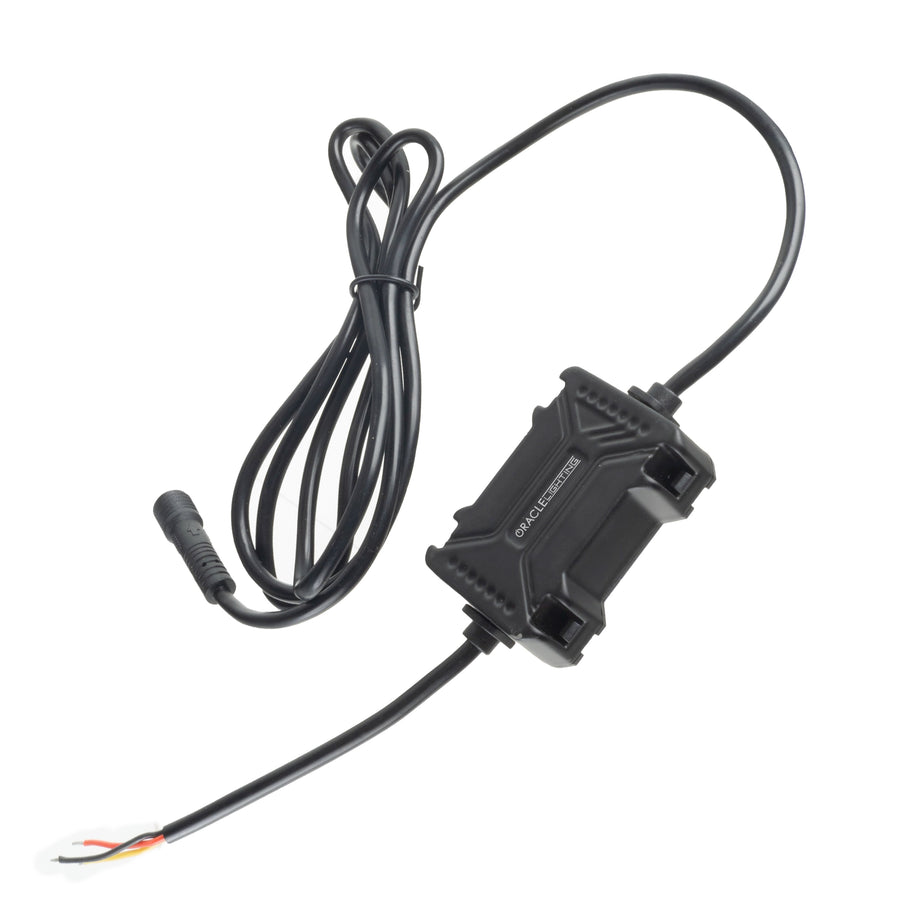

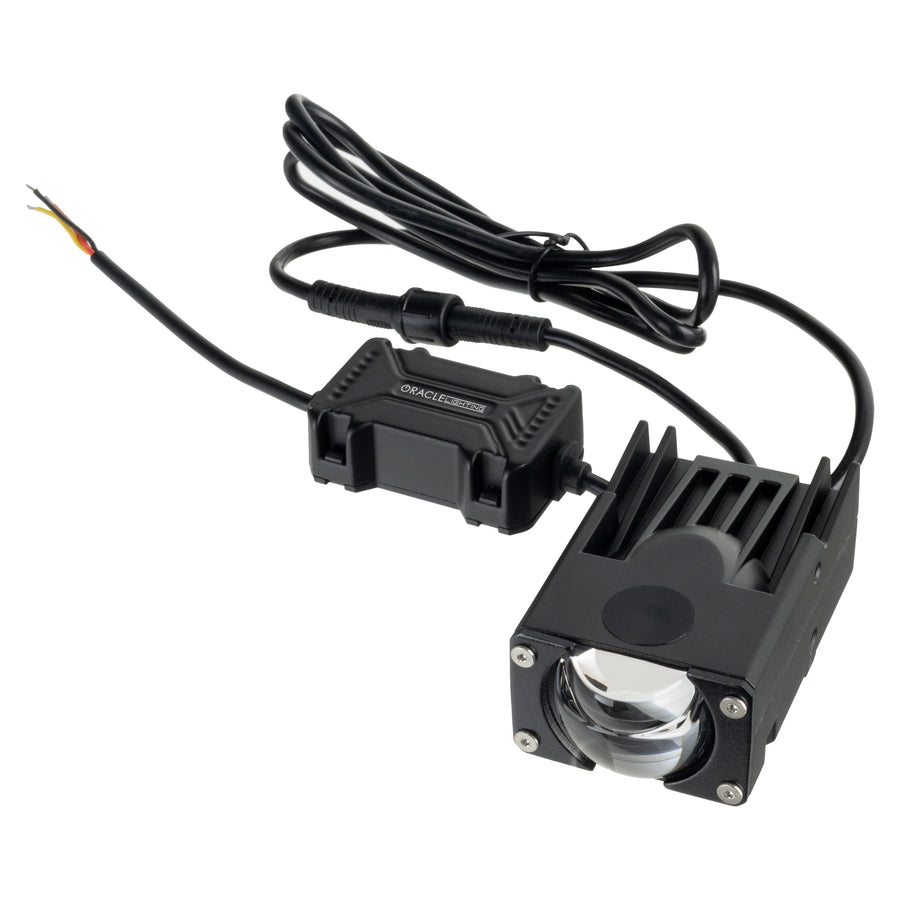

Installation is simplified by a pre-wired 3-wire setup:
Ground
LB+ (Low Beam Positive)
HB+ (High Beam Positive)

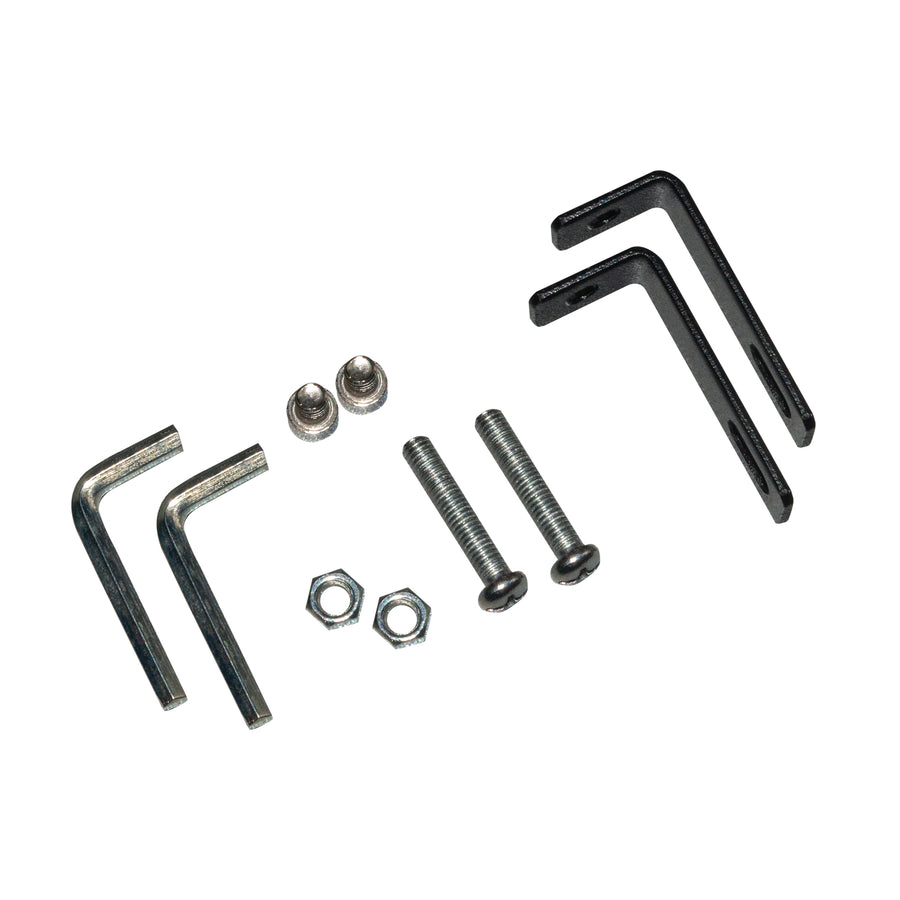

The universal mounting design allows this compact projector to be adapted into a wide range of custom headlight, powersports, and utility lighting applications.
Estimated Installation Time: 2+ hours Experience Level: Experienced
More involved mechanical or electrical work is expected. Professional installation may be appropriate.
