ORACLE Lighting Multifunction Reflector-Facing Technology LED Light Bars

Name: ORACLE Lighting Multifunction Reflector-Facing Technology LED Light Bars
Rating: 4.00 (1 reviews)

Ultra-slim, patent-pending RFT (Reflector Facing Technology) LED light bars engineered for long-range driving beam performance with integrated amber/white clearance lighting, versatile mounting, and efficient thermal management.

$224.50

SKU: 5900-14-023

Size: 14"

14"

20"

30"

50"

Increments of 1 Minimum of 1 Maximum of

Product Overview

Using the latest RFT (Reflector Facing Technology) optics to optimize LED efficacy, the ORACLE 5900 Series LED Light Bars stand apart from traditional light bars with a patent-pending design focused on performance, fitment flexibility, and modern styling.

The ultra-slim housing makes mounting easier in a wider range of applications, while the included heavy-duty brackets provide versatile installation options where bulkier bars may not fit.

Integrated amber and white LED clearance lights add marker/running light functionality for enhanced visibility, while the RFT optic system delivers an effective range of up to 2000 feet at 1 lux.

Patent-pending Reflector Facing Technology (RFT) optic system for optimized LED efficacy
Ultra-slim housing for easier mounting and fitment in tight spaces
Dual heavy-duty mounting brackets for versatile installation options
Electronic Thermal Management (EMT) for improved reliability and performance
Integrated amber and white LED clearance lights for DRL/marker light functionality
4-pin Deutsch waterproof connector
40 degree driving beam angle
5500K-6000K color temperature
Up to 18,000 raw lumens (50" model)
Effective range up to 2,000 feet at 1 lux
Certifications: ECE R10, CE, RoHS

All 5900 Series bars feature a 40 degree driving beam and integrated amber/white clearance lighting.

5900-14-023 | 14"

Raw / Effective Lumens: 6,400 / 5,400
Peak Intensity: 159,000 cd
Total Power: 64W
Amp Draw: 4A @ 12V DC
Max Projection: 1 Lux @ 399m (~1,309 ft)

5900-20-023 | 20"

Raw / Effective Lumens: 12,000 / 9,600
Peak Intensity: 273,000 cd
Total Power: 120W
Amp Draw: 7.6A @ 12V DC
Max Projection: 1 Lux @ 522m (~1,713 ft)

5900-30-023 | 30"

Raw / Effective Lumens: 14,400 / 11,500
Peak Intensity: 342,000 cd
Total Power: 144W
Amp Draw: 9.2A @ 12V DC
Max Projection: 1 Lux @ 585m (~1,919 ft)

5900-50-023 | 50"

Raw / Effective Lumens: 18,000 / 14,200
Peak Intensity: 420,000 cd
Total Power: 240W
Amp Draw: 14.5A @ 12V DC
Max Projection: 1 Lux @ 648m (~2,126 ft)

Universal fitment - compatible with most vehicles using standard light bar mounting hardware. Includes dual heavy-duty mounting brackets for versatile installation.

1x ORACLE 5900 Series RFT LED Light Bar (size per selection)
Dual heavy-duty mounting brackets
4-pin Deutsch waterproof wiring connector

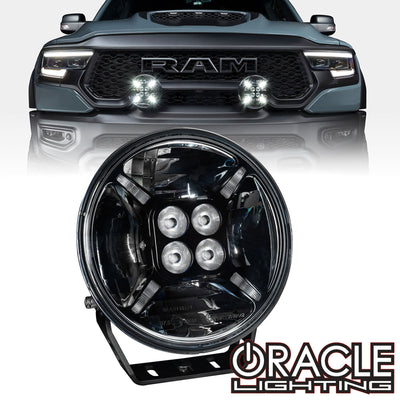

7" Multifunction 60W Round LED Spotlight - Post Mount

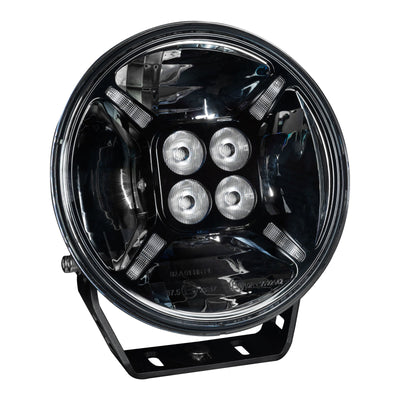

7" Multifunction LED Spotlight turned off

5900-14-023 - 14" Light Bar
5900-20-023 - 20" Light Bar
5900-30-023 - 30" Light Bar
5900-50-023 - 50" Light Bar

Installation Guide

ORACLE Lighting Multifunction Reflector-Facing Technology LED Light Bars

View User Guide

Warranty Policy

Returns & Exchanges

Shipping Policy

Why Oracle?

All of our products are engineered and designed right here in Metairie, Louisiana. With over 15 years of experience building lighting for the automotive aftermarket, we control every step of the process - from R&D to final assembly - so you're getting a part built to a standard, not just a spec sheet.

Whether it's an install question, a fitment question, or you just want a second opinion before you order - pick up the phone and talk to someone who actually knows the product. No call centers, no scripts. Just people who know Jeeps, Broncos, Tacomas, and trucks as well as you do.

We don't make one-size-fits-all lighting. Every product is engineered around the specific fitment, electronics, and driving demands of the platform it's built for - so what you install is what was designed for your vehicle from day one.

Before anything ships, it's been run through real-world abuse - mud, vibration, weather, and mileage - not just a bench test. If it can't survive the trail or the daily commute, it doesn't make it to your truck.

We stand behind what we build. Every Oracle product ships with a manufacturer warranty and a team that actually honors it - because a good part with no support isn't a good deal.

Orders ship quickly from our Metairie facility, with tracking sent the moment your parts are on their way - so you know exactly when to expect them, every time.

5 stars: 0 (0%)
4 stars: 1 (100%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

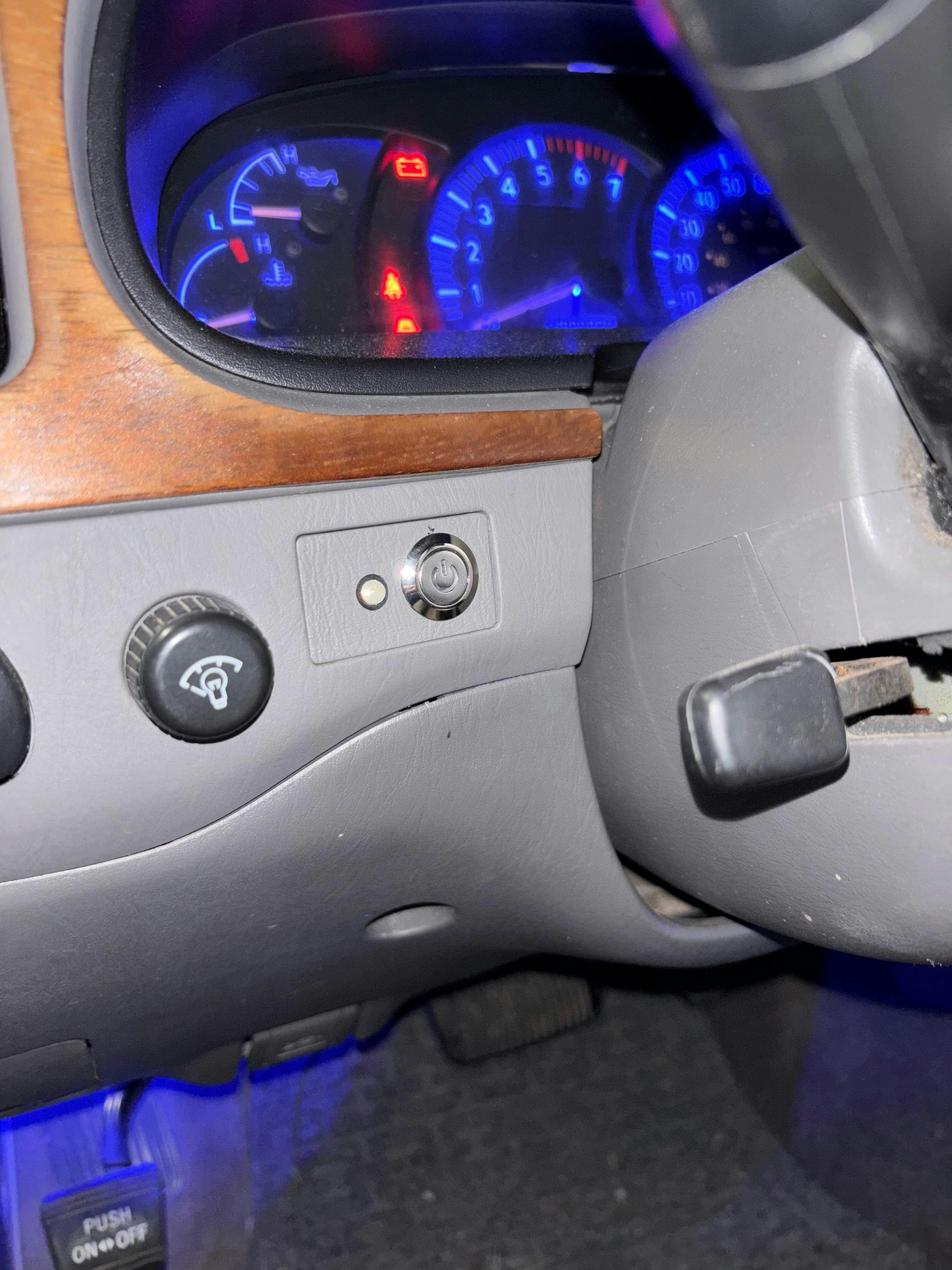

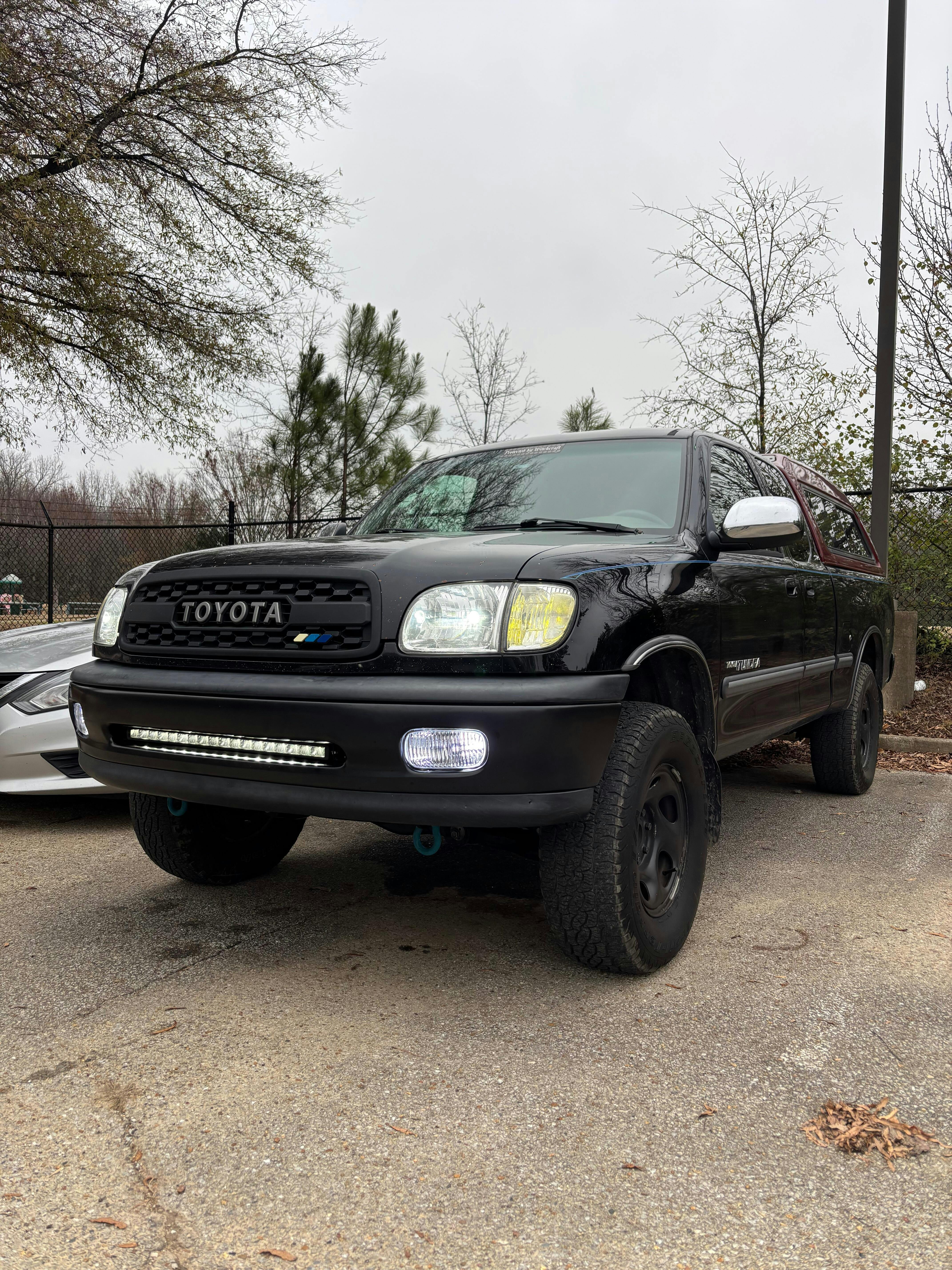

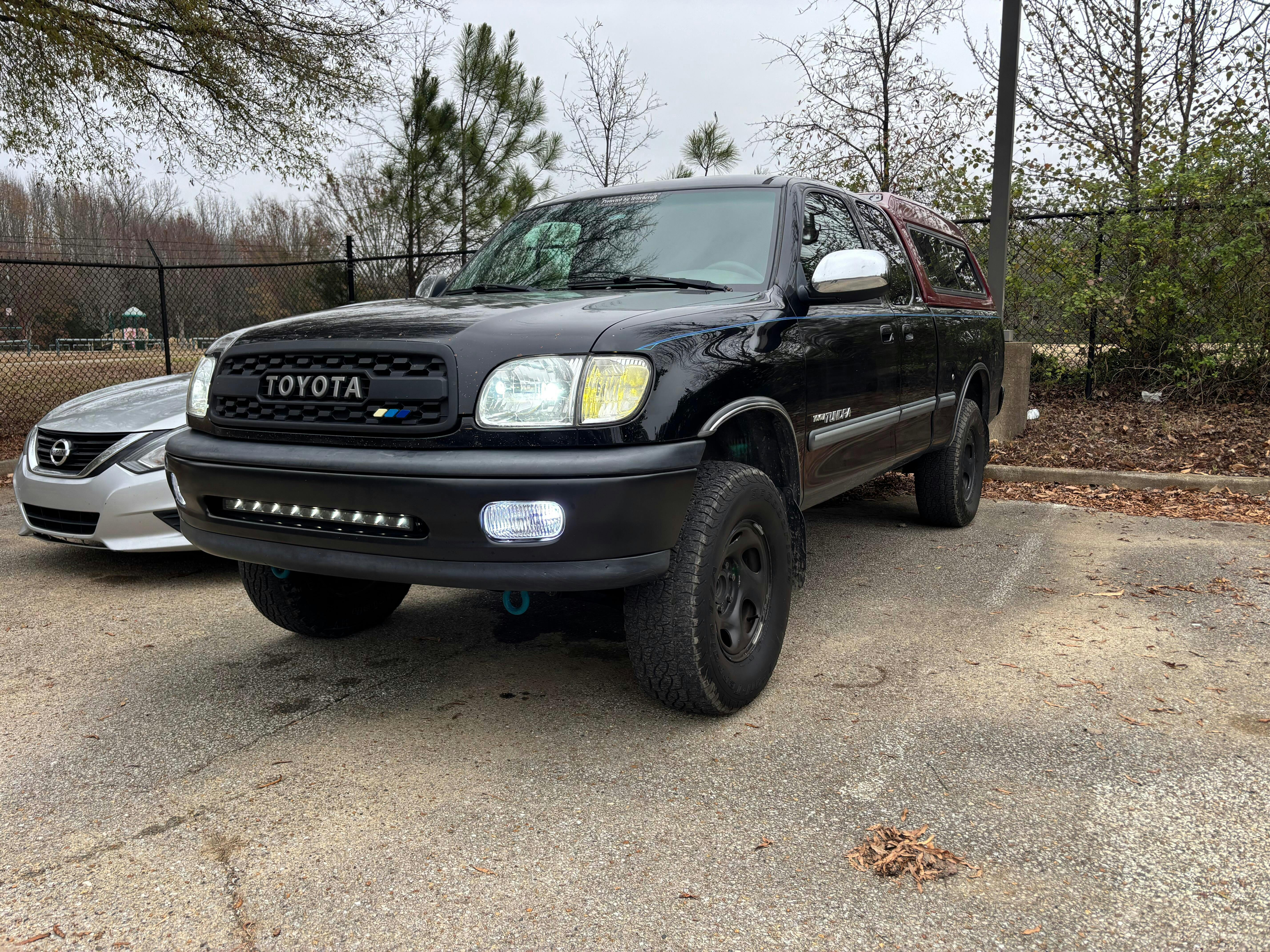

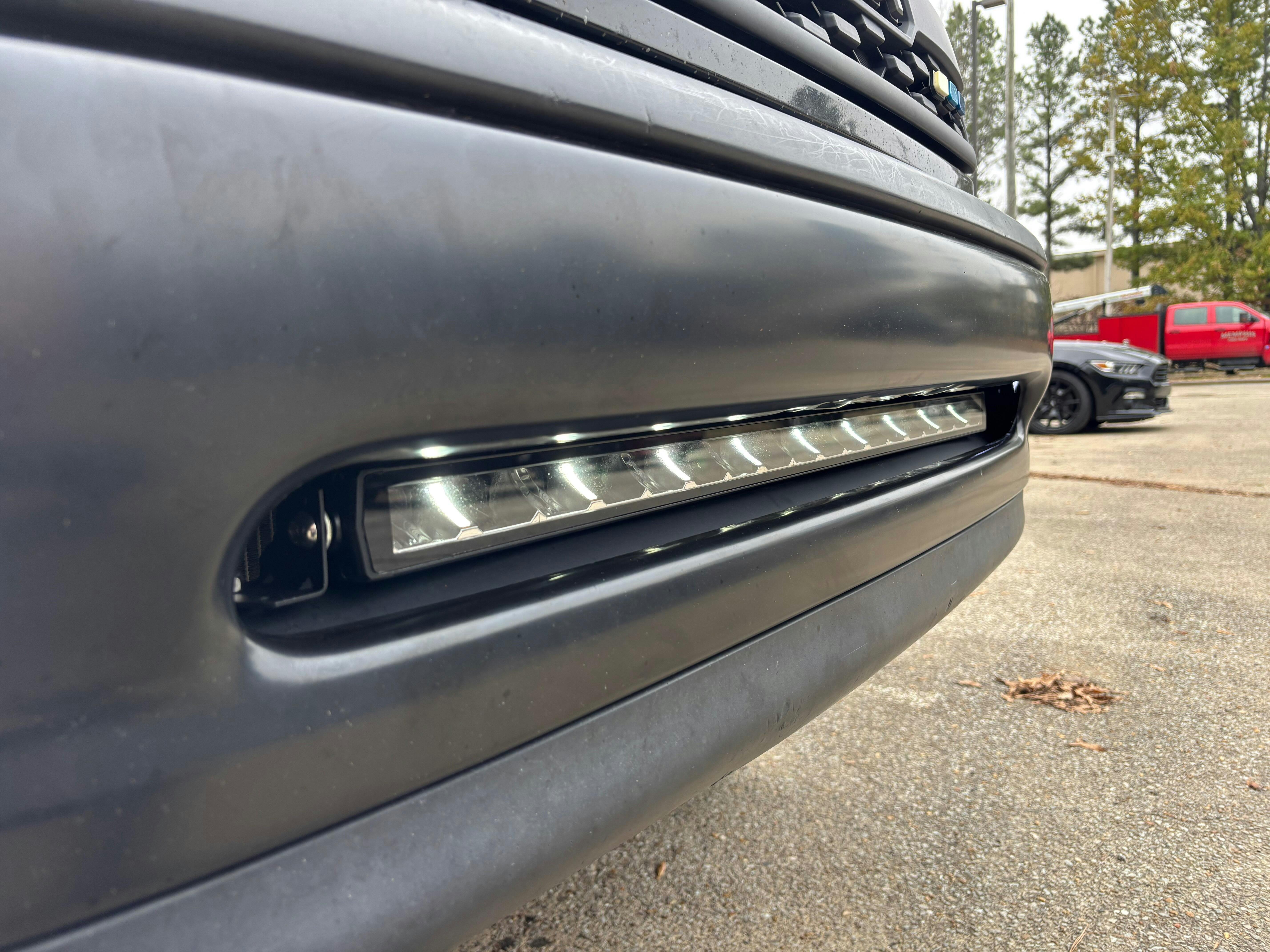

30" light bar 2000 Toyota Tundra

Very happy with my purchase. Due to the slim area of my bumper where I installed my light I had to create my own brackets to have the light sit flush with the surface I was mounting too. Wish the L brackets provided had holes to allow for different mounting heights. Also my headlights and fog lights are a cooler light color, I think about 6000k, and this light bar and white DRL are 5000k. Not a big deal, would be nice if this info was included in the description. Used a wire harness suggested by the rep I chatted with and it worked without a problem. Chose one of the lighted switches from the website and like the way it looks and functions. Overall love the product and install was easy if you're comfortable with wiring.
