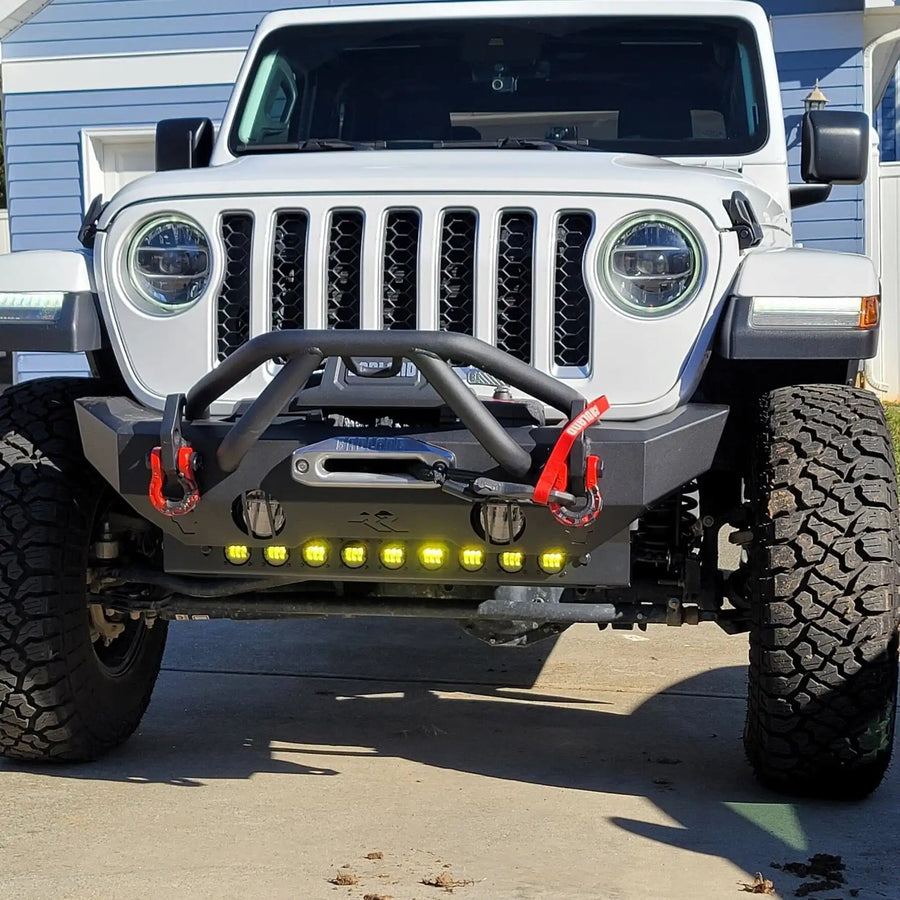

Front end of a white Jeep with LED Integrated Skid Plate installed.

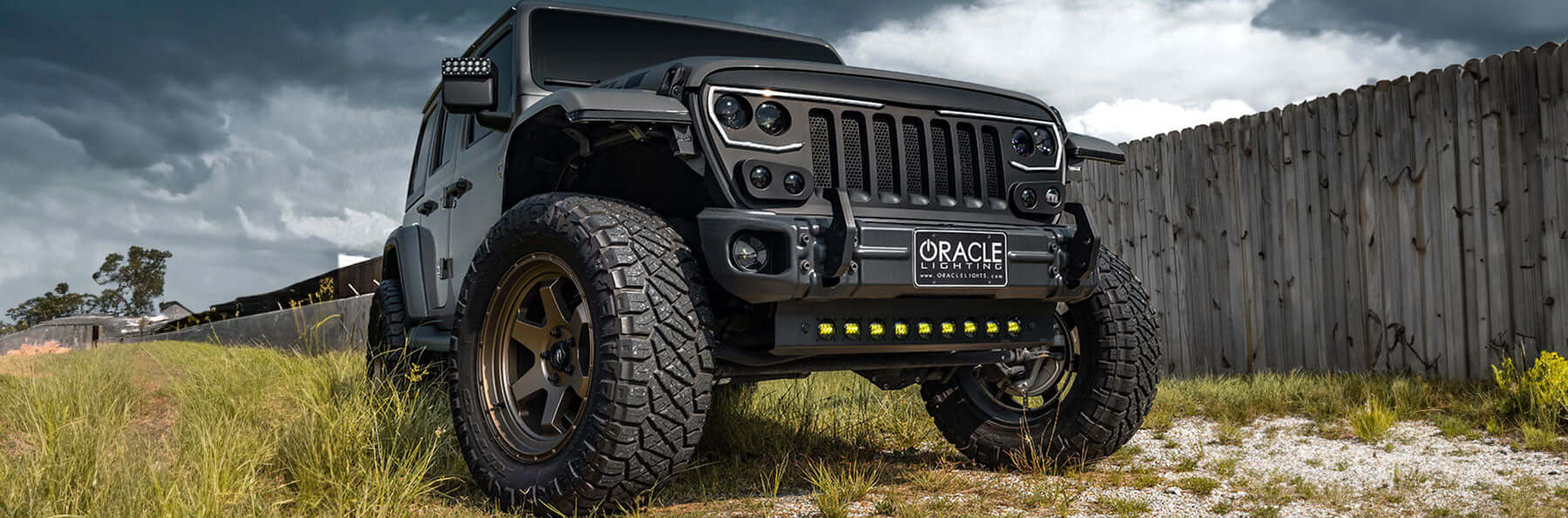

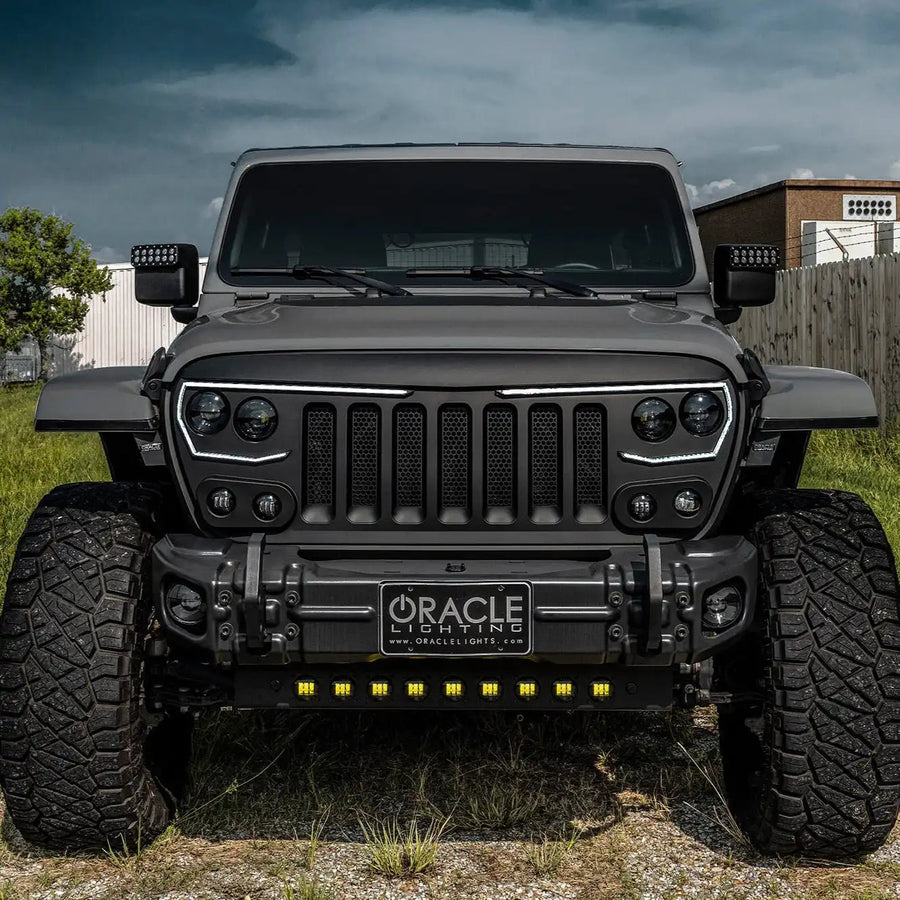

A Jeep parked in the grass, equipped with LED Integrated Skid Plate and Vector Grill.

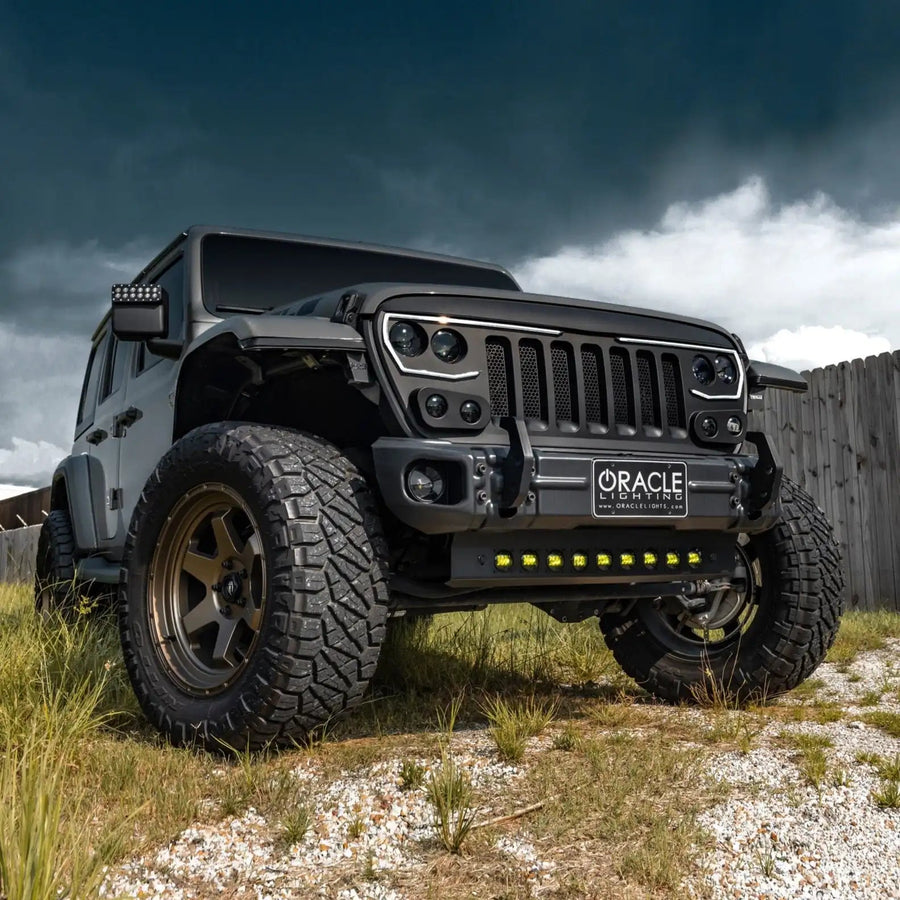

Low aggressive shot of a Jeep parked in the grass, equipped with LED Integrated Skid Plate and Vector Grill.

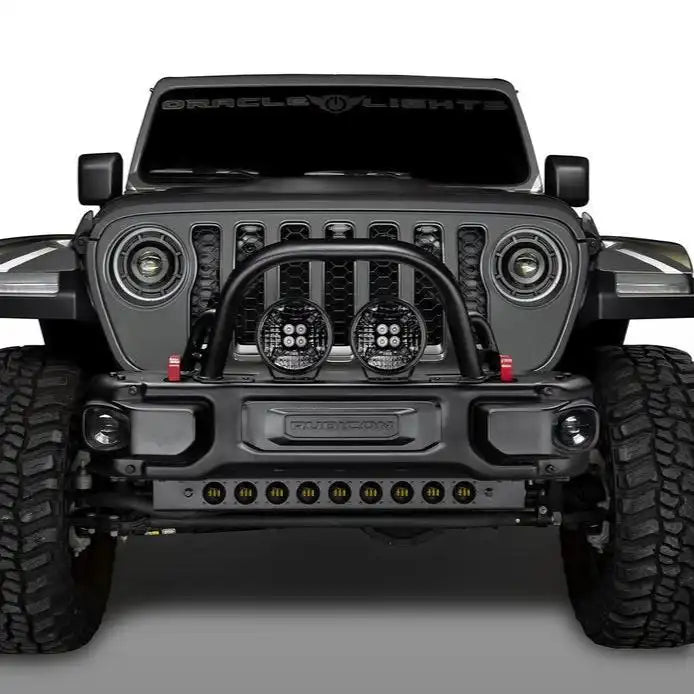

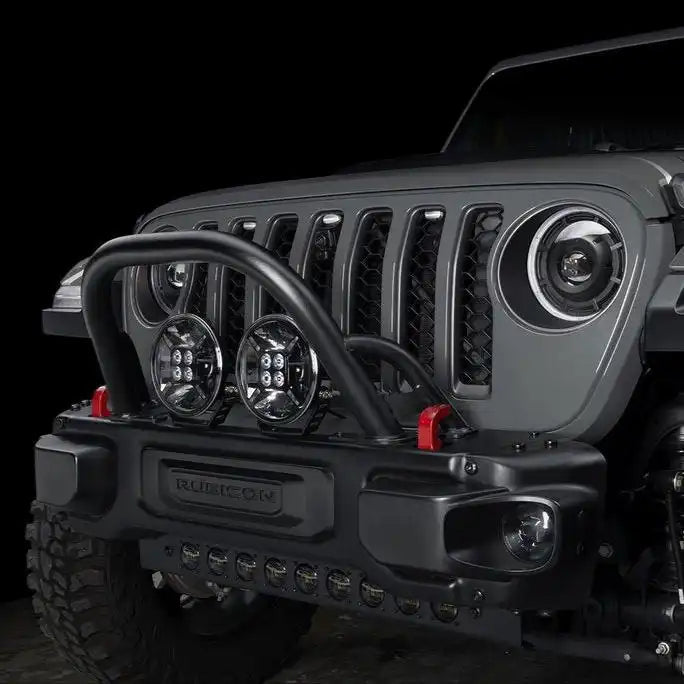

Front end of a Jeep with multiple ORACLE Lighting products installed, including LED Integrated Skid Plate, Oculus Headlights, and 9" Spotlights.

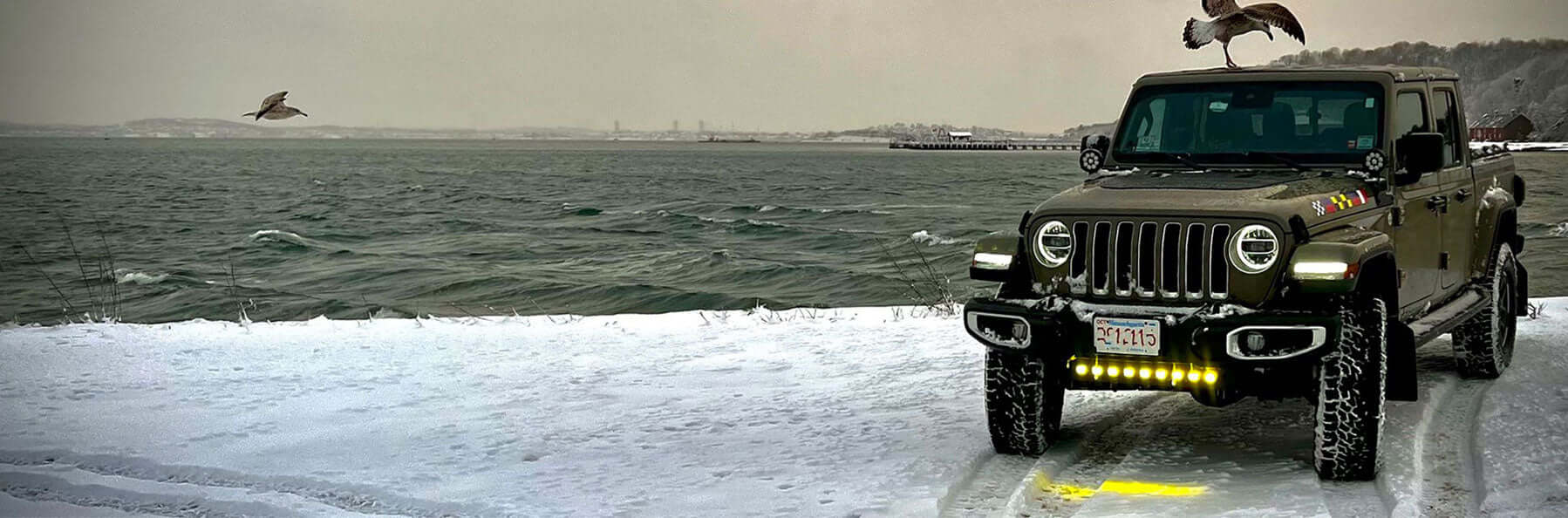

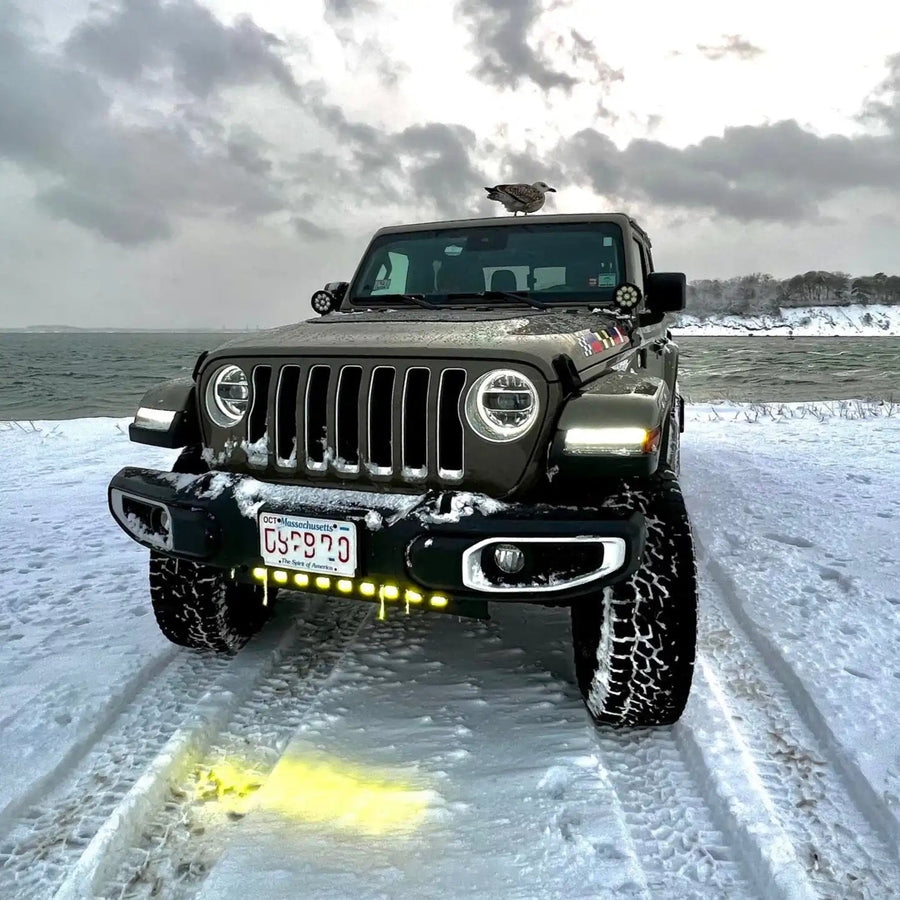

A Jeep parked in the snow, with LED Integrated Skid Plate installed and shining yellow light.

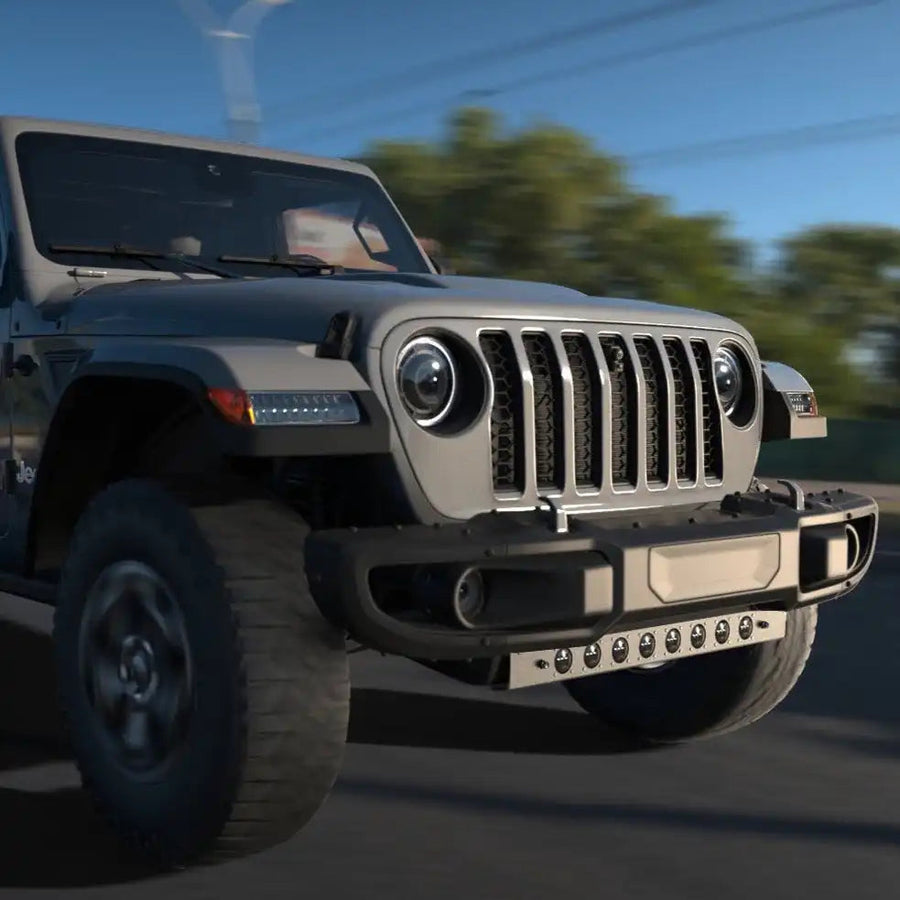

Rendering of a Jeep driving down the road, equipped with Oculus Headlights and LED Integrated Skid Plate.

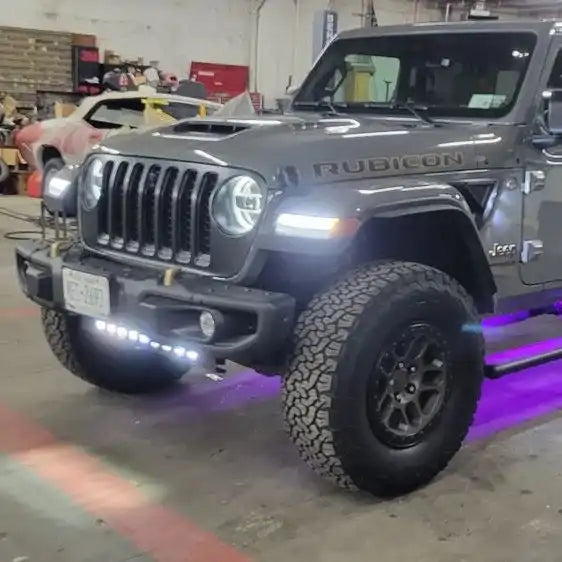

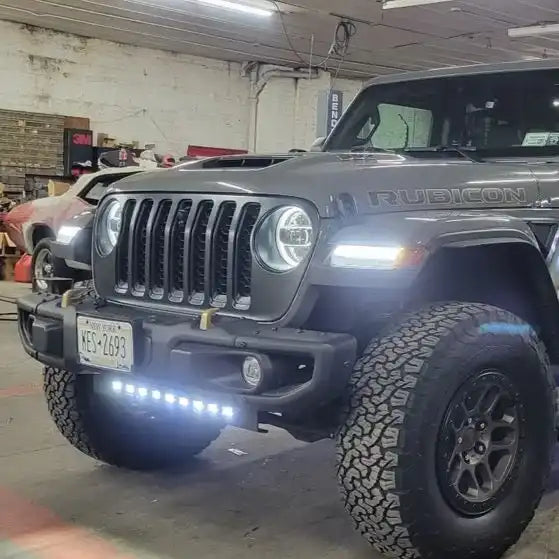

Jeep parked in a garage with multiple lighting products installed and turned on.

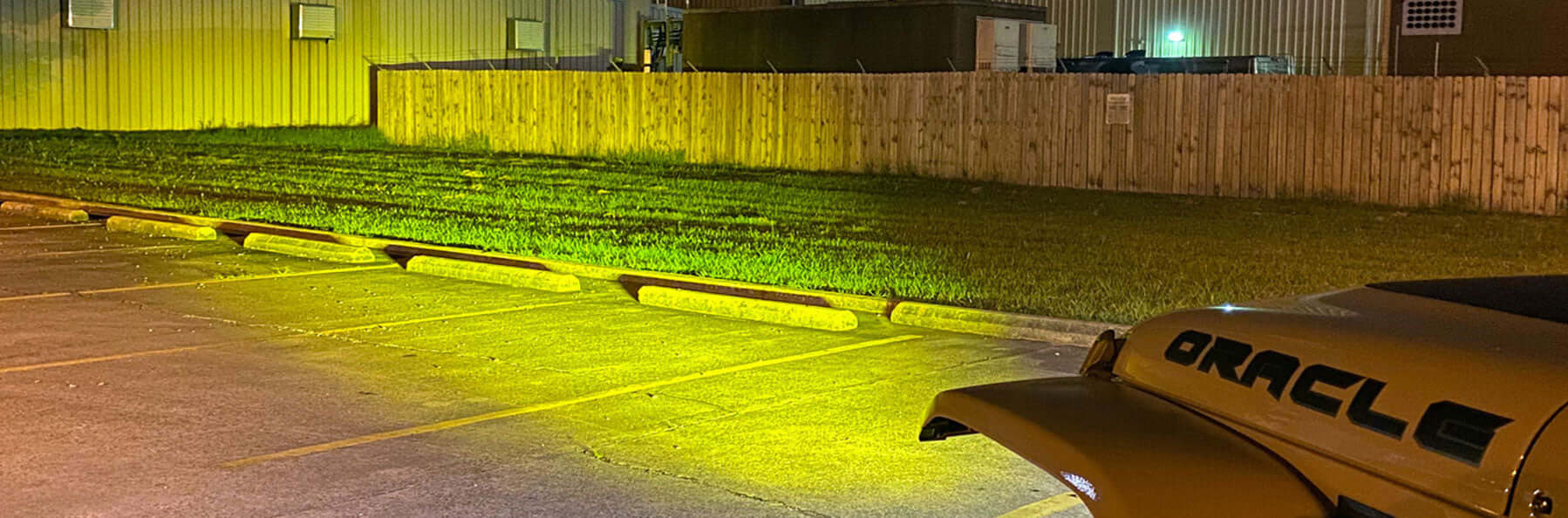

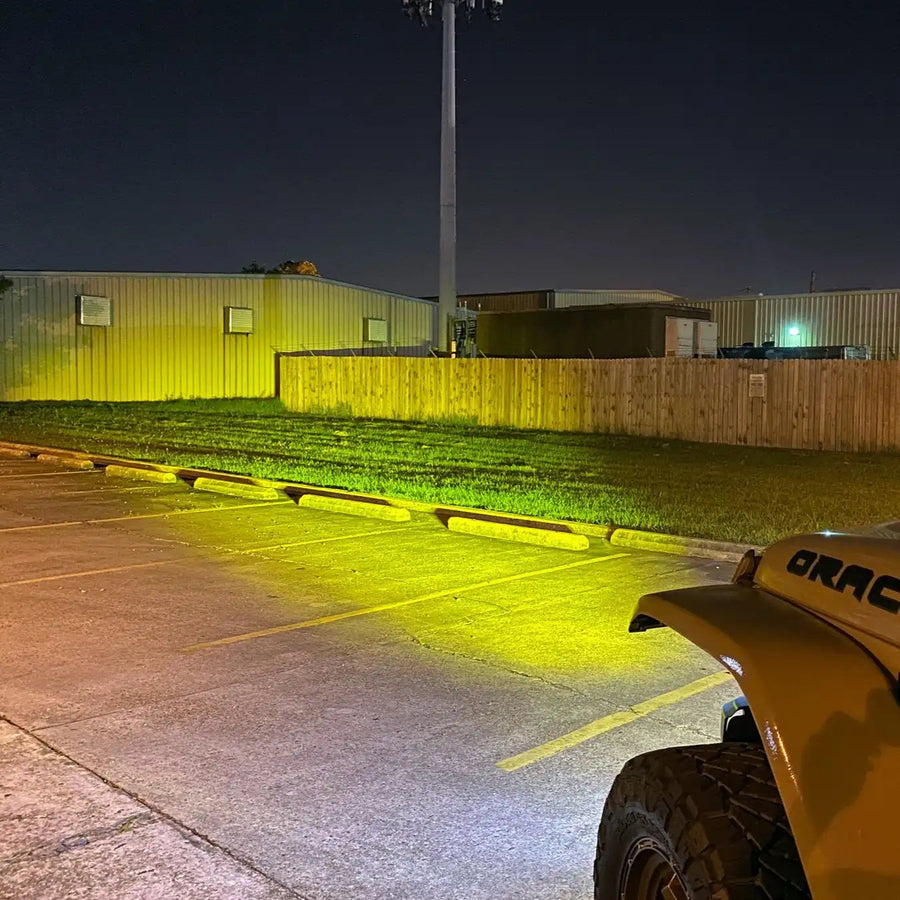

View from the driver's side of a Jeep, showing the light beam from the LED Integrated Skit Plate shining into the distance.

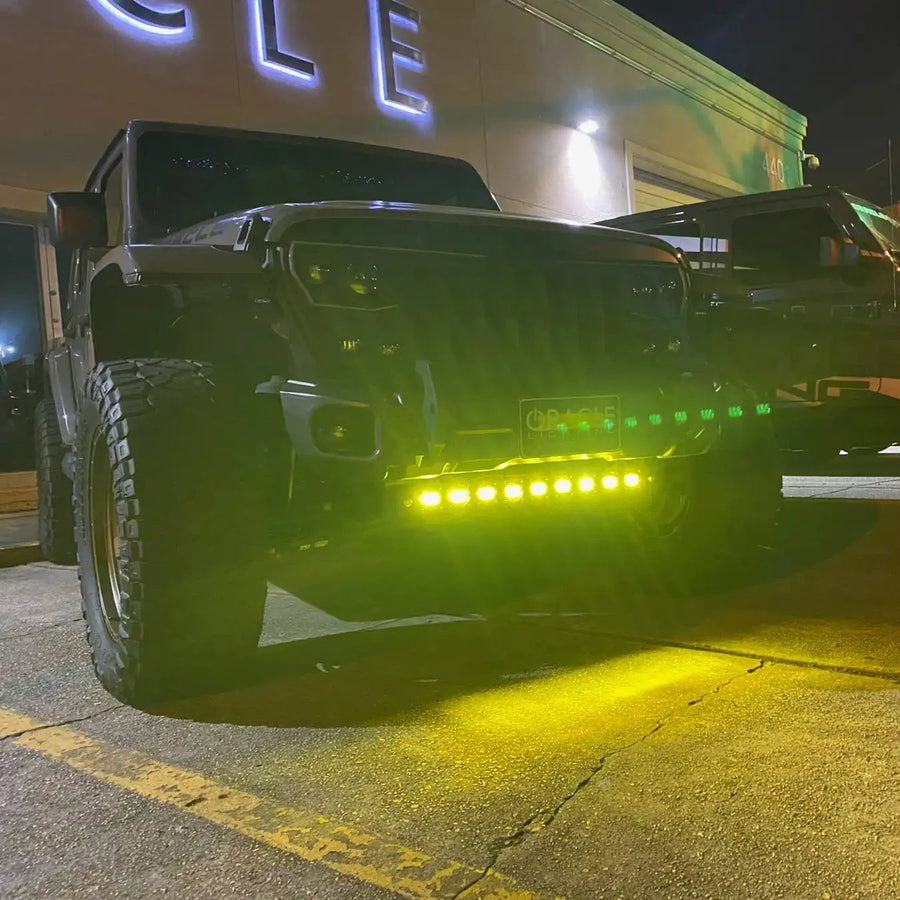

Front view of a Jeep Wrangler in a parking lot, with LED Integrated Skid Plate turned on, shining yellow LEDs.

Rendering of a red Jeep Wrangler with LED Integrated Skid Plate installed, with white LEDs.

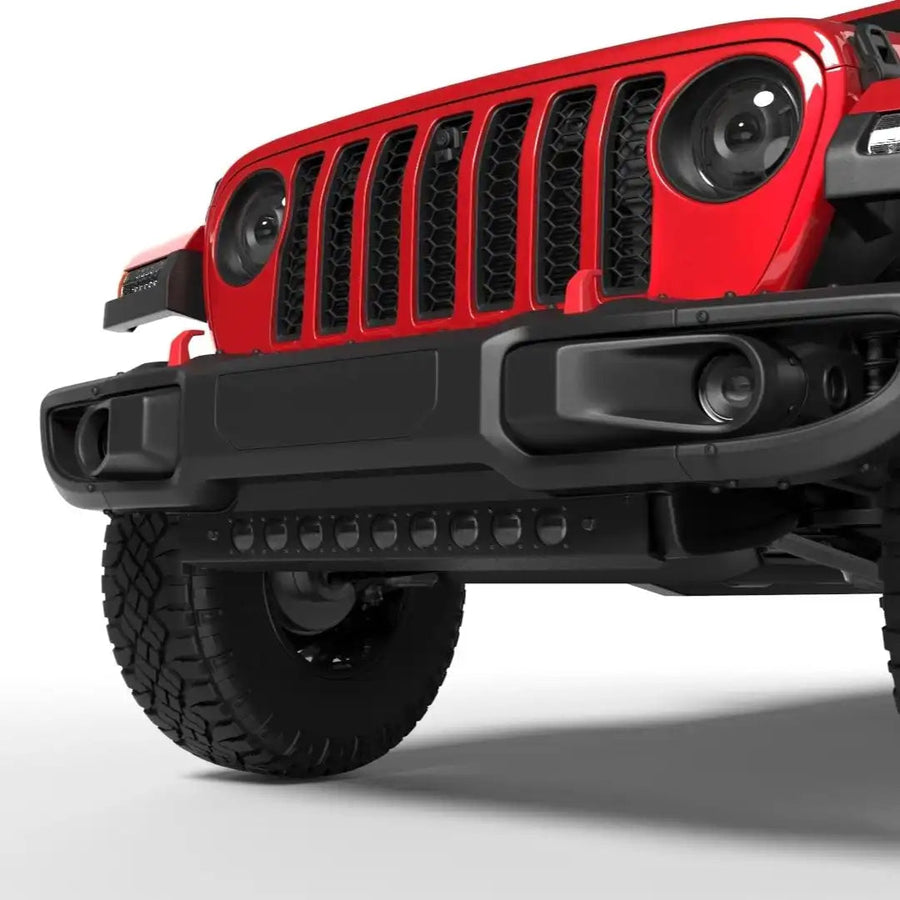

Rendering of a red Jeep Wrangler with LED Integrated Skid Plate installed, with yellow LEDs.

Close up of skid plate installed on jeep

FREE SHIPPING OVER $100 1 YEAR WARRANTY FAST CUSTOMER SERVICE

ORACLE Lighting Skid Plate with Integrated LED Emitters for Jeep Wrangler JL and Gladiator JT

Name: ORACLE Lighting Skid Plate with Integrated LED Emitters for Jeep Wrangler JL and Gladiator JT
Rating: 4.67 (6 reviews)

$615.99

SKU: 5883-001

Select Emitter Color: White LED Emitters

White LED Emitters

Amber LED Emitters

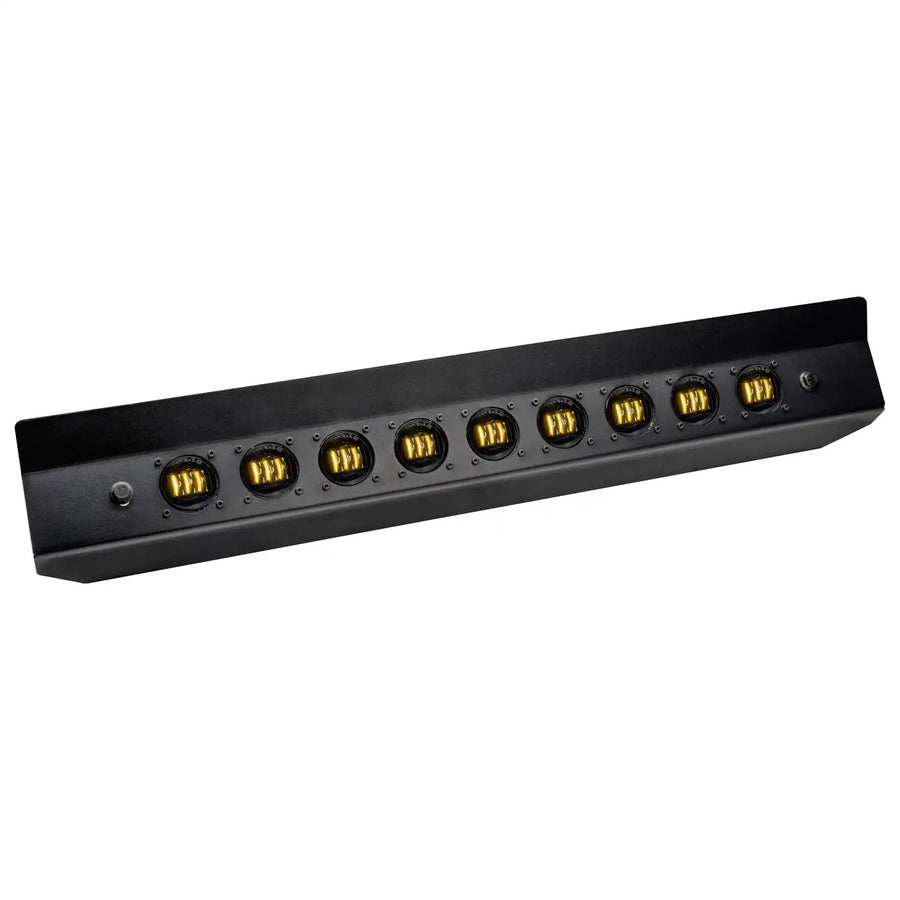

Yellow LED Emitters

Increments of 1 Minimum of 1 Maximum of

Product Overview

The ORACLE Skid Plate with Integrated LED Emitters is an innovative two-in-one product that adds durable underbody protection for your Jeep's sway bar and steering box while integrating high-powered LED lighting for improved trail and road visibility.

Formed from a 3/16" steel plate with a satin black powdercoat finish, this skid plate is built to take a beating. The 9× high-output 15W LED modules feature precision optics for a focused 30° beam width and are rated IP68 for full ingress protection - rugged enough for any terrain. Each module can be individually replaced for long-term peace of mind.

Installation is a simple no-drill process with all necessary hardware included. The included switched relay wiring harness makes wiring easy, with a dedicated switch for on/off operation or direct connection to the factory AUX switches on equipped Jeeps.

Mojave Gladiator: Shock reservoir relocation is required for Gladiator JT Mojave models.

Shipping: Due to the size and weight of this item, it is not eligible for any free shipping promotions .

Bumper Compatibility: Designed to work with the factory-style Jeep bumper. May work with many aftermarket bumpers, but ORACLE Lighting does not guarantee fitment with aftermarket winch or bumper configurations.

3/16" Steel Plate Construction - satin black powdercoat finish; heavy-duty underbody protection
9× High-Output 15W LED Modules - 135W total; 9,000 lumens of precision-focused light
30° Beam Width - advanced optic design for optimal forward and trail illumination
IP68 Ingress Protection - fully sealed against dust and water immersion
DOT, SAE & E9 Marked - meets international lighting compliance standards
Individually Replaceable Modules - replace a single emitter without replacing the entire unit
No-Drill Installation - all mounting hardware included
Switched Relay Wiring Harness - included; dedicated on/off switch or AUX switch compatible
Factory AUX Switch Compatible - integrates with equipped Jeep JL/JT AUX switch panels
1-Year Warranty - backed by ORACLE Lighting

LED Modules: 9× High-Output 15W
Total Wattage: 135W
Total Lumens: 9,000 lm
Power Draw: 6A @ 12V DC
Beam Width: 30°
Optics: Advanced LED Optic Design
IP Rating: IP68
Compliance: DOT, SAE & E9 Marked
Plate Material: 3/16" Steel
Finish: Satin Black Powdercoat
Emitter Colors: White, Amber, Yellow
Module Replacement: Individually Replaceable
Installation: No-Drill; Hardware Included
Wiring: Switched Relay Harness + AUX Switch Compatible
Warranty: 1 Year

Fits: Jeep Wrangler JL and Gladiator JT

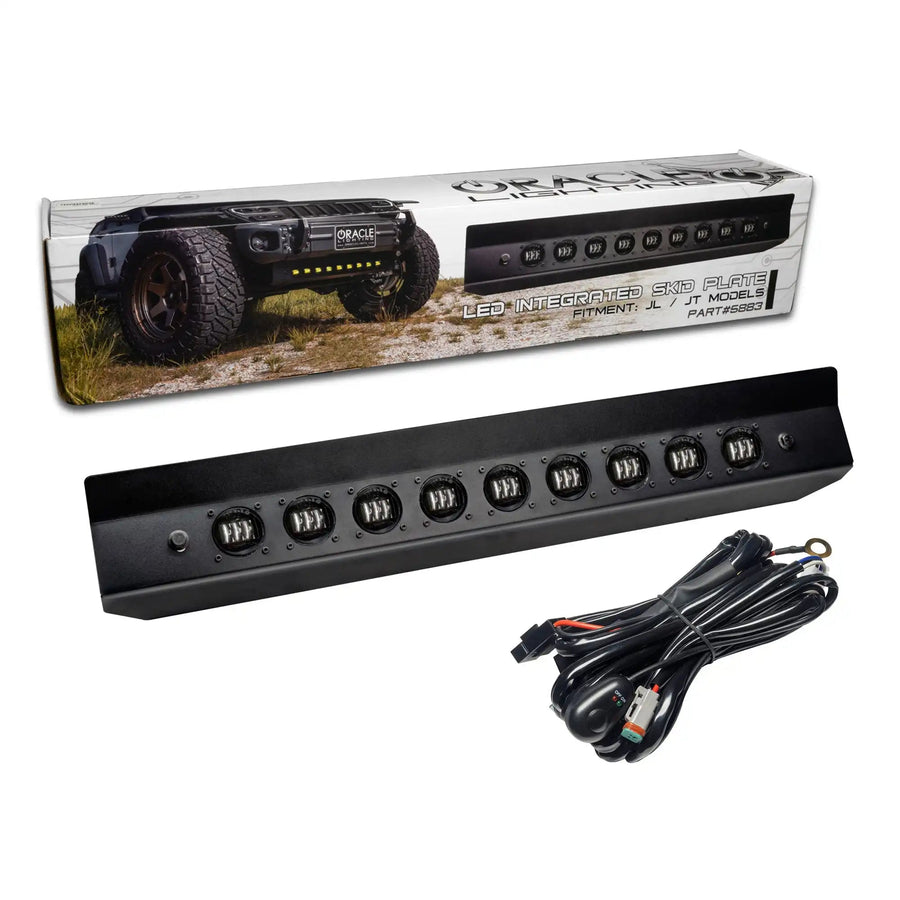

Skid Plate Lighting System
Switched Relay Wiring Harness (with on/off switch)
Mounting Hardware

Warranty Policy

Returns & Exchanges

Shipping Policy

Installation Guide

ORACLE Lighting Skid Plate with Integrated LED Emitters for Jeep Wrangler JL and Gladiator JT

No-drill installation - all mounting hardware included. Connect to the included switch or factory AUX switch panel on equipped Jeeps.
📄 Install Guide (PDF) 📄 Dimensions (PDF)
Wiring Harness Diagram:
Factory AUX Switch Connection Diagram:

View Installation Guide View Installation Guide

Why Oracle?

All of our products are engineered and designed right here in Metairie, Louisiana. With over 15 years of experience building lighting for the automotive aftermarket, we control every step of the process - from R&D to final assembly - so you're getting a part built to a standard, not just a spec sheet.

Whether it's an install question, a fitment question, or you just want a second opinion before you order - pick up the phone and talk to someone who actually knows the product. No call centers, no scripts. Just people who know Jeeps, Broncos, Tacomas, and trucks as well as you do.

We don't make one-size-fits-all lighting. Every product is engineered around the specific fitment, electronics, and driving demands of the platform it's built for - so what you install is what was designed for your vehicle from day one.

Before anything ships, it's been run through real-world abuse - mud, vibration, weather, and mileage - not just a bench test. If it can't survive the trail or the daily commute, it doesn't make it to your truck.

We stand behind what we build. Every Oracle product ships with a manufacturer warranty and a team that actually honors it - because a good part with no support isn't a good deal.

Orders ship quickly from our Metairie facility, with tracking sent the moment your parts are on their way - so you know exactly when to expect them, every time.

5 stars: 4 (67%)
4 stars: 2 (33%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Mojave JT w/reservoirs

Very nice product, but running into fitment issues with reservoir brackets on Mojave.

Thanks for the feedback, and we’re glad to hear you like the skid plate overall. Our customer service team will be reaching out to you shortly to take a closer look and help get this sorted out.

Great so far.

Installed with DV8 Jeep JL steel 3 pc winch bumper. Had to trim a half inch from both ends under the bumper to fit the length of the oracle skid plate. Only other issue was Oracle does not give instructions to wire to factory aux switch. Simple to do though, just cut the wires coming from the skid plate (red and black), then red wire to jeep aux harness and black to ground. You can use rest of oracle harness with relay and switch you cut off for another project. Provides more light than I thought and really looks good.

Good customer service

Customer Service Second to None
Fast response. Companies can learn from this team

Very stealthy look , very easy install

Total time start to finish 20 minutes . Excellent fit . Looks factory . Another excellent product from Oracle .
Thanks for making such good stuff.

Very Bright

Working in the 4x4/overlanding industry & being a long time enthusiast ... I like to try out new products on my vehicles before offering them to clients. I was so impressed with the Oracle Side Tracker LED's for my Gladiator and Wrangler's that I did not hesitate to purchased the Skid Plate Lightbar (Amber) for my 392 XR. It is perfect for both on/off road situations.

Great but not

Great light. High output is awesome. Install was a breeze,BUT, the wire harness is way to short to run the switch into the cab, really?. Going to have to run my own switch.
