ORACLE Single Channel Multifunction Remote
ORACLE Part # 1701-504
A small sized wireless remote that packs a lot of power to control your 12V ORACLE LED Products. Designed to control Single Color LED lighting accessories with a variety of functions; can also operate with Home-Link Technology.
Note* Controller can be mounted inside or outside of the vehicle’s cabin.
• Input: 12V DC
• Output: 60W (30W/ Channel)
• Remote Material: Stainless Steel
• Box Material: Anodized Aluminum
• Mount Box in a Cool /Dry Location.
• Extend Antenna Wire for Best Reception

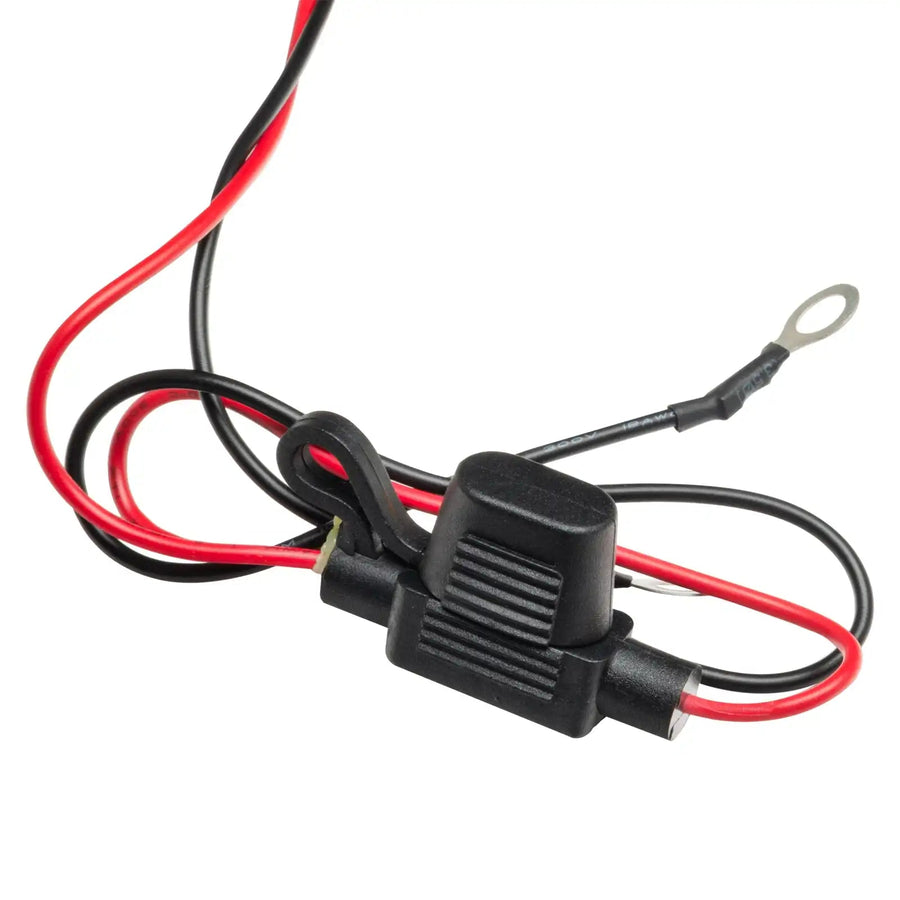

• Remove Fuse While Installing.

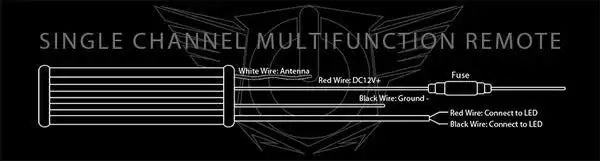

• Output w/ Red Line is (+) 12V
• 1 Year Manufacturer Warranty
A) On/Off Function
B) Dimmer Function
C) Strobe Function
D) Sweep Function

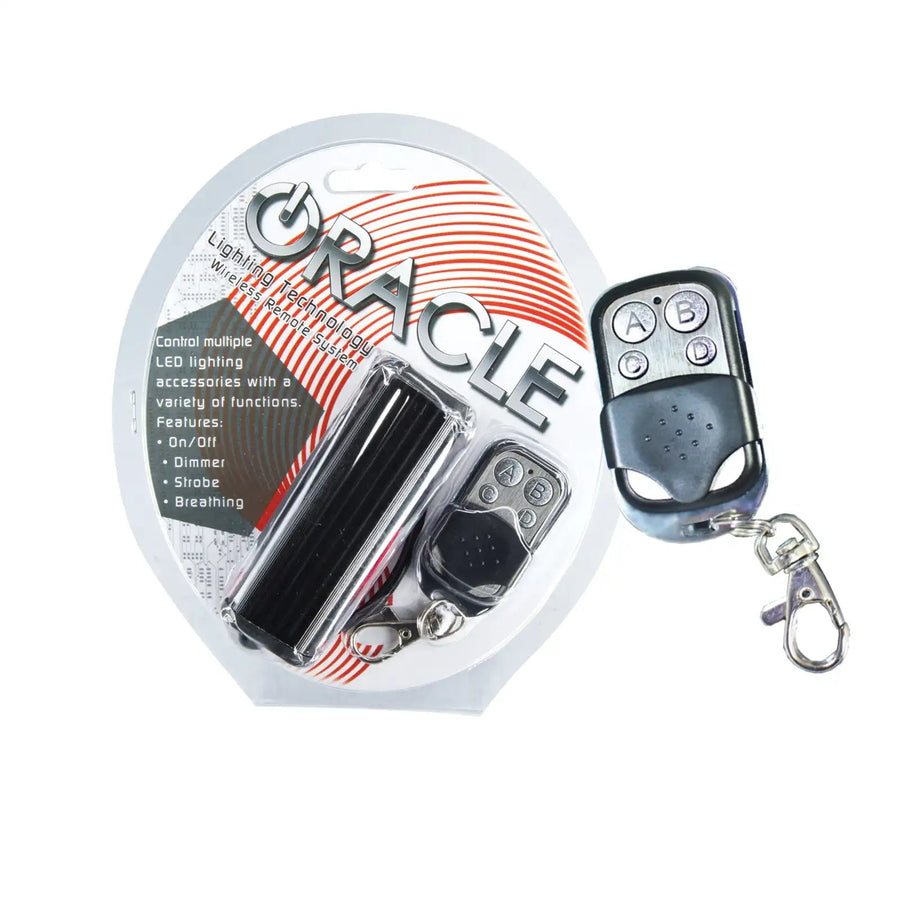

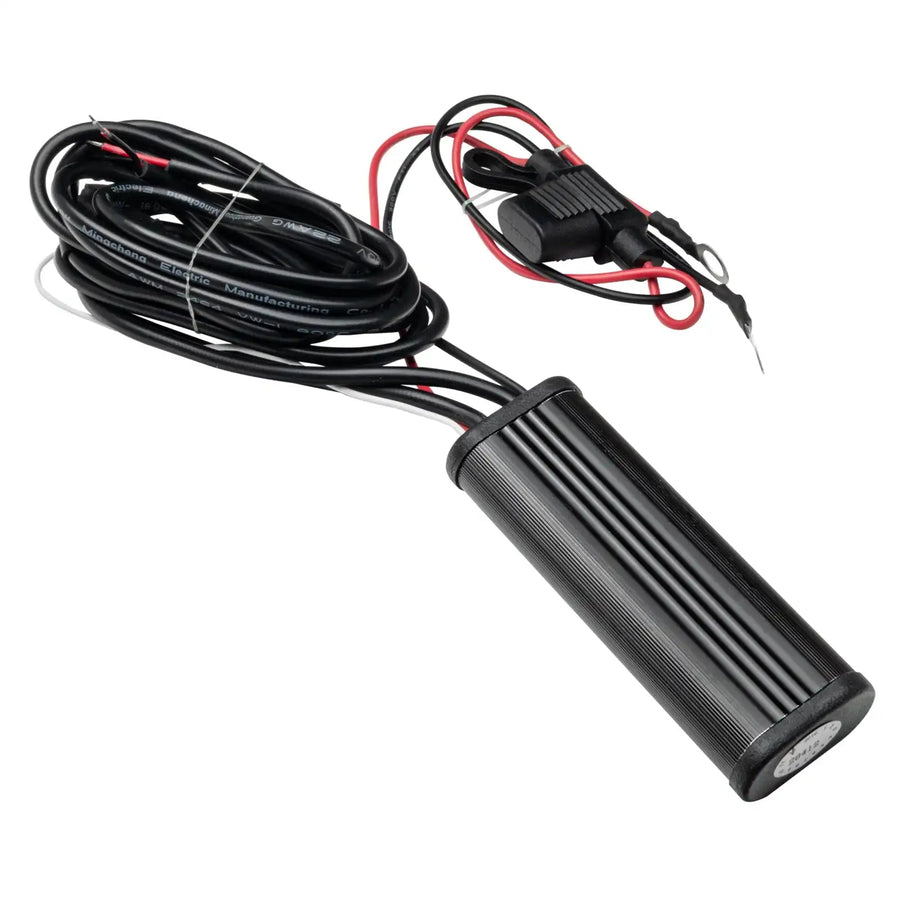

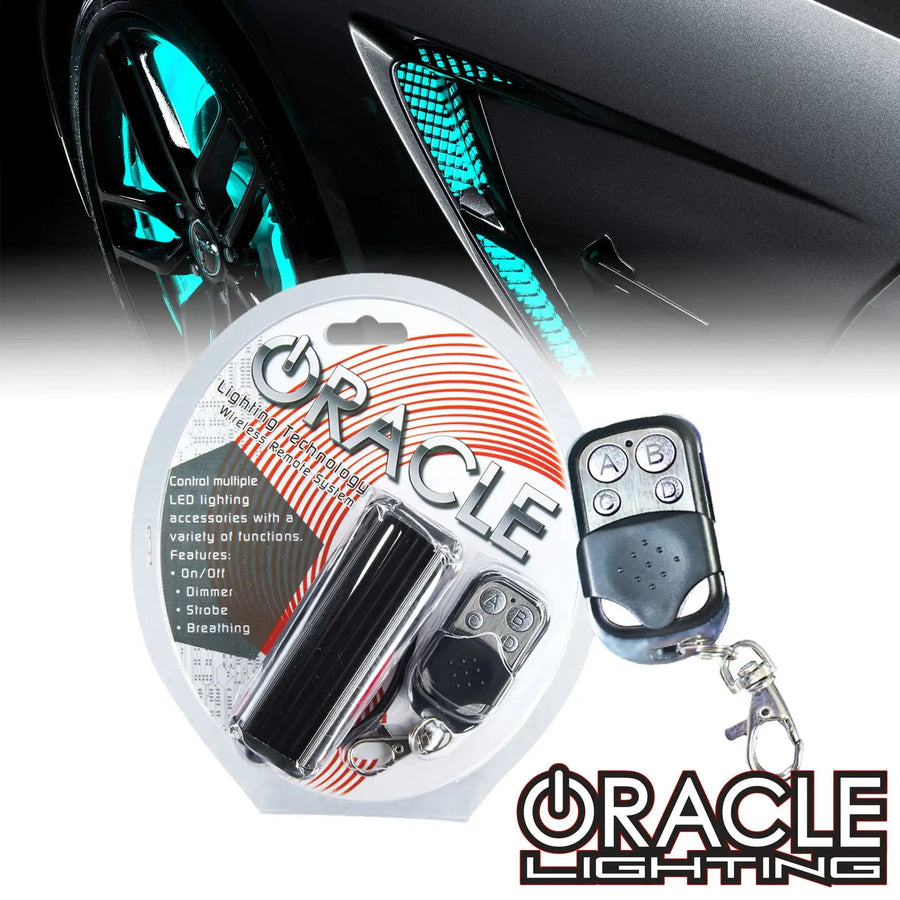

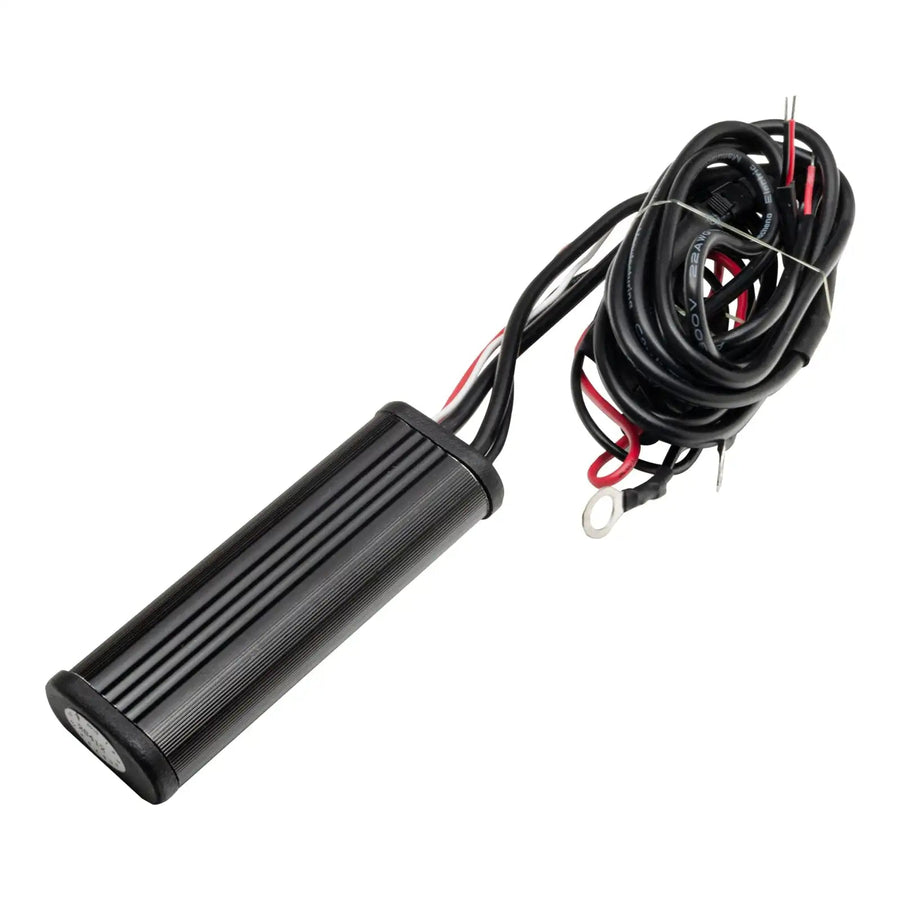

(1) ORACLE Single Channel Multifunction Remote Module

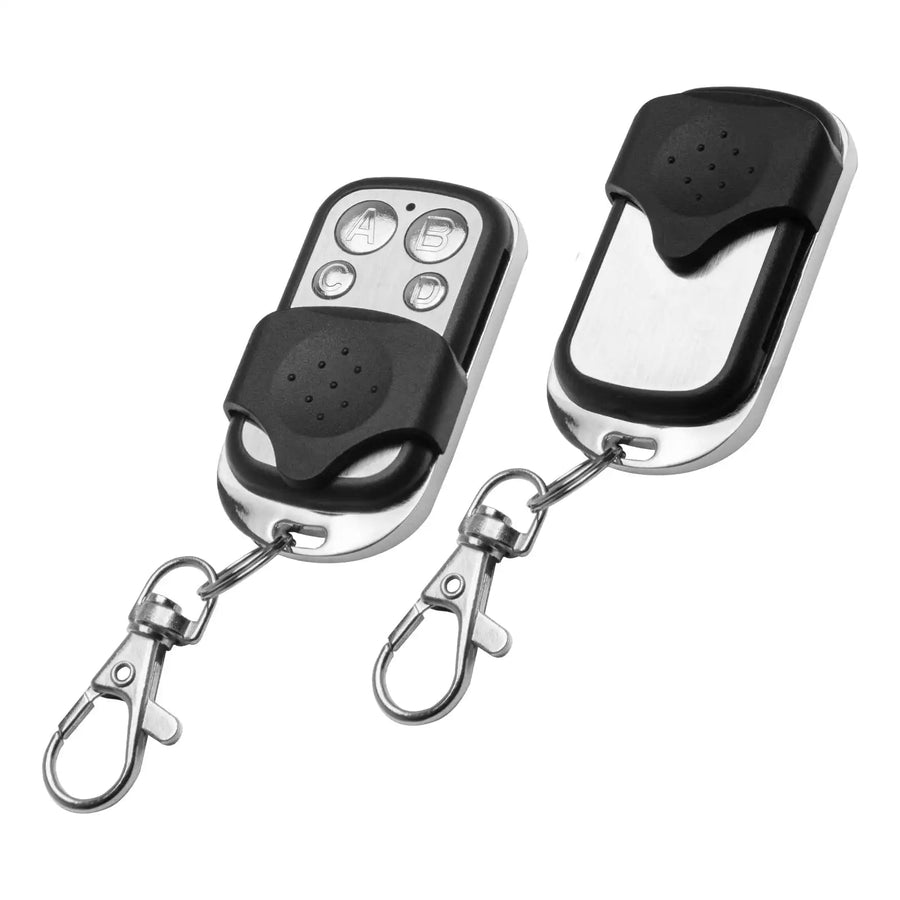

(1) ORACLE Single Channel Multifunction Remote Wireless Key FOB
