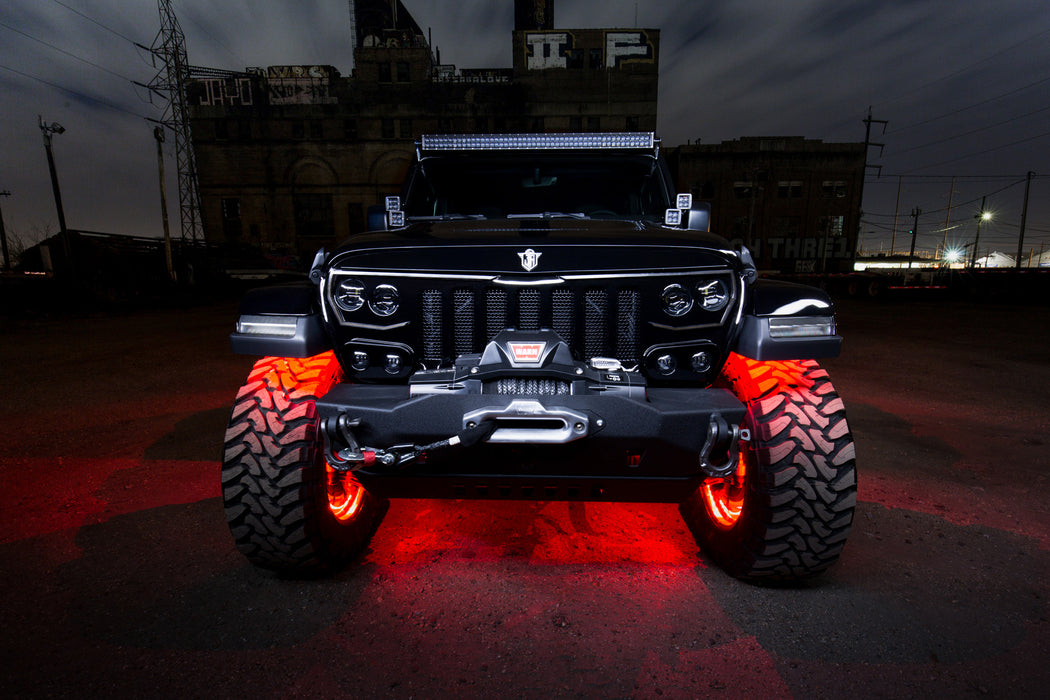

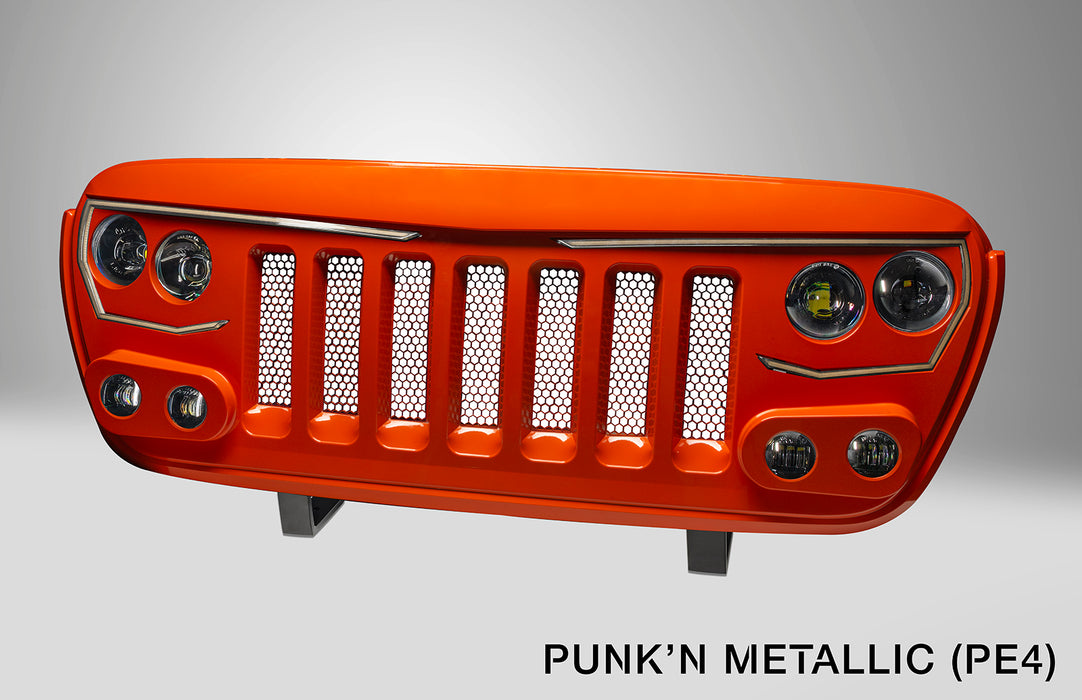

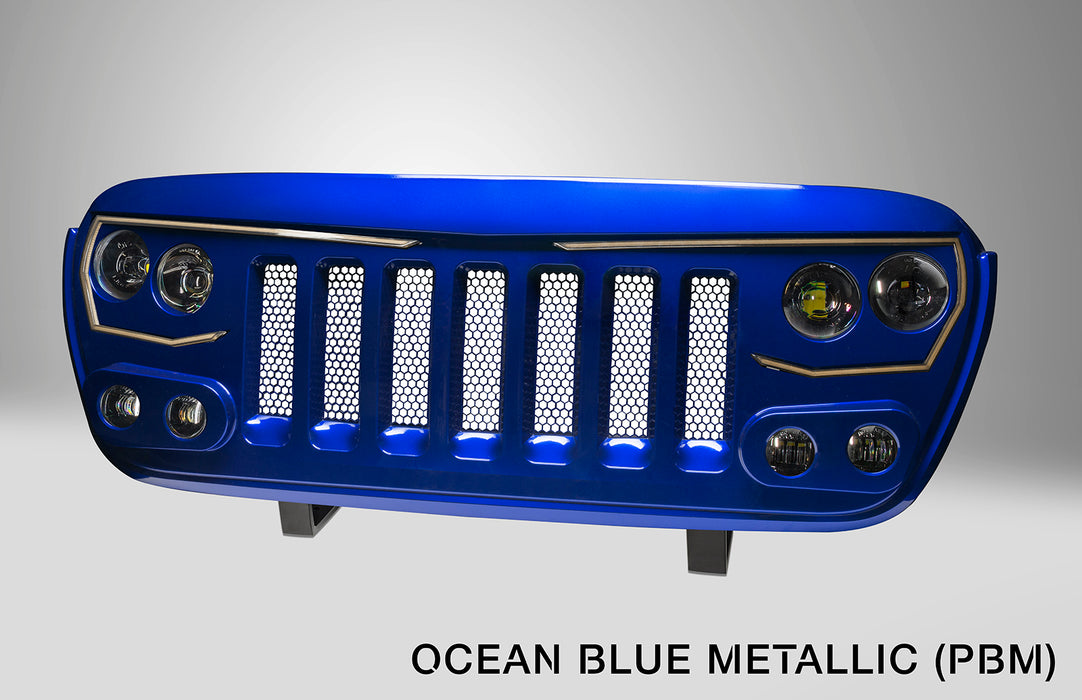

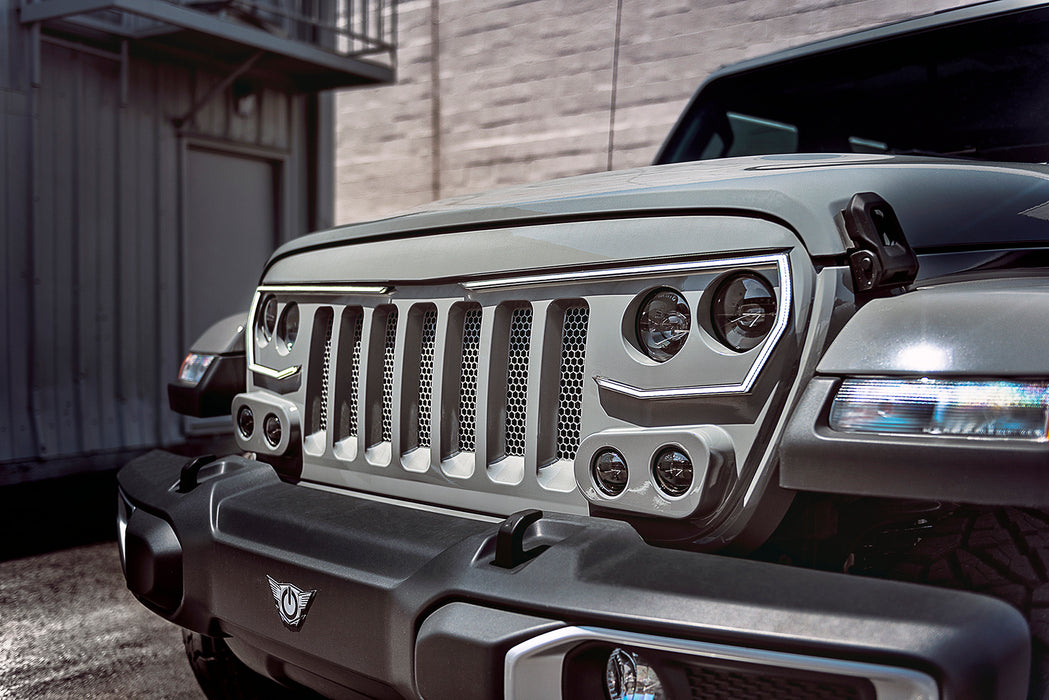

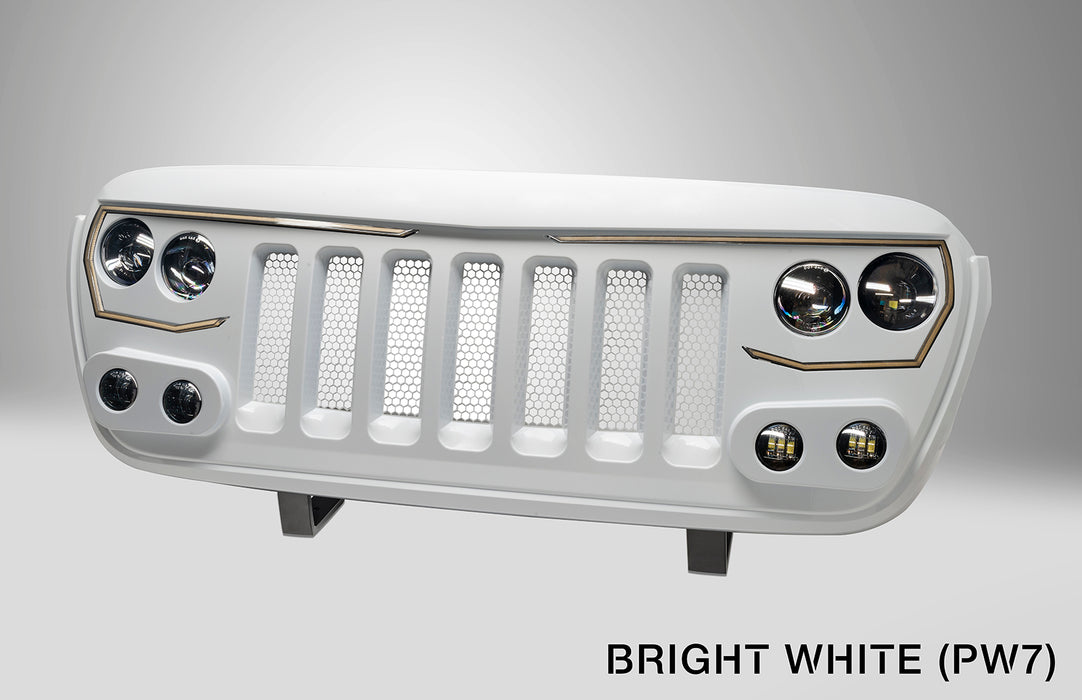

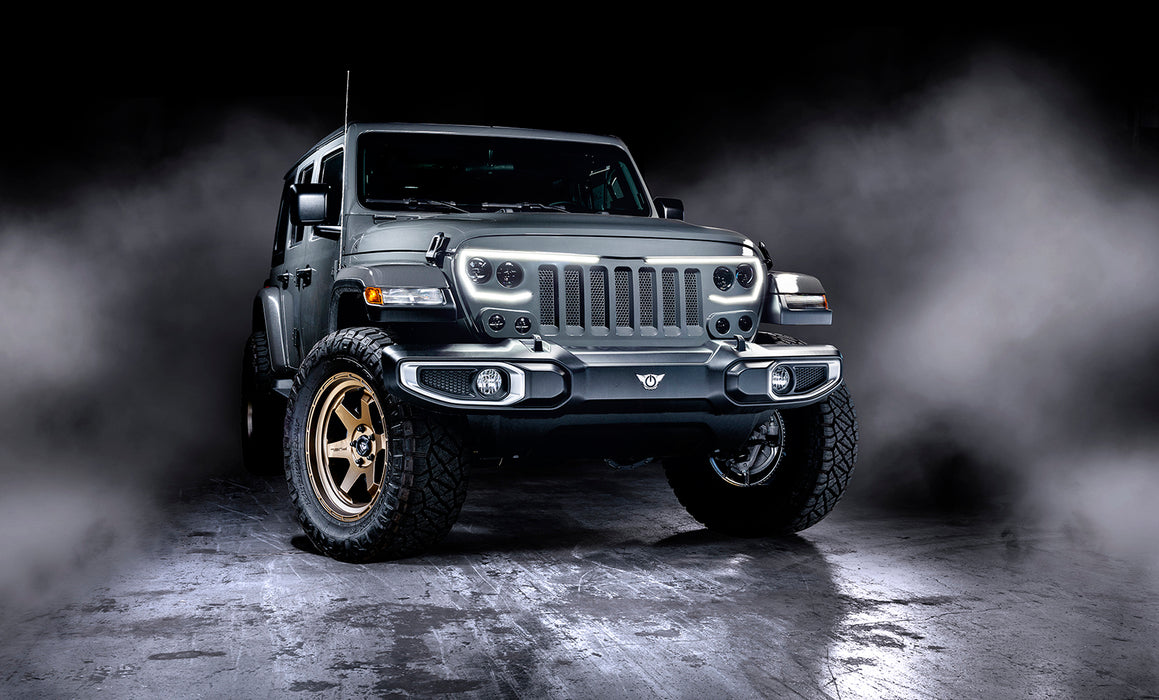

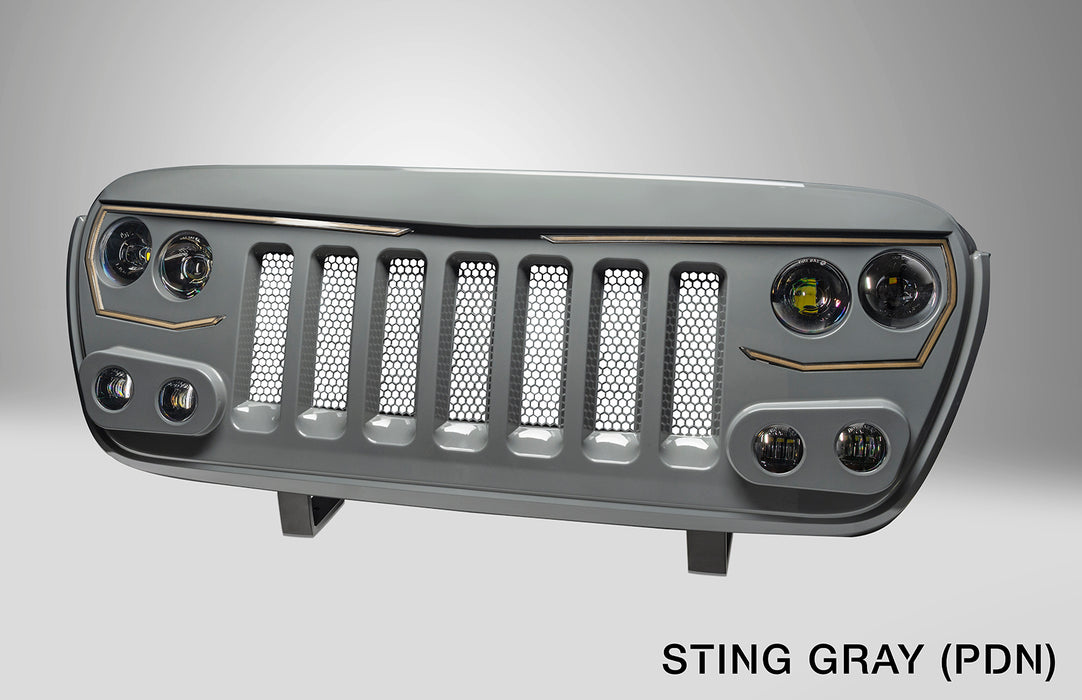

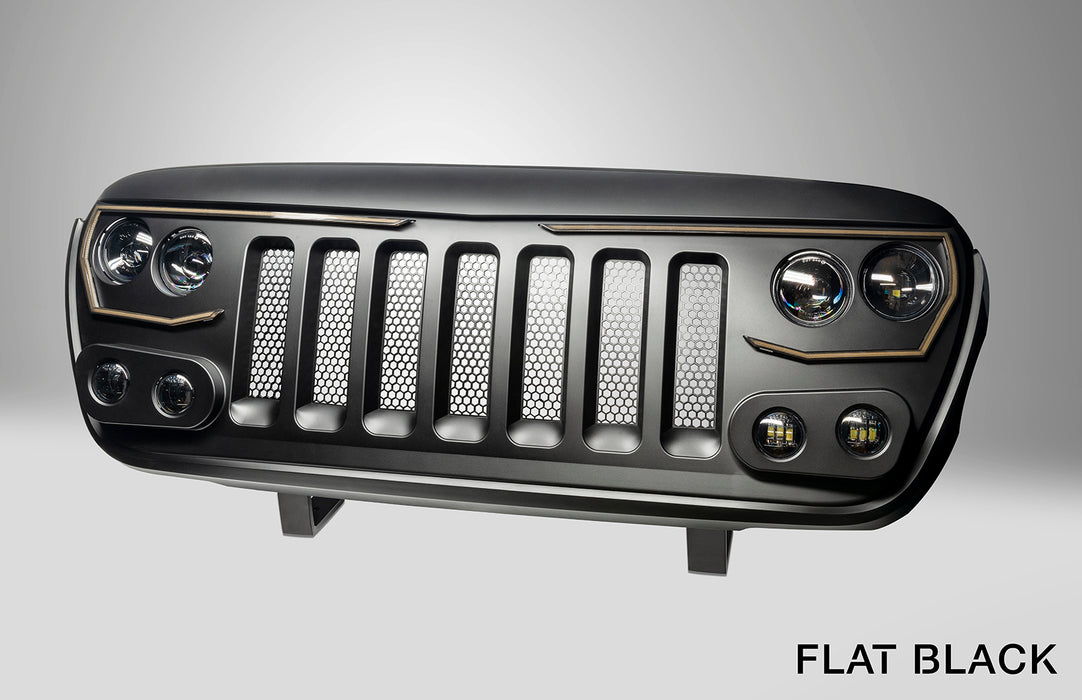

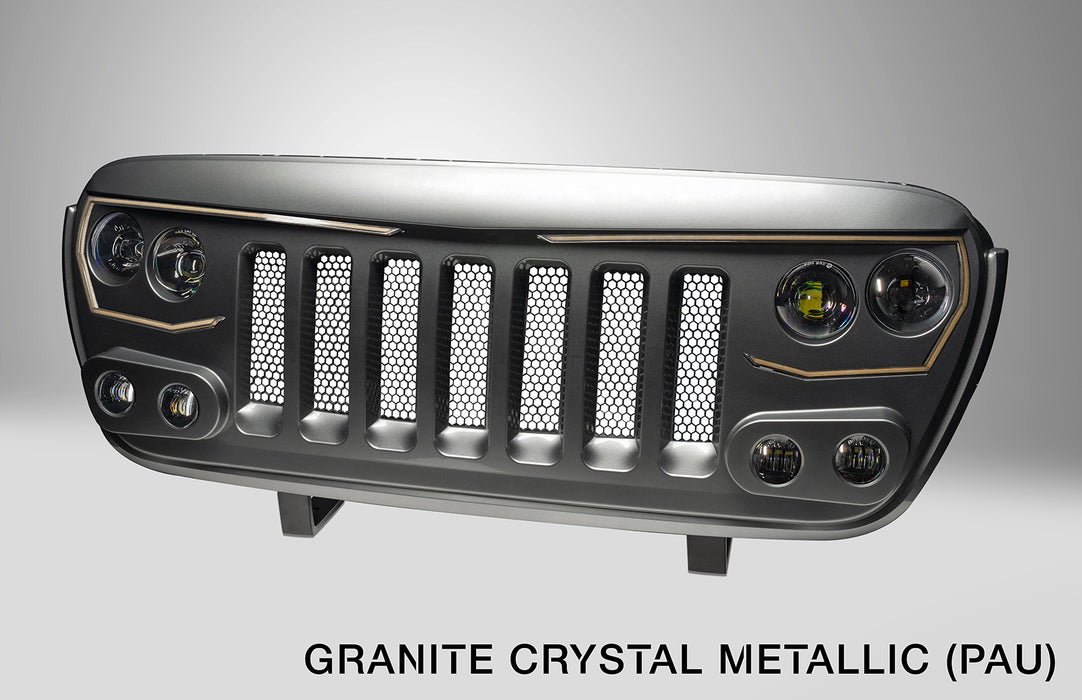

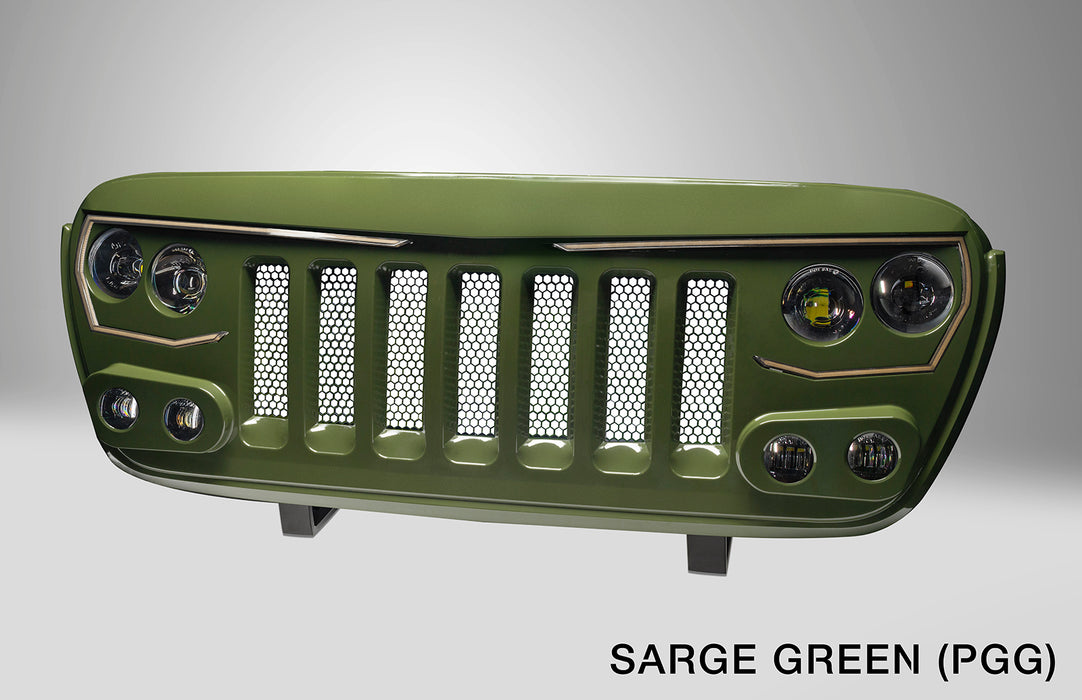

ORACLE Lighting VECTOR™ Pro Series II Full LED Grill for the Jeep Wrangler JL / Gladiator JT

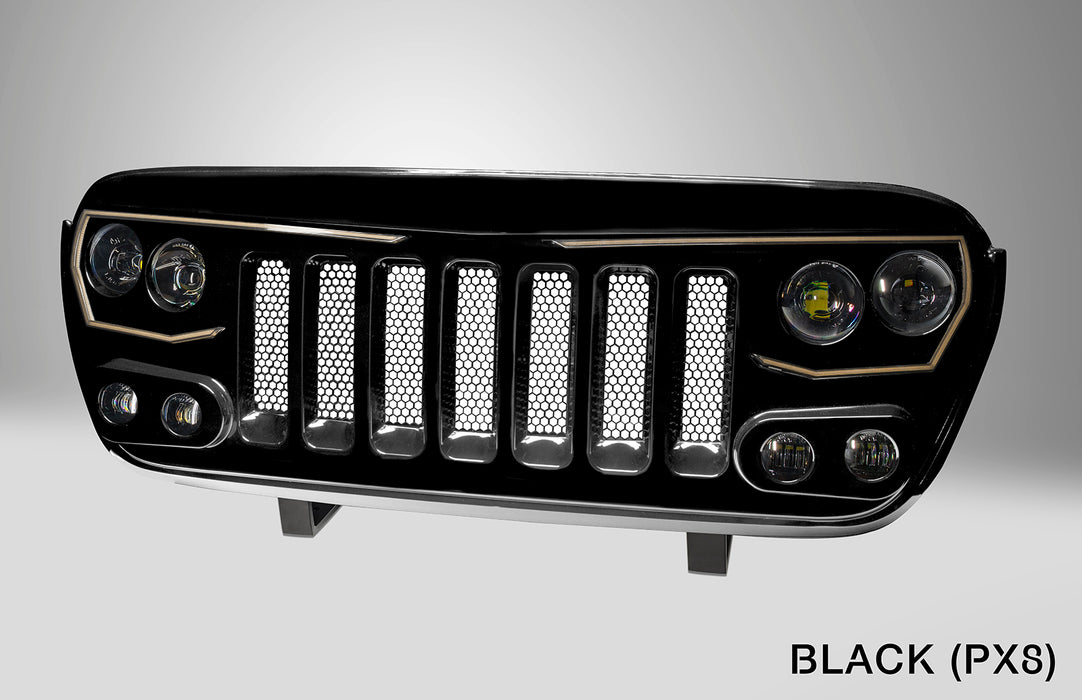

Angled view of VECTOR Pro-Series LED Grill

FREE SHIPPING OVER $100 2 YEAR WARRANTY FAST CUSTOMER SERVICE

ORACLE Lighting VECTOR™ Pro Series II Full LED Grill for the Jeep Wrangler JL / Gladiator JT

Name: ORACLE Lighting VECTOR™ Pro Series II Full LED Grill for the Jeep Wrangler JL / Gladiator JT
Rating: 5.00 (3 reviews)

$1,304.50

SKU: 5837-PRO

Increments of 1 Minimum of 1 Maximum of

Product Overview

The ORACLE Lighting VECTOR™ PRO Series II Grill System is all new for 2024 - the first full-featured replacement grill with integrated LED Low Beam, High Beam, and a Dynamic LED DRL in a single unit. Designed in the USA and CAD-developed for factory-quality fit and finish, it delivers the aggressive styling and rugged durability Jeep owners demand.

The PRO Series II revision brings major durability upgrades to the DRL modules, which are now robotically sealed to an IP68 rating - protecting against pressurized water spray and brief submersion. Modules are now hardware-mounted rather than adhesive for easier removal during grill painting or maintenance. Revised mold clips create a more secure DRL-to-housing seal, eliminating the moisture ingress point that caused LED failures in earlier models.

Each LED emitter is independently adjustable for horizontal and vertical aim - critical for lifted Wranglers and Gladiators to maintain road-legal beam patterns without blinding oncoming traffic. The separate Low Beam and Driving Beam emitters allow for proper light distribution and optimal road-legal coverage using precision LED optics.

ⓘ Not compatible with Trail Cam equipped vehicles. Read the full PRO Series II update notes

All-in-one lighting solution - Low Beam, High Beam, and DRL integrated into a single grill replacement. No separate headlight pods or brackets needed.
IP68-sealed DRL modules - Robotically sealed for maximum moisture protection, even under pressurized wash or brief submersion.
Hardware-mounted DRL modules - Easier removal for grill painting or maintenance vs. adhesive-mounted predecessors.
Revised mold clips - More secure DRL-to-housing seal eliminates the moisture ingress point found in earlier models.
Independent beam adjustment - Each emitter adjusts horizontally and vertically for precise, road-legal aim on stock or lifted rigs.
Dynamic LED startup sequence - The DRL performs a unique LED animation on startup for a distinctive look before you even hit the road.
5,600 combined lumen Low Beam - Advanced optics for precision road illumination without oncoming glare.
7,200 combined lumen High Beam - Maximum dark-terrain visibility.
Plug & Play headlight harness - Connects directly to the factory socket. No permanent wiring modifications.
DRL fused wiring adapter - Wires to fuse box via included Add-A-Fuse adapter for a clean, reversible install.
CAD-developed OEM-quality fit - Uses factory mounting points. No drilling or modification required.
Designed in the USA - USPTO design patent granted, additional patents pending internationally.

LED Low Beam Emitters (×4)

Total Output: 4,000 Lumens
LEDs: 24× Philips ZES™ 5W
Adjustability: Horizontal & Vertical
Optics: Advanced Precision No-Glare Beam

LED Driving / High Beam Emitters (×2)

Total Output: 1,600 Lumens
LEDs: 6× Philips ZES™ 5W
Adjustability: Horizontal & Vertical
Optics: Advanced Precision No-Glare Beam

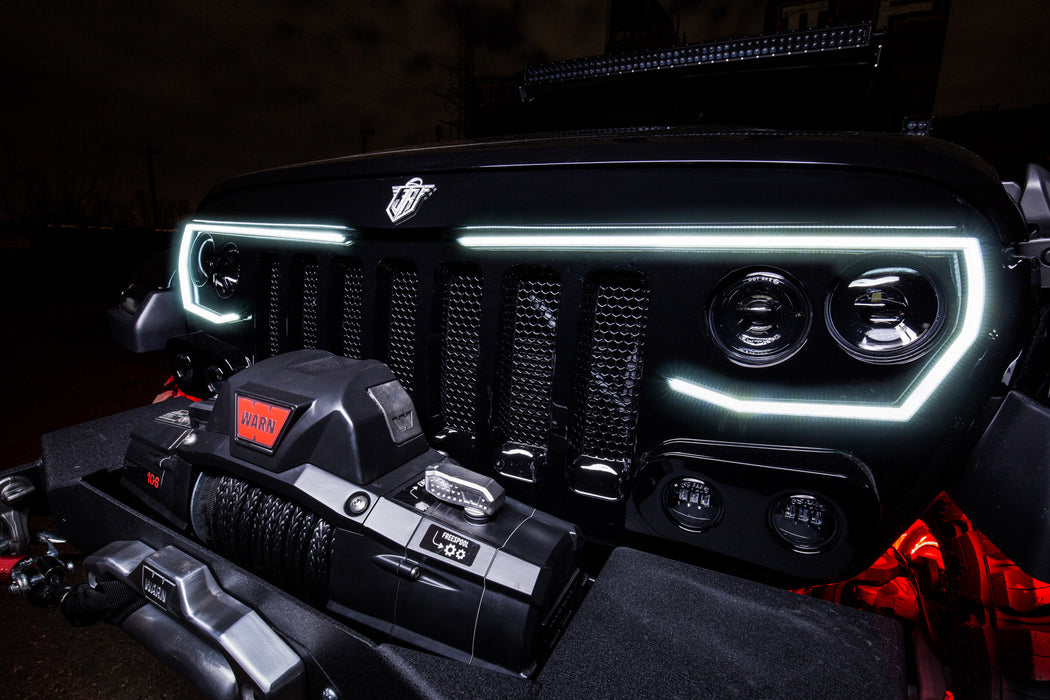

Dynamic LED DRL (×2)

LED Count: 200+ High Output LEDs
Ingress Protection: IP68 (Robotically Sealed)
Mounting: Hardware-mounted (not adhesive)
Startup Sequence: Dynamic LED Animation

Grill Construction

Material: Polycarbonate
Shell Rating: Impact Rated
Installation: Factory Mounts - No Drilling Required
Combined Low Beam Lumens (Raw): 5,600
Combined High Beam Lumens (Raw): 7,200
Part Number: 5837-PRO
UPC: 810030392019

Fits: Jeep Wrangler JL/ Gladiator JT

(1) ORACLE Lighting VECTOR™ Pro Series II Grill
(4) Adjustable LED Low Beam Emitters
(2) Adjustable LED Driving Beam Emitters
(2) LED High Beam (Bright Beam) Emitters
(2) Dynamic Daytime Running Lights (IP68 Sealed)
(2) Removable Mounting Brackets
(2) Plug & Play Headlight Harnesses
(1) DRL Cable Harness with Add-A-Fuse Circuit
(6) Metal Grill Retailer Installation Clips
(8) Headlight Spacers
(2) Screws
(1) Weatherproof Stripping
(1) Installation Guide & DIY Video Access

Warranty Policy

Returns & Exchanges

Shipping Policy

Installation Guide

ORACLE Lighting VECTOR™ Pro Series II Full LED Grill for the Jeep Wrangler JL / Gladiator JT

Installation takes 1-2 hours for most beginners using only basic hand tools. No drilling or permanent modifications required.
Uses factory mounting points - no cutting or drilling
Plug & Play headlight harness connects to factory socket
DRL wired to fuse box via included Add-A-Fuse adapter
Adjust each emitter independently after install for proper beam aim
▶ Vector Grill Installation FAQ

View Installation Guide

Why Oracle?

All of our products are engineered and designed right here in Metairie, Louisiana. With over 15 years of experience building lighting for the automotive aftermarket, we control every step of the process - from R&D to final assembly - so you're getting a part built to a standard, not just a spec sheet.

Whether it's an install question, a fitment question, or you just want a second opinion before you order - pick up the phone and talk to someone who actually knows the product. No call centers, no scripts. Just people who know Jeeps, Broncos, Tacomas, and trucks as well as you do.

We don't make one-size-fits-all lighting. Every product is engineered around the specific fitment, electronics, and driving demands of the platform it's built for - so what you install is what was designed for your vehicle from day one.

Before anything ships, it's been run through real-world abuse - mud, vibration, weather, and mileage - not just a bench test. If it can't survive the trail or the daily commute, it doesn't make it to your truck.

We stand behind what we build. Every Oracle product ships with a manufacturer warranty and a team that actually honors it - because a good part with no support isn't a good deal.

Orders ship quickly from our Metairie facility, with tracking sent the moment your parts are on their way - so you know exactly when to expect them, every time.

5 stars: 3 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Unique, modern, futuristic & iconic! All the things the Pro vector grill is.

I love my oracle grill, & oracle customer service is absolutely amazing!! It’s unique w/drl while still retaining the iconic Jeep 7 slot aesthetic.

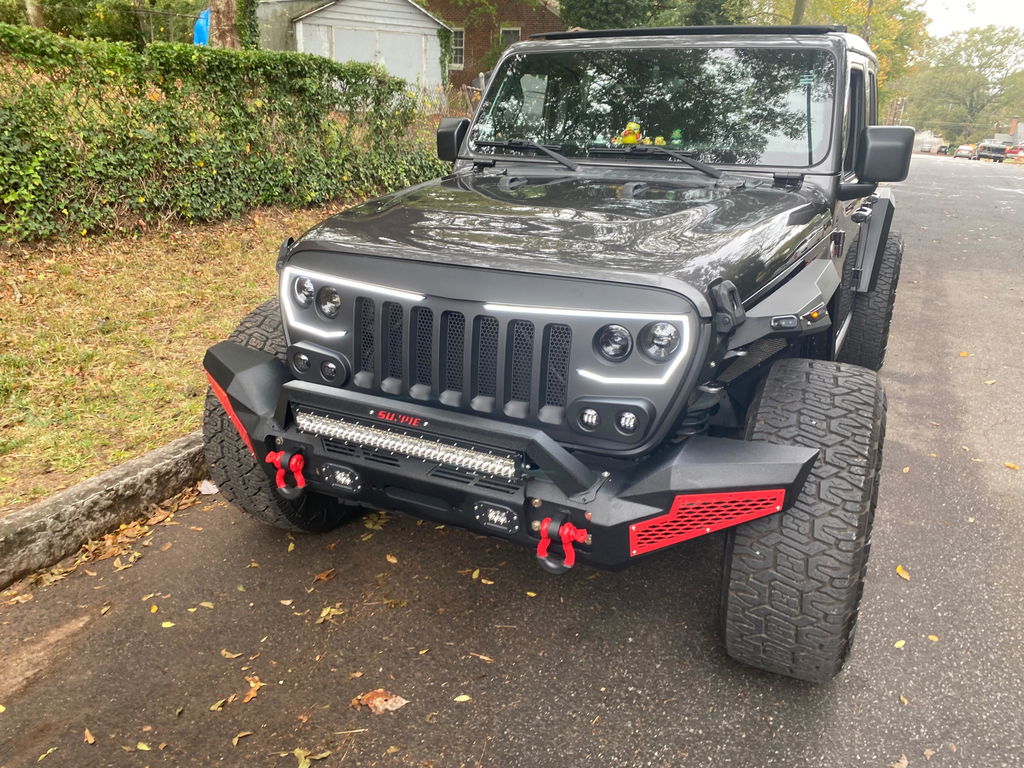

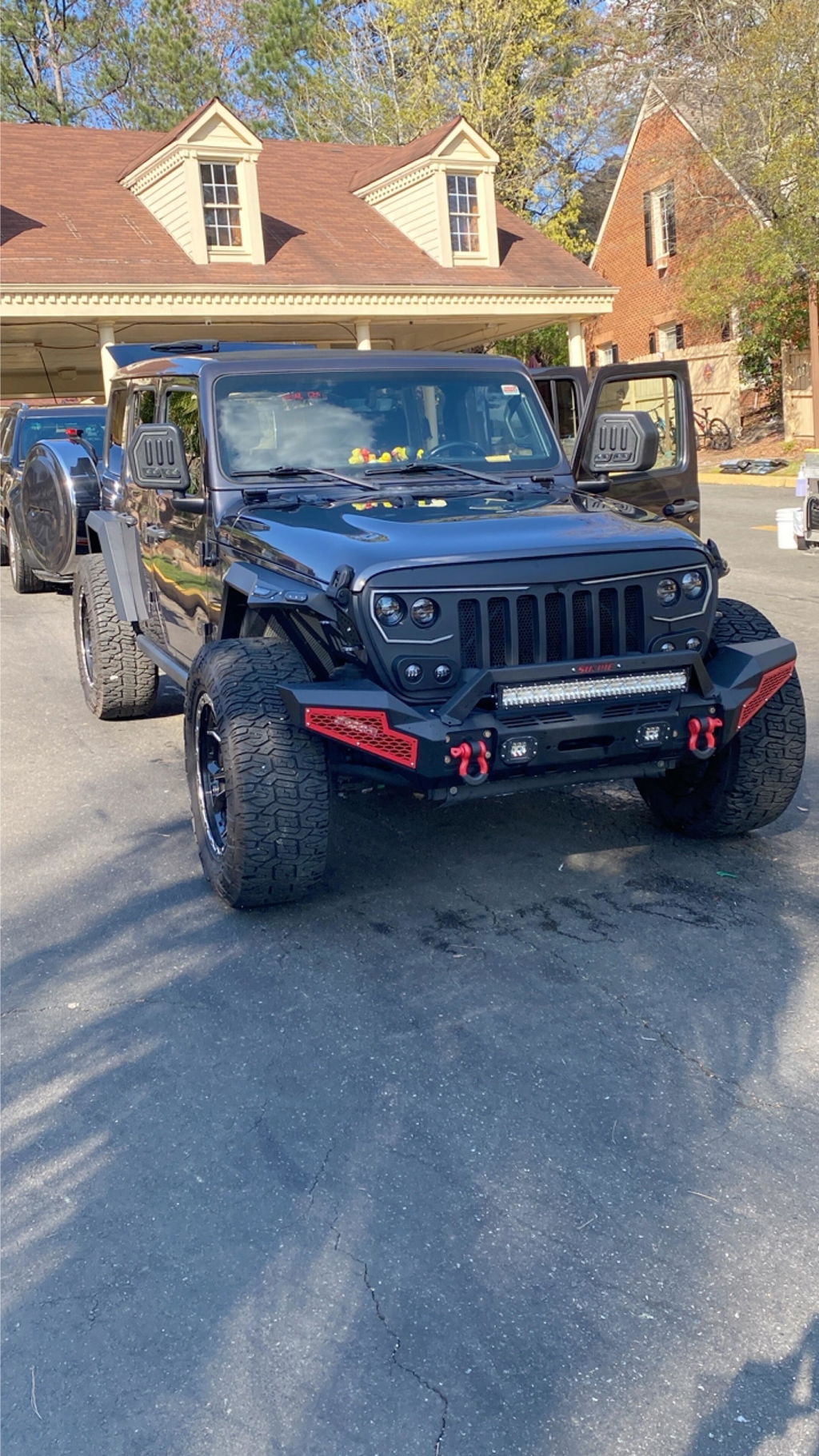

Niko Alexander (WarMachine Niko) review photo

Vector grille is amazing, unusual and quite the eye catcher.

I ordered the Vector Full LED Grill custom painted. Of course I waited a bit longer to receive it resulting from the time required. Upon arrival I found it to be well packaged and the paint job was perfect. It took a few hours to install and upon completion worked flawlessly. I am not a mechanic nor electrical whiz but found the job to be not very difficult. I have used the grill now for about 10 weeks and am very pleased. Most definitely gathers attention.

Great

I bought the vector grill with demon eye lights for my jeep gladiator. Dealing with someone through email or over the phone was done with ease and they were very knowledgeable about their products. I did have some issues with the BC1 controller but the customer service department worked very fast to fix the problem for me. I would absolutely recommend their products and company.
